MR-LAS0-Q-YM - 22 mm Mushroom Key-Lock Switch - Ø40 mm Q Head.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

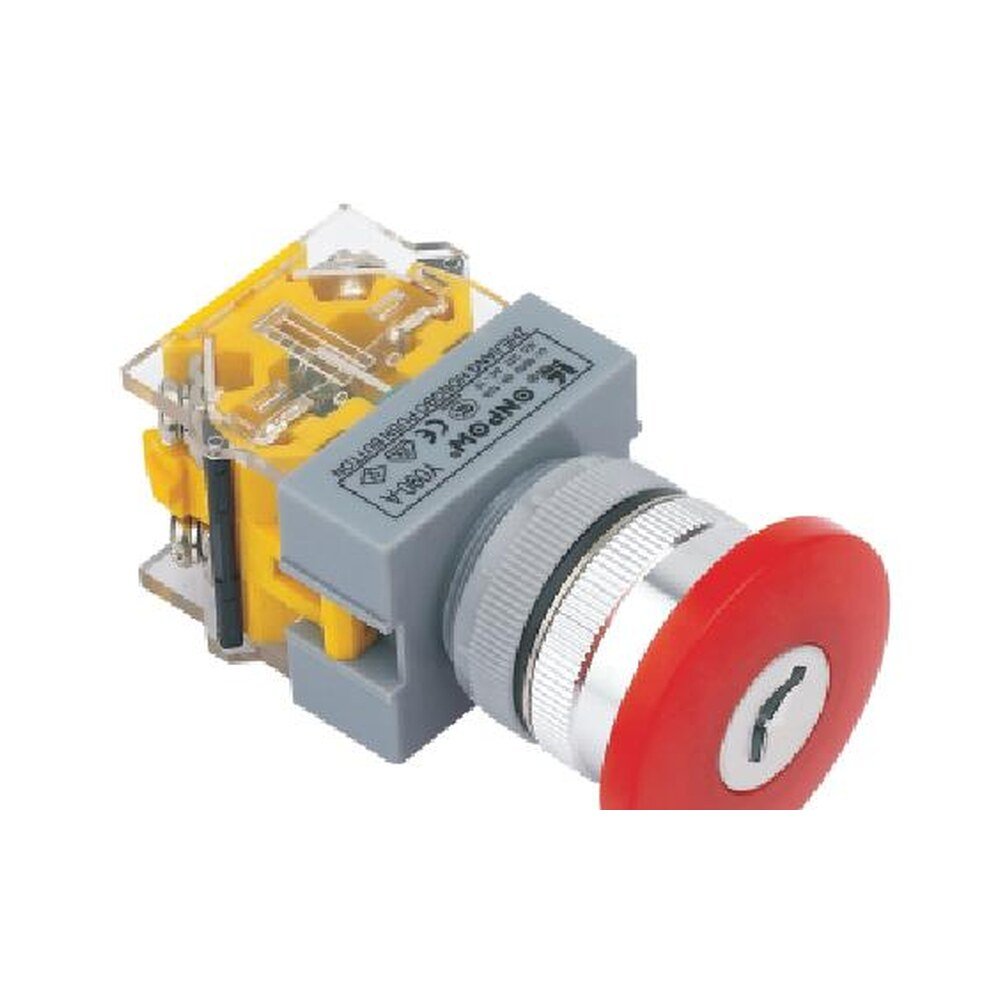

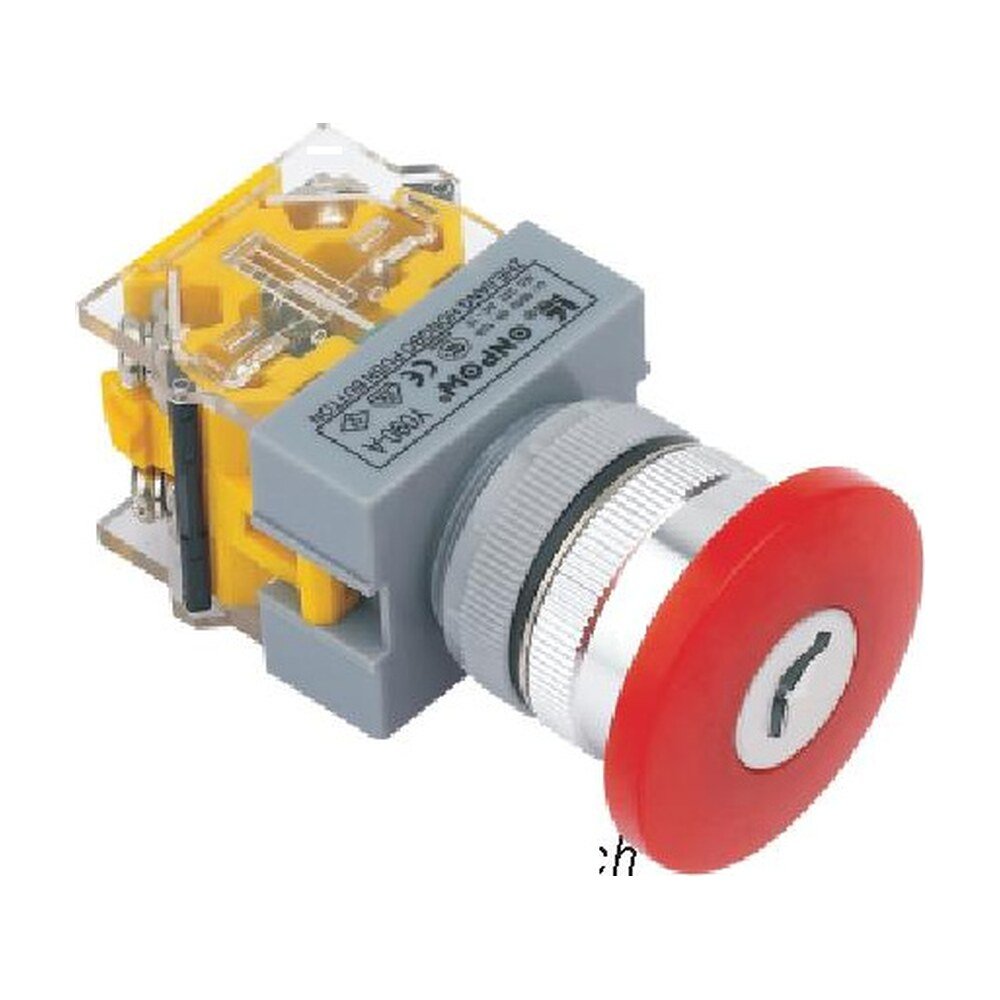

The MR-LAS0-Q-YM is a 22 mm modular key-lock switch with a Ø40 mm red mushroom head, 2 or 3 positions, maintained or self-return, with a choice of positions where the key is held and up to three groups of screw-terminal contact blocks rated 10 A at 500 V.
Ordering. The ordering code is MR-LAS0-Q-#YM-##-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 02 = 2NC, 20 = 2NO, 22 = 2NO2NC, 13 = 1NO3NC, 31 = 3NO1NC, 04 = 4NC, 40 = 4NO, 42 = 4NO2NC, 24 = 2NO4NC, 06 = 6NC, 60 = 6NO, 33 = 3NO3NC, 15 = 1NO5NC, 51 = 5NO1NC); position (21 = 2 position, maintained, 23 = 2 position, self-return, 31 = 3 position, maintained, 32 = 3 position, self-return from right, 33 = 3 position, self-return from both sides); key removal (none = Type A, key removable in every position, B = Key held in the right position, C = Key held in the left position, D = Key held in the left and right positions, E = Key held in the centre position, G = Key held in the centre and right positions, H = Key held in the left and centre positions); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. The terminal count and how many keys are supplied are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS0-Q-YM |
|---|---|
| Also ordered as | LAS0-Q-YM |
| Category | Key Switches, Switches |
| Ordering code | MR-LAS0-Q-#YM-##-# |
| Series | LAS0-Q (22 mm, Q-type fast-installation head) |
| Rated insulation voltage Ui | 500 V |
| Thermal current Ith | 10 A |
| Rated operation current, AC-12 | 24 V: 10 A, 110 V: 10 A, 220 V: 6 A |
| Rated operation current, AC-15 | 24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A |
| Rated operation current, DC-12 | 24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A |
| Rated operation current, DC-13 | 24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Contact structure | Modular switch blocks, fast-acting or slow-acting, self-cleaning; 2 elements per block, up to 8 elements |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Mushroom key-lock switch |
| Mechanical life | 200,000 operations min |
| Electrical life | 50,000 operations min |
| Return option | Position 32 returns from the right as standard; return from the left can be made to order |
| Protection class | IP40 standard, IP65 to order (P), maintained positions only |
| Bezel | 30 × 37 mm |
| Key option | Keys that cannot be withdrawn in a specified position can be made to order |
| Head | Mushroom, Ø40 mm |
| Front projection | 42 mm including key; 21 mm dimension shown to the panel |
| Body length behind panel | 52.5 mm |
| Accessories | Sign frame T04, Protective cover T35 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS0-Q-YM is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS0-Q-11YM-21 | 1NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-11YM-21-P | 1NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-11YM-21B | 1NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-11YM-21B-P | 1NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-11YM-21C | 1NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-11YM-21C-P | 1NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-11YM-21D | 1NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-21D-P | 1NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-11YM-23 | 1NO1NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-11YM-23B | 1NO1NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-11YM-23C | 1NO1NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-11YM-23D | 1NO1NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-31 | 1NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-11YM-31-P | 1NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-11YM-31B | 1NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-11YM-31B-P | 1NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-11YM-31C | 1NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-11YM-31C-P | 1NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-11YM-31D | 1NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-31D-P | 1NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-11YM-31E | 1NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-11YM-31E-P | 1NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-11YM-31G | 1NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-31G-P | 1NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-11YM-31H | 1NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-31H-P | 1NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-11YM-32 | 1NO1NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-11YM-32B | 1NO1NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-11YM-32C | 1NO1NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-11YM-32D | 1NO1NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-32E | 1NO1NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-11YM-32G | 1NO1NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-32H | 1NO1NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-33 | 1NO1NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-11YM-33B | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-11YM-33C | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-11YM-33D | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-33E | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-11YM-33G | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-11YM-33H | 1NO1NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-21 | 2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-02YM-21-P | 2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-02YM-21B | 2NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-02YM-21B-P | 2NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-02YM-21C | 2NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-02YM-21C-P | 2NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-02YM-21D | 2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-21D-P | 2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-02YM-23 | 2NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-02YM-23B | 2NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-02YM-23C | 2NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-02YM-23D | 2NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-31 | 2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-02YM-31-P | 2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-02YM-31B | 2NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-02YM-31B-P | 2NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-02YM-31C | 2NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-02YM-31C-P | 2NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-02YM-31D | 2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-31D-P | 2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-02YM-31E | 2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-02YM-31E-P | 2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-02YM-31G | 2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-31G-P | 2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-02YM-31H | 2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-31H-P | 2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-02YM-32 | 2NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-02YM-32B | 2NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-02YM-32C | 2NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-02YM-32D | 2NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-32E | 2NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-02YM-32G | 2NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-32H | 2NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-33 | 2NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-02YM-33B | 2NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-02YM-33C | 2NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-02YM-33D | 2NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-33E | 2NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-02YM-33G | 2NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-02YM-33H | 2NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-21 | 2NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-20YM-21-P | 2NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-20YM-21B | 2NO contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-20YM-21B-P | 2NO contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-20YM-21C | 2NO contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-20YM-21C-P | 2NO contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-20YM-21D | 2NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-21D-P | 2NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-20YM-23 | 2NO contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-20YM-23B | 2NO contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-20YM-23C | 2NO contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-20YM-23D | 2NO contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-31 | 2NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-20YM-31-P | 2NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-20YM-31B | 2NO contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-20YM-31B-P | 2NO contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-20YM-31C | 2NO contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-20YM-31C-P | 2NO contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-20YM-31D | 2NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-31D-P | 2NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-20YM-31E | 2NO contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-20YM-31E-P | 2NO contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-20YM-31G | 2NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-31G-P | 2NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-20YM-31H | 2NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-31H-P | 2NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-20YM-32 | 2NO contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-20YM-32B | 2NO contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-20YM-32C | 2NO contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-20YM-32D | 2NO contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-32E | 2NO contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-20YM-32G | 2NO contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-32H | 2NO contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-33 | 2NO contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-20YM-33B | 2NO contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-20YM-33C | 2NO contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-20YM-33D | 2NO contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-33E | 2NO contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-20YM-33G | 2NO contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-20YM-33H | 2NO contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-21 | 2NO2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-22YM-21-P | 2NO2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-22YM-21B | 2NO2NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-22YM-21B-P | 2NO2NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-22YM-21C | 2NO2NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-22YM-21C-P | 2NO2NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-22YM-21D | 2NO2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-21D-P | 2NO2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-22YM-23 | 2NO2NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-22YM-23B | 2NO2NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-22YM-23C | 2NO2NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-22YM-23D | 2NO2NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-31 | 2NO2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-22YM-31-P | 2NO2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-22YM-31B | 2NO2NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-22YM-31B-P | 2NO2NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-22YM-31C | 2NO2NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-22YM-31C-P | 2NO2NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-22YM-31D | 2NO2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-31D-P | 2NO2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-22YM-31E | 2NO2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-22YM-31E-P | 2NO2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-22YM-31G | 2NO2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-31G-P | 2NO2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-22YM-31H | 2NO2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-31H-P | 2NO2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-22YM-32 | 2NO2NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-22YM-32B | 2NO2NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-22YM-32C | 2NO2NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-22YM-32D | 2NO2NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-32E | 2NO2NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-22YM-32G | 2NO2NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-32H | 2NO2NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-33 | 2NO2NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-22YM-33B | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-22YM-33C | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-22YM-33D | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-33E | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-22YM-33G | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-22YM-33H | 2NO2NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-21 | 1NO3NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-13YM-21-P | 1NO3NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-13YM-21B | 1NO3NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-13YM-21B-P | 1NO3NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-13YM-21C | 1NO3NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-13YM-21C-P | 1NO3NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-13YM-21D | 1NO3NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-21D-P | 1NO3NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-13YM-23 | 1NO3NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-13YM-23B | 1NO3NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-13YM-23C | 1NO3NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-13YM-23D | 1NO3NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-31 | 1NO3NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-13YM-31-P | 1NO3NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-13YM-31B | 1NO3NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-13YM-31B-P | 1NO3NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-13YM-31C | 1NO3NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-13YM-31C-P | 1NO3NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-13YM-31D | 1NO3NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-31D-P | 1NO3NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-13YM-31E | 1NO3NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-13YM-31E-P | 1NO3NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-13YM-31G | 1NO3NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-31G-P | 1NO3NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-13YM-31H | 1NO3NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-31H-P | 1NO3NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-13YM-32 | 1NO3NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-13YM-32B | 1NO3NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-13YM-32C | 1NO3NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-13YM-32D | 1NO3NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-32E | 1NO3NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-13YM-32G | 1NO3NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-32H | 1NO3NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-33 | 1NO3NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-13YM-33B | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-13YM-33C | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-13YM-33D | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-33E | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-13YM-33G | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-13YM-33H | 1NO3NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-21 | 3NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-31YM-21-P | 3NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-31YM-21B | 3NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-31YM-21B-P | 3NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-31YM-21C | 3NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-31YM-21C-P | 3NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-31YM-21D | 3NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-21D-P | 3NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-31YM-23 | 3NO1NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-31YM-23B | 3NO1NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-31YM-23C | 3NO1NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-31YM-23D | 3NO1NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-31 | 3NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-31YM-31-P | 3NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-31YM-31B | 3NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-31YM-31B-P | 3NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-31YM-31C | 3NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-31YM-31C-P | 3NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-31YM-31D | 3NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-31D-P | 3NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-31YM-31E | 3NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-31YM-31E-P | 3NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-31YM-31G | 3NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-31G-P | 3NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-31YM-31H | 3NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-31H-P | 3NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-31YM-32 | 3NO1NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-31YM-32B | 3NO1NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-31YM-32C | 3NO1NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-31YM-32D | 3NO1NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-32E | 3NO1NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-31YM-32G | 3NO1NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-32H | 3NO1NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-33 | 3NO1NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-31YM-33B | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-31YM-33C | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-31YM-33D | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-33E | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-31YM-33G | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-31YM-33H | 3NO1NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-21 | 4NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-04YM-21-P | 4NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-04YM-21B | 4NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-04YM-21B-P | 4NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-04YM-21C | 4NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-04YM-21C-P | 4NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-04YM-21D | 4NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-21D-P | 4NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-04YM-23 | 4NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-04YM-23B | 4NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-04YM-23C | 4NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-04YM-23D | 4NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-31 | 4NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-04YM-31-P | 4NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-04YM-31B | 4NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-04YM-31B-P | 4NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-04YM-31C | 4NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-04YM-31C-P | 4NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-04YM-31D | 4NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-31D-P | 4NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-04YM-31E | 4NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-04YM-31E-P | 4NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-04YM-31G | 4NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-31G-P | 4NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-04YM-31H | 4NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-31H-P | 4NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-04YM-32 | 4NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-04YM-32B | 4NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-04YM-32C | 4NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-04YM-32D | 4NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-32E | 4NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-04YM-32G | 4NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-32H | 4NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-33 | 4NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-04YM-33B | 4NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-04YM-33C | 4NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-04YM-33D | 4NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-33E | 4NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-04YM-33G | 4NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-04YM-33H | 4NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-21 | 4NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-40YM-21-P | 4NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-40YM-21B | 4NO contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-40YM-21B-P | 4NO contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-40YM-21C | 4NO contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-40YM-21C-P | 4NO contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-40YM-21D | 4NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-21D-P | 4NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-40YM-23 | 4NO contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-40YM-23B | 4NO contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-40YM-23C | 4NO contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-40YM-23D | 4NO contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-31 | 4NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-40YM-31-P | 4NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-40YM-31B | 4NO contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-40YM-31B-P | 4NO contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-40YM-31C | 4NO contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-40YM-31C-P | 4NO contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-40YM-31D | 4NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-31D-P | 4NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-40YM-31E | 4NO contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-40YM-31E-P | 4NO contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-40YM-31G | 4NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-31G-P | 4NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-40YM-31H | 4NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-31H-P | 4NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-40YM-32 | 4NO contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-40YM-32B | 4NO contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-40YM-32C | 4NO contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-40YM-32D | 4NO contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-32E | 4NO contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-40YM-32G | 4NO contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-32H | 4NO contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-33 | 4NO contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-40YM-33B | 4NO contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-40YM-33C | 4NO contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-40YM-33D | 4NO contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-33E | 4NO contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-40YM-33G | 4NO contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-40YM-33H | 4NO contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-21 | 4NO2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-42YM-21-P | 4NO2NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-42YM-21B | 4NO2NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-42YM-21B-P | 4NO2NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-42YM-21C | 4NO2NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-42YM-21C-P | 4NO2NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-42YM-21D | 4NO2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-21D-P | 4NO2NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-42YM-23 | 4NO2NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-42YM-23B | 4NO2NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-42YM-23C | 4NO2NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-42YM-23D | 4NO2NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-31 | 4NO2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-42YM-31-P | 4NO2NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-42YM-31B | 4NO2NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-42YM-31B-P | 4NO2NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-42YM-31C | 4NO2NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-42YM-31C-P | 4NO2NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-42YM-31D | 4NO2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-31D-P | 4NO2NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-42YM-31E | 4NO2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-42YM-31E-P | 4NO2NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-42YM-31G | 4NO2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-31G-P | 4NO2NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-42YM-31H | 4NO2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-31H-P | 4NO2NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-42YM-32 | 4NO2NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-42YM-32B | 4NO2NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-42YM-32C | 4NO2NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-42YM-32D | 4NO2NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-32E | 4NO2NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-42YM-32G | 4NO2NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-32H | 4NO2NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-33 | 4NO2NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-42YM-33B | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-42YM-33C | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-42YM-33D | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-33E | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-42YM-33G | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-42YM-33H | 4NO2NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-21 | 2NO4NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-24YM-21-P | 2NO4NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-24YM-21B | 2NO4NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-24YM-21B-P | 2NO4NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-24YM-21C | 2NO4NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-24YM-21C-P | 2NO4NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-24YM-21D | 2NO4NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-21D-P | 2NO4NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-24YM-23 | 2NO4NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-24YM-23B | 2NO4NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-24YM-23C | 2NO4NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-24YM-23D | 2NO4NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-31 | 2NO4NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-24YM-31-P | 2NO4NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-24YM-31B | 2NO4NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-24YM-31B-P | 2NO4NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-24YM-31C | 2NO4NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-24YM-31C-P | 2NO4NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-24YM-31D | 2NO4NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-31D-P | 2NO4NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-24YM-31E | 2NO4NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-24YM-31E-P | 2NO4NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-24YM-31G | 2NO4NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-31G-P | 2NO4NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-24YM-31H | 2NO4NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-31H-P | 2NO4NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-24YM-32 | 2NO4NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-24YM-32B | 2NO4NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-24YM-32C | 2NO4NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-24YM-32D | 2NO4NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-32E | 2NO4NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-24YM-32G | 2NO4NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-32H | 2NO4NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-33 | 2NO4NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-24YM-33B | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-24YM-33C | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-24YM-33D | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-33E | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-24YM-33G | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-24YM-33H | 2NO4NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-21 | 6NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-06YM-21-P | 6NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-06YM-21B | 6NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-06YM-21B-P | 6NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-06YM-21C | 6NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-06YM-21C-P | 6NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-06YM-21D | 6NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-21D-P | 6NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-06YM-23 | 6NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-06YM-23B | 6NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-06YM-23C | 6NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-06YM-23D | 6NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-31 | 6NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-06YM-31-P | 6NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-06YM-31B | 6NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-06YM-31B-P | 6NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-06YM-31C | 6NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-06YM-31C-P | 6NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-06YM-31D | 6NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-31D-P | 6NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-06YM-31E | 6NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-06YM-31E-P | 6NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-06YM-31G | 6NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-31G-P | 6NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-06YM-31H | 6NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-31H-P | 6NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-06YM-32 | 6NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-06YM-32B | 6NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-06YM-32C | 6NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-06YM-32D | 6NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-32E | 6NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-06YM-32G | 6NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-32H | 6NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-33 | 6NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-06YM-33B | 6NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-06YM-33C | 6NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-06YM-33D | 6NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-33E | 6NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-06YM-33G | 6NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-06YM-33H | 6NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-21 | 6NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-60YM-21-P | 6NO contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-60YM-21B | 6NO contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-60YM-21B-P | 6NO contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-60YM-21C | 6NO contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-60YM-21C-P | 6NO contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-60YM-21D | 6NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-21D-P | 6NO contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-60YM-23 | 6NO contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-60YM-23B | 6NO contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-60YM-23C | 6NO contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-60YM-23D | 6NO contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-31 | 6NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-60YM-31-P | 6NO contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-60YM-31B | 6NO contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-60YM-31B-P | 6NO contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-60YM-31C | 6NO contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-60YM-31C-P | 6NO contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-60YM-31D | 6NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-31D-P | 6NO contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-60YM-31E | 6NO contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-60YM-31E-P | 6NO contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-60YM-31G | 6NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-31G-P | 6NO contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-60YM-31H | 6NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-31H-P | 6NO contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-60YM-32 | 6NO contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-60YM-32B | 6NO contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-60YM-32C | 6NO contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-60YM-32D | 6NO contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-32E | 6NO contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-60YM-32G | 6NO contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-32H | 6NO contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-33 | 6NO contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-60YM-33B | 6NO contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-60YM-33C | 6NO contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-60YM-33D | 6NO contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-33E | 6NO contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-60YM-33G | 6NO contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-60YM-33H | 6NO contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-21 | 3NO3NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-33YM-21-P | 3NO3NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-33YM-21B | 3NO3NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-33YM-21B-P | 3NO3NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-33YM-21C | 3NO3NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-33YM-21C-P | 3NO3NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-33YM-21D | 3NO3NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-21D-P | 3NO3NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-33YM-23 | 3NO3NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-33YM-23B | 3NO3NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-33YM-23C | 3NO3NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-33YM-23D | 3NO3NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-31 | 3NO3NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-33YM-31-P | 3NO3NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-33YM-31B | 3NO3NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-33YM-31B-P | 3NO3NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-33YM-31C | 3NO3NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-33YM-31C-P | 3NO3NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-33YM-31D | 3NO3NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-31D-P | 3NO3NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-33YM-31E | 3NO3NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-33YM-31E-P | 3NO3NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-33YM-31G | 3NO3NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-31G-P | 3NO3NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-33YM-31H | 3NO3NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-31H-P | 3NO3NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-33YM-32 | 3NO3NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-33YM-32B | 3NO3NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-33YM-32C | 3NO3NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-33YM-32D | 3NO3NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-32E | 3NO3NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-33YM-32G | 3NO3NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-32H | 3NO3NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-33 | 3NO3NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-33YM-33B | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-33YM-33C | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-33YM-33D | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-33E | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-33YM-33G | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-33YM-33H | 3NO3NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-21 | 1NO5NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-15YM-21-P | 1NO5NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-15YM-21B | 1NO5NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-15YM-21B-P | 1NO5NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-15YM-21C | 1NO5NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-15YM-21C-P | 1NO5NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-15YM-21D | 1NO5NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-21D-P | 1NO5NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-15YM-23 | 1NO5NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-15YM-23B | 1NO5NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-15YM-23C | 1NO5NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-15YM-23D | 1NO5NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-31 | 1NO5NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-15YM-31-P | 1NO5NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-15YM-31B | 1NO5NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-15YM-31B-P | 1NO5NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-15YM-31C | 1NO5NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-15YM-31C-P | 1NO5NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-15YM-31D | 1NO5NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-31D-P | 1NO5NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-15YM-31E | 1NO5NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-15YM-31E-P | 1NO5NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-15YM-31G | 1NO5NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-31G-P | 1NO5NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-15YM-31H | 1NO5NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-31H-P | 1NO5NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-15YM-32 | 1NO5NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-15YM-32B | 1NO5NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-15YM-32C | 1NO5NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-15YM-32D | 1NO5NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-32E | 1NO5NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-15YM-32G | 1NO5NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-32H | 1NO5NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-33 | 1NO5NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-15YM-33B | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-15YM-33C | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-15YM-33D | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-33E | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-15YM-33G | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-15YM-33H | 1NO5NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-21 | 5NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-51YM-21-P | 5NO1NC contact, 2 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-51YM-21B | 5NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-51YM-21B-P | 5NO1NC contact, 2 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-51YM-21C | 5NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-51YM-21C-P | 5NO1NC contact, 2 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-51YM-21D | 5NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-21D-P | 5NO1NC contact, 2 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-51YM-23 | 5NO1NC contact, 2 position, self-return position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-51YM-23B | 5NO1NC contact, 2 position, self-return position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-51YM-23C | 5NO1NC contact, 2 position, self-return position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-51YM-23D | 5NO1NC contact, 2 position, self-return position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-31 | 5NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-51YM-31-P | 5NO1NC contact, 3 position, maintained position, Type A, key removable in every position key removal, IP65 protection |
| MR-LAS0-Q-51YM-31B | 5NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-51YM-31B-P | 5NO1NC contact, 3 position, maintained position, Key held in the right position key removal, IP65 protection |
| MR-LAS0-Q-51YM-31C | 5NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-51YM-31C-P | 5NO1NC contact, 3 position, maintained position, Key held in the left position key removal, IP65 protection |
| MR-LAS0-Q-51YM-31D | 5NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-31D-P | 5NO1NC contact, 3 position, maintained position, Key held in the left and right positions key removal, IP65 protection |
| MR-LAS0-Q-51YM-31E | 5NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-51YM-31E-P | 5NO1NC contact, 3 position, maintained position, Key held in the centre position key removal, IP65 protection |
| MR-LAS0-Q-51YM-31G | 5NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-31G-P | 5NO1NC contact, 3 position, maintained position, Key held in the centre and right positions key removal, IP65 protection |
| MR-LAS0-Q-51YM-31H | 5NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-31H-P | 5NO1NC contact, 3 position, maintained position, Key held in the left and centre positions key removal, IP65 protection |
| MR-LAS0-Q-51YM-32 | 5NO1NC contact, 3 position, self-return from right position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-51YM-32B | 5NO1NC contact, 3 position, self-return from right position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-51YM-32C | 5NO1NC contact, 3 position, self-return from right position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-51YM-32D | 5NO1NC contact, 3 position, self-return from right position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-32E | 5NO1NC contact, 3 position, self-return from right position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-51YM-32G | 5NO1NC contact, 3 position, self-return from right position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-32H | 5NO1NC contact, 3 position, self-return from right position, Key held in the left and centre positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-33 | 5NO1NC contact, 3 position, self-return from both sides position, Type A, key removable in every position key removal, IP40 protection |
| MR-LAS0-Q-51YM-33B | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the right position key removal, IP40 protection |
| MR-LAS0-Q-51YM-33C | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the left position key removal, IP40 protection |
| MR-LAS0-Q-51YM-33D | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the left and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-33E | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the centre position key removal, IP40 protection |
| MR-LAS0-Q-51YM-33G | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the centre and right positions key removal, IP40 protection |
| MR-LAS0-Q-51YM-33H | 5NO1NC contact, 3 position, self-return from both sides position, Key held in the left and centre positions key removal, IP40 protection |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
