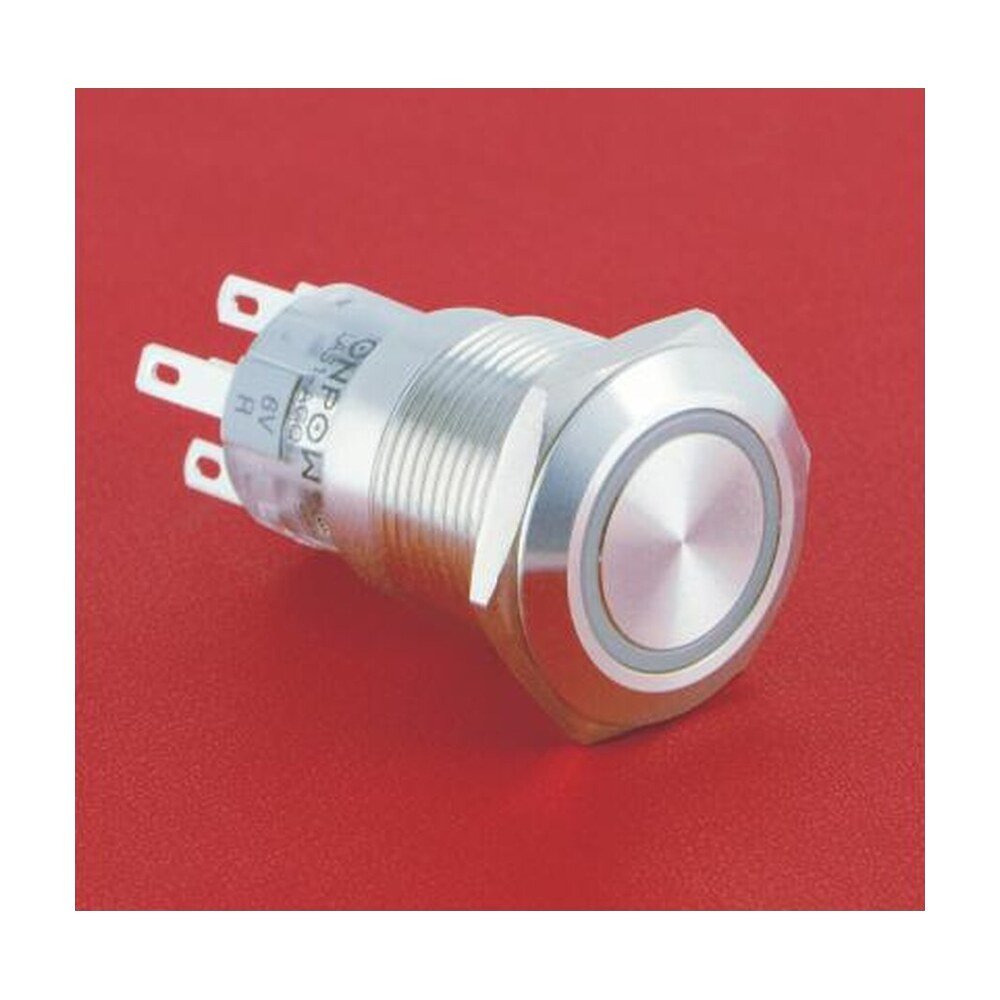

MR-LAS1-AGQ-11E-RGB - 19 mm Tri-Colour Anti-Vandal Push Button - RGB Ring Illumination, 1NO1NC, IP65.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-AGQ-11E-RGB is a 19 mm stainless-steel anti-vandal push button with a lit ring in red, green or blue, momentary or latching, 1NO1NC, IP65 and IK08.
Ordering. The ordering code is MR-LAS1-AGQ-11#E-#RGB-#-S: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); led option (41 = Tri-colour, common cathode, 42 = Tri-colour, common anode); led voltage (DC6V = DC 6 V, DC12V = DC 12 V, DC24V = DC 24 V). The part numbers are listed below.
Still being confirmed. Which actuation force and travel apply (the catalogue prints both 2 N / 3.1 mm and 4 N / 2 mm) and the part number for the dual-colour 3-pin version are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ-11E-RGB |
|---|---|
| Also ordered as | LAS1-AGQ-11E/RGB |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1-AGQ-11#E-#RGB-#-S |
| Type | Tri-colour push button, 1.1 mm ring illumination |
| Series | LAS1-AGQ tri-colour push buttons (anti-vandal metal) |
| Contact configuration | 1NO1NC |
| Switching | Single-break, fast-motion contact |
| Terminals | Solder lugs, 2.8 × 0.5 mm |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (ref.) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 1500 V RMS, 50 Hz, 1 min |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Mounting hole | Ø19 mm |
| Thread | M19 × 1 |
| Panel thickness | 1 mm to 10 mm |
| Mounting nut torque | About 0.6 N·m |
| Actuator material | Stainless steel |
| Body material | Stainless steel |
| Base material | PBT |
| Protection class | IP65 (IP67 to order) |
| Impact rating | IK08 |
| RoHS | RoHS version to order |
| Lamp type | DC tri-colour LED (red, green, blue) |
| LED life | 40,000 hours (ref.) |
| LED forward voltage without resistor | Red 1.8 V, green 2.8 V, blue 2.8 V |
| Rated current (LED) | 5 mA to 15 mA |
| Polarity | Observe anode and cathode; add external resistors to mix colours |
| Option | Dual-colour version with 3 pins available |
| Bezel | Ø22 mm; nut 25.2 mm |
| Head length | 1.8 mm |
| Body length behind panel | 38.2 mm |
| Availability | Please call for pricing and availability |
