MR-GQ12-AF-10DT - 12 mm Anti-Vandal Push Button - Flat Round Head, Power Symbol Illuminated, 1NO.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

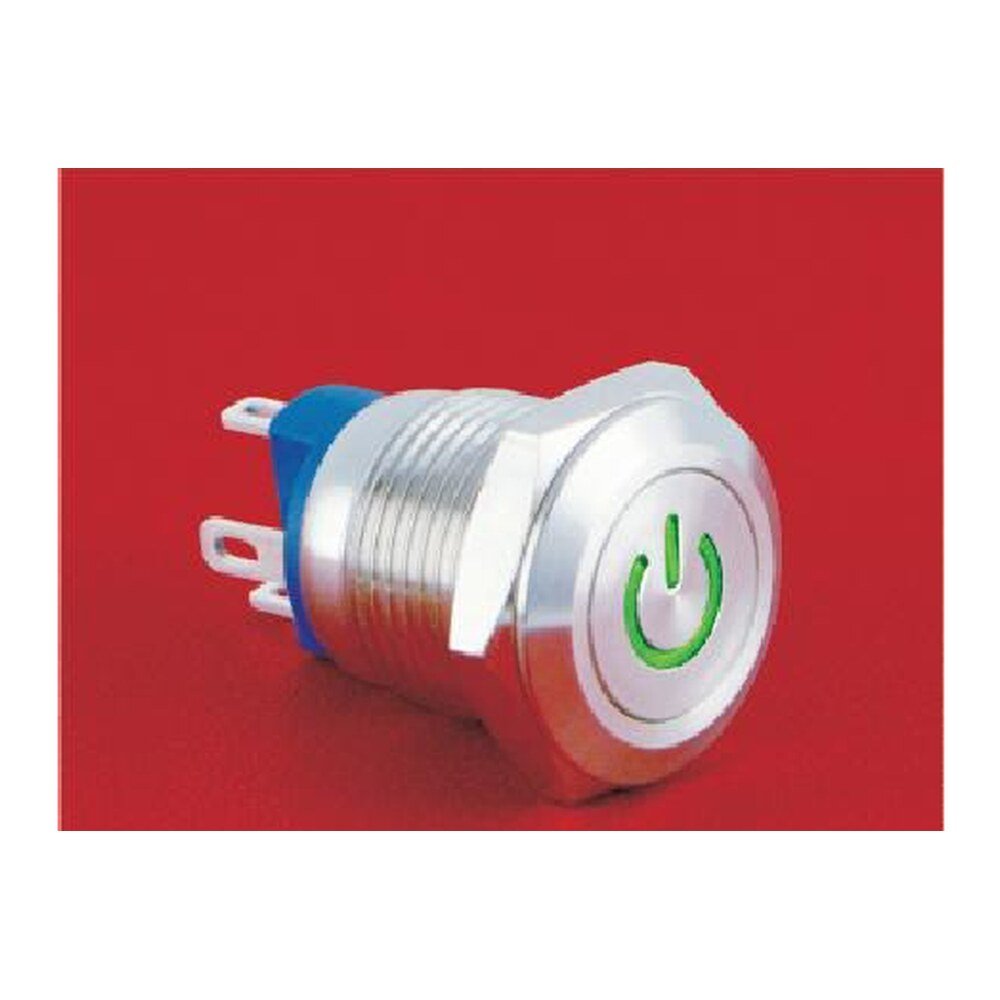

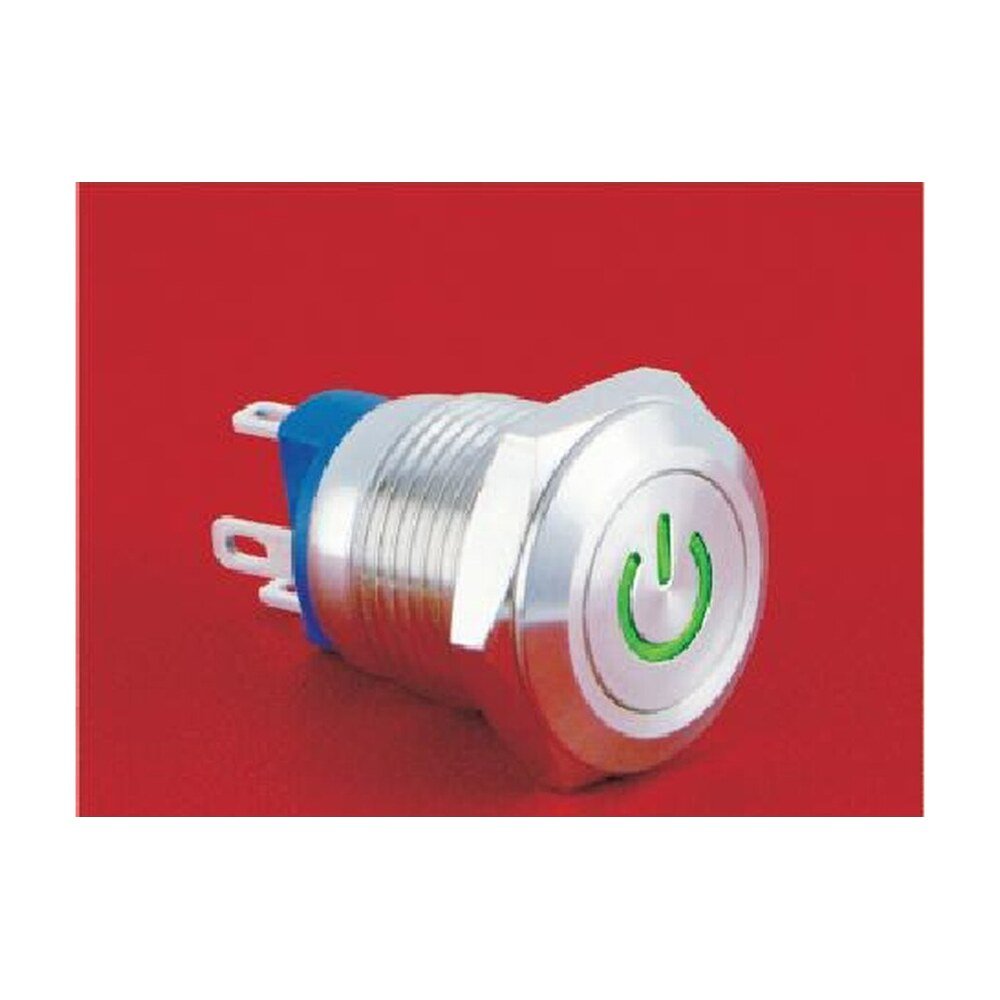

The MR-GQ12-AF-10DT lights a power symbol and a ring in the head of the button: a 12 mm stainless-steel anti-vandal push button with a single normally-open momentary contact rated 2 A at 36 V DC, sealed to IP65 and mounting in a Ø12 mm panel hole.
Ordering. The ordering code is MR-GQ12-AF-10DT-J-X-X-S: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V DC, 12V = 12 V DC, 24V = 24 V DC). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ12-AF-10DT |
|---|---|
| Also ordered as | GQ12-AF-10DT |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ12-AF-10DT-J-X-X-S |
| Series | GQ12-A |
| Contact structure | 1NO |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 500,000 cycles |
| Electrical life | 200,000 cycles |
| Operation travel | 1.5 mm approx |
| Operating force | 1.5 N approx |
| Nut torque | 0.3 Nm approx |
| Base material | PA |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (IP67 can be customised), IK07 |
| Standard | EN 61058-1:2018, CE marked (certificate UDEM/M.2021.206.C62197) |
| Panel cut-out | Ø12 mm |
| Mounting | M12 × 0.75 threaded bush |
| Bezel diameter | Ø14 mm |
| Bezel height | 6 mm max |
| Termination | Solder tab (wiring patch) 2 × 0.5 mm |
| Head shape | F = flat round |
| Illuminated type | DT = ring and power symbol illuminated |
| Housing material | Stainless steel |
| Body length behind panel | 19 mm |
| Accessory | Sealing cover M12-12F |
| LED colour | R red, G green, Y yellow, B blue, W white |
| LED voltage | 6 V, 12 V, 24 V (built-in resistor) |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less |
| LED voltage fluctuation | DC ±10 % |
| Availability | Please call for pricing and availability |
