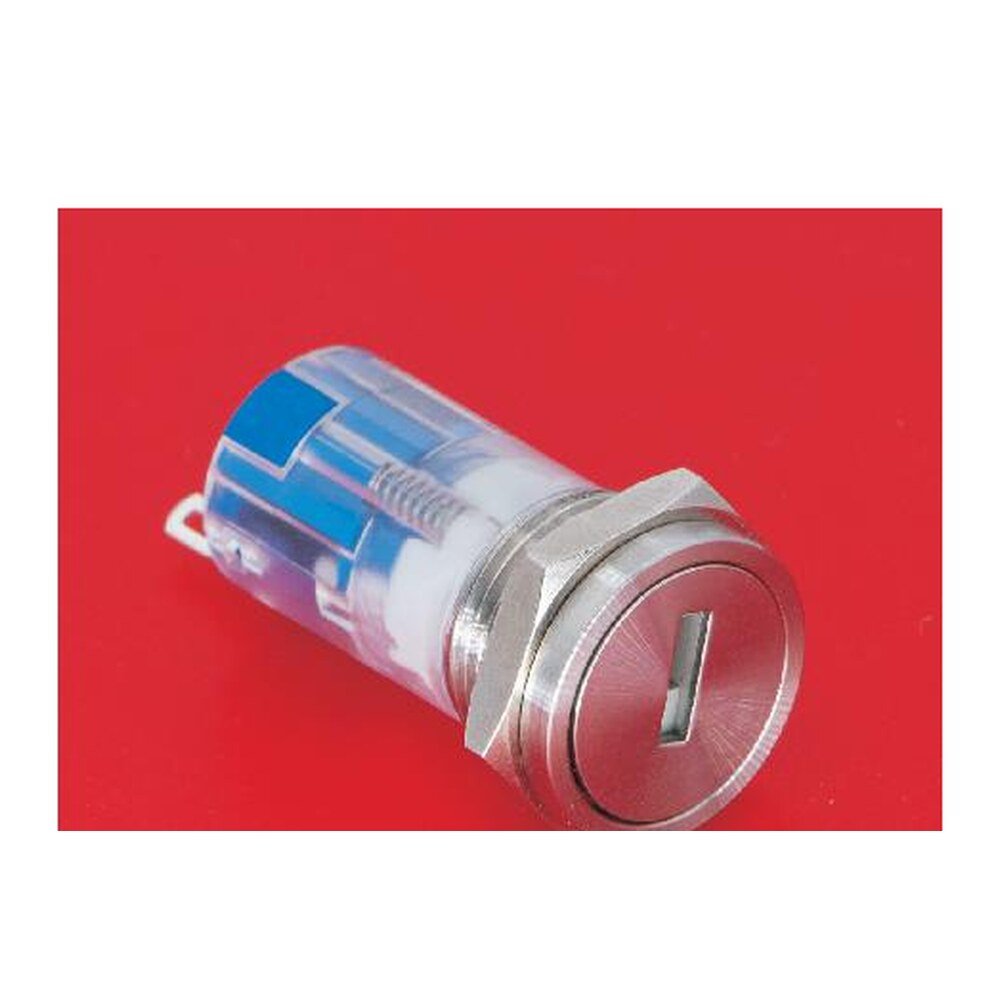

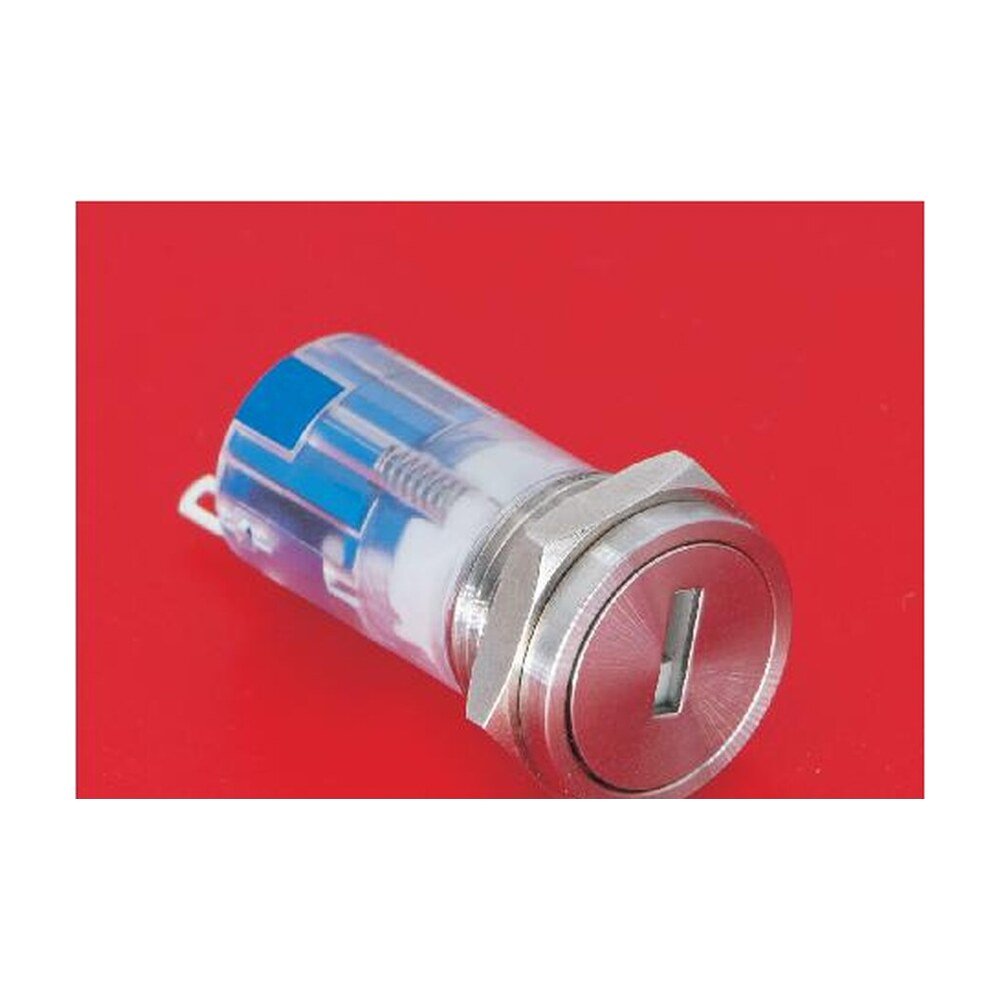

MR-LAS1-AGQ16-Y - 16 mm Key Switch - 2 or 3 Position, Stainless Steel, Two Keys Supplied.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-AGQ16-Y is a 16 mm key switch: a keyed selector through two positions at 90° or three at 45°, with one or two changeover contacts, in stainless steel. Two keys are supplied with each switch.
Still being confirmed. The terminal count and which key code the switch is supplied to, and whether keys can be keyed alike are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ16-Y |
|---|---|
| Also ordered as | LAS1-AGQ16-Y |
| Category | Key Switches, Switches |
| Ordering code | MR-LAS1-AGQ16-XY-X-X-S |
| Series | LAS1-AGQ |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Electrical life | 50,000 cycles |
| Nut torque | 0.6 Nm approx |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Across flats | 21.8 mm |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) plus + and − lamp pins |
| Operation type | Y = key switch |
| Operating positions | 2 = second position (90°), 3 = third position (45°) |
| Action type | 1 = retention, 3 = fully self-return |
| Keys supplied | 2 |
| Mechanical life | 200,000 operations (key button) |
| Protection class | IP40, IK02 |
| Bezel height | 5 mm max |
| Body length behind panel | 37 mm |
| Key barrel length | 15.5 mm |
| Accessories | Solder socket S04, PCB socket S05 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-AGQ16-Y is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-AGQ16-11Y-21-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action |
| MR-LAS1-AGQ16-11Y-23-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action |
| MR-LAS1-AGQ16-11Y-31-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action |
| MR-LAS1-AGQ16-11Y-33-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action |
| MR-LAS1-AGQ16-22Y-21-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action |
| MR-LAS1-AGQ16-22Y-23-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action |
| MR-LAS1-AGQ16-22Y-31-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action |
| MR-LAS1-AGQ16-22Y-33-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action |
