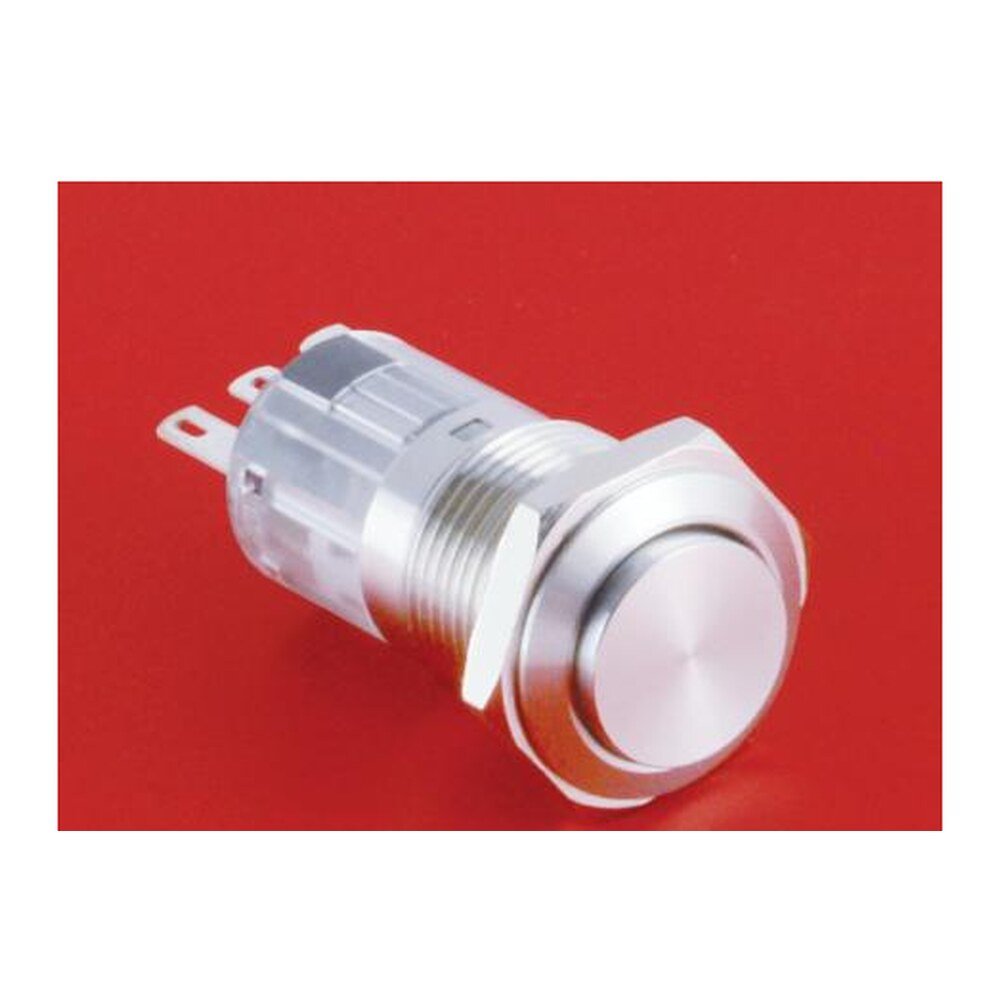

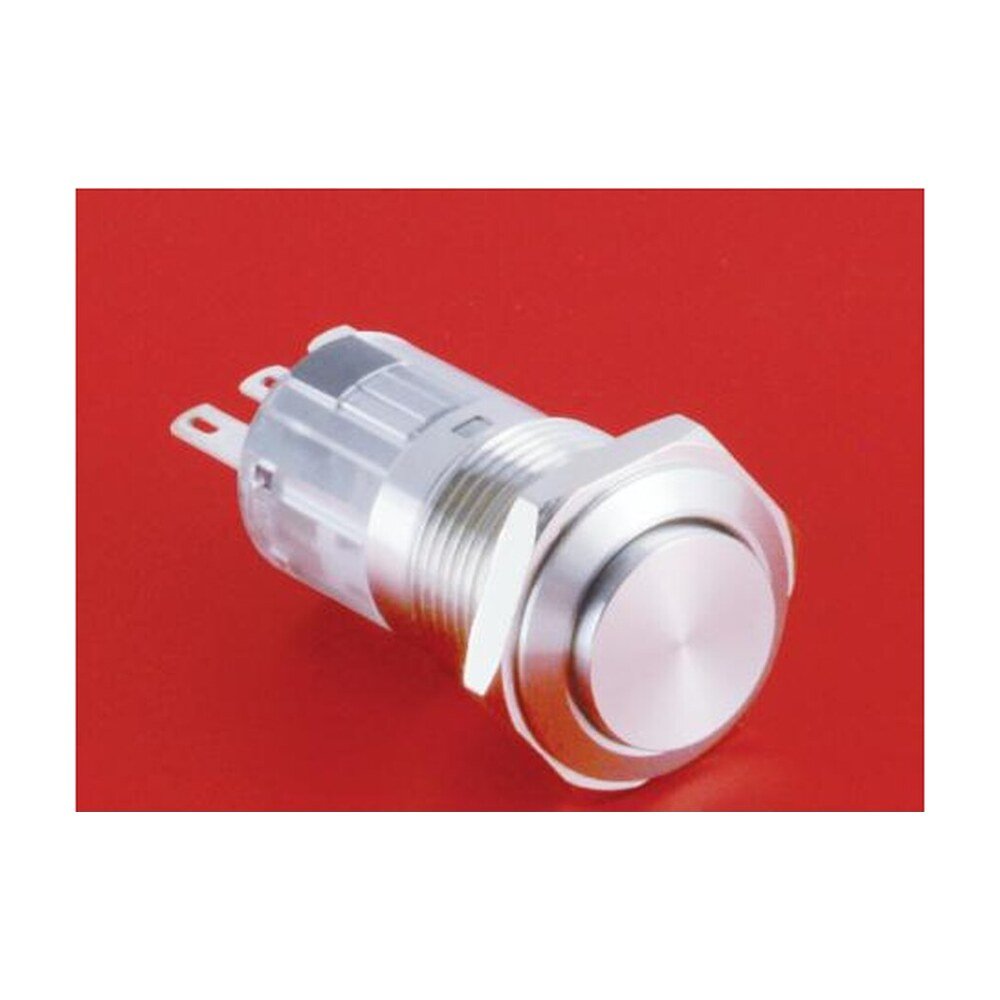

MR-LAS1-AGQ16H - 16 mm Snap-Action Metal Push Button - High Round Head, 1NO1NC or 2NO2NC.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-AGQ16H comes from the LAS1-AGQ range, the maker's flagship metal-button family: a 16 mm snap-action button with one or two changeover contacts (1NO1NC or 2NO2NC), momentary or latching, in stainless steel or chrome-plated brass, rated 5 A thermal current at 250 V. Every option in the ordering code below is orderable - tell us the code you need and we will quote it.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ16H |
|---|---|
| Also ordered as | LAS1-AGQ16H |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1-AGQ16H-XX-X |
| Series | LAS1-AGQ |
| Mounting aperture code | 16 = Ø16 mm, 22 = Ø22 mm, 30 = Ø30 mm, no digit = Ø19 mm |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Operation type | Z = latching, no letter = momentary |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 operations (button) |
| Electrical life | 50,000 cycles |
| Operation travel | 3.1 mm approx |
| Operating force | 1.5 N approx (1NO1NC), 3 N approx (2NO2NC) |
| Nut torque | 0.6 Nm approx |
| Base material | PA (LAS1-AGQ16) |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 (IP65 can be customised), IK09 |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Bezel height | 8 mm max |
| Across flats | 21.8 mm |
| Body length behind panel | 36.6 mm |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) plus + and − lamp pins |
| Head shape | H = high round |
| Accessories | Safety mask M12-16H, Solder socket S04, PCB socket S05 |
| Illumination | None |
| Availability | Please call for pricing and availability |
