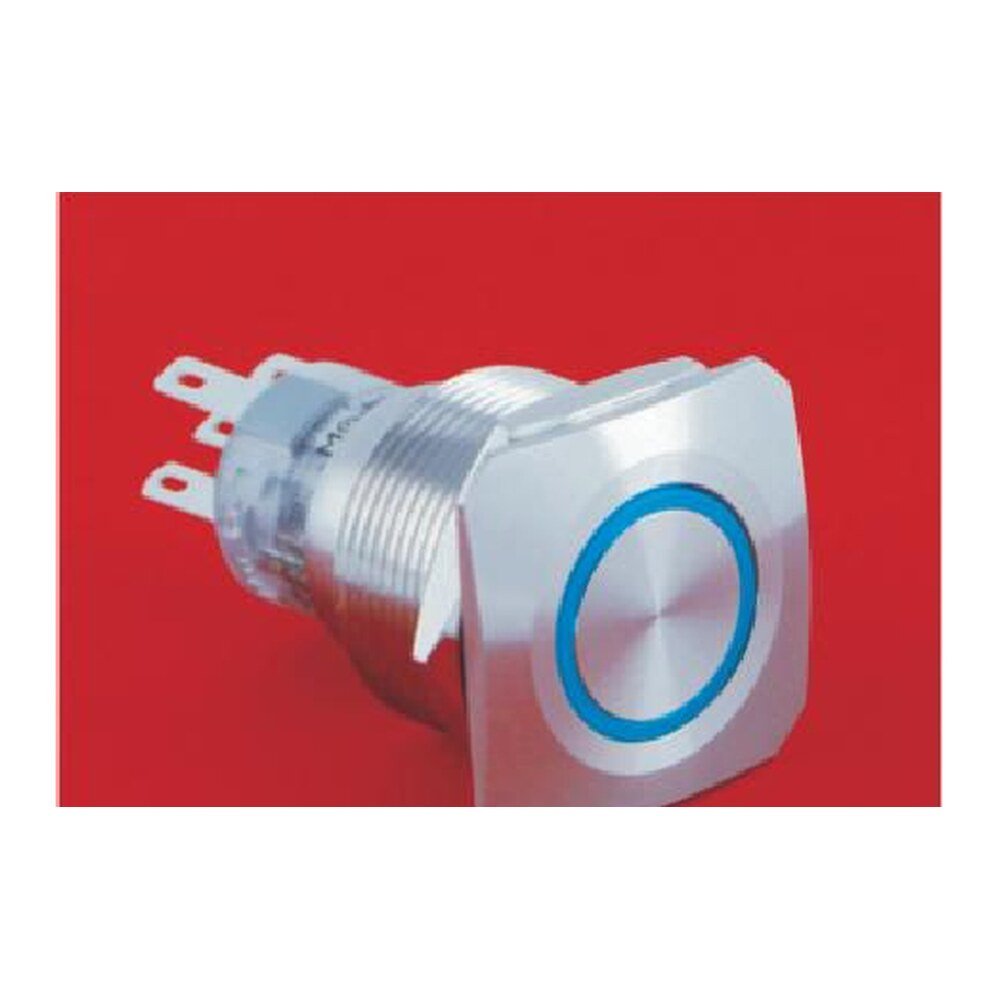

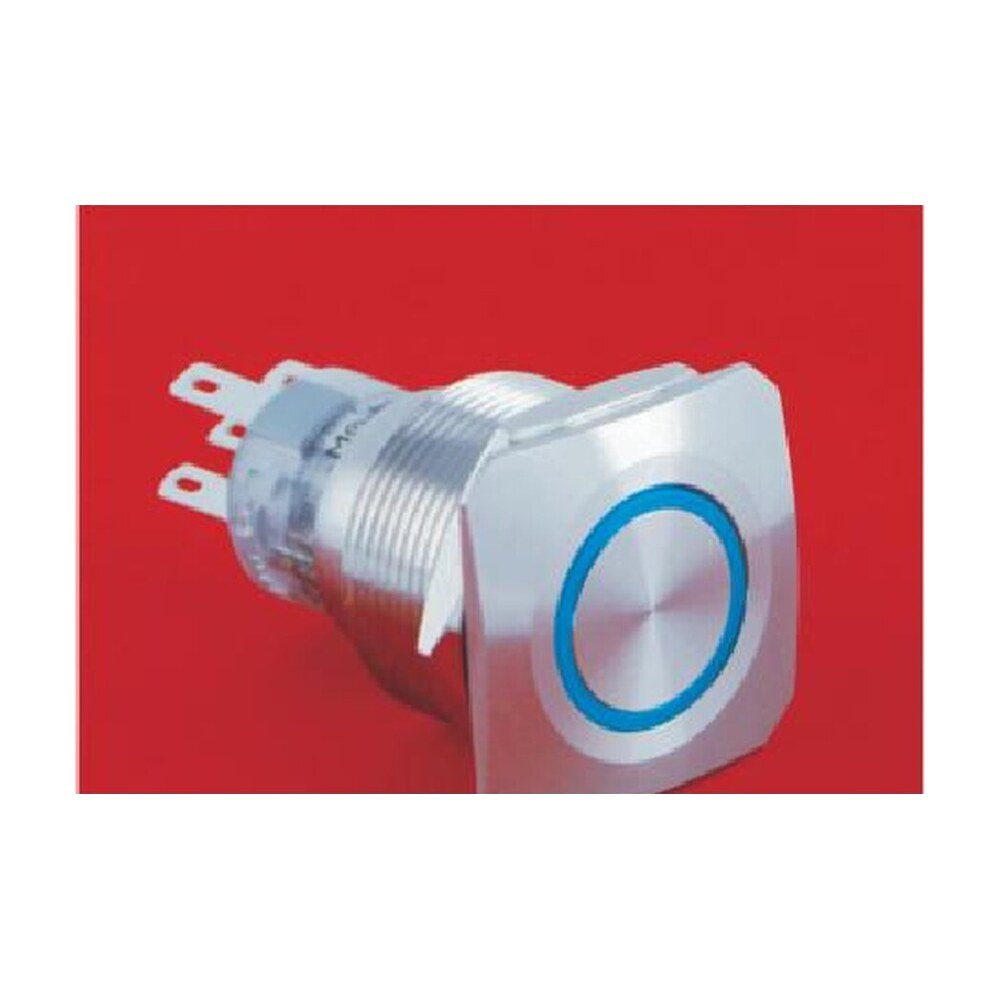

MR-LAS1-AGQ22S-E - 22 mm Snap-Action Metal Push Button - Square Bezel, Ring Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-AGQ22S-E is a 22 mm snap-action metal push button from the LAS1-AGQ flagship range: one or two changeover contacts (1NO1NC or 2NO2NC), momentary or latching, in stainless steel, sealed to IP65 with an IK09 impact rating and rated 5 A thermal current at 250 V.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ22S-E |
|---|---|
| Also ordered as | LAS1-AGQ22S-E |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1-AGQ22S-XXE-X-X-S |
| Series | LAS1-AGQ |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Operation type | Z = latching, no letter = momentary |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 operations |
| Electrical life | 50,000 cycles |
| Operation travel | 3.1 mm approx |
| Operating force | 1.5 N approx (1NO1NC), 3 N approx (2NO2NC) |
| Nut torque | 0.6 Nm approx |
| Base material | PBT |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (IP67 can be customised), IK09 |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø22 mm |
| Mounting | M22 × 1 threaded bush |
| Bezel diameter | Ø25 mm |
| Bezel height | 10 mm max |
| Across flats | 28.5 mm |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) plus + and − lamp pins |
| Bezel | 25 mm square |
| Illuminated type | E = ring illuminated |
| Ring width | 1.7 mm |
| Body length behind panel | 38.2 mm |
| Accessories | Solder socket S04, PCB socket S05 |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 % |
| Availability | Please call for pricing and availability |
