MR-LAS1-AJ-B - 16 mm Panel Buzzer - Rectangular Head, Continuous Tone.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

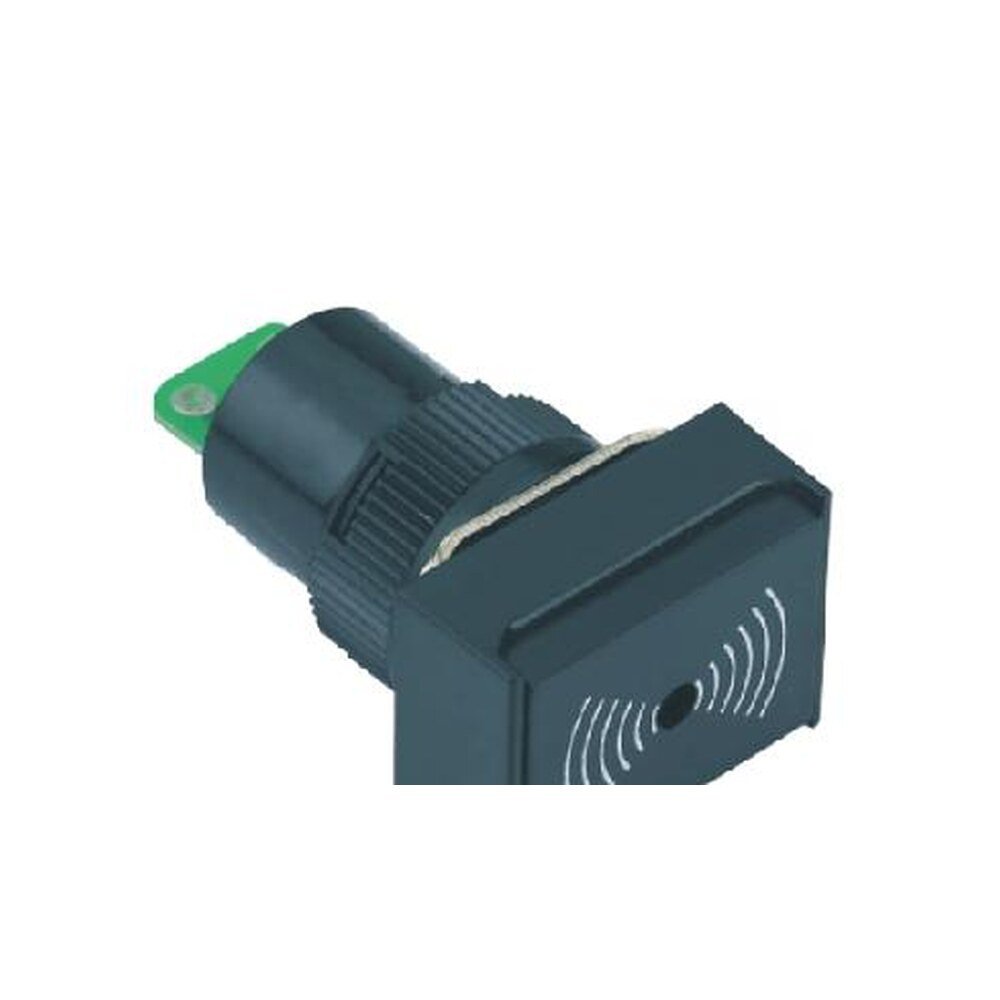

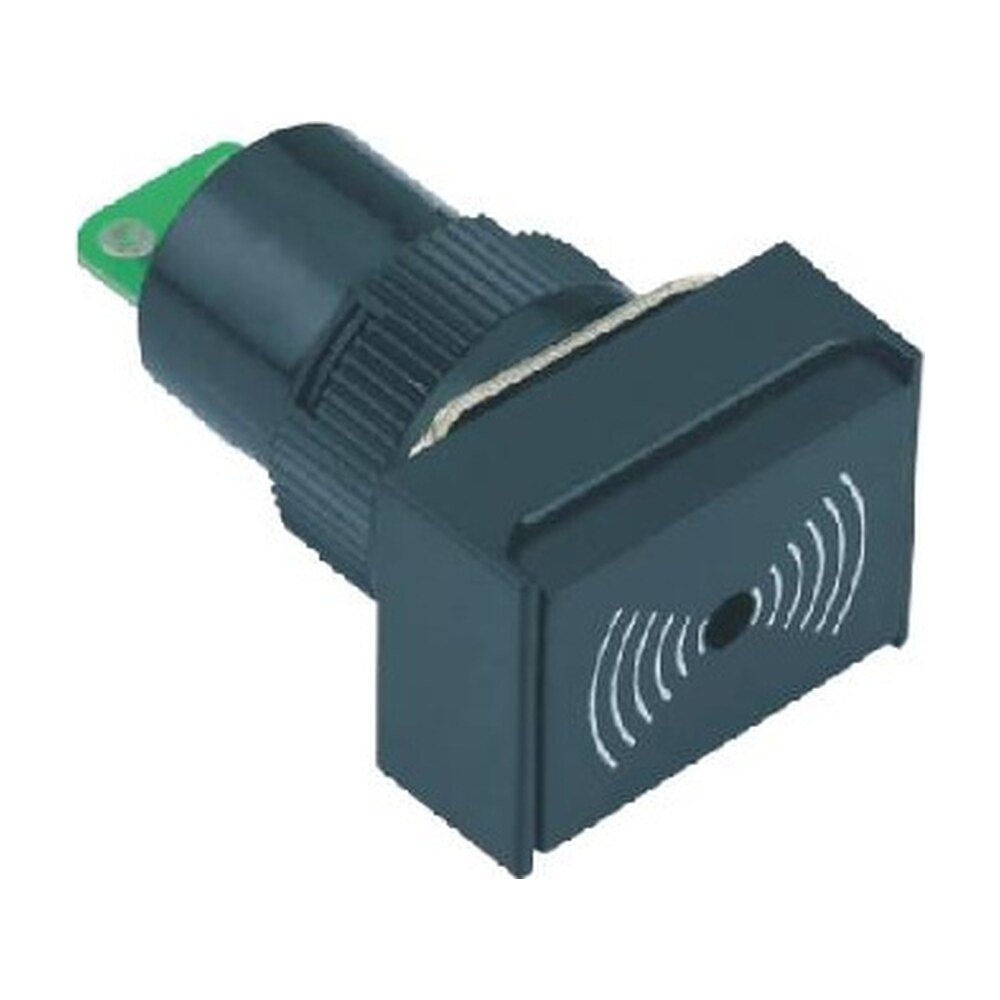

The MR-LAS1-AJ-B is a 16 mm plastic panel buzzer with a rectangular head, giving a continuous 75 dB tone at 2300 Hz.
Ordering. The ordering code is MR-LAS1-AJ-B-X: each X is replaced by the option you need - voltage (6VDC = 6 V DC, 12VDC = 12 V DC, 24VDC = 24 V DC, 220VAC = 220 V AC). The part numbers are listed below.
Still being confirmed. The current draw and the protection class are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AJ-B |
|---|---|
| Also ordered as | LAS1-AJ-B |
| Category | Switches |
| Ordering code | MR-LAS1-AJ-B-X |
| Series | LAS1-A (16 mm plastic) |
| Type | Panel buzzer |
| Sound type | B = continuous buzzer |
| Sound period | Continuous |
| Sound intensity | 75 dB at 1 m, rated voltage |
| Sound frequency | 2300 ± 300 Hz |
| Operating voltage | 6 V DC, 12 V DC, 24 V DC, 220 V AC |
| Dielectric insulation | 1000 V |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Panel cut-out | Ø16 mm |
| Panel thickness | 0.5 mm to 6 mm |
| Head length | 10 mm |
| Body length behind panel | 22 mm plus 8 mm terminals |
| Housing material | Plastic |
| Head shape | Rectangular |
| Head | 24 × 18 mm |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-AJ-B is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-AJ-B-6VDC | 6 V DC voltage |
| MR-LAS1-AJ-B-12VDC | 12 V DC voltage |
| MR-LAS1-AJ-B-24VDC | 24 V DC voltage |
| MR-LAS1-AJ-B-220VAC | 220 V AC voltage |
