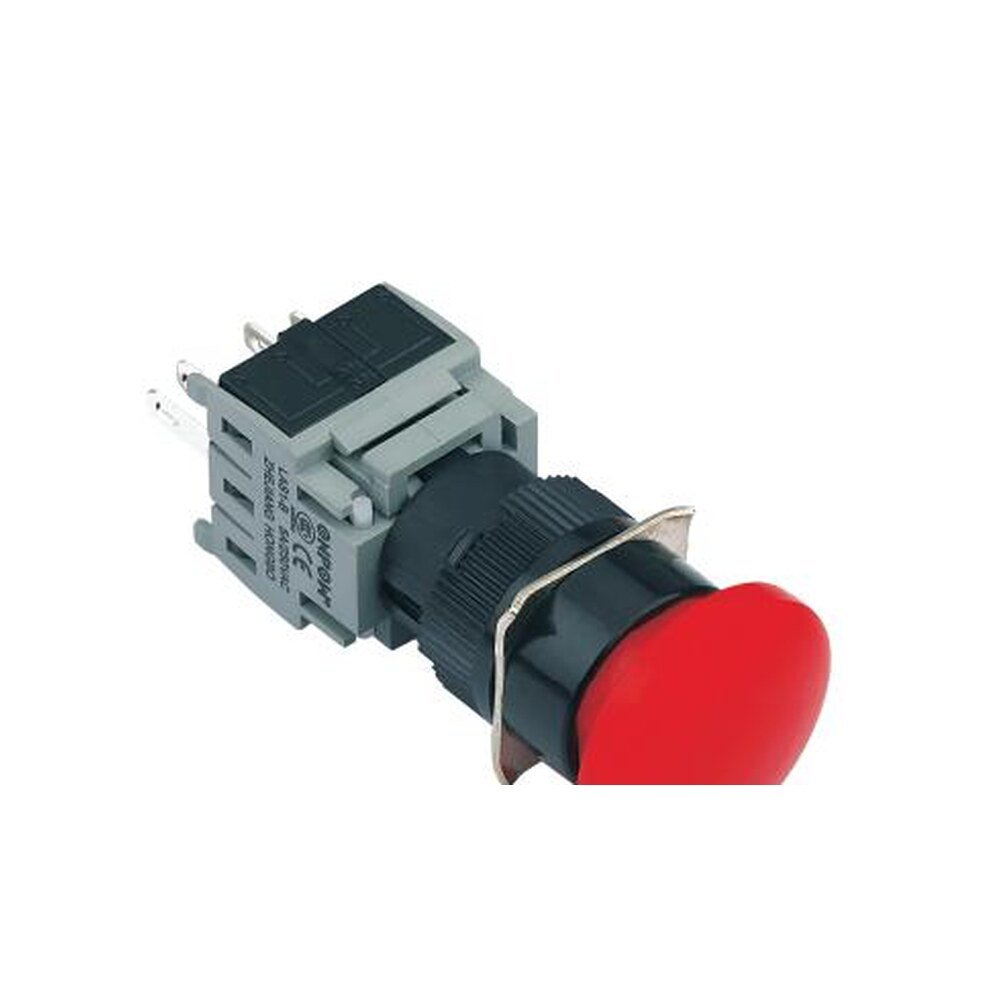

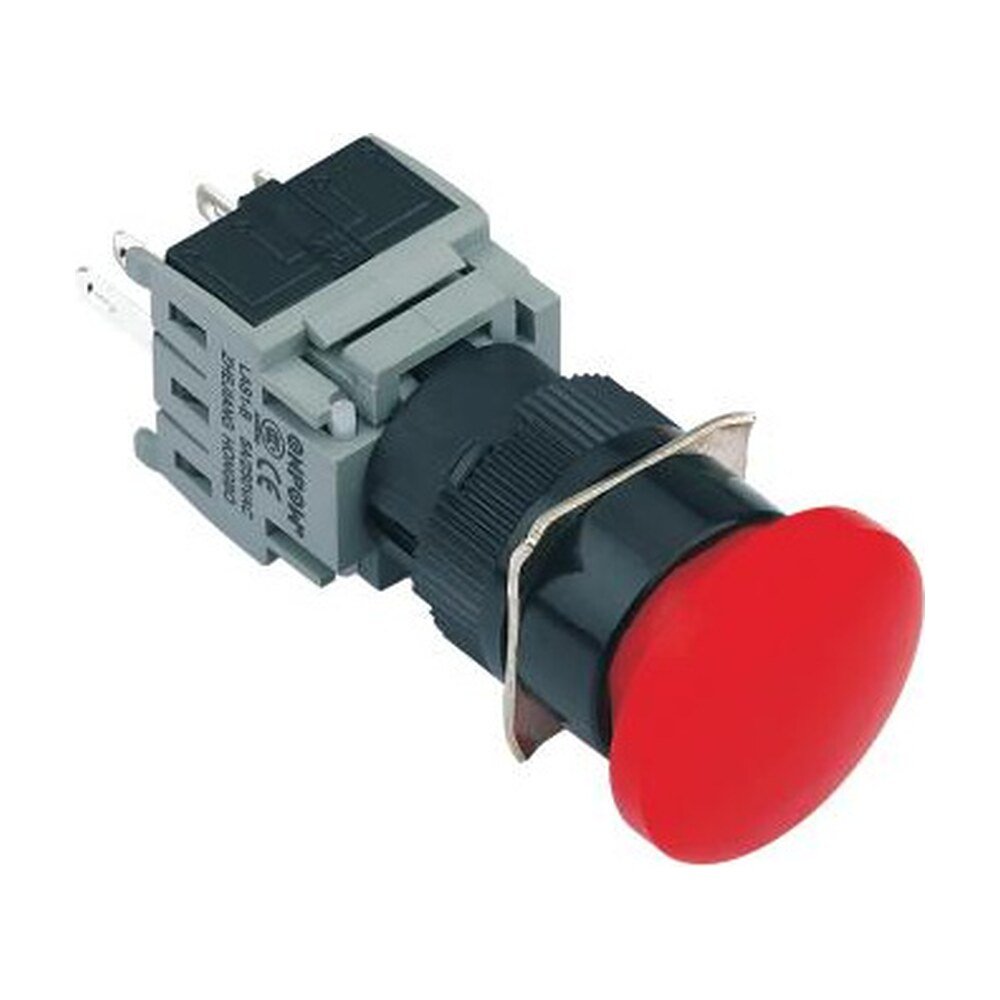

MR-LAS1-BM - 16 mm Mushroom Head Push Button - Ø23.3 mm, Can Be Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-BM is a 16 mm plastic push button with a Ø23.3 mm mushroom head that can be lit red or green, one to three double-break changeover contacts, momentary or latching.
Ordering. The ordering code is MR-LAS1-BM-XX-X: each X is replaced by the option you need - contact (11 = 1NO1NC, 22 = 2NO2NC, 33 = 3NO3NC); operation (none = Momentary, Z = Latching); colour (R = Red, G = Green). The part numbers are listed below.
Still being confirmed. The terminal count and how the LED voltage is shown in the ordering code are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-BM |
|---|---|
| Also ordered as | LAS1-BM |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1-BM-XX-X |
| Series | LAS1-B (16 mm plastic) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min |
| Dielectric strength | 2000 V AC between contact and LED terminals, 1500 V AC between terminals of the same pole, 2000 V AC between poles |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C |
| Operating humidity | 45 % to 85 % RH |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm², Pin terminal 2.8 × 0.5 mm |
| Contact structure | Double-break, fast action, self-cleaning; 1 to 3 elements |
| Operation travel | 3 mm approx |
| Operating force | 2.8 N (1 element), 3.5 N (2 elements), 4.7 N (3 elements) |
| Protection class | IP40 |
| Panel cut-out | Ø16 mm (+0.2 / −0) |
| Housing material | Plastic |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Internal resistor |
| Type | Mushroom head push button, can be illuminated |
| Mechanical life | Momentary 1,000,000, Latching 500,000 operations |
| Head | Mushroom, Ø23.3 mm |
| Head length | 16 mm |
| Body length behind panel | 43 mm |
| Hole spacing | min 24 mm spacing both ways |
| LED voltage | 6 V, 12 V, 24 V, 220 V |
| Accessories | T34-16 |
| Availability | Please call for pricing and availability |
