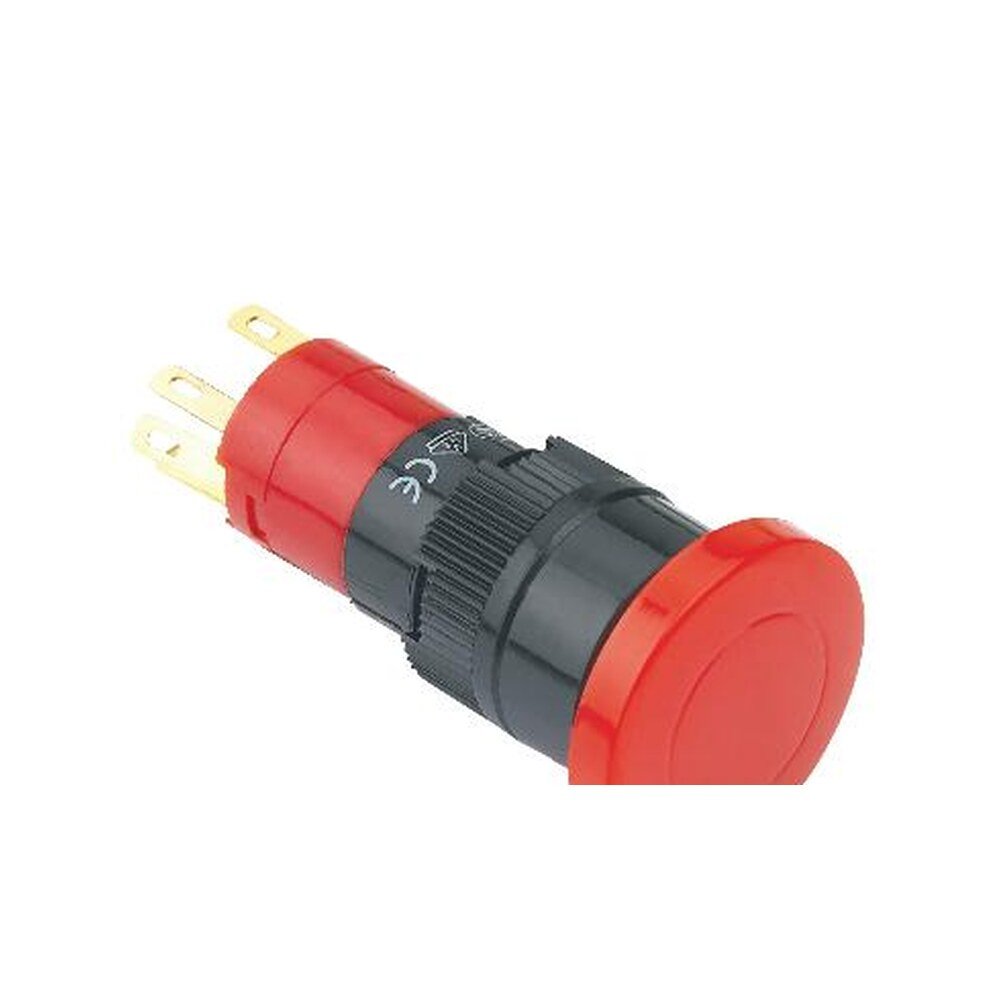

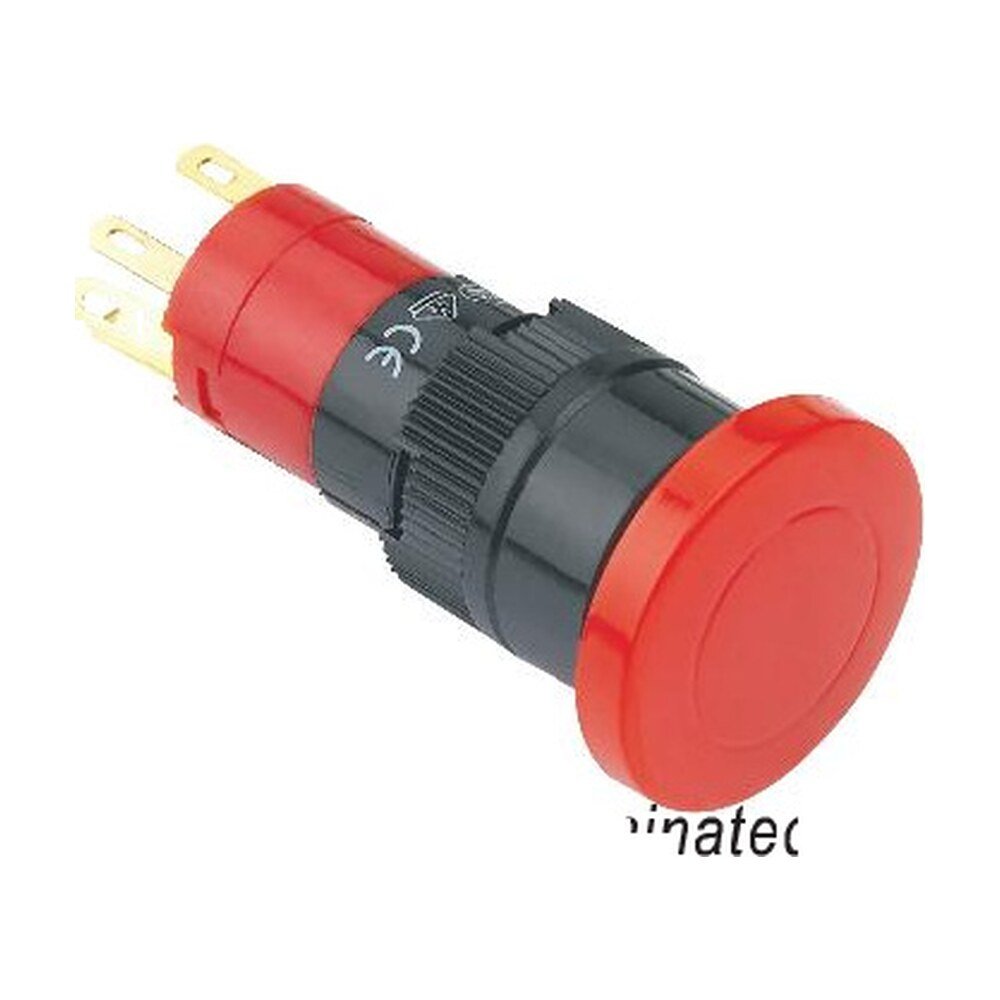

MR-LAS1M-11 - 16 mm Mushroom Head Push Button - Ø23.5 mm, 1NO1NC, Can Be Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1M-11 is a 16 mm plastic push button with a Ø23.5 mm mushroom head that can be lit red, green or yellow, and a double-break changeover contact, momentary or latching.
Ordering. The ordering code is MR-LAS1M-11X-JC-X-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); colour (R = Red, G = Green, Y = Yellow); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count and what the JC position in the ordering code denotes are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1M-11 |
|---|---|
| Also ordered as | LAS1M-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1M-11X-JC-X-X |
| Series | LAS1 (16 mm plastic) |
| Contact structure | 1NO1NC (double-break, fast action, self-cleaning) |
| Operation type | Z = latching, no letter = momentary |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals and between poles, 1500 V AC 1 min between terminals of the same pole |
| Mechanical life | Momentary 1,000,000, Latching 500,000 operations |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø16 mm (+0.2 / −0), min 24 mm spacing both ways |
| Housing material | Plastic |
| Bezel height | 6 mm max |
| Head | Mushroom, Ø23.5 mm |
| Head length | 14 mm |
| Body length behind panel | 36.5 mm |
| LED voltage | 6 V, 12 V, 24 V, 220 V |
| Accessories | Escutcheon frame S19, Solder terminal S21, PCB terminal S22 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1M-11 is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1M-11-JC-R-6V | Momentary operation, Red colour, 6 V led voltage |
| MR-LAS1M-11-JC-R-12V | Momentary operation, Red colour, 12 V led voltage |
| MR-LAS1M-11-JC-R-24V | Momentary operation, Red colour, 24 V led voltage |
| MR-LAS1M-11-JC-R-220V | Momentary operation, Red colour, 220 V led voltage |
| MR-LAS1M-11-JC-G-6V | Momentary operation, Green colour, 6 V led voltage |
| MR-LAS1M-11-JC-G-12V | Momentary operation, Green colour, 12 V led voltage |
| MR-LAS1M-11-JC-G-24V | Momentary operation, Green colour, 24 V led voltage |
| MR-LAS1M-11-JC-G-220V | Momentary operation, Green colour, 220 V led voltage |
| MR-LAS1M-11-JC-Y-6V | Momentary operation, Yellow colour, 6 V led voltage |
| MR-LAS1M-11-JC-Y-12V | Momentary operation, Yellow colour, 12 V led voltage |
| MR-LAS1M-11-JC-Y-24V | Momentary operation, Yellow colour, 24 V led voltage |
| MR-LAS1M-11-JC-Y-220V | Momentary operation, Yellow colour, 220 V led voltage |
| MR-LAS1M-11Z-JC-R-6V | Latching operation, Red colour, 6 V led voltage |
| MR-LAS1M-11Z-JC-R-12V | Latching operation, Red colour, 12 V led voltage |
| MR-LAS1M-11Z-JC-R-24V | Latching operation, Red colour, 24 V led voltage |
| MR-LAS1M-11Z-JC-R-220V | Latching operation, Red colour, 220 V led voltage |
| MR-LAS1M-11Z-JC-G-6V | Latching operation, Green colour, 6 V led voltage |
| MR-LAS1M-11Z-JC-G-12V | Latching operation, Green colour, 12 V led voltage |
| MR-LAS1M-11Z-JC-G-24V | Latching operation, Green colour, 24 V led voltage |
| MR-LAS1M-11Z-JC-G-220V | Latching operation, Green colour, 220 V led voltage |
| MR-LAS1M-11Z-JC-Y-6V | Latching operation, Yellow colour, 6 V led voltage |
| MR-LAS1M-11Z-JC-Y-12V | Latching operation, Yellow colour, 12 V led voltage |
| MR-LAS1M-11Z-JC-Y-24V | Latching operation, Yellow colour, 24 V led voltage |
| MR-LAS1M-11Z-JC-Y-220V | Latching operation, Yellow colour, 220 V led voltage |
