MR-LAS1Y-11X - 16 mm Selector Switch - Round Bezel, 2 Position Maintained, Can Be Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

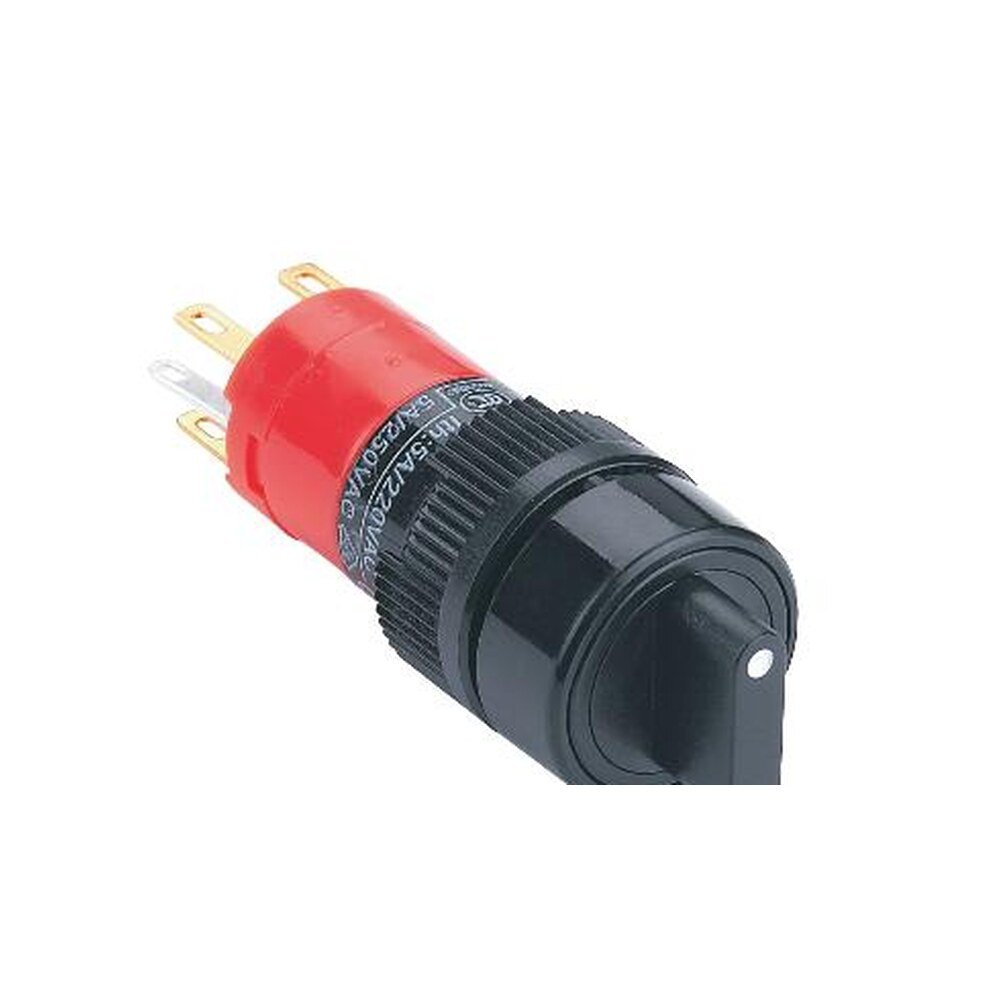

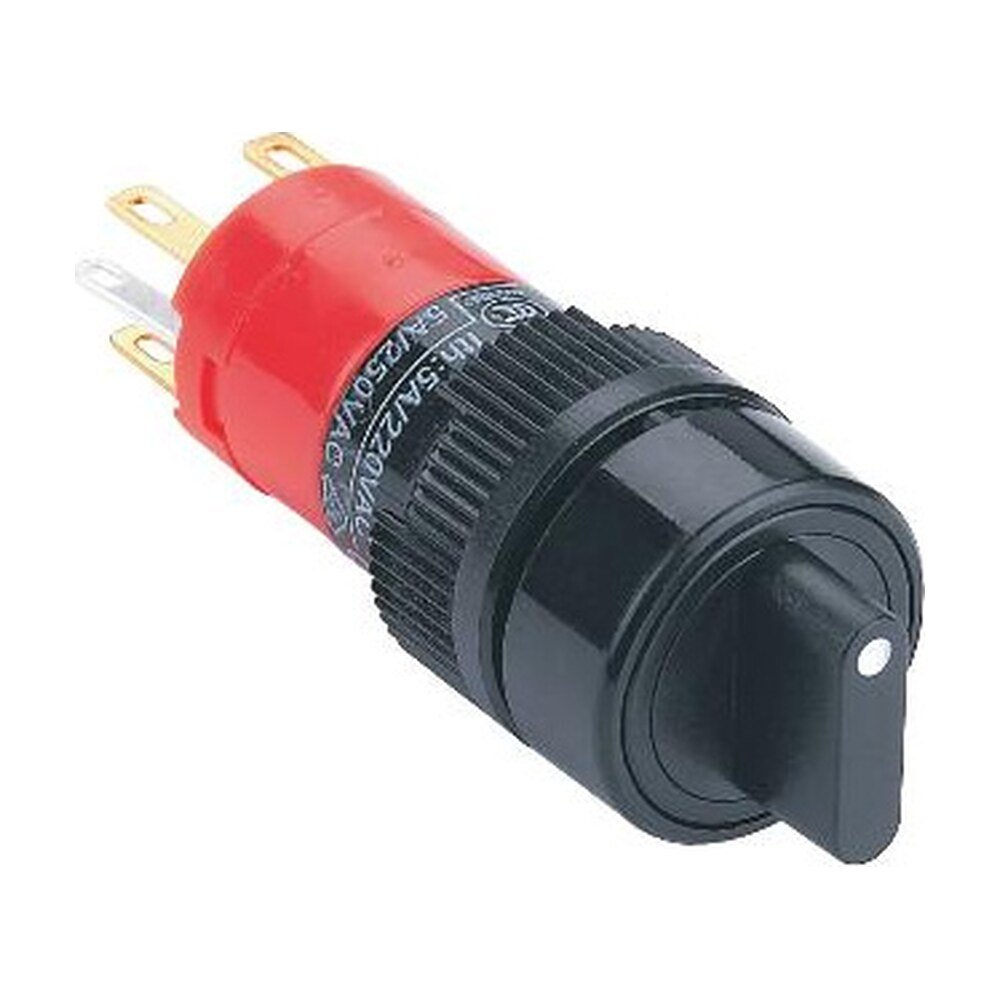

The MR-LAS1Y-11X is a 16 mm plastic selector switch with a round bezel and a lever knob turning 90° between two maintained positions, carrying a 1NO1NC contact; the knob can be lit red or green.
Ordering. The ordering code is MR-LAS1Y-11X-2-JC-#-#: each X is replaced by the option you need - colour (R = Red, G = Green, N = Colour code N); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count, what colour code N denotes and what the JC position in the ordering code denotes are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1Y-11X |
|---|---|
| Also ordered as | LAS1Y-11X |
| Category | Selector Switches, Switches |
| Ordering code | MR-LAS1Y-11X-2-JC-#-# |
| Series | LAS1 (16 mm plastic) |
| Contact structure | 1NO1NC (double-break, fast action, self-cleaning) |
| Operating positions | 90°, 2 position, maintained |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals and between poles, 1500 V AC 1 min between terminals of the same pole |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø16 mm (+0.2 / −0) with anti-rotation flat |
| Housing material | Plastic |
| Bezel height | 6 mm max |
| Operation type | X = selector |
| Mechanical life | 500,000 operations |
| Head shape | Round |
| Bezel | Bezel Ø18 mm |
| Knob length | 13 mm |
| Body length behind panel | 36 mm |
| Accessories | Escutcheon frame S19, Solder terminal S21, PCB terminal S22 |
| LED voltage | 6 V, 12 V, 24 V, 220 V |
| Availability | Please call for pricing and availability |
