MR-LAS1Y-11Y - 16 mm Key-Lock Switch - Round Bezel, 2 Position Maintained.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

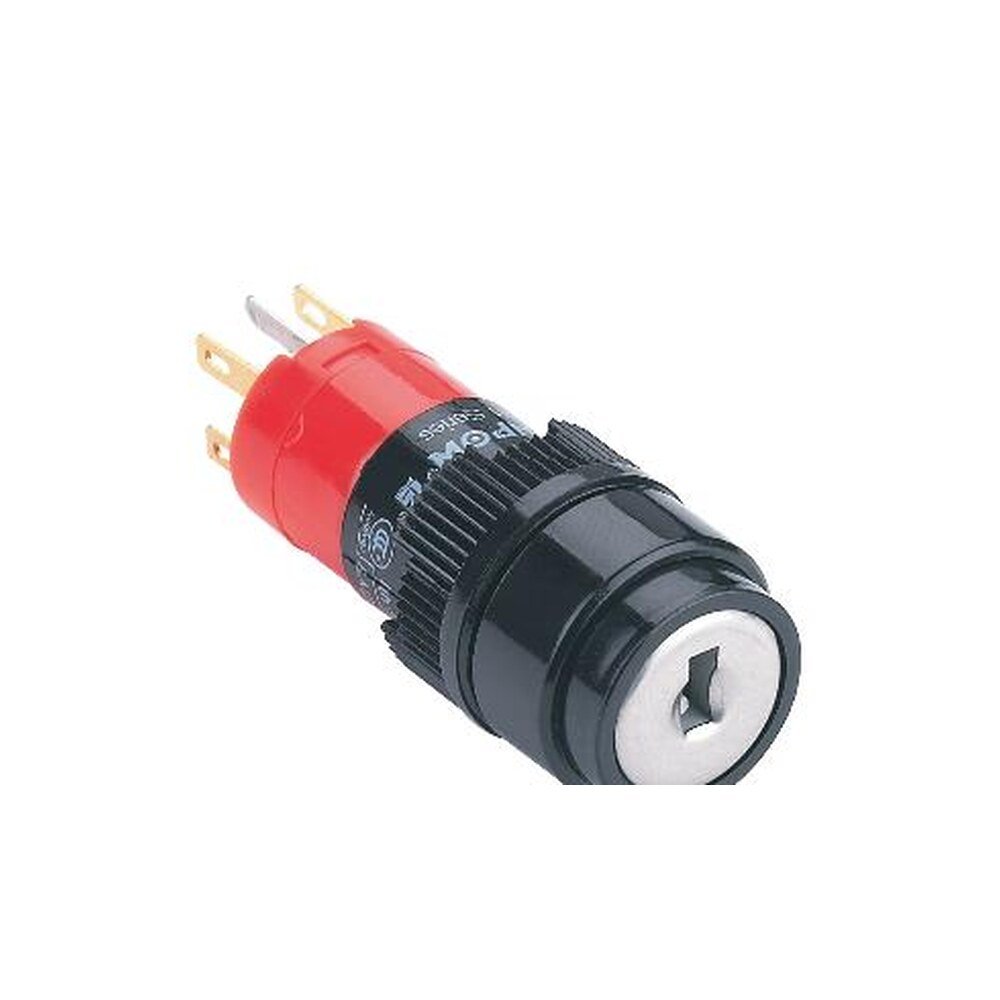

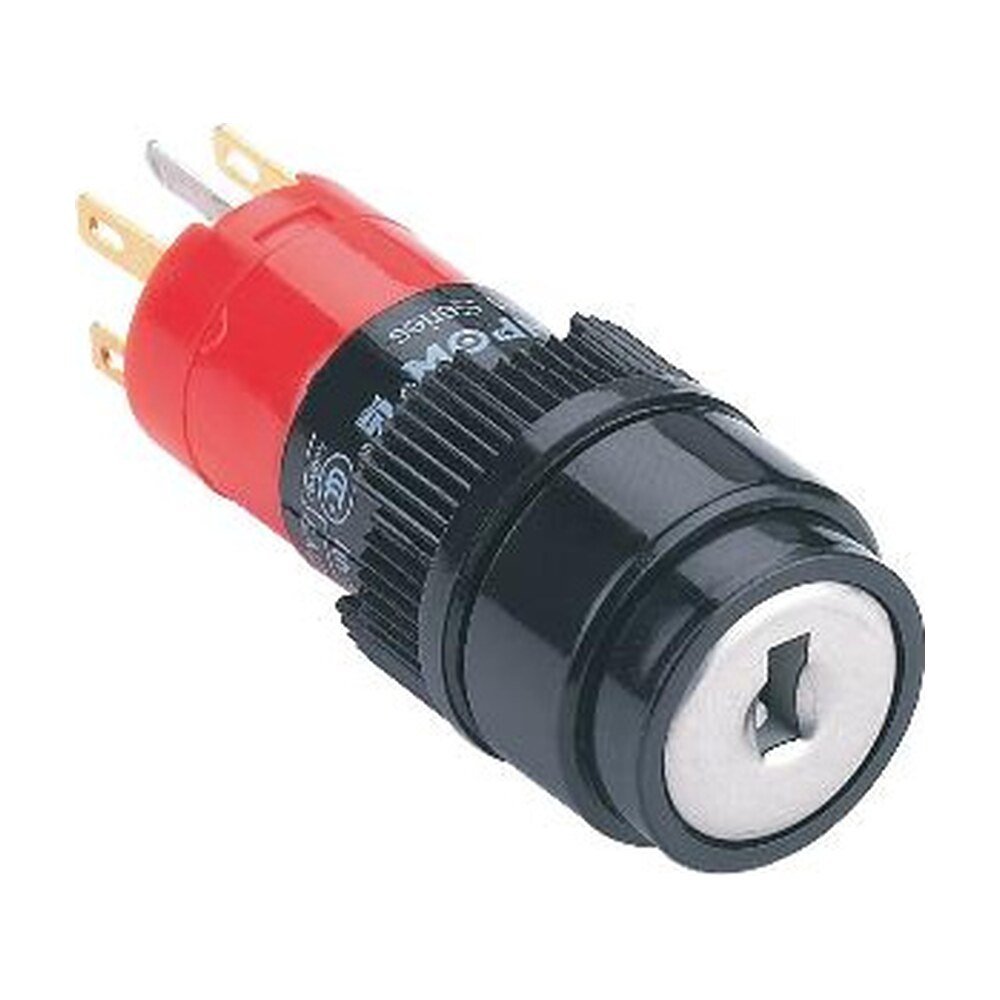

The MR-LAS1Y-11Y is a 16 mm plastic key-lock switch with a round bezel, turning 90° between two maintained positions on a 1NO1NC contact.
Still being confirmed. The terminal count, which key code the switch is supplied to, how many keys come with it, and whether keys can be keyed alike and what the JC position in the ordering code denotes are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1Y-11Y |
|---|---|
| Also ordered as | LAS1Y-11Y-2-JC |
| Category | Key Switches, Switches |
| Ordering code | MR-LAS1Y-11Y-2-JC |
| Series | LAS1 (16 mm plastic) |
| Contact structure | 1NO1NC (double-break, fast action, self-cleaning) |
| Operating positions | 90°, 2 position, maintained |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals and between poles, 1500 V AC 1 min between terminals of the same pole |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø16 mm (+0.2 / −0) with anti-rotation flat |
| Housing material | Plastic |
| Bezel height | 6 mm max |
| Operation type | Y = key lock |
| Mechanical life | 200,000 operations |
| Head shape | Round |
| Bezel | Bezel Ø18 mm |
| Key length | 24 mm |
| Body length behind panel | 36.6 mm (11.5 mm lock body in front) |
| Accessories | Escutcheon frame S19, Solder terminal S21, PCB terminal S22 |
| Availability | Please call for pricing and availability |
