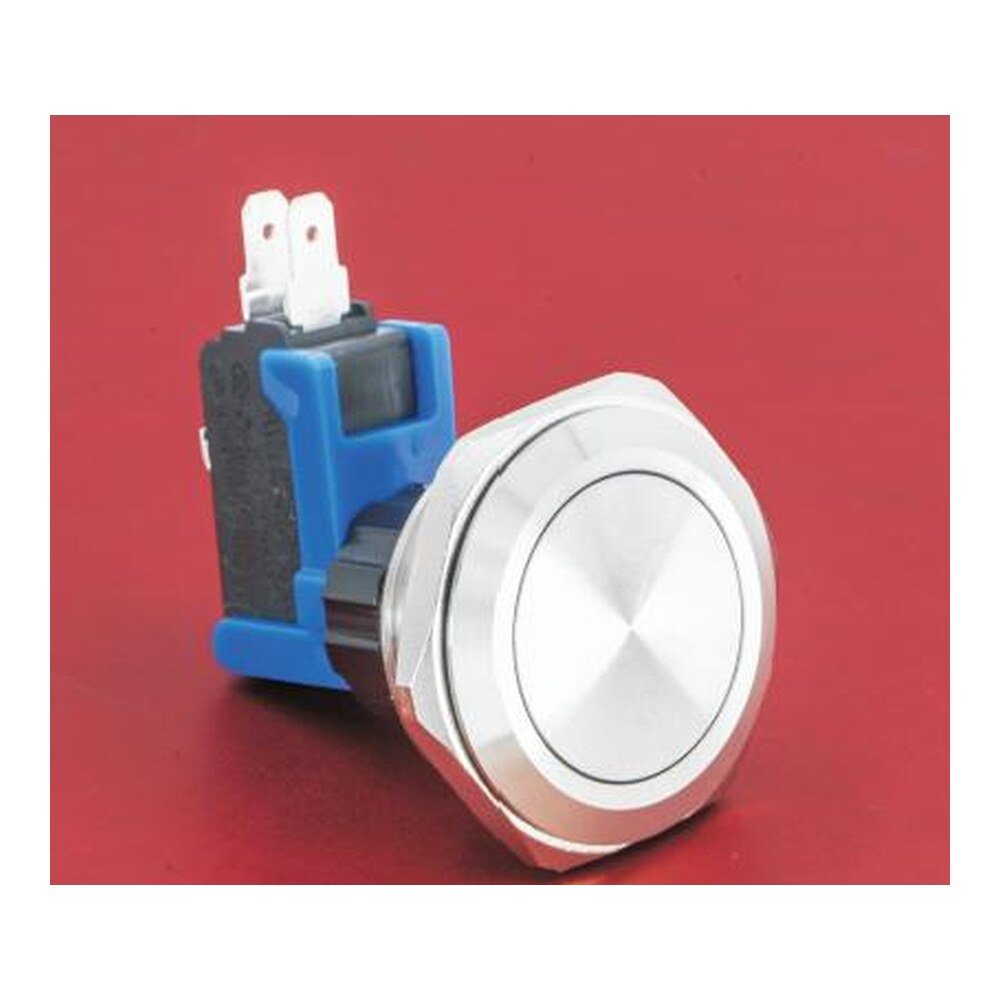

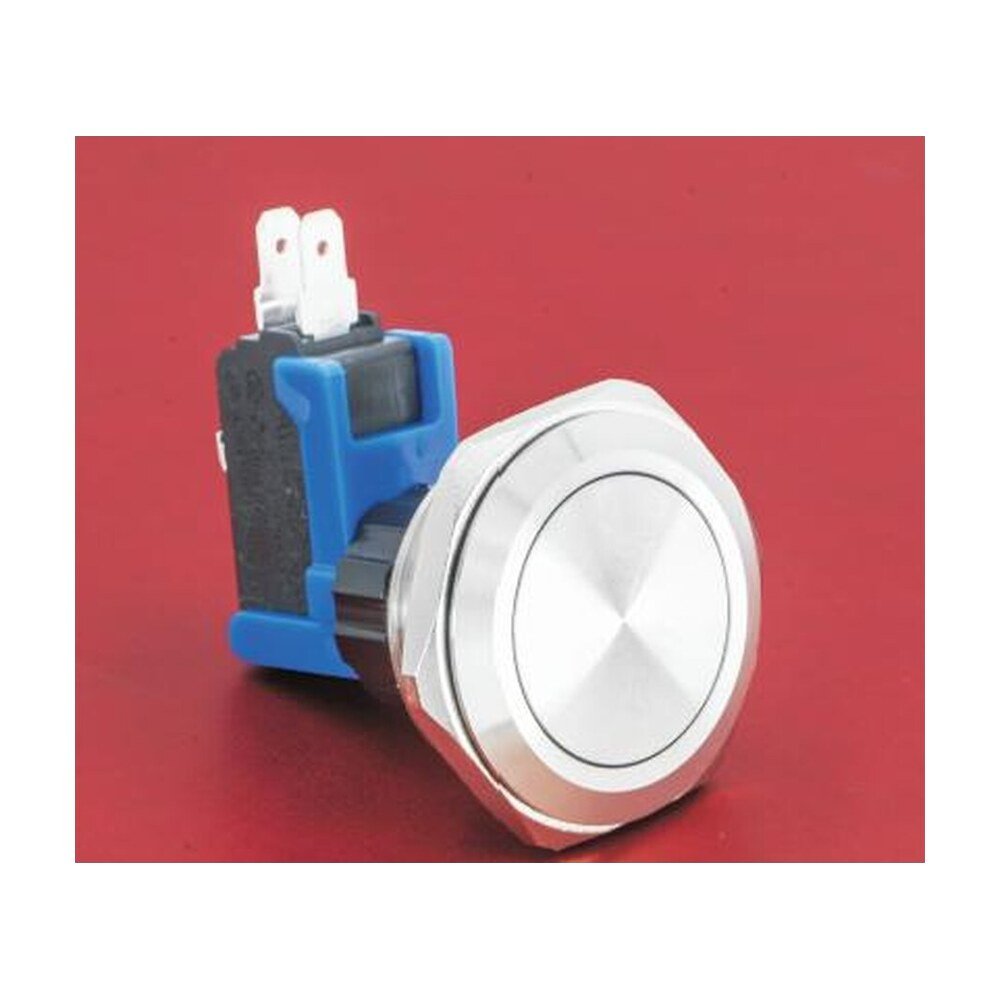

MR-LCA30-11 - 30 mm High-Current Anti-Vandal Push Button, 1NO1NC 15 A.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LCA30-11 is a 30 mm stainless-steel anti-vandal push button, momentary or latching, with a 1NO1NC contact rated 15 A at 250 V AC, IP65 as standard.
Ordering. The ordering code is MR-LCA30-11X-S-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); protection (none = IP65, FP = IP67 (momentary only)). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-LCA30-11 |
|---|---|
| Also ordered as | LCA30-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LCA30-11X-S-X |
| Series | LCA high-current anti-vandal push buttons |
| Contact structure | 1NO1NC changeover (type C), rivet contacts, silver alloy, 1 mm gap |
| Switch rating | 15 A at 250 V AC resistive, 10 A at 250 V AC inductive, 0.3 A at 250 V DC inductive |
| Rated current by load | AC 250 V: 15 A resistive, 2 A LED, 10 A inductive, 3 A motor, DC 8 V: 15 / 4 / 10 / 6 A, DC 30 V: 10 / 4 / 10 / 4 A, DC 125 V: 0.6 / 0.1 / 0.6 / 0.1 A, DC 250 V: 0.3 / 0.05 / 0.3 / 0.05 A |
| Inrush current | 36 A max |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 1000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Solder heat resistance | 320 °C for 3 s |
| Mechanical life | 500,000 cycles min |
| Electrical life | 50,000 cycles min |
| Base material | PA |
| Housing material | Stainless steel |
| Nut torque | About 0.6 N·m |
| Operating force | About 4 N |
| Operation travel | About 2.5 mm |
| Protection class | IP65 standard; IP67 (FP) to order, momentary types |
| Impact rating | IK08 |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Built-in resistor, no polarity |
| Type | Push button, not illuminated |
| Mounting hole | Ø30 mm |
| Thread | M30 × 1.5 |
| Bezel | Ø35 mm; nut 40 mm |
| Head length | 2 mm |
| Body length behind panel | 44.9 mm momentary, 51.2 mm latching (49.3 mm switch height) |
| Panel thickness | 7 mm max |
| Terminals | Switch pins 4.8 × 0.5 mm, LED pins 2.8 × 0.5 mm |
| Availability | Please call for pricing and availability |
