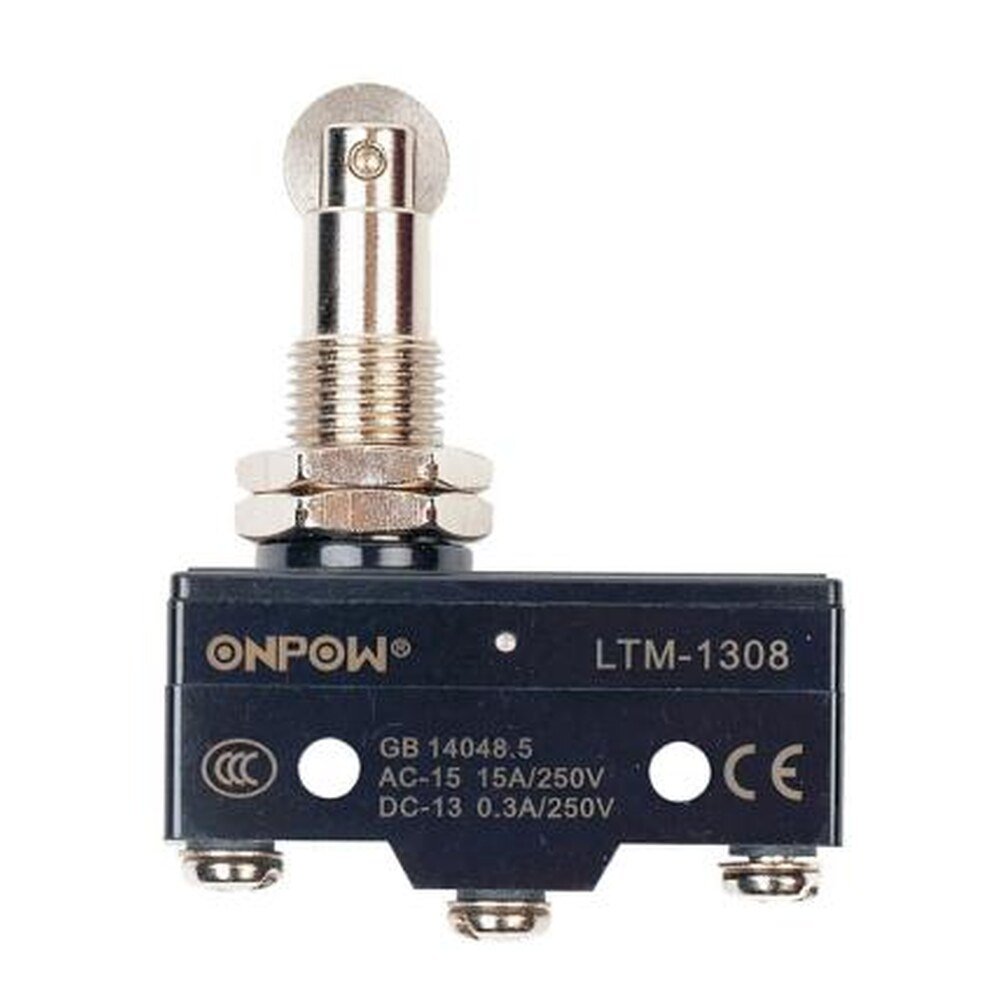

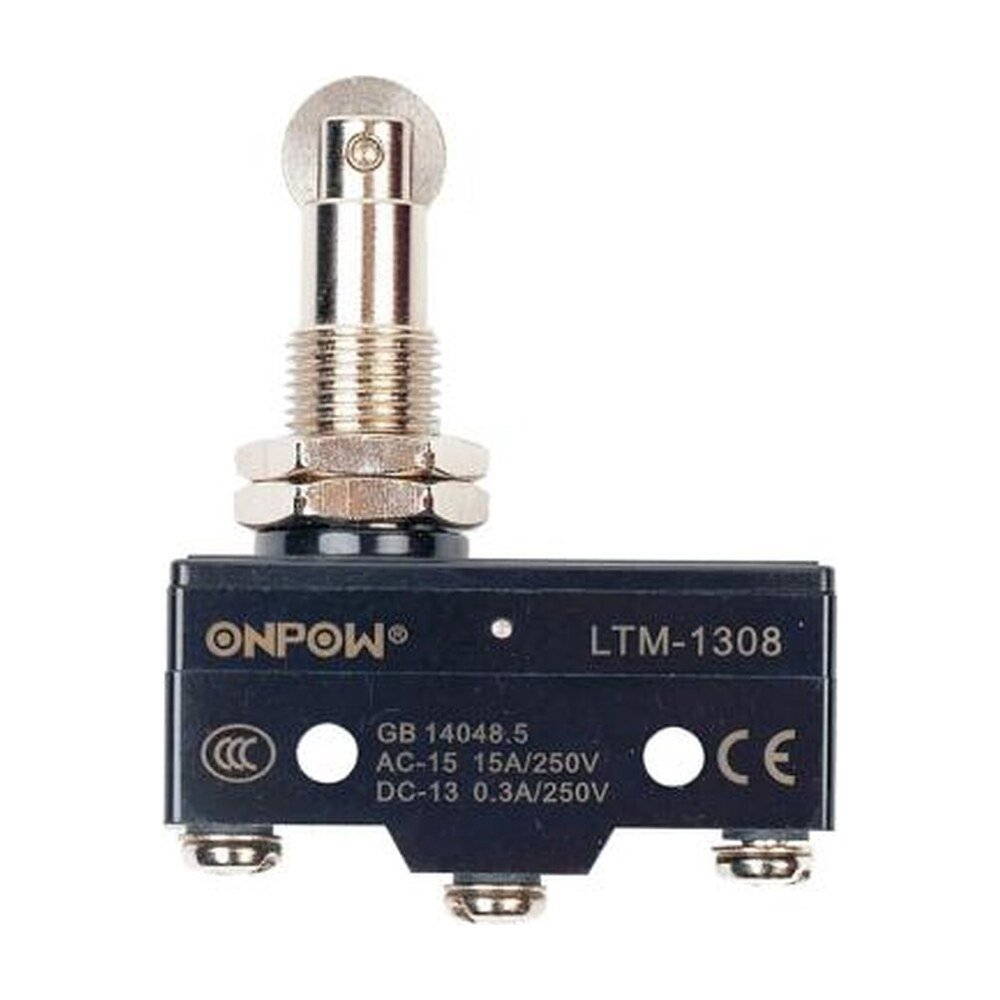

MR-LTM-1308 - Limit Switch - Panel-Mount Roller Plunger, 15 A, IP65.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LTM-1308 is a snap-action limit switch with a panel-mount roller plunger, m12 × 1.0 bushing actuator and a 15 A changeover contact, IP65.
Still being confirmed. The lower operating-temperature limit (printed as 10 without a sign) is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LTM-1308 |
|---|---|
| Also ordered as | LTM-1308 |
| Category | Limit Switches, Switches |
| Ordering code | MR-LTM-1308 |
| Series | LTM-1 limit switches |
| Contacts | 1 changeover (COM, NO, NC), snap action |
| Rating | 15 A at 125 / 250 V AC resistive |
| Resistive load | 125 V AC 15 A, 250 V AC 15 A, 500 V AC 3 A, 8 V DC 15 A, 14 V DC 15 A, 30 V DC 6 (2) A, 125 V DC 0.4 A, 250 V DC 0.2 A |
| Lamp load (NC / NO) | 125 V AC 3 / 1.5 A, 250 V AC 2.5 / 1.25 A, 500 V AC 1.5 / 0.75 A, 8 V DC 3 / 1.5 A, 14 V DC 3 / 1.5 A, 30 V DC 3 / 1.5 A, 125 V DC 0.4 / 0.4 A, 250 V DC 0.2 / 0.2 A |
| Inductive load | 125 V AC 15 A, 250 V AC 15 A, 500 V AC 2.5 A, 8 V DC 15 A, 14 V DC 10 A, 30 V DC 5 A, 125 V DC 0.05 A, 250 V DC 0.03 A |
| Motor load (NC / NO) | 125 V AC 5 / 2.5 A, 250 V AC 3 / 1.5 A, 500 V AC 1.5 / 0.75 A, 8 V DC 5 / 2.5 A, 14 V DC 5 / 2.5 A, 30 V DC 5 / 2.5 A, 125 V DC 0.05 / 0.05 A, 250 V DC 0.03 / 0.03 A |
| Inrush current | NC below 30 A, NO below 15 A |
| Load notes | Inductive load power factor above 0.4 (AC), time constant below 7 ms (DC); lamp inrush 10 times and motor inrush 6 times the steady current |
| Operating speed | 0.01 mm to 1 m/s (plunger type) |
| Contact resistance | 15 mΩ max (initial) |
| Insulation resistance | Over 100 MΩ (500 V DC) |
| Dielectric strength | 1,000 V AC 1 min between non-continuous terminals, 1,500 V AC 1 min between live and non-live parts, 1,500 V AC 1 min between terminals and ground |
| Vibration resistance | 10 Hz to 50 Hz, 1.5 mm double amplitude |
| Shock resistance | Durability 1,000 m/s² (about 100 G), malfunction 300 m/s² (about 30 G) |
| Operating temperature | Up to +80 °C (no freezing) |
| Operating humidity | Below 95 % RH |
| Operating life | Mechanical over 10,000,000, electrical over 500,000 operations |
| Weight | 22 g to 58 g |
| Protection class | IP65 |
| Body | 49.6 mm × 17.6 mm × 20.2 mm |
| Mounting | 2 × Ø4.4 mm holes at 25.4 mm centres |
| Actuator | Panel-mount roller plunger, M12 × 1.0 bushing |
| Operating force (OF) max | 350 g |
| Release force (RF) min | 114 g |
| Pre-travel (PT) max | 0.4 mm |
| Over-travel (OT) min | 3.58 mm |
| Movement differential (MD) max | 0.05 mm |
| Operating position (OP) | 33.4 ± 1.2 mm |
| Availability | Please call for pricing and availability |
