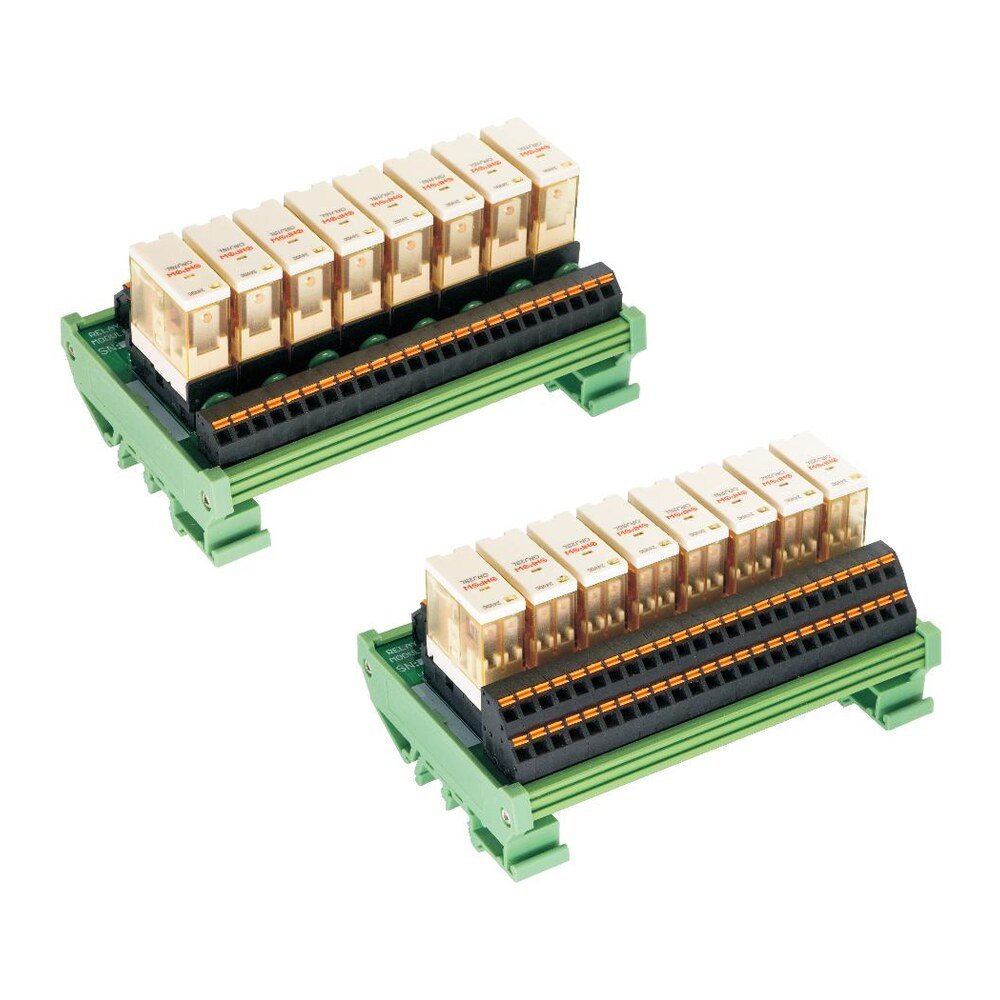

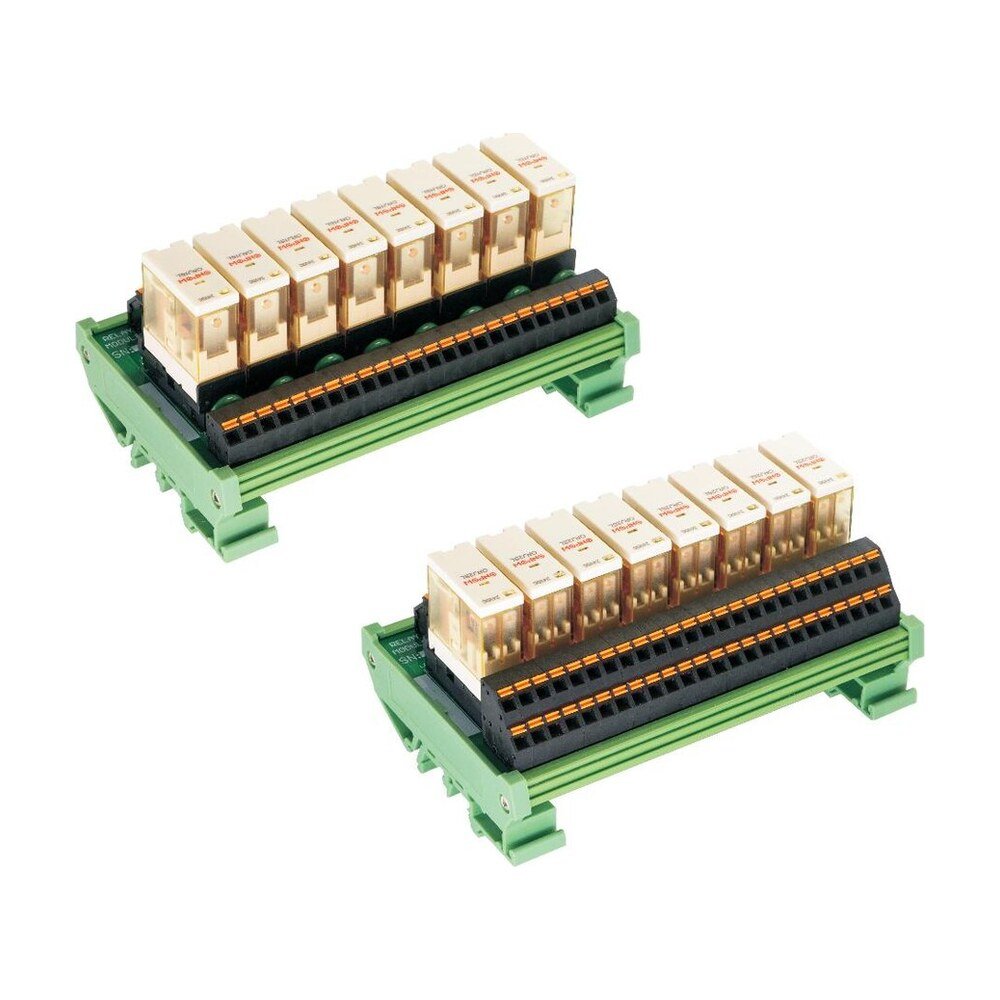

MR-OMZA - DIN-Rail Relay Output Module, 1 to 16 Relays.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-OMZA is a DIN-rail relay output module with 1 to 16 independent plug-in relays, LED status and surge suppression, for isolating and amplifying PLC outputs.
Ordering. The ordering code is MR-OMZA-X-X: each X is replaced by the option you need - contacts (1S = SPST, 1 group, 12 A, 2S = DPDT, 2 groups, 8 A); relays (1P = 1 relay, 18 × 85 × 70 mm, 2P = 2 relays, 40 × 85 × 70 mm, 4P = 4 relays, 70 × 85 × 70 mm, 6P = 6 relays, 100 × 85 × 70 mm, 8P = 8 relays, 130 × 85 × 70 mm, 10P = 10 relays, 160 × 85 × 70 mm, 12P = 12 relays, 190 × 85 × 70 mm, 14P = 14 relays, 220 × 85 × 70 mm, 16P = 16 relays, 250 × 85 × 70 mm). The part numbers are listed below.
Still being confirmed. How the input voltage is specified in the part number and whether a 6-relay module is offered (the size table lists it, the part-number key does not) are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-OMZA |
|---|---|
| Also ordered as | OMZA |
| Category | Relays |
| Ordering code | MR-OMZA-X-X |
| Series | OMZA relay modules |
| Type | Independent relay output module with plug-in ORJ relays |
| Input | Rated voltage DC/AC ±10 %; terminal-strip input, NPN or PNP, AC or DC |
| Rated load | 1 group: 12 A at 250 V AC / 30 V DC, 2 groups: 8 A at 250 V AC / 30 V DC |
| Max. instantaneous load current | 12 A (1 group), 8 A (2 groups) |
| Input current | 6.5 mA typical at rated voltage |
| Response time | 0.5 ms typical |
| Release time | 15 ms typical |
| Protection | LED status indicator and surge suppression per relay; output overvoltage protection |
| Connections | Screw terminals, 0.2 mm² to 2.5 mm² cable, 6 mm to 7 mm strip length |
| Mounting | TS15 / TS28 / TS35 DIN rail |
| Dielectric test | 2.5 kV, 50 Hz, 1 min |
| Ambient temperature | −20 °C to +50 °C |
| Power consumption | 0.53 W |
| Typical use | Load amplification and isolation for PLC, controller and SCM outputs |
| Availability | Please call for pricing and availability |
