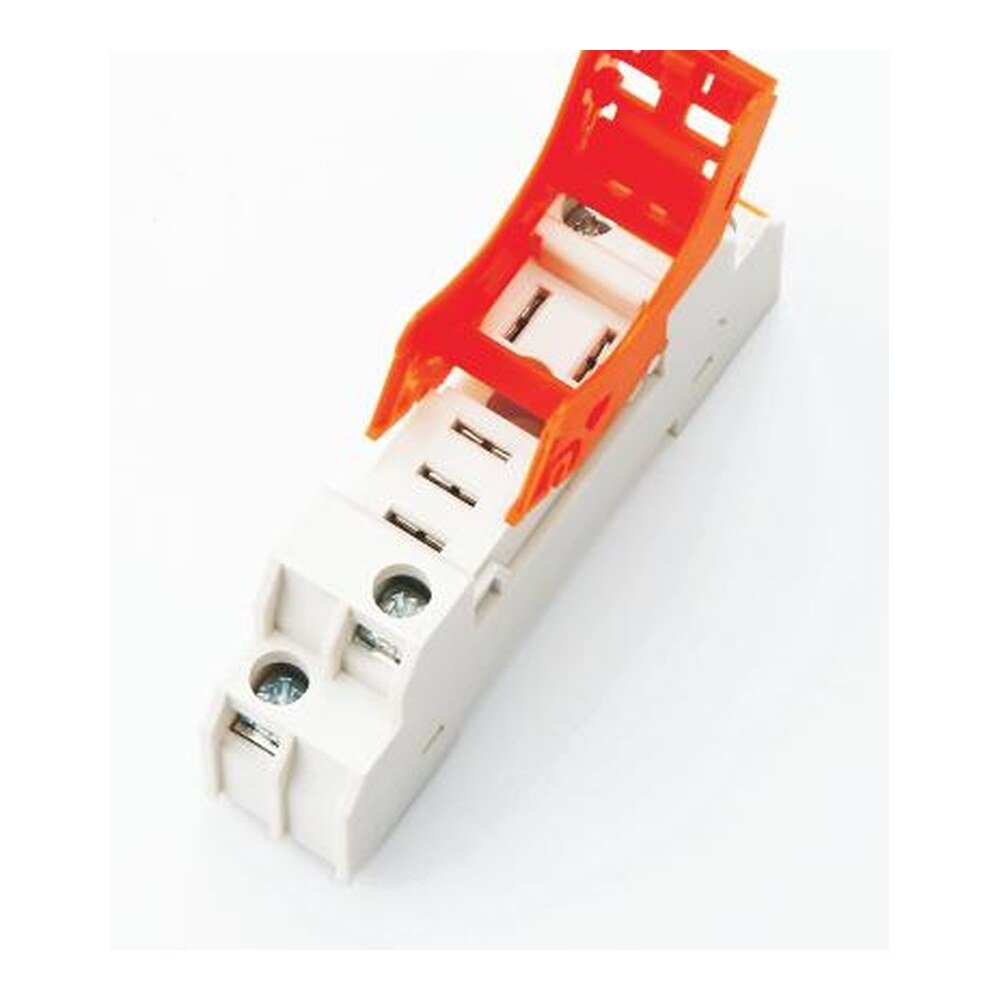

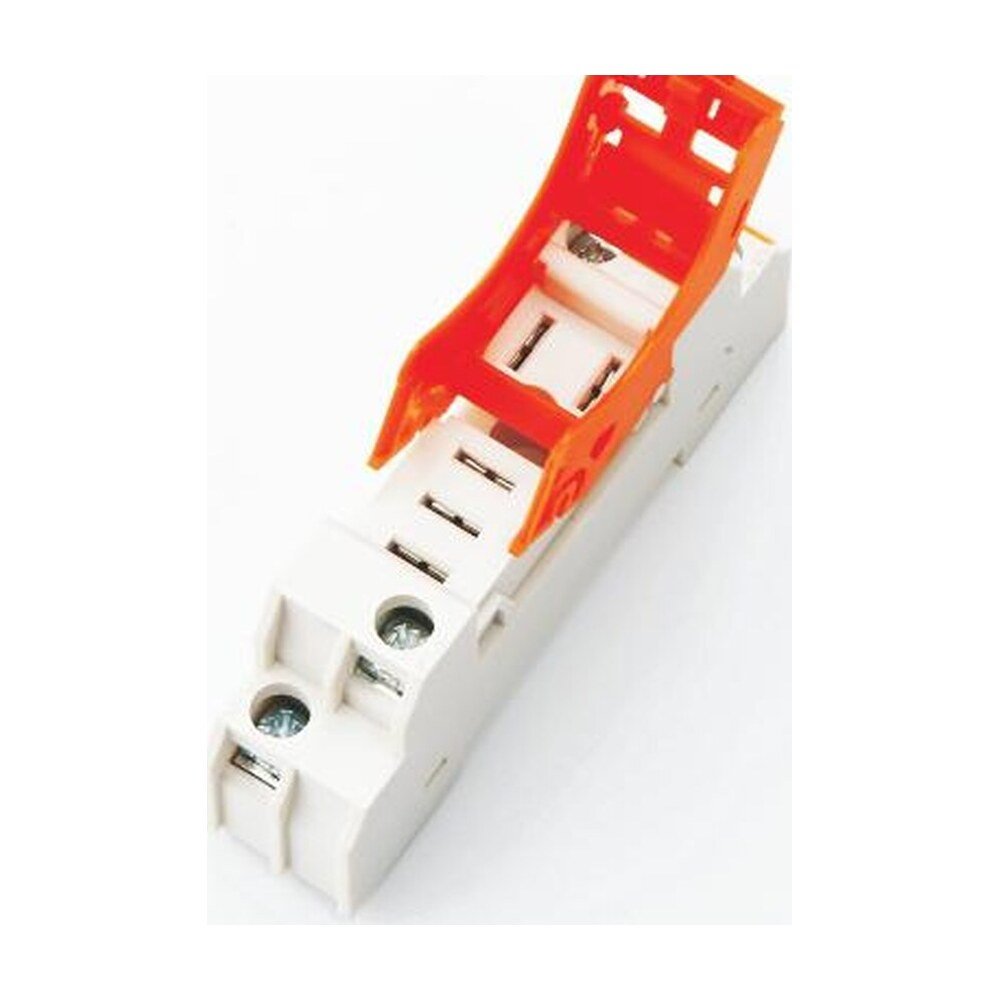

MR-SH1S-05T - DIN-Rail Relay Socket for ORJ1SL Relays.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-SH1S-05T is a DIN-Rail Relay Socket for ORJ1SL Relays.
Full dimensions and ratings are confirmed against the manufacturer drawing at quotation.
Micro-Ray builds cable assemblies, control panels and PC board assemblies as well as supplying parts, so this part can be supplied loose or already wired into an assembly. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
| Part Number (SKU) | MR-SH1S-05T |
|---|---|
| Also ordered as | SH1S-05T |
| Category | Relays |
| Ordering code | MR-SH1S-05T |
| Series | Relay sockets |
| Type | DIN-rail (guide rail) relay socket |
| For relays | ORJ1SL (1 changeover) |
| Terminals | 5 screw terminals |
| Nominal load | 12 A at 250 V AC/DC |
| Dielectric strength | 4000 V coil to contact, 1000 V same-pole contacts, 3000 V between poles |
| Terminal torque | 1.0 N·m |
| Wire size | 20 to 14 AWG (0.5 mm² to 2.5 mm²) |
| Ambient temperature | −40 °C to +70 °C |
| Retaining clip | Plastic retaining and release clip, fitted |
| Size | 75 mm × 57 mm × 15.7 mm |
| Weight | 24 g |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
