MR-SH2Z-14T - DIN-Rail Relay Socket, 14 screw terminals, 5 A.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

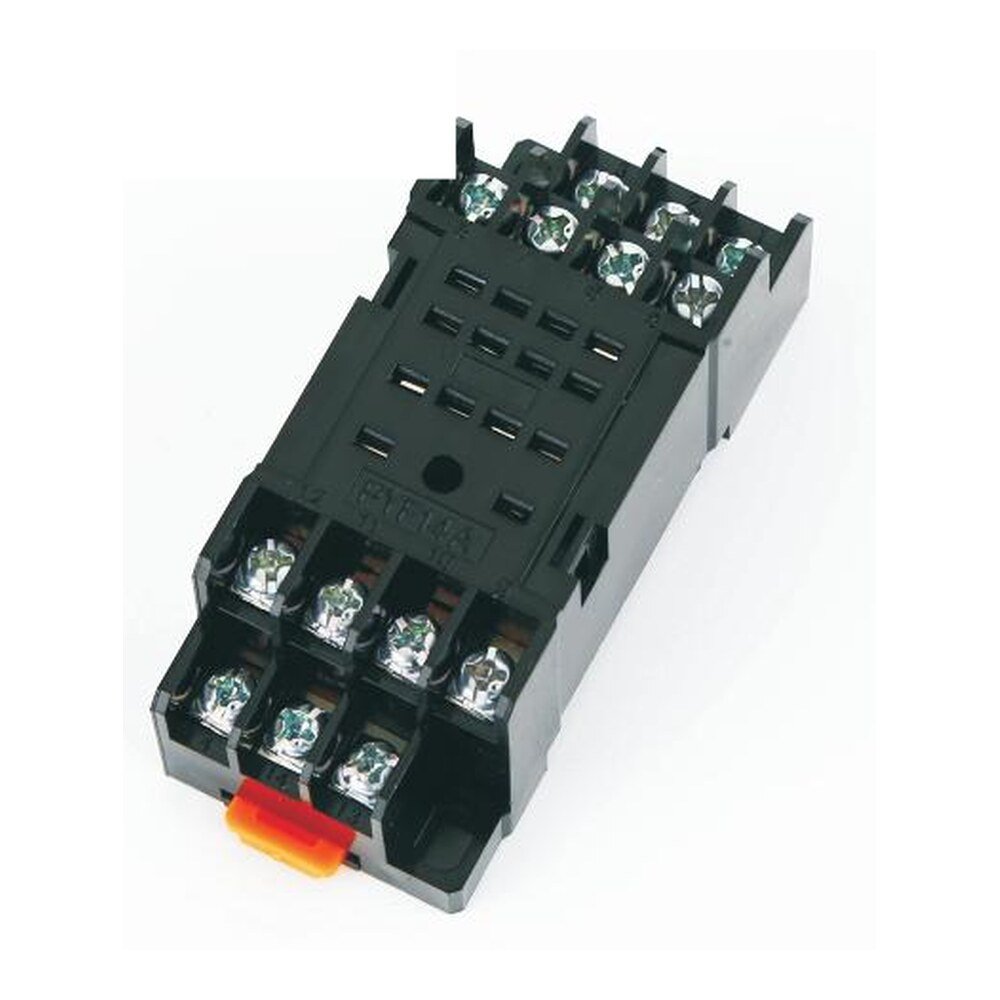

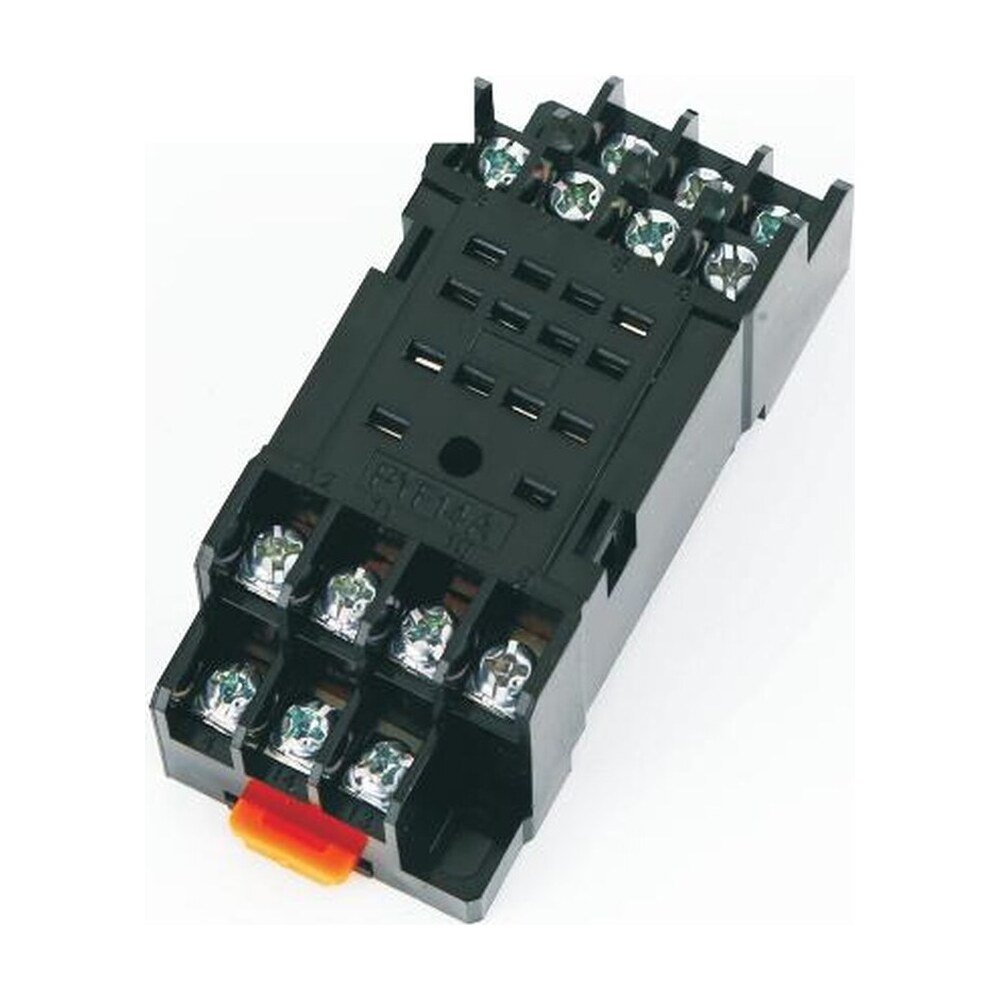

The MR-SH2Z-14T is a DIN-rail relay socket with 14 screw terminals for ORU4ZL / ORU4FL (4 changeover) plug-in relays.
Still being confirmed. The model number (the heading prints SH2Z-14T, the table SH4Z-14T) is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for stock check or lead-time.
| Part Number (SKU) | MR-SH2Z-14T |
|---|---|
| Also ordered as | SH2Z-14T |
| Category | Relays |
| Ordering code | MR-SH2Z-14T |
| Series | Relay sockets |
| Type | DIN-rail (guide rail) relay socket |
| For relays | ORU4ZL / ORU4FL (4 changeover) |
| Terminals | 14 screw terminals |
| Nominal load | 5 A at 250 V AC/DC |
| Dielectric strength | 4000 V coil to contact, 1000 V same-pole contacts, 3000 V between poles |
| Terminal torque | 1.0 N·m |
| Wire size | 20 to 14 AWG (0.5 mm² to 2.5 mm²) |
| Ambient temperature | −40 °C to +70 °C |
| Retaining clip | Metal retaining clip optional |
| Mounting | DIN rail, or 2 × Ø4.5 mm screw holes |
| Size | 72 mm × 29.5 mm × 30 mm |
| Weight | 44 g |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
