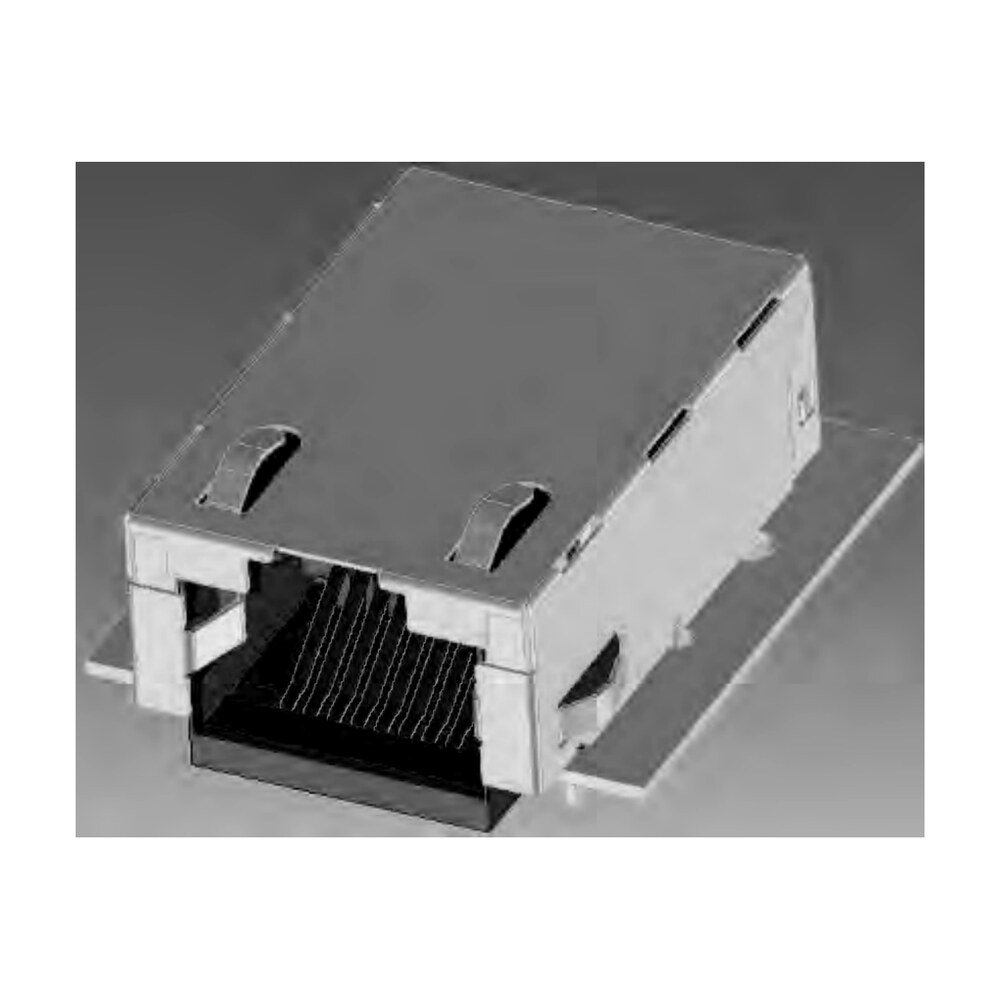

RJ45 modular jack, 9.40 mm height, with integrated transformer and LED, into PCB contact.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
RJ45 modular jack, 9.40 mm height, with integrated transformer and LED, into PCB contact.
| Ports | 1 |
|---|---|
| Integrated magnetics | Yes |
| LEDs | Yes - left and right |
| Voltage rating | 125 V |
| Current rating | 0.5 A |
| Dielectric strength | 500 VAC for 1 minute min |
| Insulation resistance | 100 M ohm min |
| Contact resistance | 45 milliohm max |
| Operating temperature | -30 C to +85 C |
| Plating | 15 microinch min gold on contact area, 50 microinch nickel under plate over shell |
| Packaging | Tray |
| Contacts | Phosphor alloy T=0.35 mm |
| Housing | LCP UL94V-0, black |
| Shell | Brass alloy |
| Insertion force | 22 N max |
| Durability | 750 cycles |
| Designed in | Millimetres |
| Availability | Please call for pricing and availability |
Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-TS-50167 |
|---|---|
| Category | RJ45 Jacks with Magnetics |
| Ports | 1 |
| Integrated magnetics | Yes |
| LEDs | Yes - left and right |
| Voltage rating | 125 V |
| Current rating | 0.5 A |
| Dielectric strength | 500 VAC for 1 minute min |
| Insulation resistance | 100 M ohm min |
| Contact resistance | 45 milliohm max |
| Operating temperature | -30 C to +85 C |
| Plating | 15 microinch min gold on contact area, 50 microinch nickel under plate over shell |
| Packaging | Tray |
| Contacts | Phosphor alloy T=0.35 mm |
| Housing | LCP UL94V-0, black |
| Shell | Brass alloy |
| Insertion force | 22 N max |
| Durability | 750 cycles |
| Designed in | Millimetres |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
