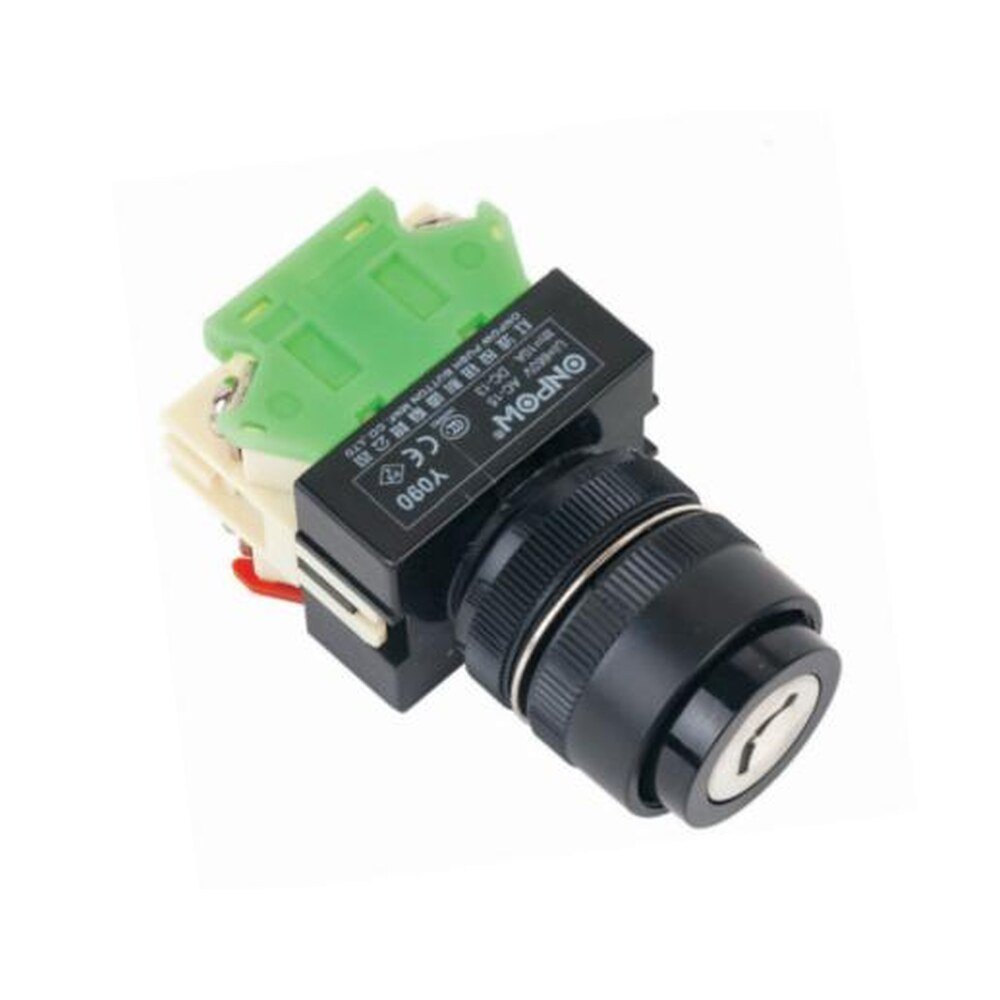

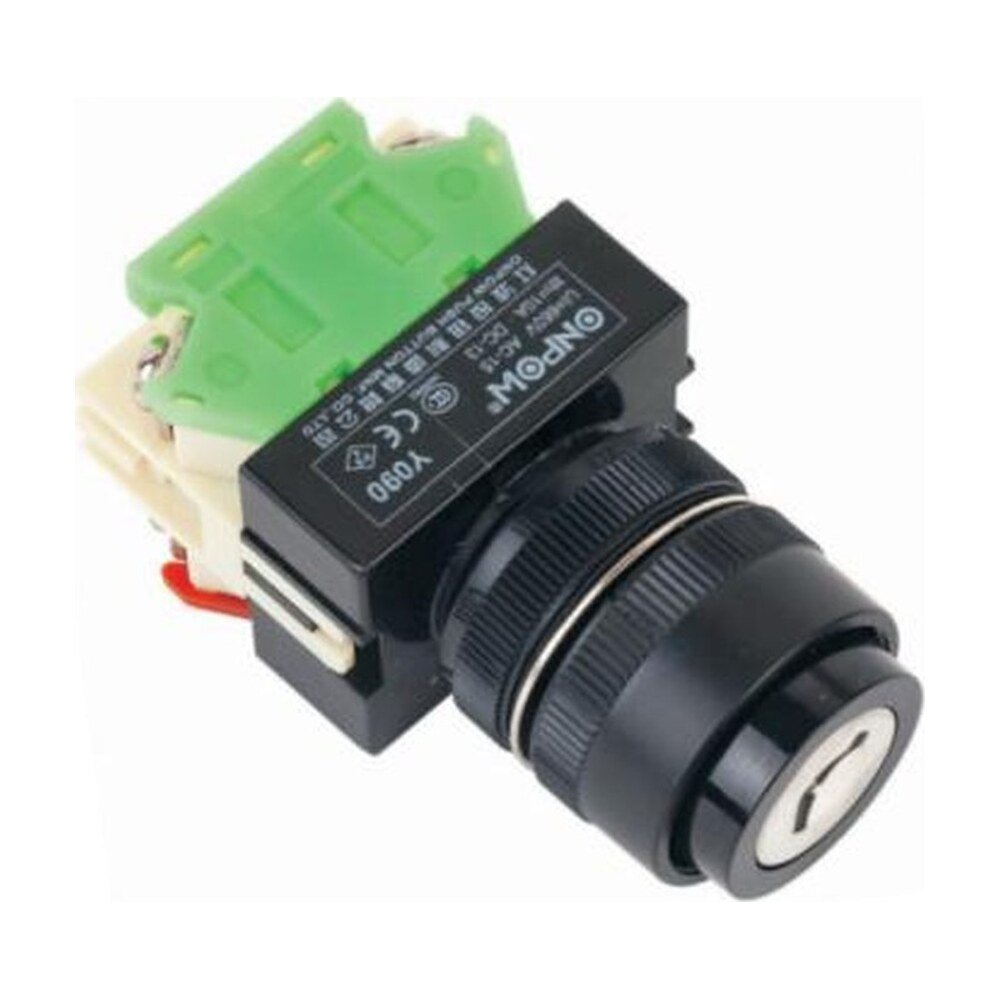

MR-Y090E-Y - 22 mm Key-Lock Switch - Economy Type.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-Y090E-Y is a 22 mm economy key-lock switch, 2 or 3 positions, maintained or self-return, with slow-break switch units rated 10 A thermal current and 660 V insulation voltage. IP40.
Ordering. The ordering code is MR-Y090E-#Y-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 02 = 2NC, 20 = 2NO, 22 = 2NO2NC, 13 = 1NO3NC, 31 = 3NO1NC, 04 = 4NC, 40 = 4NO, 42 = 4NO2NC, 24 = 2NO4NC, 06 = 6NC, 60 = 6NO, 33 = 3NO3NC, 15 = 1NO5NC, 51 = 5NO1NC); position (21 = 2 position, maintained, 23 = 2 position, self-return, 31 = 3 position, maintained, 32 = 3 position, self-return from right, 33 = 3 position, self-return from both sides). The part numbers are listed below.
Still being confirmed. The dimensions, where the key can be removed and how many keys are supplied are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-Y090E-Y |
|---|---|
| Also ordered as | Y090E-Y |
| Category | Key Switches, Switches |
| Ordering code | MR-Y090E-#Y-# |
| Series | Y090E (22 mm, economy type) |
| Rated insulation voltage Ui | 660 V |
| Thermal current Ith | 10 A |
| Rated operation current, AC-12 | 24 V: 10 A, 110 V: 10 A, 220 V: 6 A |
| Rated operation current, AC-15 | 24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A |
| Rated operation current, DC-12 | 24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A |
| Rated operation current, DC-13 | 24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Contact structure | Modular slow-break switch units, self-cleaning; 1 to 8 units |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Key-lock switch |
| Mechanical life | 200,000 operations min |
| Electrical life | 50,000 operations min |
| Return option | Position 32 returns from the right as standard; return from the left can be made to order |
| Protection class | IP40 |
| Availability | Please call for pricing and availability |
