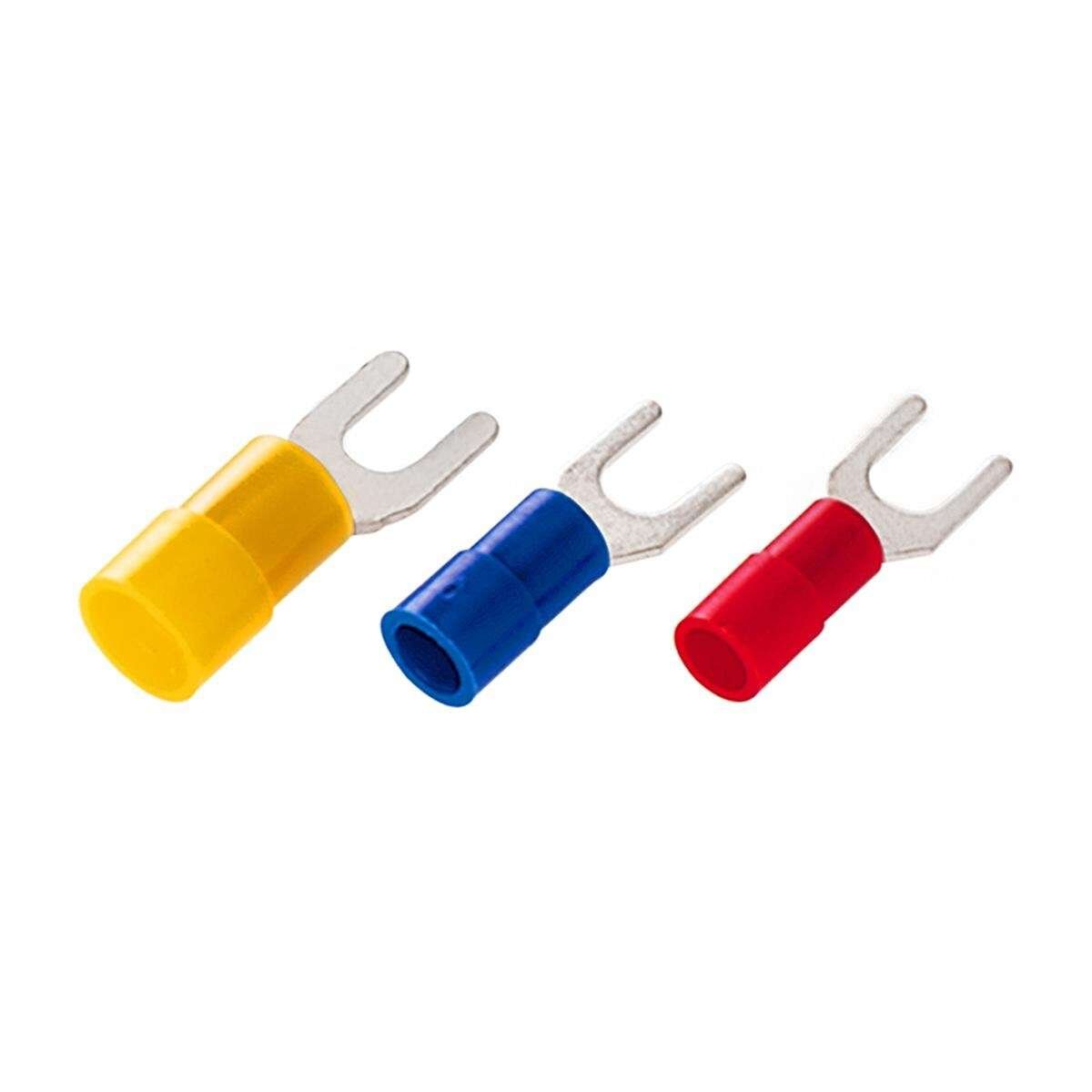

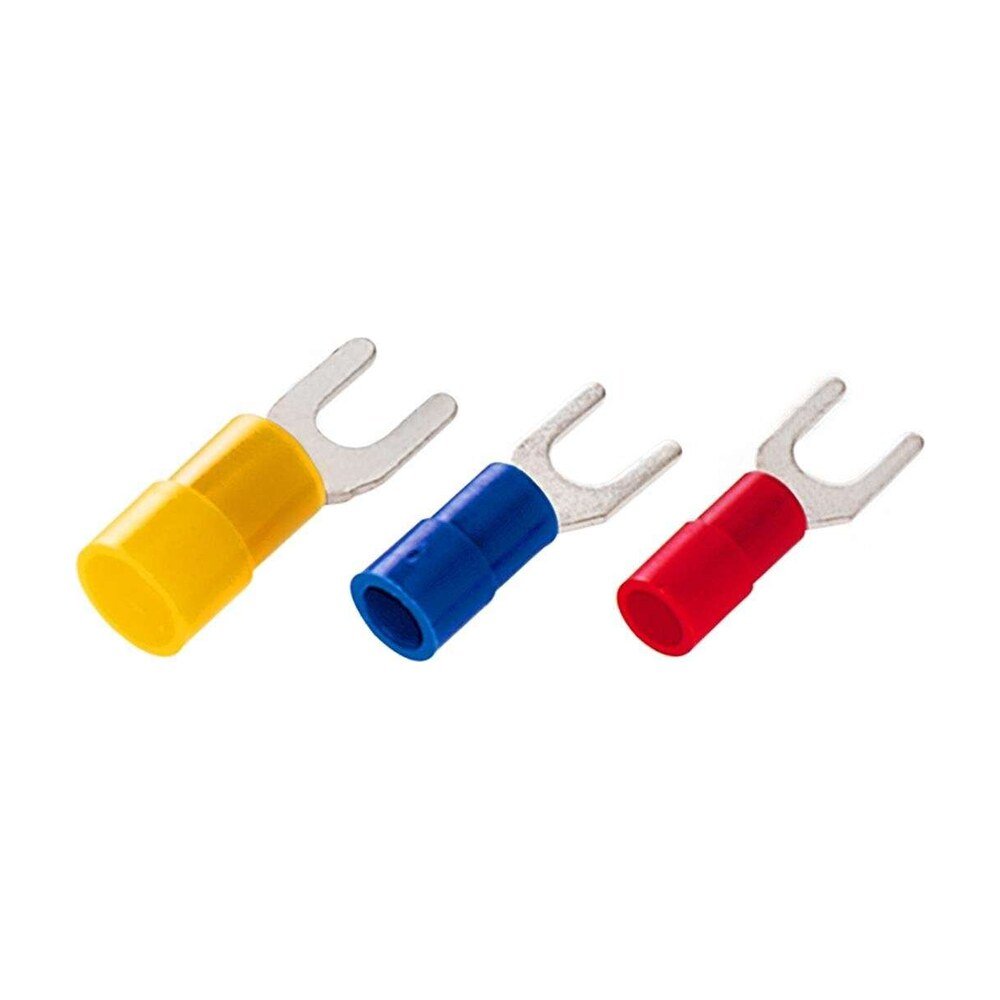

SNYL Nylon-Insulated Fork, Spade Terminal
This spade-style terminal features durable nylon insulation and a brazed seam barrel for secure, reliable wire connections. The fork design allows quick installation without removing the screw. Rated for up to 600V and 105°C, and color-coded for easy wire gauge identification. UL and CSA certified.

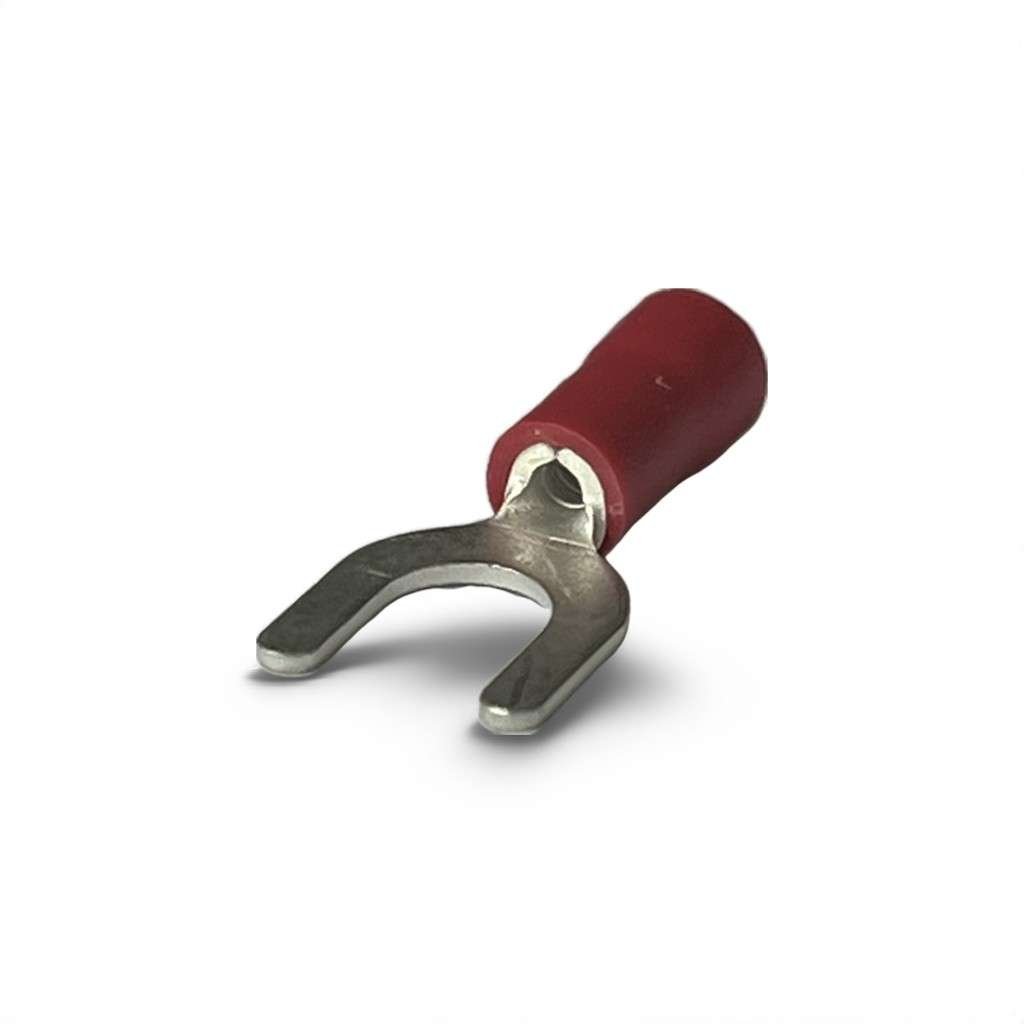

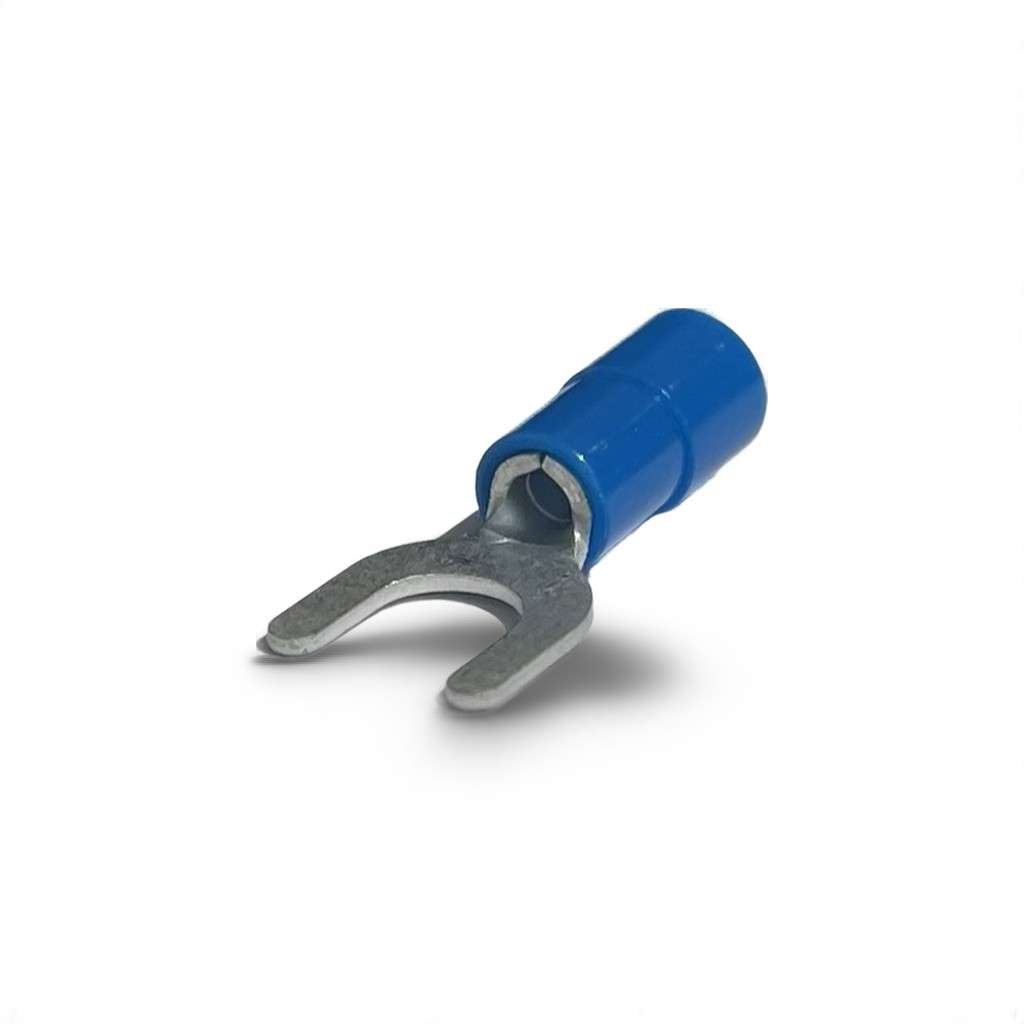

The MR-SNYL nylon-insulated fork terminal—also known as a spade terminal—is designed for fast, secure wire connections to screw or stud-type terminals. Its open-end design allows for easy installation and removal without fully removing the screw. Ideal for control panels, machinery, automotive, and industrial wiring.
Key Features & Benefits:
Durable Nylon Insulation: Molded onto the barrel to resist heat, vibration, and mechanical stress while offering a firm, long-lasting grip.
Funnel Entry Design: Insulation includes a flared wire entry to guide the wire into the barrel for quicker, more precise crimping.
Brazed Seam Barrel: Maintains superior strength under crimping pressure and ensures excellent electrical conductivity.
Translucent Housing: Makes it easy to confirm full wire insertion and proper crimp during installation.
Color-Coded by Gauge: Complies with industry-standard color coding for fast wire size recognition.
Performance Ratings:
Voltage Rating: Up to 600V (building wire), 1000V (equipment wiring)
Temperature Rating: Heat resistant up to 105°C (221°F)
Certifications: UL Listed (E96029), CSA Certified (6223-02)
| Part Number (SKU) | Fork ( Spade) Terminals |
|---|---|
| Category | Crimp Terminals |
| Choose Terminal Stud Size | #6, #8, #10 |
| Choose Terminal Wire Gauges | 16-14 GAUGE, 22-16 GAUGE |
| Weight | N/A |
| Availability | Stock to 8 weeks |
