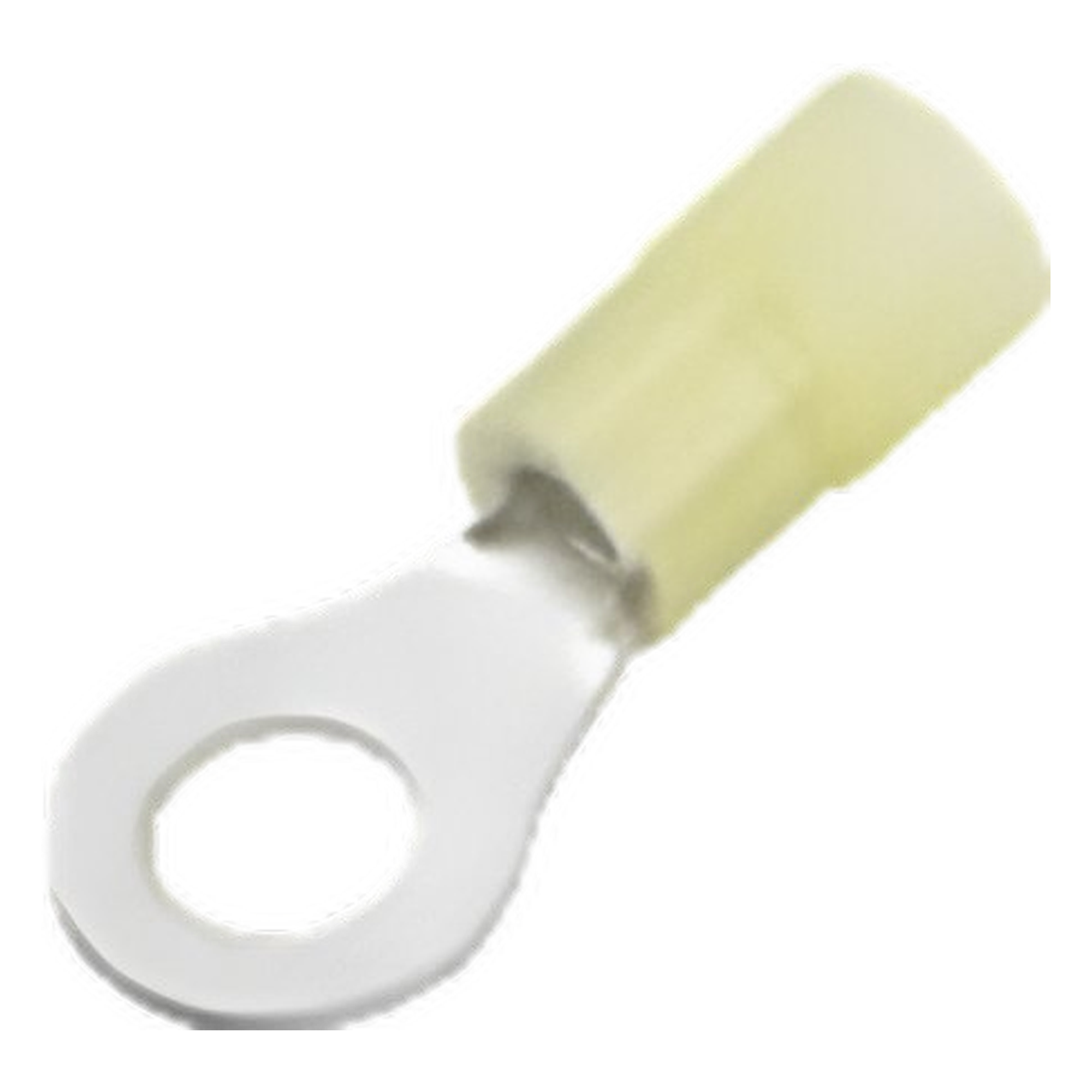

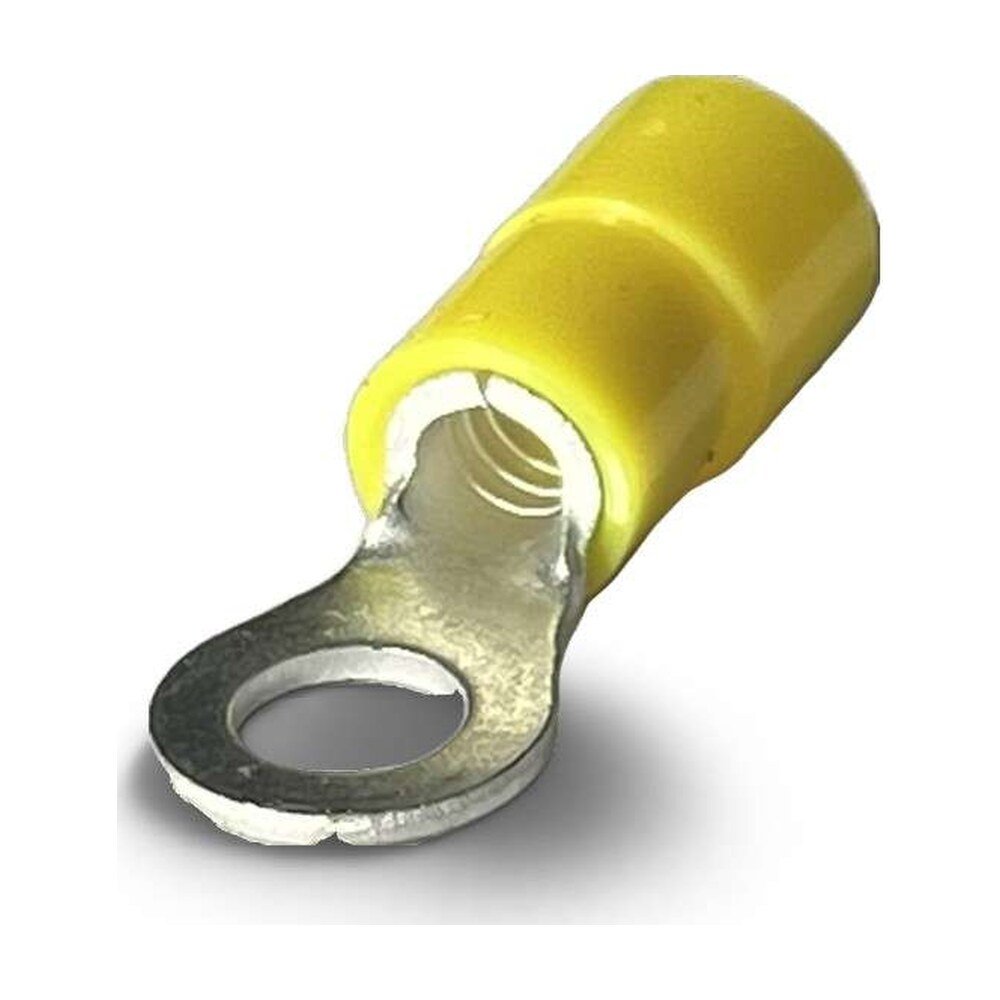

Introducing our Nylon-Insulated Ring Terminals, designed to provide a secure connection for terminating wires to screw or stud-type terminals. These terminals feature heat-resistant and durable insulation, along with a brazed seam barrel, ensuring reliable performance and easy wire insertion. Color-coded by wire gauge and rated up to 105°C and 1000V, these terminals are the perfect choice for your electrical connections.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Nylon-insulated ring terminals are designed to connect a single wire to a screw or stud-type electrical connection, offering a secure, long-lasting termination. The nylon insulation provides flexibility during crimping, excellent heat resistance, and durability in demanding environments.
Durable Nylon Insulation: Molded onto the brazed seam barrel to resist heat and deformation during installation and use.
Easy Wire Insertion: Funnel entry built into the insulation guides the wire for quicker, more accurate installation.
Robust Construction: Brazed seam barrel maintains structural integrity under pressure and mechanical stress.
Visual Inspection: Translucent insulation allows for easy verification of wire engagement after crimping.

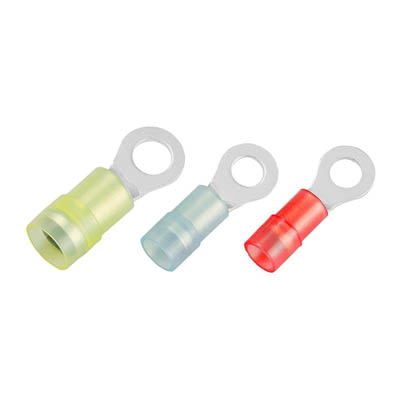

Color-Coded for Wire Gauge: Complies with industry-standard color coding for fast, accurate wire size identification.
Voltage & Temperature Ratings:
Rated for up to 600V (building wire)
Up to 1000V (equipment wiring)
Heat rated to 105°C (221°F)
Certifications: UL Listed (E96029), CSA Certified (6223-02)
| Part Number (SKU) | Nylon Ring Terminals, 12-10 Awg, Yellow |
|---|---|
| Category | Cable Tie Mount, Crimp Terminals, Zip-Ties |
| Choose Terminal Stud Size | 1/4", #6, #8, #10 |
| Choose Terminal Wire Gauges | 12-10 GAUGE, 16-14 GAUGE, 22-16 GAUGE |
| Weight | N/A |
| Durable Nylon Insulation | Molded onto the brazed seam barrel to resist heat and deformation during installation and use. |
| Easy Wire Insertion | Funnel entry built into the insulation guides the wire for quicker, more accurate installation. |
| Robust Construction | Brazed seam barrel maintains structural integrity under pressure and mechanical stress. |
| Visual Inspection | Translucent insulation allows for easy verification of wire engagement after crimping. |
| Color-Coded for Wire Gauge | Complies with industry-standard color coding for fast, accurate wire size identification. |
| Certifications | UL Listed (E96029), CSA Certified (6223-02) |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
