P-830N — Barrier terminal blocks, Pitch: 8.00 / 10.8mm, 1.2x2.0mm, 85A. Pitch : 8.00 /10.80 mm, 1.2x2.0mm, 85A.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.

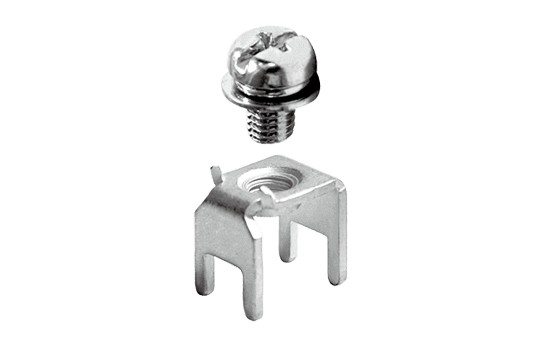

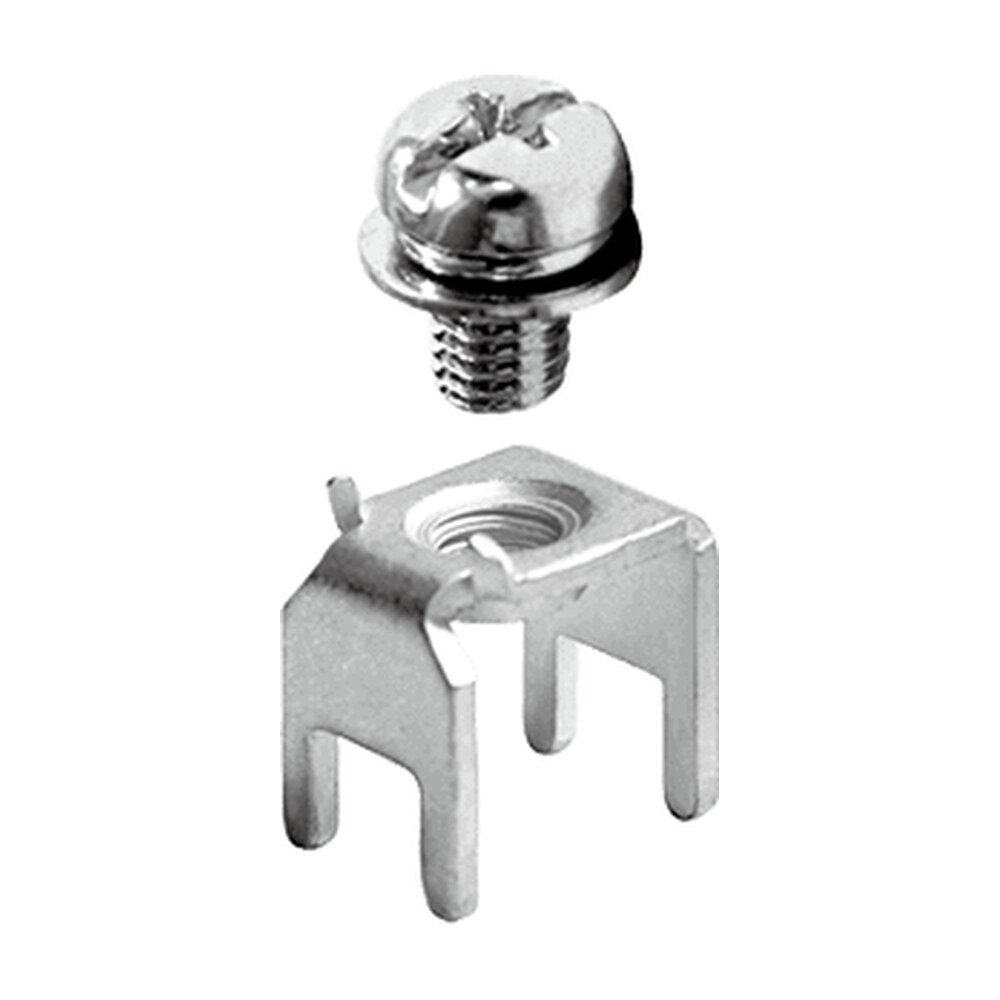

Dinkle P-830N — Barrier terminal blocks, Quick terminal blocks. Distributed by Micro-Ray Electronics.
Barrier terminal blocks land wires between insulating barriers on a panel or chassis, keeping adjacent circuits separated and each screw reachable for test and re-termination. They are used throughout machine control, instrumentation, HVAC and appliance wiring.
Barrier terminal blocks, Pitch: 8.00 / 10.8mm, 1.2x2.0mm, 85A
Published by Dinkle for the P-830N series.
| Category | Quick terminal blocks |
|---|---|

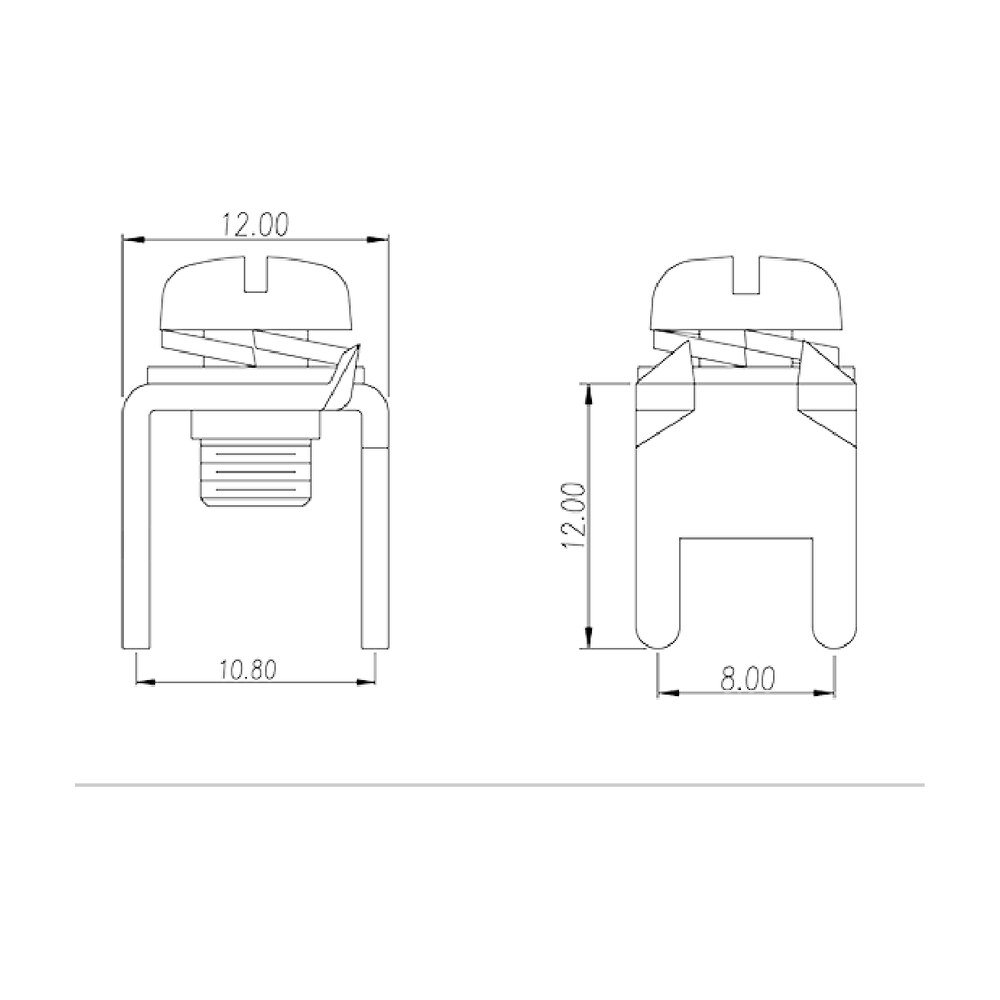

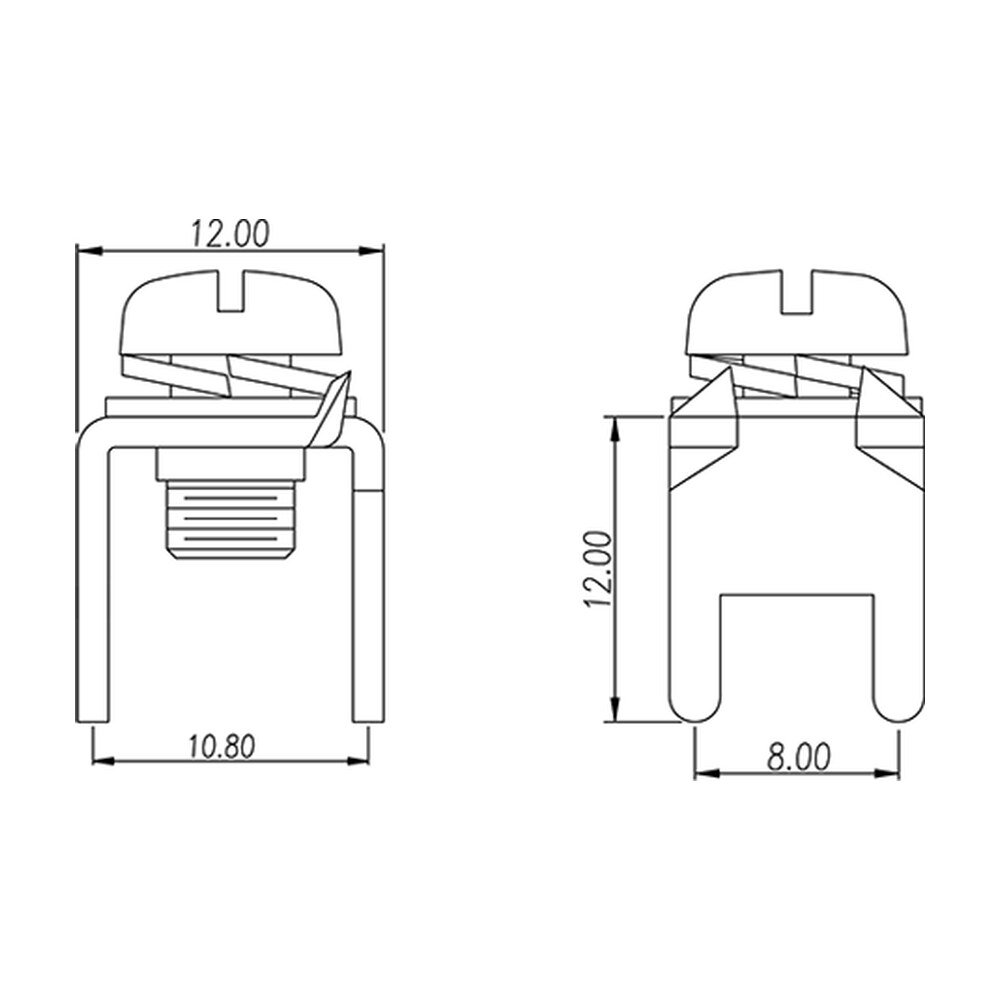

| Pitch (mm) | 8.00 / 10.80 |
| Pin demensions (Thickness x Width)(mm) | 1.2x2.0 |
| Conductor material | COPPER ALLOY |
|---|---|
| Plating of conductor surface | Tin PLATED |
| Rated current (A) | 85 |
|---|---|
| Screw thread | M5 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1.0x5.5 |
| Philips screwdriver size | PH2 |
| Recommend tightening torque. min (N.m) | 2 |
| Recommend tightening torque. max (N.m) | 2.4 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | P-830N |
|---|---|
| Category | Wire Terminal |
| Block Type | Quick terminal blocks |
| Pitch (mm) | 8.00 / 10.80 |
| Rated Current (IEC) | 85 |
| Screw Thread | M5 |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
