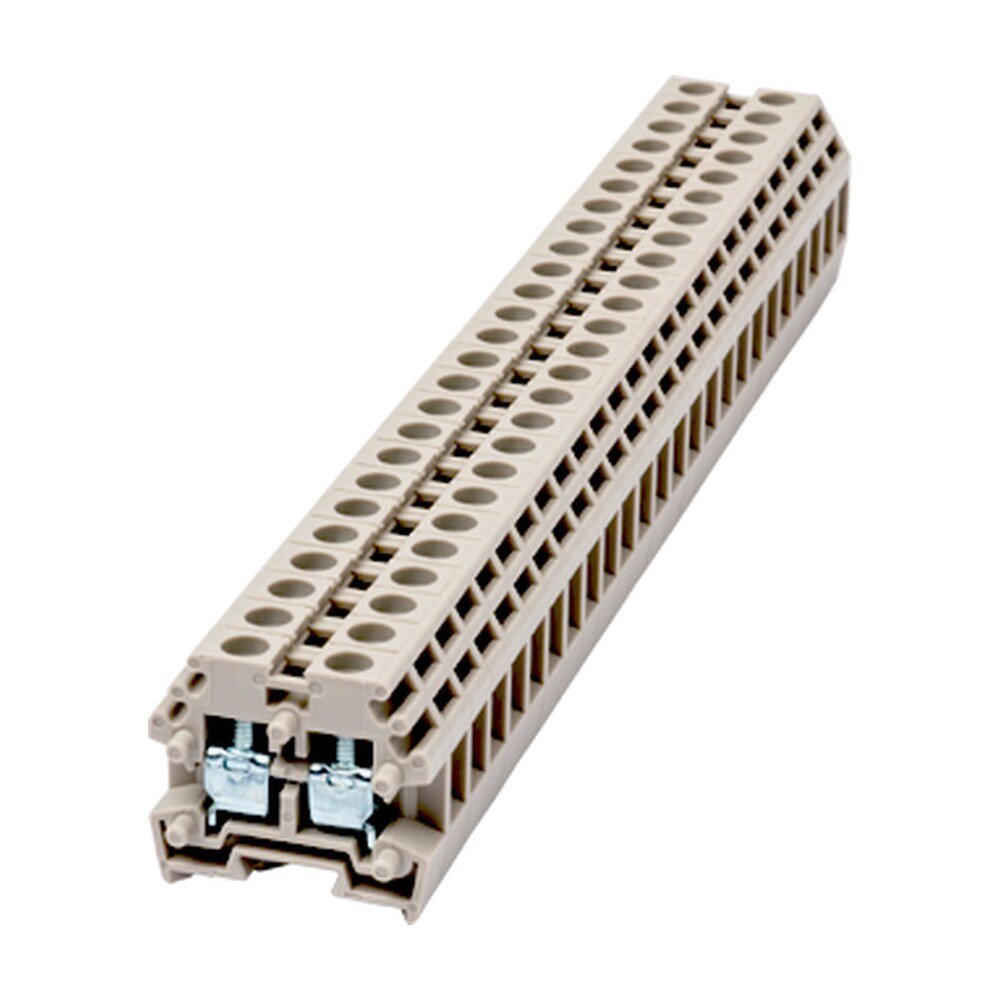

PM2.5N — DIN rail terminal blocks, Panel mounting terminal blocks, 300V, 20A. M2.5, 300V, 20A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle PM2.5N — DIN rail terminal blocks, Panel mounting terminal blocks. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
DIN rail terminal blocks, Panel mounting terminal blocks, 300V, 20A
Published by Dinkle for the PM2.5N series.
| Category | Panel mounting terminal blocks |
|---|---|
| Color | Beige (default) |
| Connection method | Screw connection |
| Type of locking | Panel mounting |

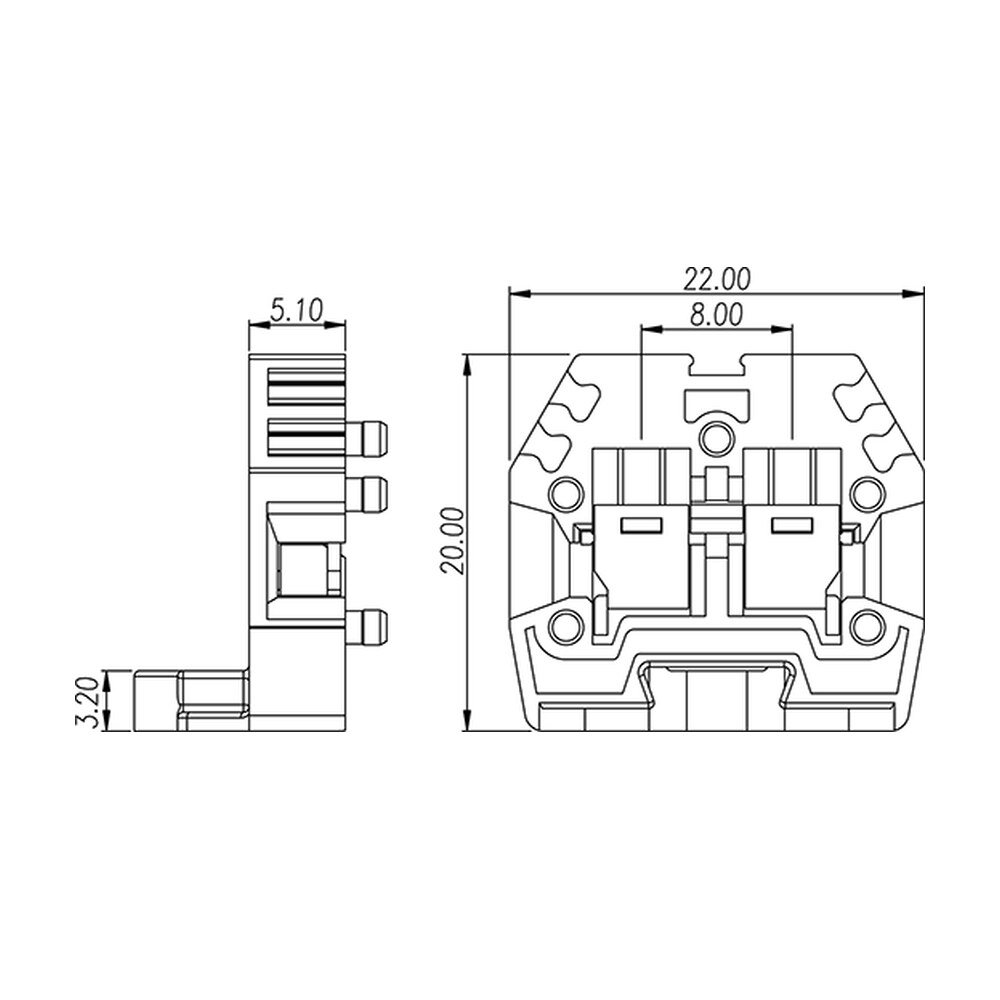

| Length (mm) | 5.1 |
| Width (mm) | 22 |
| Height (mm) | 20 |
| Number of positions | 01P~15P |
| Level | Single level |

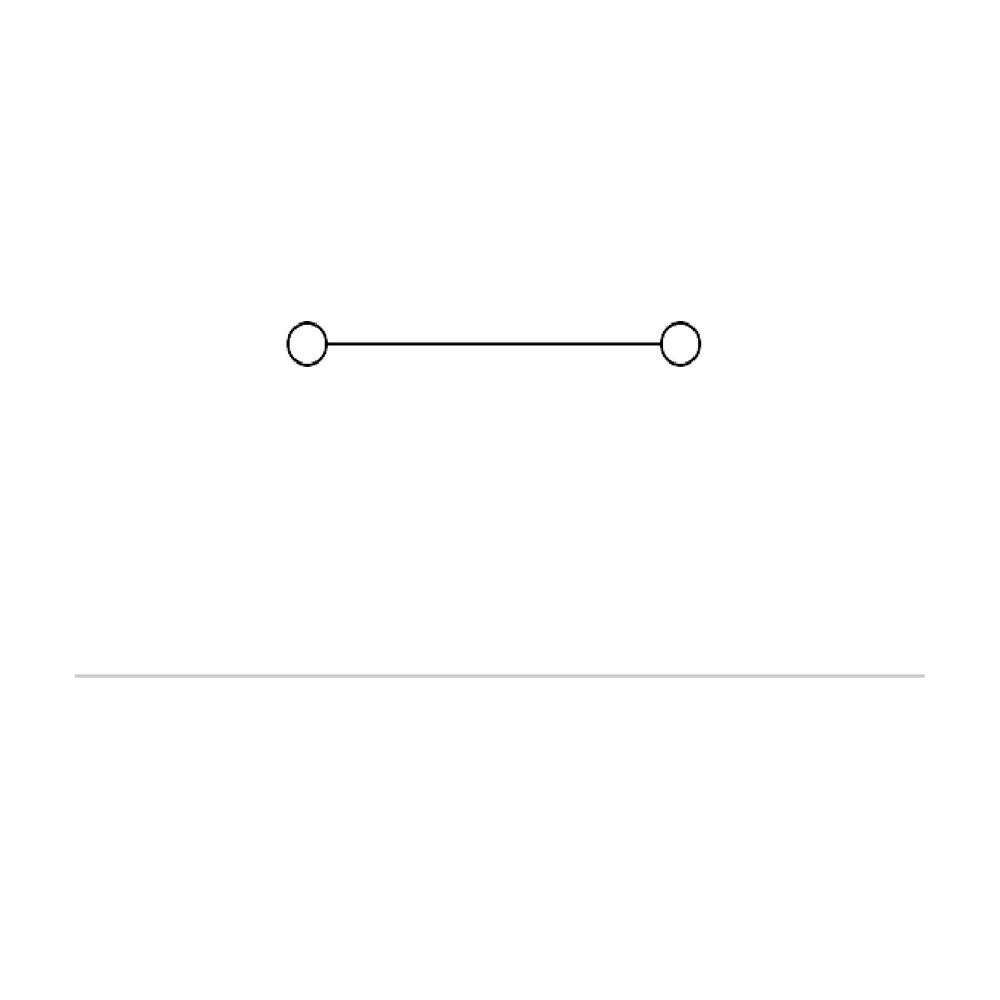

| Connection points | 2 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Rated voltage (V) | 500 |
|---|---|
| Rated current (A) | 24 |
| Rated voltage (III/3)(V) | 500 |
| Rated impulse voltage (II/2)(KV) | 6 |
| Rated impulse voltage (III/2)(KV) | 6 |
| Rated impulse voltage (III/3)(KV) | 6 |
| Conductor cross section solid. min (mm²) | 0.34 |
| Conductor cross section solid.max (mm²) | 4 |
| Conductor cross section stranded. min (mm²) | 0.34 |
| Conductor cross section stranded. max (mm²) | 2.5 |
| Screw thread | M2.5 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.6x3.5 |
| Philips screwdriver size | PH1 |
| Rated torque (N.m) | 0.39 |
| Stripping Length (mm) | 6~8 |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 20 |
| Rated voltage (UL/CUL Group C)(V) | 300 |
| Rated current (UL/CUL Group C)(A) | 20 |
| Rated voltage (UL/CUL Group D)(V) | 600 |
| Rated current (UL/CUL Group D)(A) | 5 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 12 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 12 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 22~12 |
|---|---|
| Rated voltage (Group B)(V) | 300 |
| Rated current (Group B)(A) | 20 |
| Wire Range (Group C)(AWG) | 22~12 |
| Rated voltage (Group C)(V) | 300 |
| Rated current (Group C)(A) | 20 |
| Wire Range (Group D)(AWG) | 22~12 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (Group B)(AWG) | 22~12 |
|---|---|
| Rated voltage (Group B)(V) | 300 |
| Rated current (Group B)(A) | 20 |
| Wire Range (Group C)(AWG) | 22~12 |
| Rated voltage (Group C)(V) | 300 |
| Rated current (Group C)(A) | 20 |
| Wire Ranget (Group D)(AWG) | 22~12 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (mm²) | 0.34~2.5 |
|---|---|
| Rated voltage (V) | 500 |
| Rated current (A) | 24 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | PM2.5N |
|---|---|
| Category | Screw Connection |
| Block Type | Panel mounting terminal blocks |
| Connection Method | Screw connection |
| Type of Locking | Panel mounting |
| Level | Single level |
| Connection Points | 2 |
| Number of Positions | 01P~15P |
| Rated Voltage (UL) | 300 |
| Rated Current (UL) | 20 |
| Wire Range (UL) | 22~12 |
| Rated Voltage (IEC) | 500 |
| Rated Current (IEC) | 24 |
| Wire Range (IEC) | 0.34~2.5 |
| Stripping Length (mm) | 6~8 |
| Screw Thread | M2.5 |
| Length (mm) | 5.1 |
| Width (mm) | 22 |
| Height (mm) | 20 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Beige (default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
