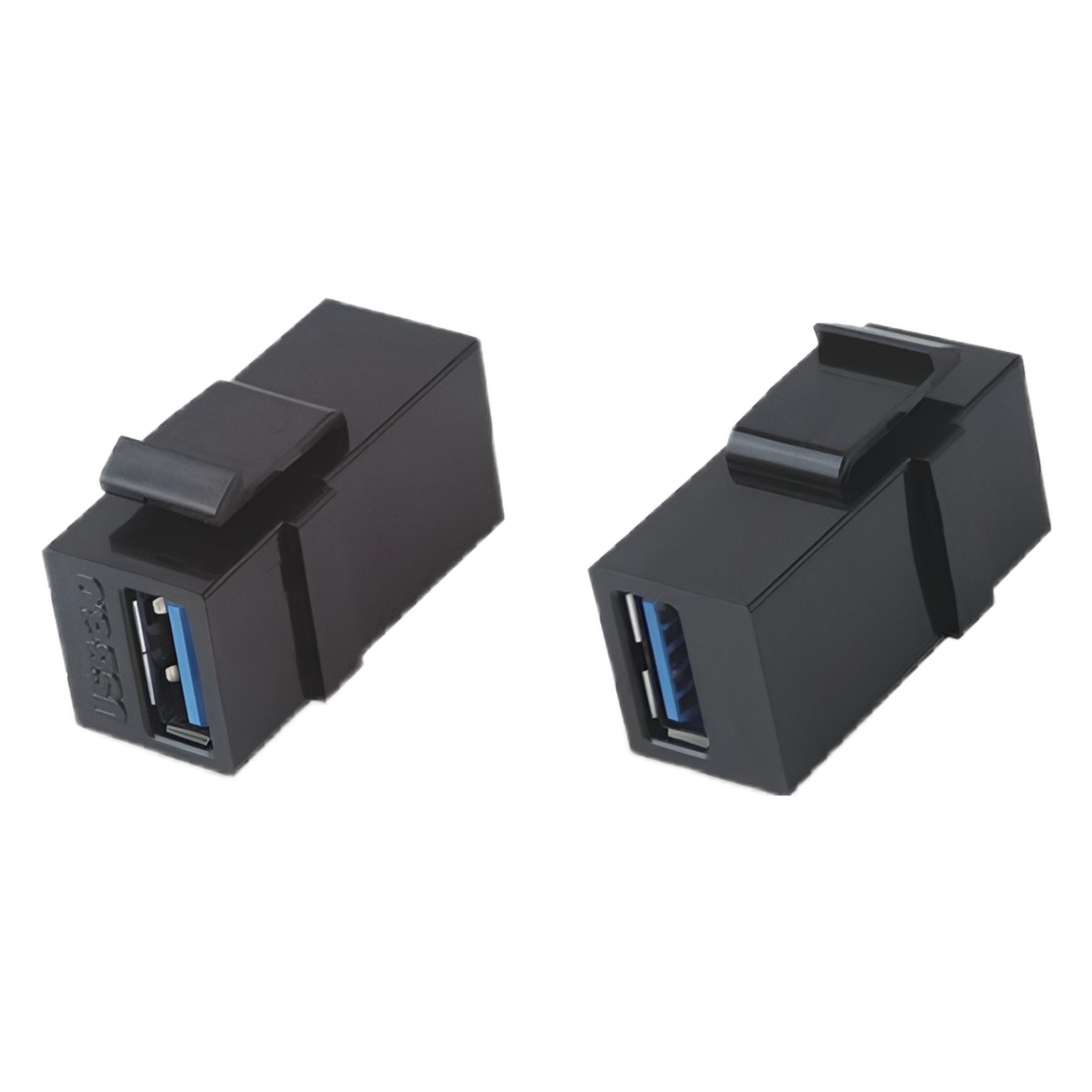

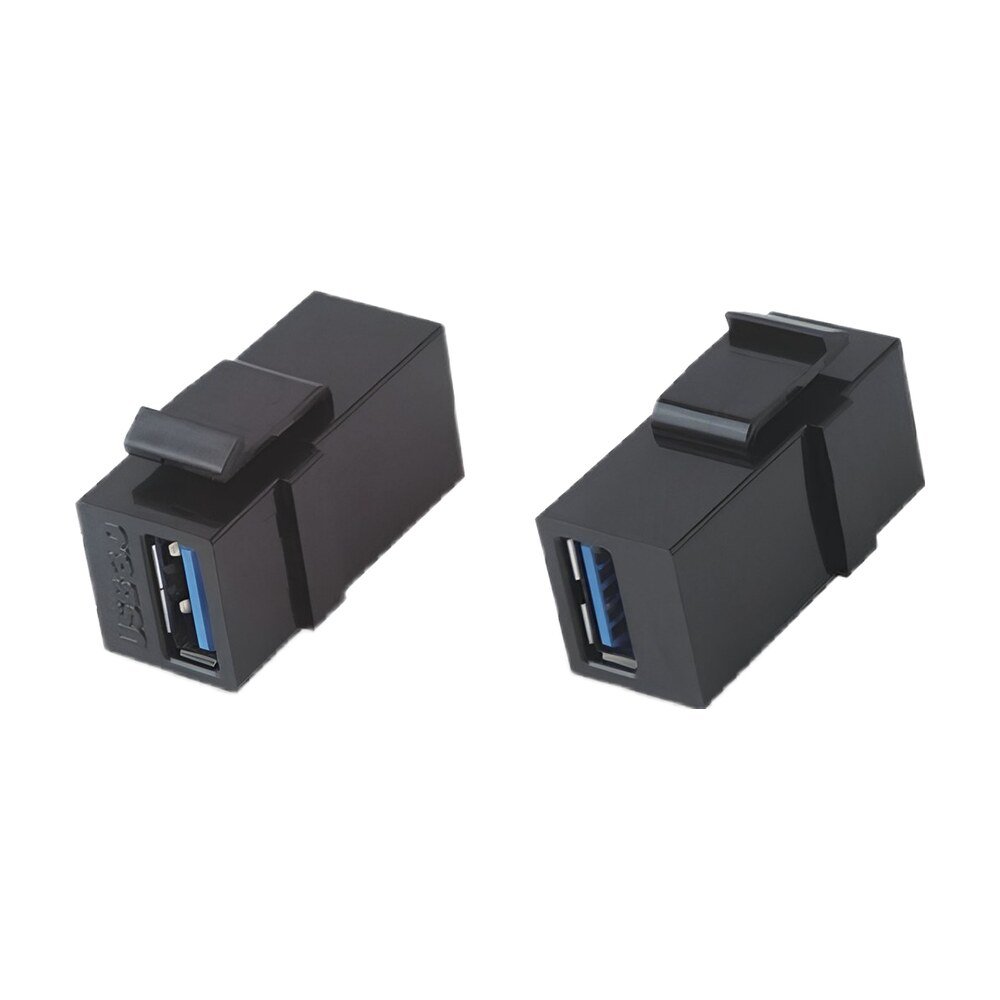

A USB 3.0 Keystone Jack AF to AF Connector is a female-to-female adapter designed to fit into a standard keystone wall plate or panel. It allows for easy extension and management of USB 3.0 connections in structured cabling setups, such as home theaters, offices, or data centers.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Professionalize your data and multimedia installations with the USB 3.0 Keystone Jack (A-Female to A-Female Coupler). This essential component is engineered for structured cabling systems, allowing you to integrate high-speed USB connectivity directly into your walls, panels, and enclosures. Perfect for modernizing conference rooms, classrooms, home theaters, and office environments, it provides a clean, clutter-free look by hiding cables within the wall.
Electrical
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤10 mΩ
DC Resistance: ≤ 0.1 Ω
DC/AC Volt Endurance： DC1000V/AC750V 1min
Mechanical
Plug Insertion Life ≥750 Cycles WITH FCC COMPLIANT RJ-45 PLUG
Plug & Jack Contact Force ≥100 Grams WITH FCC COMPLIANT RJ-45 PLUG
Plug Retention Force: ≥ 11 lbf
DURABILITY : 200 TERMINATION CYCLES
OPERATING TEMPERATURE : -10~60°C
OPERATING HUMIDITY : 10%~90%RH
STORAGE TEMPERATURE : -40°C TO 68°C
Physical
Plastic Parts: High impact flame retardant plastic,
UL 94V-0 rated
PCB: FR-4, 1.2mm Thickness
Jack Wire: 0.35 mm Phosphor bronze gold over nickel plating
IDC CONDUCTOR：0.5mm Phosphor bronze, tin-plating
CONTACT COMPATIBILITY
ACCOMMODATES 26 TO 23AWG SOLID
Standards Verification
ANSI/TIA-568-C.2 ;
ISO/IEC 11801 :2002/Amd.2:2010 ;
YD/T 926.3-2009 ;
ISO/IEC 60603-7 COMPLIANT ;
RoHS directive 2002/95/EC compliant
| Part Number (SKU) | MR-QXKJ-1040 |
|---|---|
| Category | Keystone Jacks |
| Color: Please Choose Below. | Black, White, Yellow |
| Weight | N/A |
| Current Rating | 1.5 Amps |
| Insulation Resistance | ≥ 500 MΩ |
| Contact Resistance | ≤10 mΩ |
| DC Resistance | ≤ 0.1 Ω |
| DC/AC Volt Endurance | DC1000V/AC750V 1min |
| Plug Retention Force | ≥ 11 lbf |
| DURABILITY | 200 TERMINATION CYCLES |
| OPERATING TEMPERATURE | -10~60°C |
| OPERATING HUMIDITY | 10%~90%RH |
| STORAGE TEMPERATURE | -40°C TO 68°C |
| Plastic Parts | High impact flame retardant plastic, |
| PCB | FR-4, 1.2mm Thickness |
| Jack Wire | 0.35 mm Phosphor bronze gold over nickel plating |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
