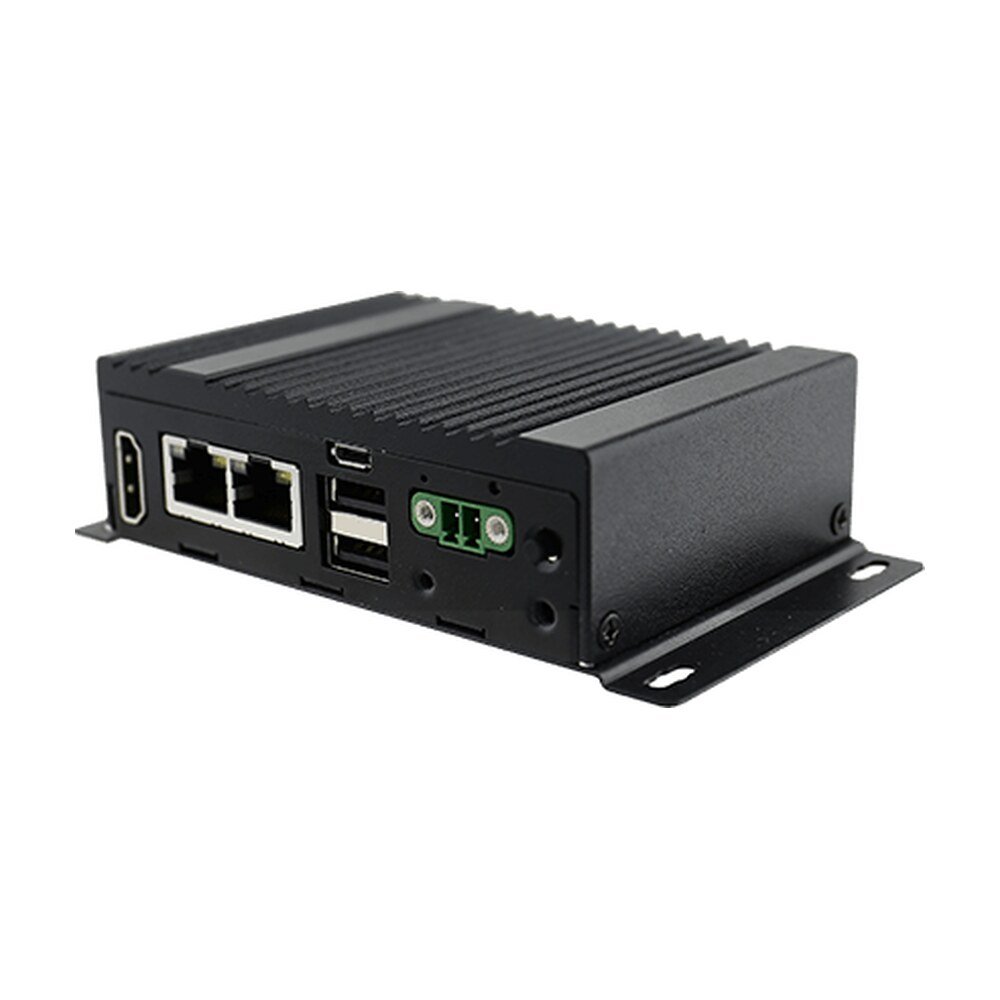

Explore Winmate EACFA20, an industrial embedded computer featuring Intel® Celeron® and for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate EACFA20, an industrial embedded computer featuring Intel® Celeron® and for industrial automation and embedded systems.

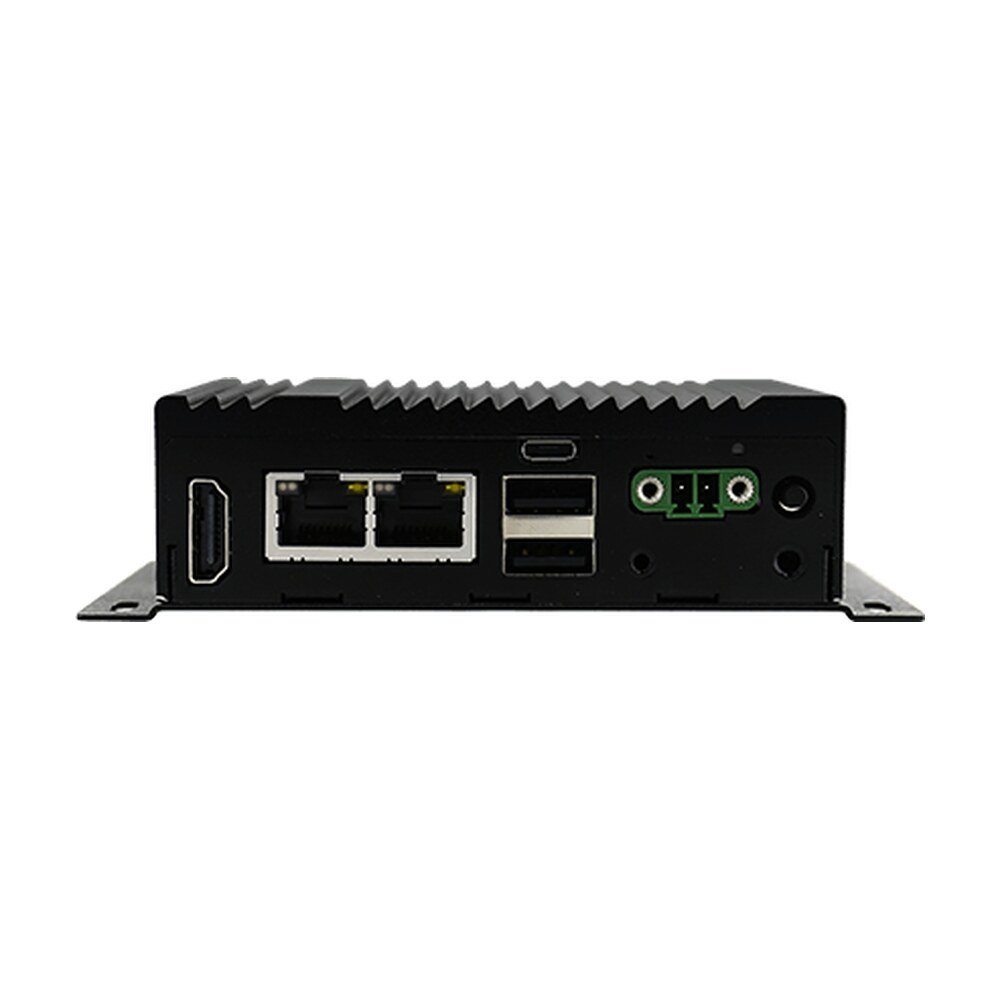

The EAC series gateway's hardware has a compact design of 100 x 70 x 31 mm(w/o mounting bracket) and is based on rugged, reliable, and long-lasting industrial technology.
EAC series is a plug & play IoT gateway to simplify your deployment with multi-connectivity, optimized thermal solution, and easy mounting with Stand, VESA, Wall, Din-Rail, which is ideal for smart city, smart retail, smart energy, and industry 4.0.
USB OTG introduces the concept of a device performing both master and slave roles – whenever two USB devices are connected and one of them is a USB OTG device, they establish a communication link. The device controlling the link is called the master or host, while the other is called the slave or peripheral.
As Microsoft's strategic industrial partner, Winmate seamlessly integrates Microsoft’s direct support to provide our partners headache-free services. Our industrial partners will get know-your-need software and cloud solutions from Winmate to meet all expectations. Winmate EAC mini is the perfect platform for HMI and dashboard applications on the go. It keeps you updated with status information and vital data from your machines presented in clear, interactive graphics. Mobile and agile, it gives you vital data on production trends, alarms, and upcoming maintenance so you can take decisions and corrective measures from anywhere within your facility.
| System Specification | |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | WWAN (Optional) |
| Expansion Port | EACWSLT-222 WWAN Expansion Board (Single SIM Slot), EACWSLT-231 3-port RS232/422/485 (Default RS232) w/ isolation, EACWSLT-232 16-Channel Digital I/O w/ isolation, EACWSLT-233 2-port CANBUS w/ isolation, EACWLST-234 3 -port USB 2.0, EACWLST-235 2-port RS232/422/485 (Default RS232) w/ isolation |
| Mechanical | |
| Dimension | 100 (W) x 70 (H) x 31(D) mm(One layer), 100 (W) x 70 (H) x 61(D) mm(Double layer) |
| Weight | 0.4 kg (One layer),, 0.5 kg (Double layer) |
| Mounting | Desk Mounting and Wall Mounting (Default), VESA Mount (Optional), DIN-Rail Mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
| Certification | |
| Certification | CE, FCC, Microsoft Azure Certified for IoT, AWS lot Greengrass Certified |
| IO Ports | |
| USB Port | 2 x USB2.0 (Type-A), 1 x USB2.0 OTG (Micro USB) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 1.4 (Optional) |
| Expansion Port | mPCIe: 1 x Full-size mPCIe slot, USB Wafer : 2 x USB2.0 Wafer |
| Indicator | 1 x LED Indicator for power |
| mini PCIe | 1 x Mini PCIE |
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | Quick Start Guide, Terminal Block 2 Pin to 2.5Ø Female Adapter Cable, 2 Pin Terminal Block Connector, Open Wire DC Cable, WLAN External Antenna (For WLAN sku), WWAN External Antenna (For WWAN sku) (Default), AC to DC Adapter 12V/36W (Optional), VESA Mounting Kit (Optional), DIN Rail Mounting Kit (Optional) |
| Power | |
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W |
| Ordering Information | |
| Option | EACWSLT-222 WWAN Expansion Board (Single SIM Slot) (Optional), EACWSLT-231 3-port RS232/422/485 (Default RS232) w/ isolation (Optional), EACWSLT-232 16-Channel Digital I/O w/ isolation (Optional), EACWSLT-233 2-port CANBUS w/ isolation (Optional), EACWLST-234 3 -port USB 2.0 (Optional), EACWLST-235 2-port RS232/422/485 (Default RS232) w/ isolation (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | EACFA20 |
| Series | EAC Mini |
| Availability | Please call for pricing and availability |
