Explore Winmate EACIM20, an industrial computer solution featuring Android, Linux, A53 Quad-core 2.0 GHz for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate EACIM20, an industrial computer solution featuring Android, Linux, A53 Quad-core 2.0 GHz for industrial automation and embedded systems.

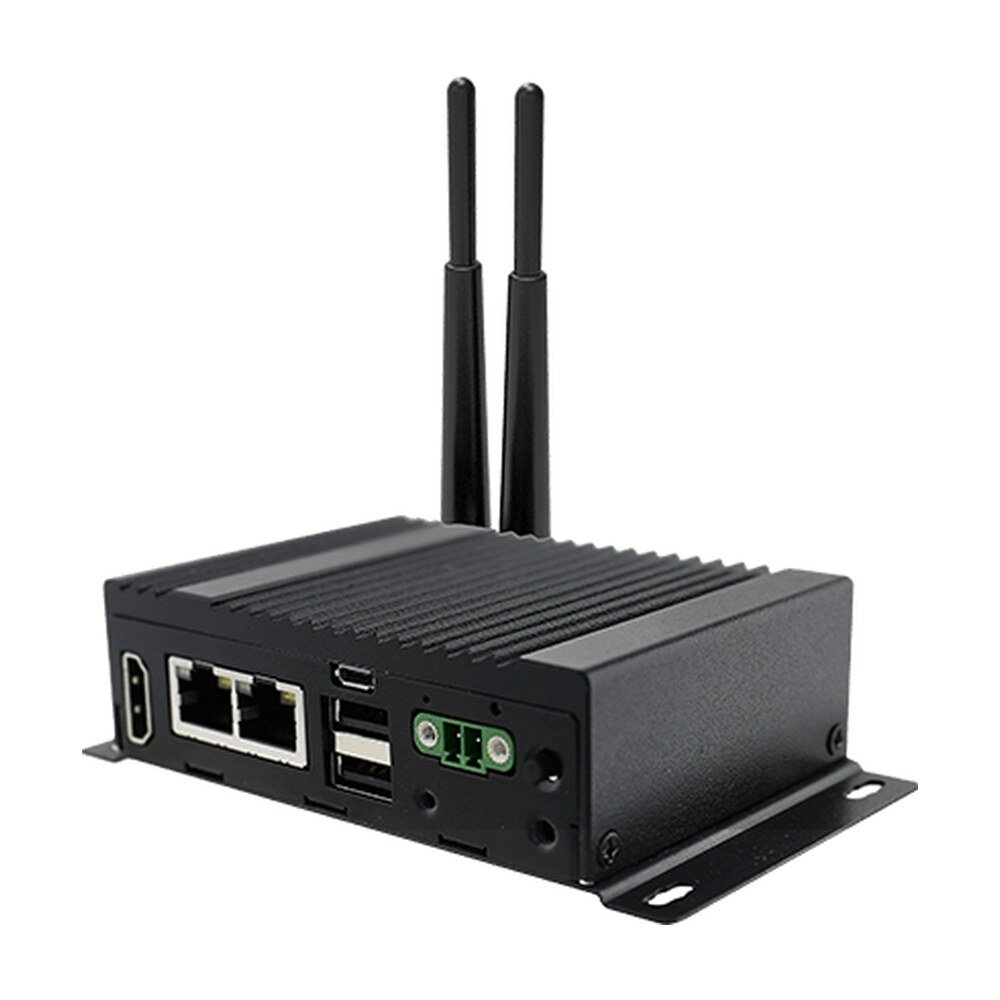

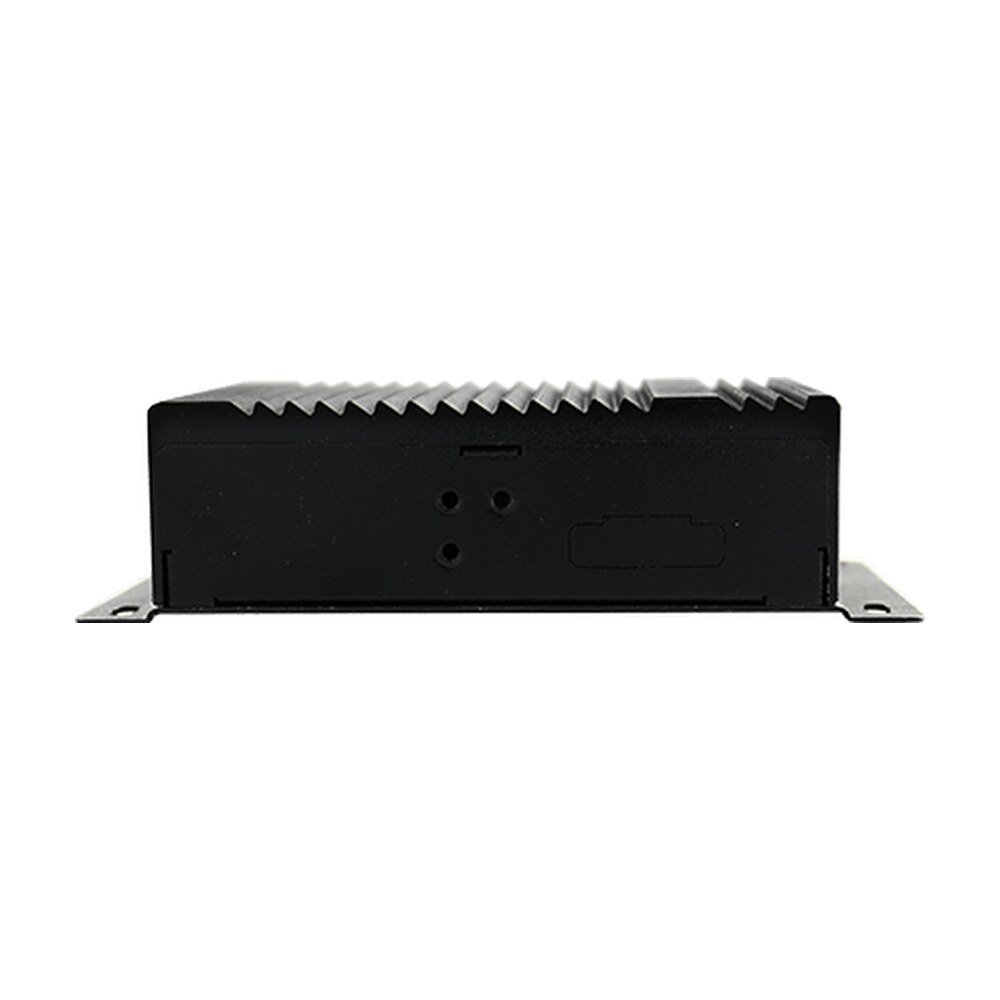

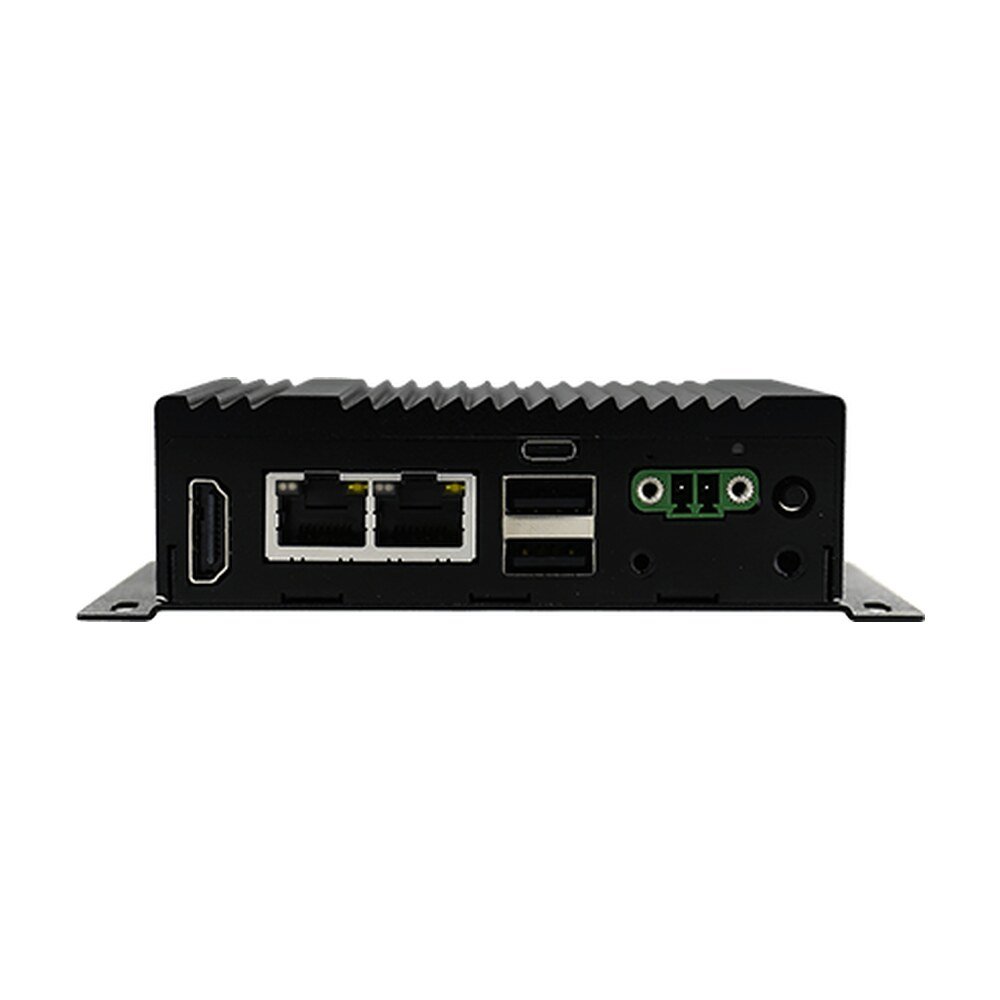

The EACIM20 industrial IoT gateway has a compact design of 100 x 70 x 31 mm (one layer, without mounting bracket) made of metal housing to withstand industrial challenges. Its fanless design offers an optimized thermal solution for a reliable and long-lasting industrial technology. Deliver reliable operation in limited space, poor ventilation, dust-prone, and corrosive conditions.
Winmate’s EACIM20 industrial IoT gateway platform features a secure, seamless edge-to-cloud connection, and scalable computing performance based on an A53 Quad-core processor.
EACIM20 gateway supports superior connectivity enabling seamless interconnection, ensuring interoperability between systems, enabling seamless edge-to-cloud connection, data aggregation, filtering, and data transmission. Easily collect data from a swarm of edge devices through a comprehensive I/O set and transmit it to the cloud over wireless communications.
EACIM20 IoT gateway offers easy installation and deployment with various mounting options such as desk, wall, VESA, or Din-Rail.
| System Specification | |
|---|---|
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Security | SOTI MobiControl Compliance |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support for Android (Optional) |
| WWAN | 4G/LTE (Optional) |
| Expansion Port | EACWSLT-231 3-port RS232/422/485 w/ isolation, EACWSLT-232 16-Channel Digital I/O w/ isolation, EACWSLT-233 2-port CANBUS w/ isolation, EACWLST-234 3-port USB 2.0, EACWLST-235 2-port RS232/422/485 w/ isolation |
| Mechanical | |
| Dimension | 100 (W) x 70 (H) x 31(D) mm(One layer), 100 (W) x 70 (H) x 61(D) mm(Double layer) |
| Weight | 0.4 kg (One layer),, 0.5 kg (Double layer) |
| Mounting | Desk mounting (Default), Wall mounting (Optional), VESA mounting (Optional), DIN-Rail mounting (Optional) |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
| Certification | |
| Certification | CE, FCC, Microsoft Azure Certified for IoT |
| IO Ports | |
| USB Port | 2 x USB2.0 (Type-A), 1 x USB2.0 OTG (Micro USB), support Android Debug Bridge (adb) |
| LAN | 2 x Giga LAN RJ45 Connector for Linux, 1 x Giga LAN RJ45 Connector for Android |
| Video | 1 x HDMI (Up to 1080p/30Hz) (Optional) |
| Expansion Port | 1 x M.2 slot, 2 x USB Wafer |
| Indicator | 1 x LED Indicator for power |
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | Terminal Block 2 pin to 2.5Ø Female Adapter Cable, Quick Start Guide, Open Wire Cable, WLAN External Antenna*2 (For WLAN sku), WWAN External Antenna*2 (For WWAN sku), BT External Antenna*1 (For BT sku) |
| Optional Accessory | AC to DC Adapter 12V/36W (Optional), VESA Mount Kit (Optional), DIN Rail Mount Kit (Optional), Micro USB to Type A Cable (Optional) |
| Power | |
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W (Optional) |
| Ordering Information | |
| Option | EACIM20-100 Standard SKU (Default), EACIM20-101 with WLAN and BT SKU (Optional), EACIM20-102 with WWAN SKU (Optional), EACIM20-103 with WLAN, BT and WWAN SKU (Optional), EACWSLT-231 3-port RS232/422/485 w/ isolation (Optional), EACWSLT-232 16-Channel Digital I/O w/ isolation (Optional), EACWSLT-233 2-port CANBUS w/ isolation (Optional), EACWSLT-234 4-port USB 2.0 (Optional), EACWSLT-235 2-port RS232/422/485 w/ isolation (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | EACIM20 |
| Series | EAC Mini |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | EACIM20 |
|---|---|
| Category | Embedded Computing, IoT Gateway / Radio Gateway, Winmate |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Security | SOTI MobiControl Compliance |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support for Android (Optional) |
| WWAN | 4G/LTE (Optional) |
| Dimension | 100 (W) x 70 (H) x 31(D) mm(One layer), 100 (W) x 70 (H) x 61(D) mm(Double layer) |
| Weight | 0.4 kg (One layer),, 0.5 kg (Double layer) |
| Mounting | Desk mounting (Default), Wall mounting (Optional), VESA mounting (Optional), DIN-Rail mounting (Optional) |
| Cooling System | Fanless Design |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
| Certification | CE, FCC, Microsoft Azure Certified for IoT |
| USB Port | 2 x USB2.0 (Type-A), 1 x USB2.0 OTG (Micro USB), support Android Debug Bridge (adb) |
| LAN | 2 x Giga LAN RJ45 Connector for Linux, 1 x Giga LAN RJ45 Connector for Android |
| Video | 1 x HDMI (Up to 1080p/30Hz) (Optional) |
| Expansion Port | 1 x M.2 slot, 2 x USB Wafer |
| Indicator | 1 x LED Indicator for power |
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Reset Button |
| Optional Accessory | AC to DC Adapter 12V/36W (Optional), VESA Mount Kit (Optional), DIN Rail Mount Kit (Optional), Micro USB to Type A Cable (Optional) |
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W (Optional) |
| Brand | Winmate |
| Manufacturer part number | EACIM20 |
| Series | EAC Mini |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
