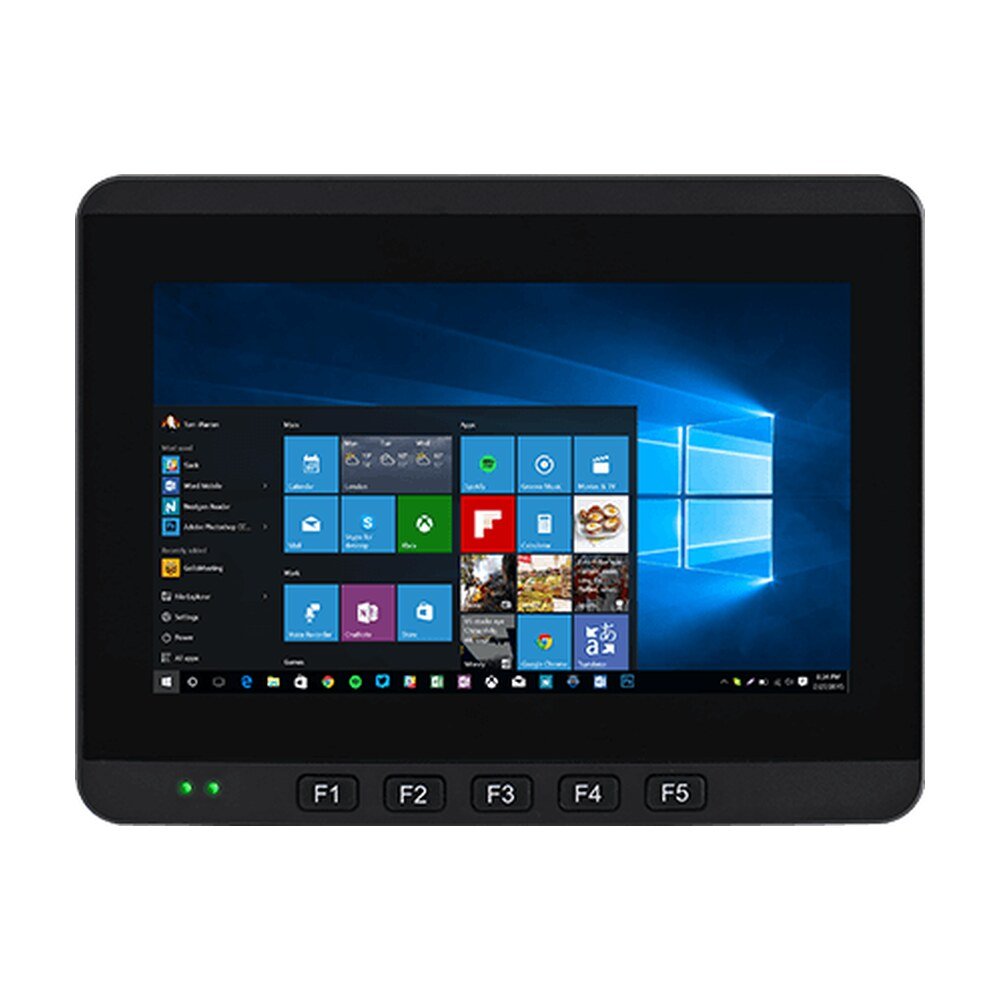

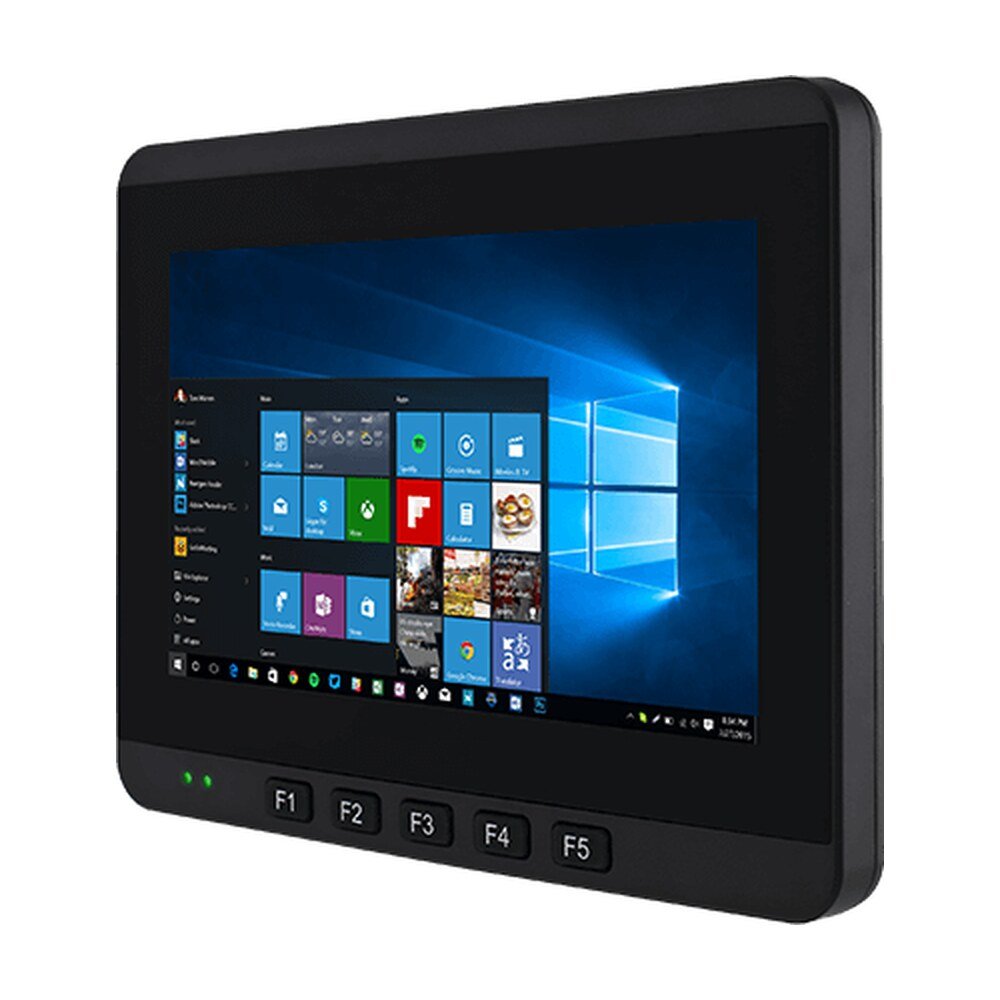

Explore Winmate FM07E, a vehicle-mounted computer featuring Intel® Celeron® N6211, 7-inch display with 1024x600 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate FM07E, a vehicle-mounted computer featuring Intel® Celeron® N6211, 7-inch display with 1024x600 resolution, IP65…
Winmate FM07E builds to survive with its rugged enclosure that enhances the FM07E’s durability. Vibration and shock resistance compliance with MIL-STD-810G standard, IP65 rating with M12 water- and dustproof connectors. Suitable for various in-vehicle mounting and industrial applications.
Save time finding your commonly used application with the programmable function keys. Customize each button’s function and its combinations to fit your needs.
To support the next generation of IoT edge devices, FM07E is equipped with a new line of processors enhanced for IoT—The Intel Elkhart Lake Series processors. Improve processing capabilities and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.
Winmate’s FM07E is built to survive the extreme temperature range. It can operate through extreme cold -20°C to 60°C heat. Suitable for cold chain, logistic, warehouse, and industrial applications.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 7.0 inches |
| Resolution | 1024x0600 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 152.2144x85.92 mm |
| System Specification | |
| Processor | Intel Atom x6413E 1.5GHz (up to 3GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | |
| Certification | CE, FCC |

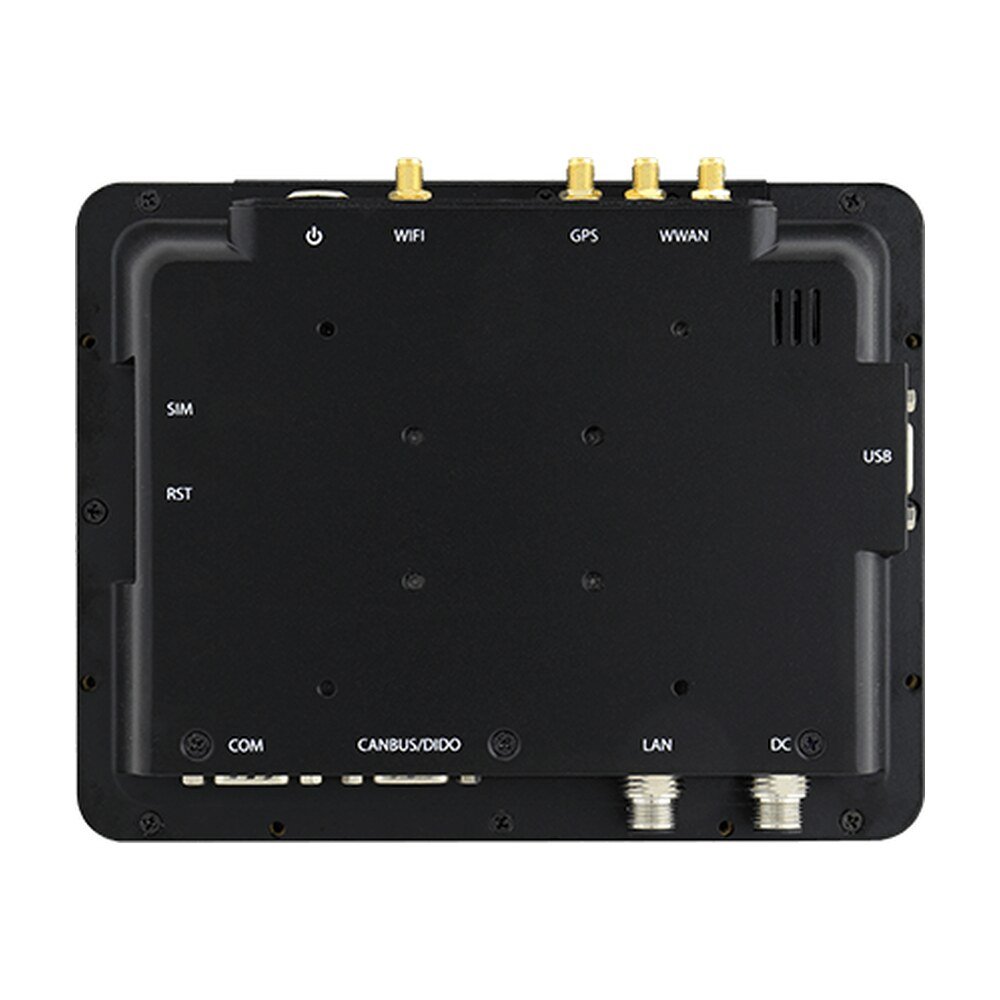

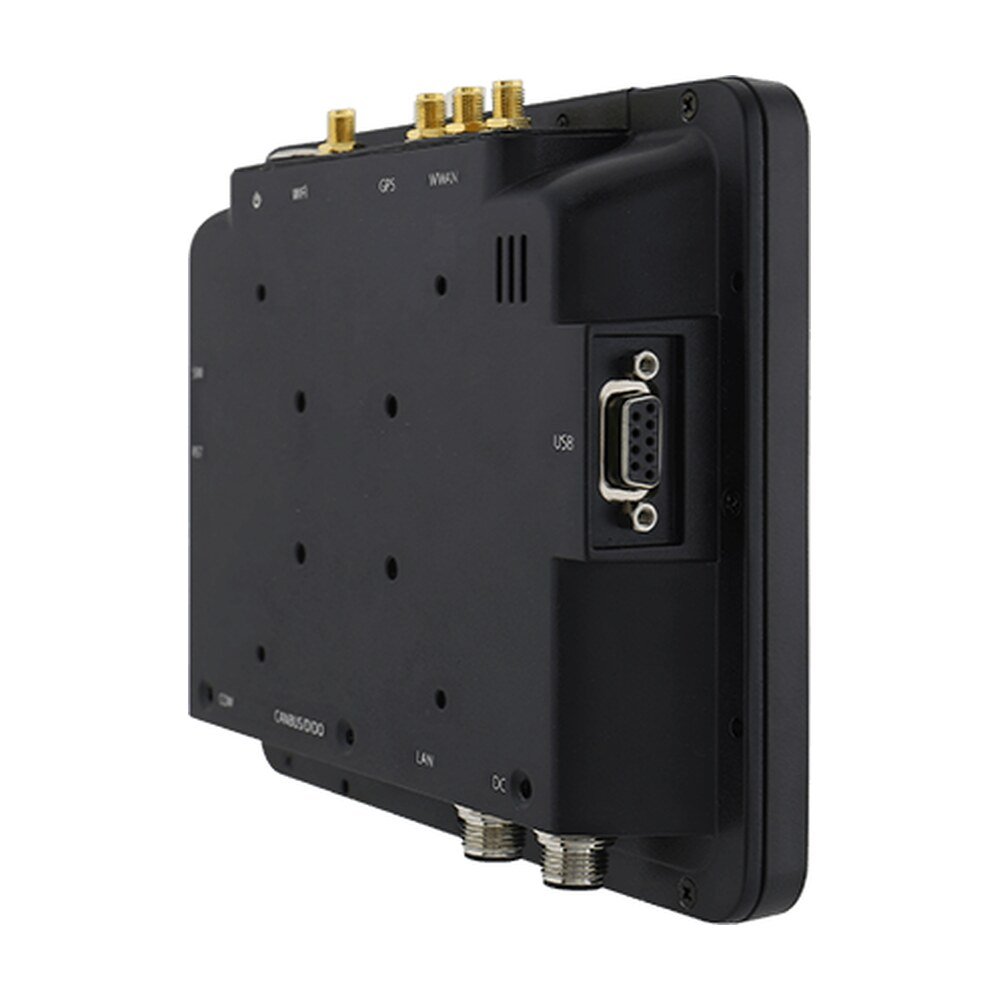

| IO Ports | |
| USB Port | 2 x USB for DB9, 1 x Micro USB |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x Gigabit Ethernet LAN 10/100/1000 Mbps (M12 type) |
| Audio | 1x Speaker |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Front Control | 5 x Function Key |
| Indicator | Power, HD |
| DIDO | DIDO (5XDI ; 3XDO) |
| CANBUS | 2 x CANBUS |
| Control | |
| Button | 1 x Power Button, 5x Function Button, (Programmable Function Key Configured by Winset) |
| Mechanical | |
| Dimension | 190 x 146 x 40 mm |
| Weight | 1.25 kg |
| Mounting | RAM mount |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Guide, M12 LAN Cable, 1.8m, RS-232 Cable, 1.8m, M12 Power Cable, 1.8m, USB Cable, 0.3m, CANBus and DIDO Cable, 1.8m, WLAN Antenna, Power Converter Cable, Power Adapter |
| Optional Accessory | WWAN Antenna x 2 (Optional), Audio Cable, 0.3m (Optional), GPS Antenna, 3m (Optional) |
| Power | |
| Power Rating | 9V-36V, with ignition control |
| Consumption | Max: 35W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM07E |
| Series | FM-V Series Windows Vehicle Mounted Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | FM07E |
|---|---|
| Category | Vehicle Mounted Computer, Windows Vehicle Mounted Computers, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 7.0 inches |
| Resolution | 1024x0600 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 152.2144x85.92 mm |
| Processor | Intel Atom x6413E 1.5GHz (up to 3GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65, Dustproof and Waterproof |
| Certification | CE, FCC |
| USB Port | 2 x USB for DB9, 1 x Micro USB |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x Gigabit Ethernet LAN 10/100/1000 Mbps (M12 type) |
| Audio | 1x Speaker |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Front Control | 5 x Function Key |
| Indicator | Power, HD |
| DIDO | DIDO (5XDI ; 3XDO) |
| CANBUS | 2 x CANBUS |
| Button | 1 x Power Button, 5x Function Button, (Programmable Function Key Configured by Winset) |
| Dimension | 190 x 146 x 40 mm |
| Weight | 1.25 kg |
| Mounting | RAM mount |
| Cooling System | Fanless Design |
| Optional Accessory | WWAN Antenna x 2 (Optional), Audio Cable, 0.3m (Optional), GPS Antenna, 3m (Optional) |
| Power Rating | 9V-36V, with ignition control |
| Consumption | Max: 35W |
| Brand | Winmate |
| Manufacturer part number | FM07E |
| Series | FM-V Series Windows Vehicle Mounted Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
