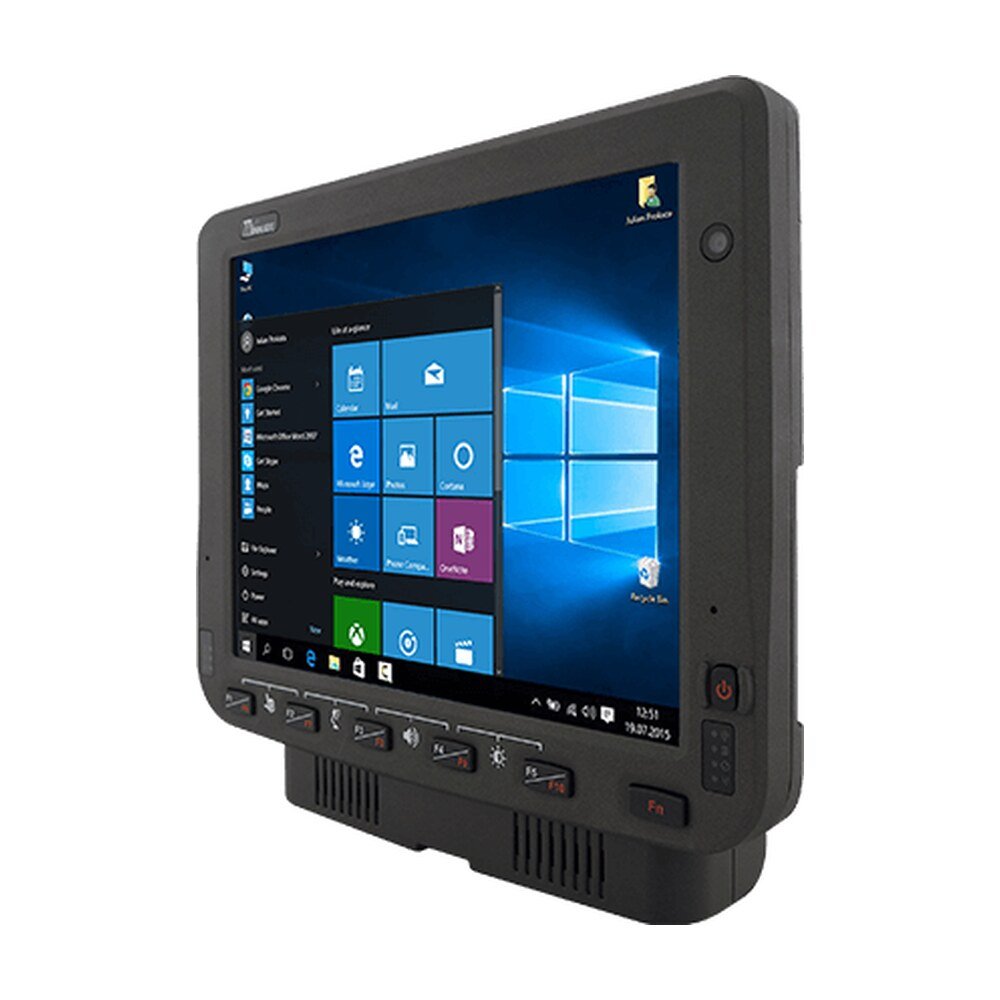

Winmate FM10E Windows vehicle-mounted computer delivers rugged performance for warehouses, logistics, and cold chain operations in demanding environments.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Winmate FM10E Windows vehicle-mounted computer delivers rugged performance for warehouses, logistics, and cold chain operations in demanding environments.
When it comes to industrial usage, Winmate FM10E that is rugged enough to survive harsh environments is a must. Its solid enclosure proves the FM10E’s durability with MIL-STD-810G certification and IP65 rating.
The FM10E features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands make you enjoy every touch and convenience of using the device.
To support the next generation of IoT edge devices, FM10E has developed a new line of processors enhanced for IoT—The Intel Elkhart Lake Series processors. These processors build on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.
Windows 10 IoT Enterprise is a full version of Windows 10 that delivers enterprise manageability and security to IoT solutions. Windows 10 IoT Enterprise shares all the benefits of the world-wide Windows ecosystem. It is a binary equivalent to Windows 10 Enterprise to use the same familiar development and management tools as client PCs and laptops.
Low-power components of industrial computers prevent overheating and are less likely to achieve high temperatures in the first place.
| Display | |
|---|---|
| Size | 10.4 inches |
| Resolution | 1024x768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88,88,88,88 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| System Specification | |
| Processor | Intel Atom x6413E 1.5GHz (up to 3GHz) (Default), Intel Atom x6425E 2GHz (up to 3GHz) (Optional), Intel Atom x7433RE 1.5 GHz (up to 3.4 GHz) (Optional), Intel Atom x7835RE 1.3 GHz (up to 3.6 GHz) (Optional) |
| Memory | 4GB (Default), 8GB(Optional) , 16GB(Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) (Default), Windows 11 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Camera | |
| Front Camera | 2MP Camera |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2, enhanced ESD to ±8kV direct & ±12kV air |
| Certification | |
| Certification | CE, FCC, FCC (Electromagnetic Emissions), IC (ICES-003), UL60950-1, EN60950-1, PTCRB |
| Control | |
| Button | 1 x Power Button, 6 x Function Button, (Programmable Function Key Configured by Winset) |
| IO Ports | |
| USB Port | 1 x USB Type-C(Tablet), 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking), 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot |
| Indicator | 6 x LED Indicator, (WLAN, BT, UPS battery, HDD, Screen Blanking, Heater) |
| Docking Connector | SMA Connector(female) for external antenna WLAN (Default), SMA Connector(female) for external antenna GPS (Optional), SMA Connector(female) for external antenna WWAN (Optional) |
| Mechanical | |
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) , Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.7 kg (3.75 lbs), Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | 5M Power Cable with Fuse Kit, 0.3M USB Cable, 0.15M Power Converter Cable, DC Jack Power Cable, 84W Adapter with power cable, Cable Clamp Kit, WLAN Antenna x 2, Quick Start Guide, External Antenna Fixing Bracket, Dock + Latch Locking Key, Stylus Kit + Screw |
| Optional Accessory | 1.8M RS232 Cable, 0.3M Audio Cable, 1.8M CAN BUS Cable, 1.8M CAN BUS Open Wire Cable, 2M IP65 LAN Cable, GPS & LTE 2M Combo Antenna(VM240), GPS & LTE 5M Combo Antenna (VM9C), Magnetic Combo Antenna (VM10S), WWAN Antenna |
| Power | |
| Battery | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control , , Tablet: 12V DC In |
| Consumption | 45W (Typical) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM10E |
| Series | FM Series Windows Vehicle Mounted Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | FM10E |
|---|---|
| Category | Vehicle Mounted Computer, Windows Vehicle Mounted Computers, Winmate |
| Size | 10.4 inches |
| Resolution | 1024x768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88,88,88,88 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| Memory | 4GB (Default), 8GB(Optional) , 16GB(Optional) |
| Storage | 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) (Default), Windows 11 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Front Camera | 2MP Camera |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2, enhanced ESD to ±8kV direct & ±12kV air |
| Certification | CE, FCC, FCC (Electromagnetic Emissions), IC (ICES-003), UL60950-1, EN60950-1, PTCRB |
| Button | 1 x Power Button, 6 x Function Button, (Programmable Function Key Configured by Winset) |
| USB Port | 1 x USB Type-C(Tablet), 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking), 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot |
| Indicator | 6 x LED Indicator, (WLAN, BT, UPS battery, HDD, Screen Blanking, Heater) |
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) , Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.7 kg (3.75 lbs), Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Battery | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control , , Tablet: 12V DC In |
| Consumption | 45W (Typical) |
| Brand | Winmate |
| Manufacturer part number | FM10E |
| Series | FM Series Windows Vehicle Mounted Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
