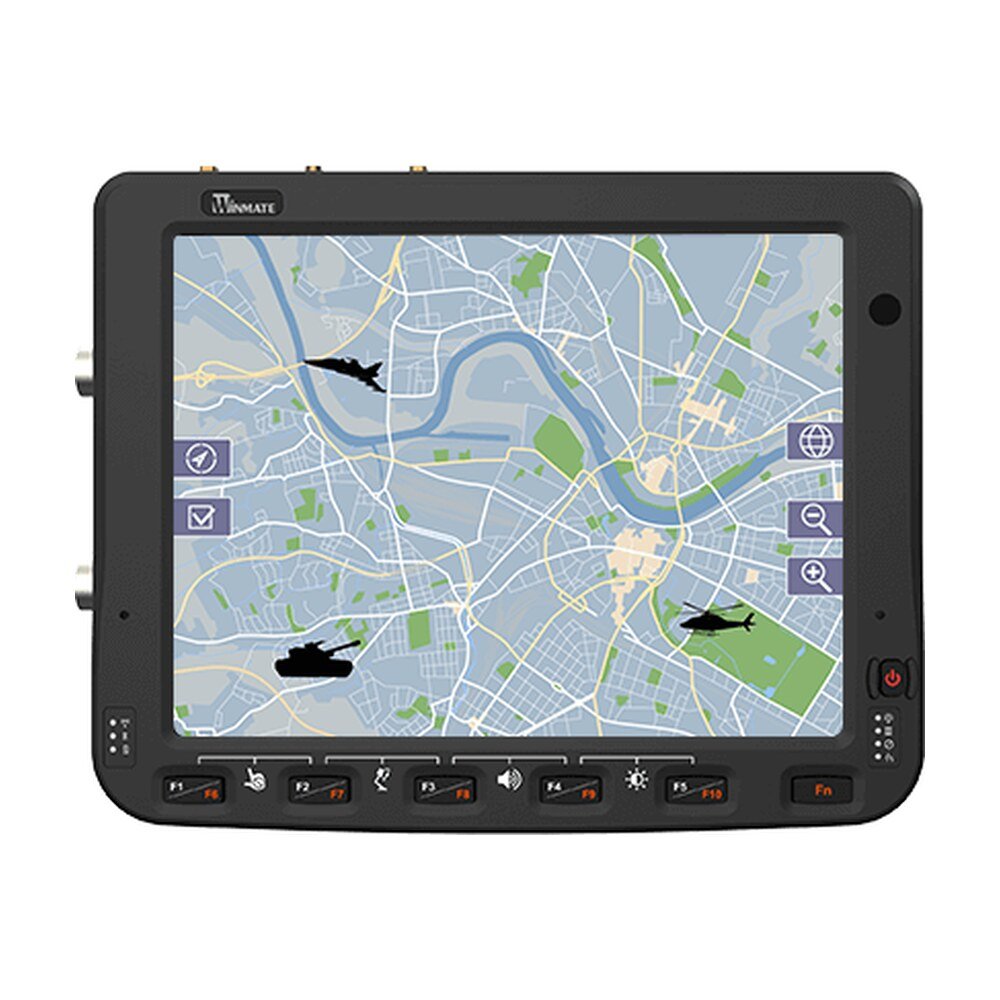

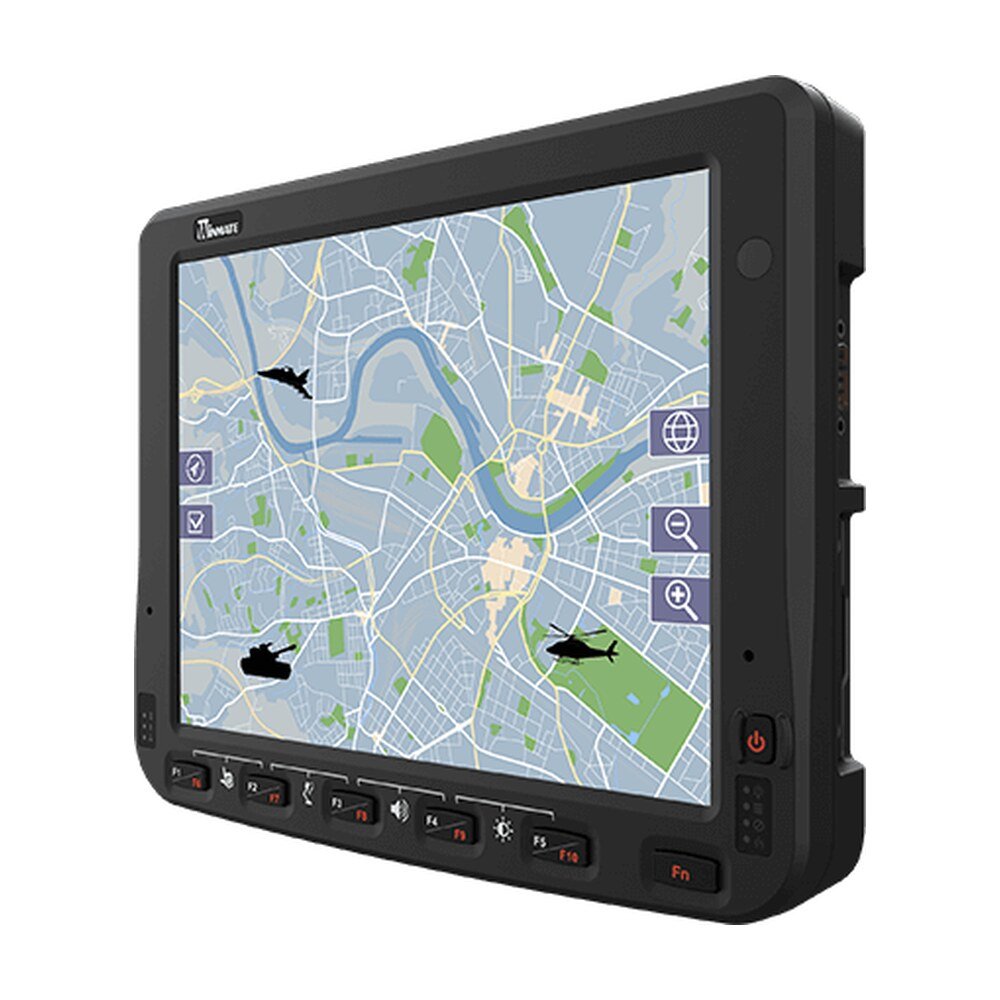

Explore Winmate FM10E-VML, a defense panel PC featuring 10.4-inch display with 1024x768 resolution, IP65 for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate FM10E-VML, a defense panel PC featuring 10.4-inch display with 1024x768 resolution, IP65 for defense operations and field command.
When it comes to industrial usage, Winmate FM10E-VML is built rugged enough to survive harsh environments. Its solid enclosure optimizes the FM10E-VML’s durability and meets with MIL-STD-810H certification and IP65 rating.
The FM10E-VML features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands for convenience of using the device.
FM10E-VML is powered by the Intel® Elkhart Lake Series processors to support the next generation of IoT edge devices. These processors build on new CPU levels, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

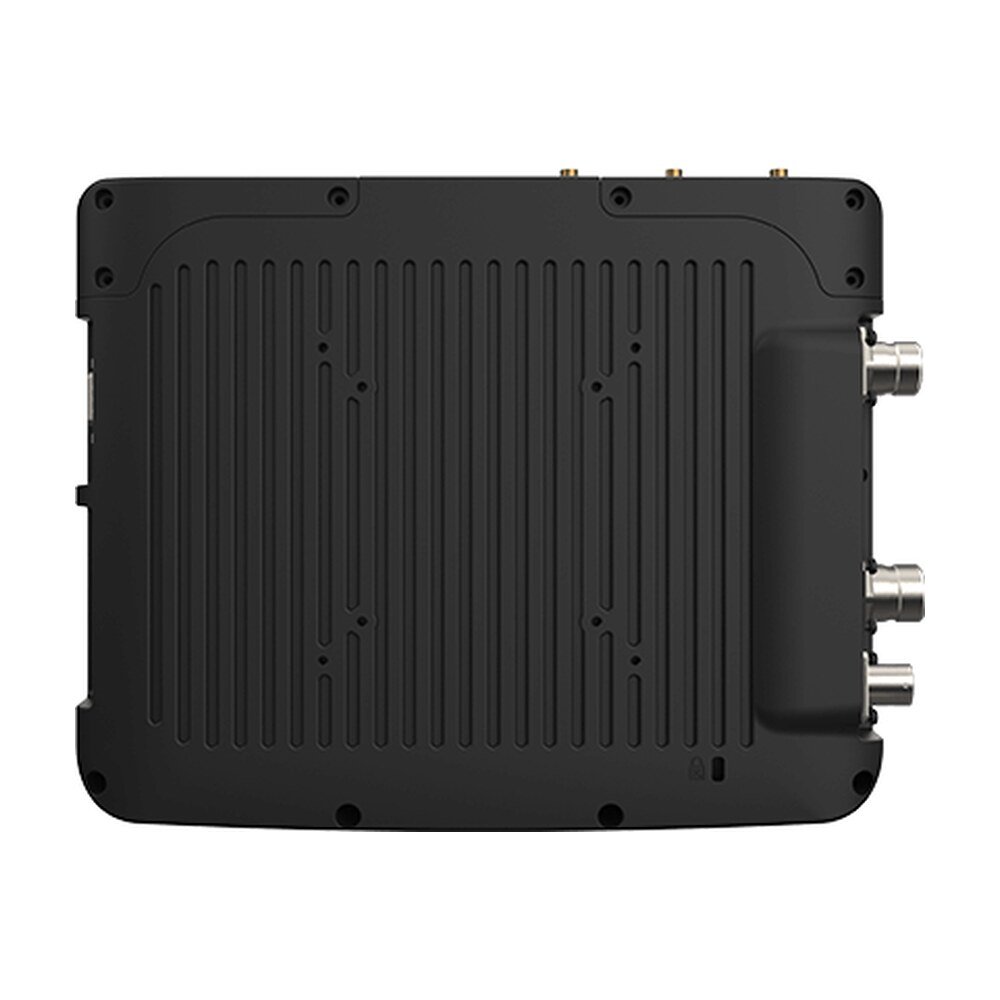

For smooth integration into various industrial environments, FM10E-VML have defence-qualified MIL-STD-38999 connectors with exceptional versatility for LAN, USB type-A, and DC power input to enable sturdy and rugged connection to defence equipment.
| Display | |
|---|---|
| Size | 10.4 inches |
| Resolution | 1024x768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88,88,88,88 |
| System Specification | |
| Processor | Intel Atom x6413E 1.5GHz (up to 3GHz) (Default), Intel Atom x6425E 2GHz (up to 3GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) (Default), Windows 11 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/GLONASS (Optional) |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Camera | |
| Front Camera | 2MP Camera |
| Environment | |
| Operating Humidity | 5% to 90% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | USA: MIL-STD-810H Method 516.8 Procedure I, NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 402–Procedure I |
| Vibration | USA: MIL-STD-810H Method 514.8 Procedure I, NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 401–Procedure I |
| Drop | USA: MIL-STD-810H Method 516.8, 4 ft, NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404 – Procedure II, 4 ft |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| EMC | USA:, MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default), MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional), MIL-STD-461G RE102 Ground Army Grade, , NATO:, STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Optional), STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional), STANAG 4370/AECTP501 NRE02-2 Land Environment (Optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/192 (Optional), NATO: SDIP27 (Optional) |
| Certification | |
| Certification | CE, FCC, FCC (Electromagnetic Emissions), IC (ICES-003), IEC/EN/UL 62368-1 |
| Compliance | |
| MIL-STD 461G | RE101 / RE102, CE101 / CE102, with EMI Glass / Touch(Optional), RS101 / RS 103, CS101 / CS 114 / CS 115 / CS 116 |
| Control | |
| Button | 1 x Power Button, 6 x Function Button, (Programmable Function Key Configured by Winset) |
| IO Ports | |
| USB Port | 1 x USB Type-C, 1 x USB 2.0 Type-A (MIL-DTL-38999/3 connector) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 1 x Gigabit LAN port (MIL-DTL-38999/1 connector) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot |
| Indicator | 6 x LED Indicator, (WLAN, BT, UPS battery, HDD, Screen Blanking, Heater) |
| Mechanical | |
| Dimension | 268.1 x 214 x 51 mm |
| Weight | 2.4kg |
| Mounting | VESA mount |
| Cooling System | Fanless Design |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | 1 x Quick Start Guide, 1 x Power Cable (MIL-DTL-38999/3), 1 x USB Cable (MIL-DTL-38999/3), 1 x LAN Cable (MIL-DTL-38999/3), 1 x 84W Power Adapter , 1 x Power converter Cable |
| Optional Accessory | 1.8M RS232 Cable, GPS & LTE 2M Combo Antenna(VM240), GPS & LTE 5M Combo Antenna (VM9C), GPS & LTE Combo Antenna (VM10S), WWAN Antenna, GPS Antenna |
| Power | |
| Battery | 400mAh UPS Battery for 20 minutes backup (Optional) |
| Power Rating | 10V~60V with ignition control (MIL-DTL-38999/1 connector) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM10E-VML |
| Series | VMC Defence Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
