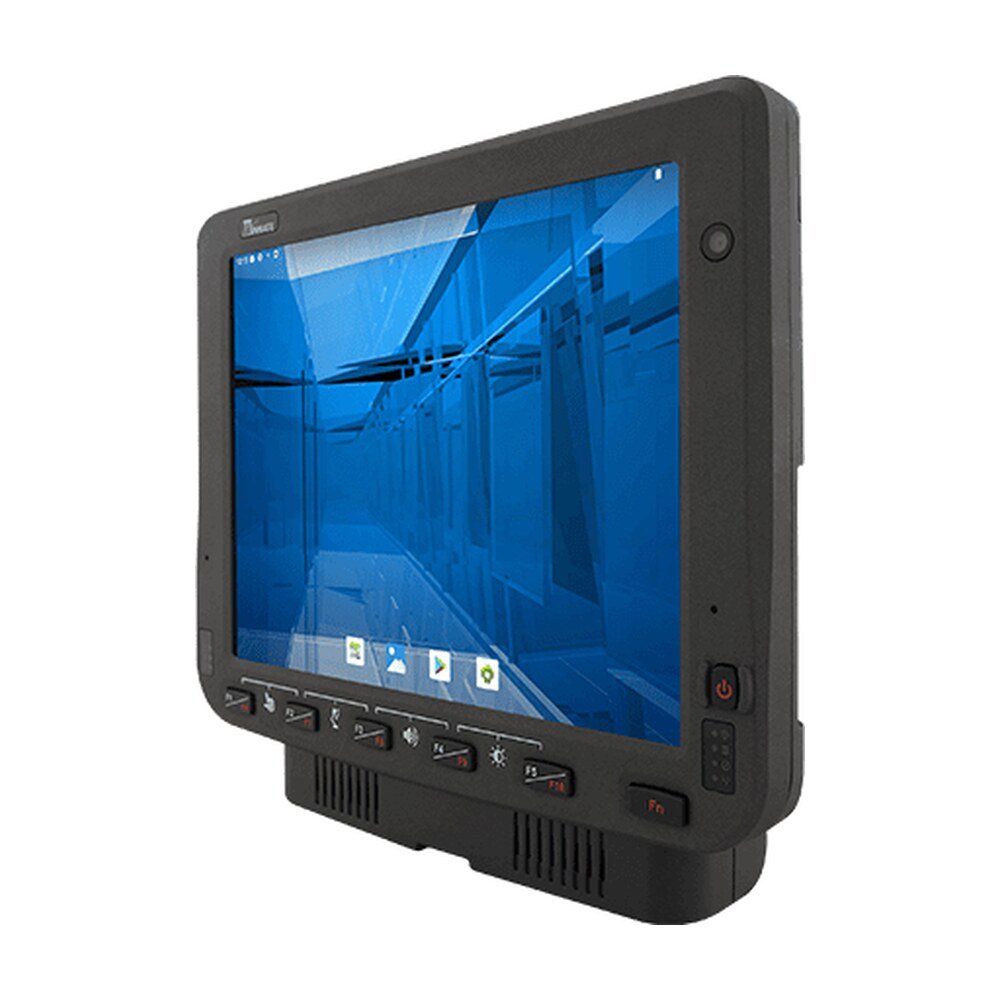

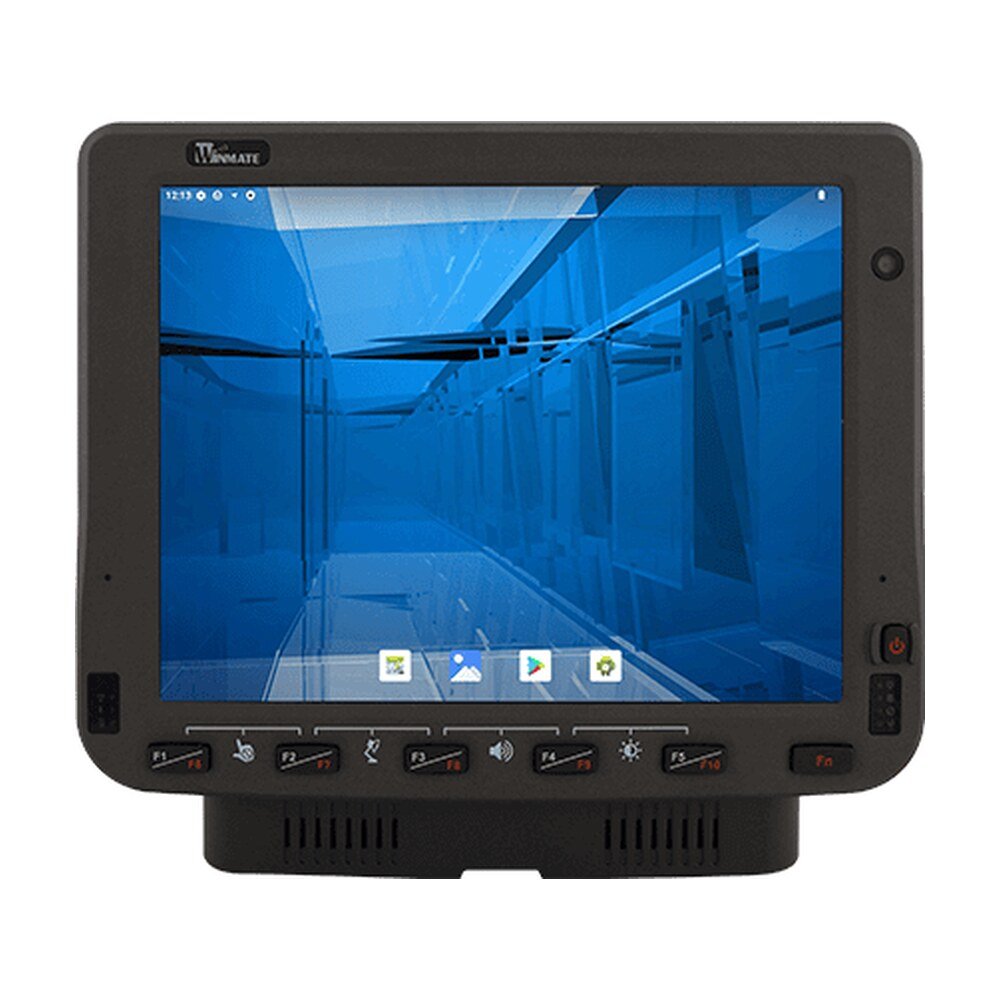

Winmate FM10MG Android vehicle-mounted computer combines a PCAP touchscreen, IP65 protection, and MIL-STD-810H durability for warehouse and industrial vehicle applications.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Winmate FM10MG Android vehicle-mounted computer combines a PCAP touchscreen, IP65 protection, and MIL-STD-810H durability for warehouse and industrial vehicle applications.
With a PCAP touch screen, the FM series Android vehicle-mounted computer offers smooth and precise touch responses. Its user-friendly interface ensures effortless operation in a variety of environments.
Constructed to endure the toughest conditions, the FM series Android vehicle-mounted computer features an IP65 waterproof and dustproof rating and complies with MIL-STD-810H standards. This rugged device provides reliable performance in any challenging environment.
Built for extreme climates, the FM series Android vehicle-mounted computer maintains reliable performance in both hot and cold conditions. Whether in low-temperature storage areas or warehouses with rapid temperature changes, our devices stay stable and functional without interruption.
The FM series Android vehicle-mounted computer is easily detachable and can be installed in a variety of vehicle configurations, including forklifts and other industrial vehicles. This versatility provides secure and adaptable mounting solutions, allowing users to experience flexible device positioning for convenient and efficient operation.
For more mounting information, please visit RAM Mount
| Display | |
|---|---|
| Size | 10.4 inches |
| Resolution | 1024x768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88,88,88,88 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| System Specification | |
| Processor | ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | Onboard 64 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.10.104 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support with Internal Antenna (Default), Either one with External Antenna (Optional) |
| BT | Support |
| WWAN | 4G/LTE with External Antenna (Optional) |
| GNSS | GPS/GLONASS with External Antenna (Optional) |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Camera | |
| Front Camera | 2MP Camera |
| Mechanical | |
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) , Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.6 kg (3.53 lbs), Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 2.0 Type C (OTG)(Tablet), 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking), 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Indicator | 5 x LED Indicator, (WLAN, BT, UPS battery, Screen Blanking, Heater) |
| Docking Connector | SMA Connector(female) for external antenna WLAN (Default), SMA Connector(female) for external antenna GPS (Optional), SMA Connector(female) for external antenna WWAN (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2,, Enhanced ESD to ±8kV Direct & ±12kV Air |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 6 x Function Button, (Programmable Function Key Configured by Winset) |
| Power | |
| Battery | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control , , Tablet: 12V DC In |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | 5M Power Cable with Fuse Kit, 0.3M USB Cable, 0.15M Power Converter Cable, DC Jack Power Cable, 84W Adapter with power cable, Cable Clamp Kit, WLAN Antenna x 2, Quick Start Guide, External Antenna Fixing Bracket, Dock + Latch Locking Key, Stylus Kit + Screw |
| Optional Accessory | 1.8M RS232 Cable, 0.3M Audio Cable, 1.8M CAN BUS Cable, 1.8M CAN BUS Open Wire Cable, 2M IP65 LAN Cable, GPS & LTE 2M Combo Antenna(VM240), GPS & LTE 5M Combo Antenna (VM9C), Magnetic Combo Antenna (VM10S), WWAN Antenna, USB-C to HDMI Adapter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM10MG |
| Series | FM Series Android Vehicle Mounted Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | FM10MG |
|---|---|
| Category | Android Vehicle Mounted Computers, Vehicle Mounted Computer, Winmate |
| Size | 10.4 inches |
| Resolution | 1024x768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88,88,88,88 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| Processor | ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | Onboard 64 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.10.104 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support with Internal Antenna (Default), Either one with External Antenna (Optional) |
| BT | Support |
| WWAN | 4G/LTE with External Antenna (Optional) |
| GNSS | GPS/GLONASS with External Antenna (Optional) |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Front Camera | 2MP Camera |
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) , Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.6 kg (3.53 lbs), Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 2.0 Type C (OTG)(Tablet), 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking), 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Indicator | 5 x LED Indicator, (WLAN, BT, UPS battery, Screen Blanking, Heater) |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2,, Enhanced ESD to ±8kV Direct & ±12kV Air |
| Certification | CE, FCC |
| Button | 1 x Power Button, 6 x Function Button, (Programmable Function Key Configured by Winset) |
| Battery | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control , , Tablet: 12V DC In |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Brand | Winmate |
| Manufacturer part number | FM10MG |
| Series | FM Series Android Vehicle Mounted Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
