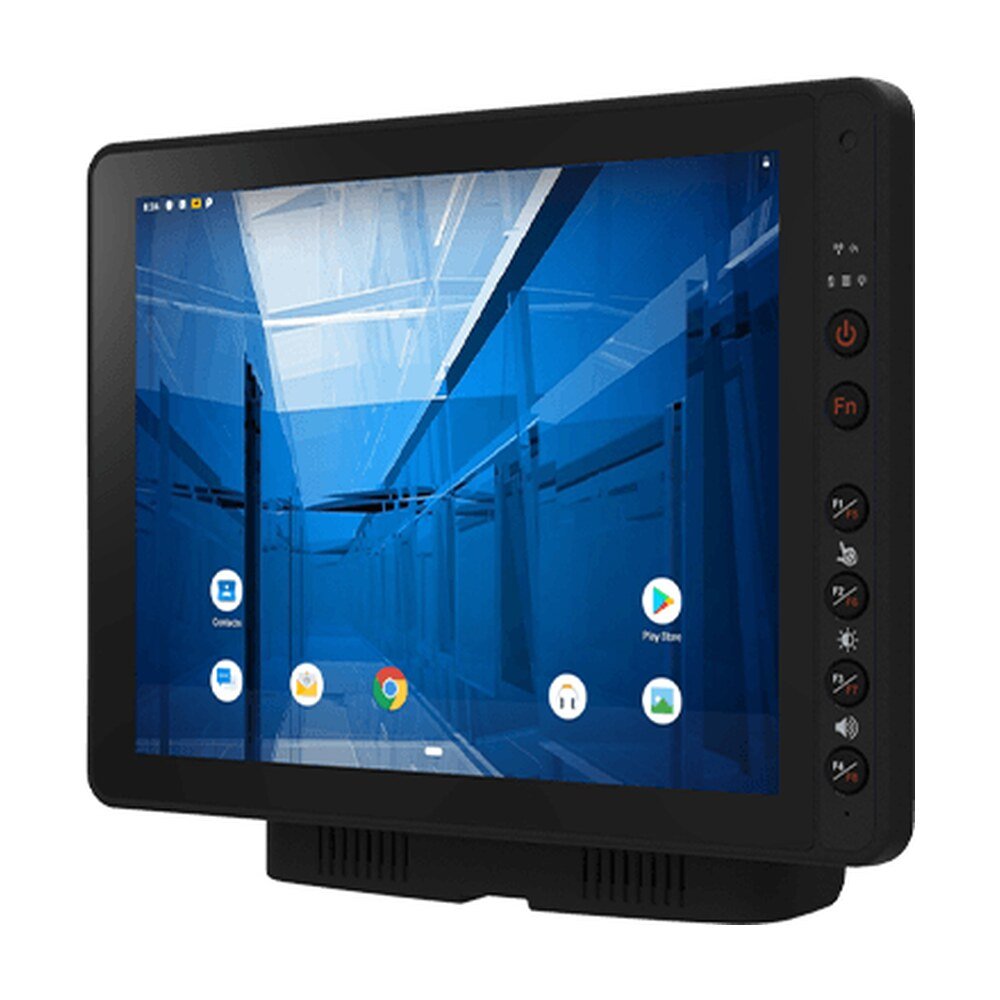

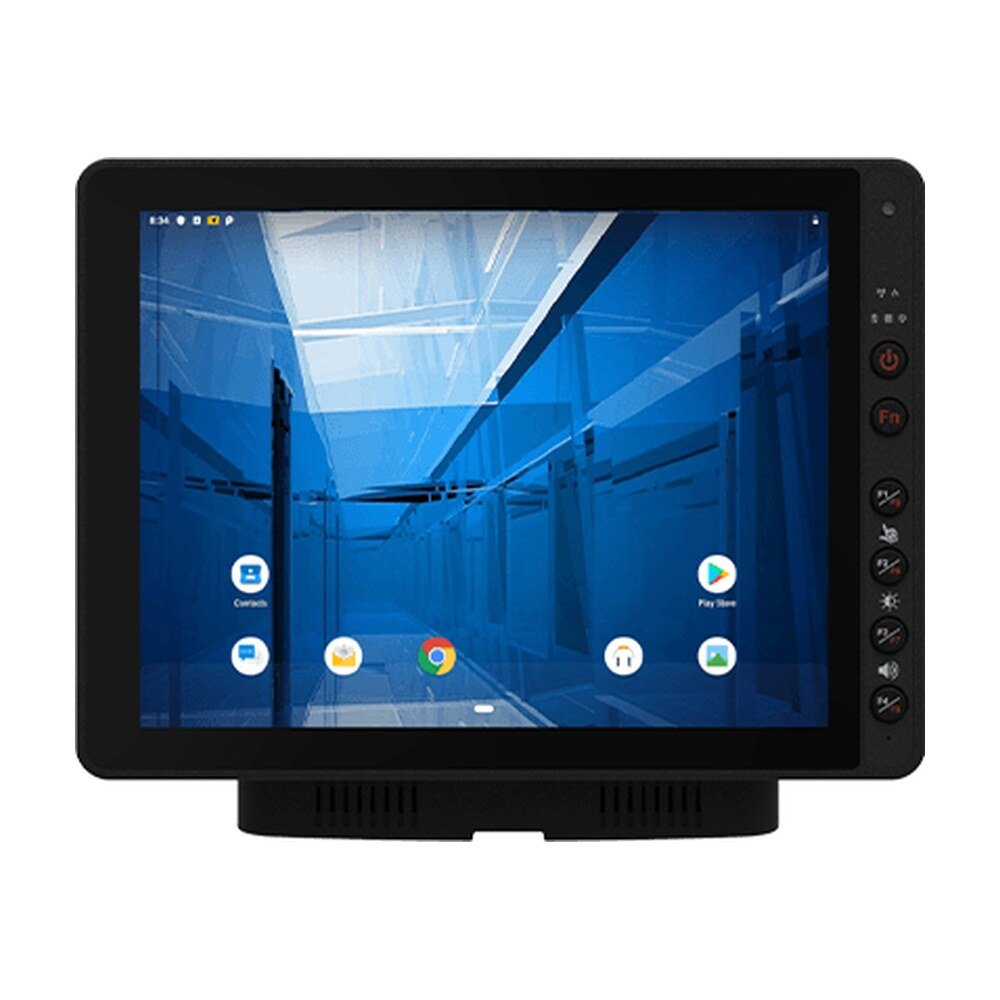

The Winmate FM12Q9 is a rugged Android Vehicle Mounted Computer for industrial use, featuring a Qualcomm 6490 CPU, 12.1" touchscreen, and IP65 protection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The Winmate FM12Q9 is a rugged Android Vehicle Mounted Computer for industrial use, featuring a Qualcomm 6490 CPU, 12.1" touchscreen, and IP65 protection.
When it comes to industrial usage, Winmate FM12Q9 that is rugged enough to survive harsh environments is a must. Its solid enclosure proves the FM12Q’s durability with MIL-STD-810H certification and IP65 rating.
The FM12Q9 features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands make you enjoy every touch and convenience of using the device.
Powered by the Qualcomm® 6490 Octa-Core processor, the Android-based FM12Q9 delivers lag-free performance. It is built to handle complex forklift and fleet management tasks, ensuring frontline workers can access data instantly to maximize operational efficiency.
Low-power components of industrial computers prevent overheating and are less likely to achieve high temperatures in the first place.
| Display | |
|---|---|
| Size | 12.1 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1024x768 |
| Panel Brightness | 400 nits(Default), 800 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| System Specification | |
| Processor | Qualcomm® 6490, Octa-Core, up to 2.7GHz |
| Memory | 8GB |
| Storage | 128GB |
| Operating System | Android 15.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS/GLONASS |
| Sensors | G-Sensor, Temp. Sensor |
| Camera | |
| Front Camera | 2MP Camera |
| Mechanical | |
| Dimension | Tablet: 307 x 225 x 41 mm, Docking: 202 x 245 x 52 mm |
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.7 kg, Docking 1.6 kg |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 Type C (Tablet), 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking), 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Indicator | 3 x LED Indicator, (WLAN, UPS battery, Heater) |
| Antenna connector | SMA Connector(female) for external antenna WLAN (Tablet), SMA Connector(female) for external antenna GPS (Docking), SMA Connector(female) for external WWAN/5G antenna (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2,, Enhanced ESD to ±8kV Direct & ±12kV Air |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 5 x Function Button, (Programmable Function Key Configured by Winset) |
| Power | |
| Battery | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control , , Tablet: 12V DC In |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | 5M Power Cable with Fuse Kit, 0.3M USB Cable, 0.15M Power Converter Cable, DC Jack Power Cable, 84W Adapter with power cable, Cable Clamp Kit, WLAN Antenna x 2, Quick Start Guide, External Antenna Fixing Bracket, Dock + Latch Locking Key, Stylus Kit + Screw |
| Optional Accessory | 1.8M RS232 Cable, 0.3M Audio Cable, 1.8M CAN BUS Cable, 1.8M CAN BUS Open Wire Cable, 2M IP65 LAN Cable, GPS & LTE 2M Combo Antenna(VM240), GPS & LTE 5M Combo Antenna (VM9C), Magnetic Combo Antenna (VM10S), WWAN Antenna, USB-C to HDMI Adapter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM12Q9 |
| Series | FM Series Android Vehicle Mounted Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
