Explore Winmate G156AD-SUIT, an industrial computer solution featuring Intel® Core™ i5-1235U, 15.6-inch form factor, IP65 for industrial automation and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate G156AD-SUIT, an industrial computer solution featuring Intel® Core™ i5-1235U, 15.6-inch form factor, IP65 for industrial automation and…

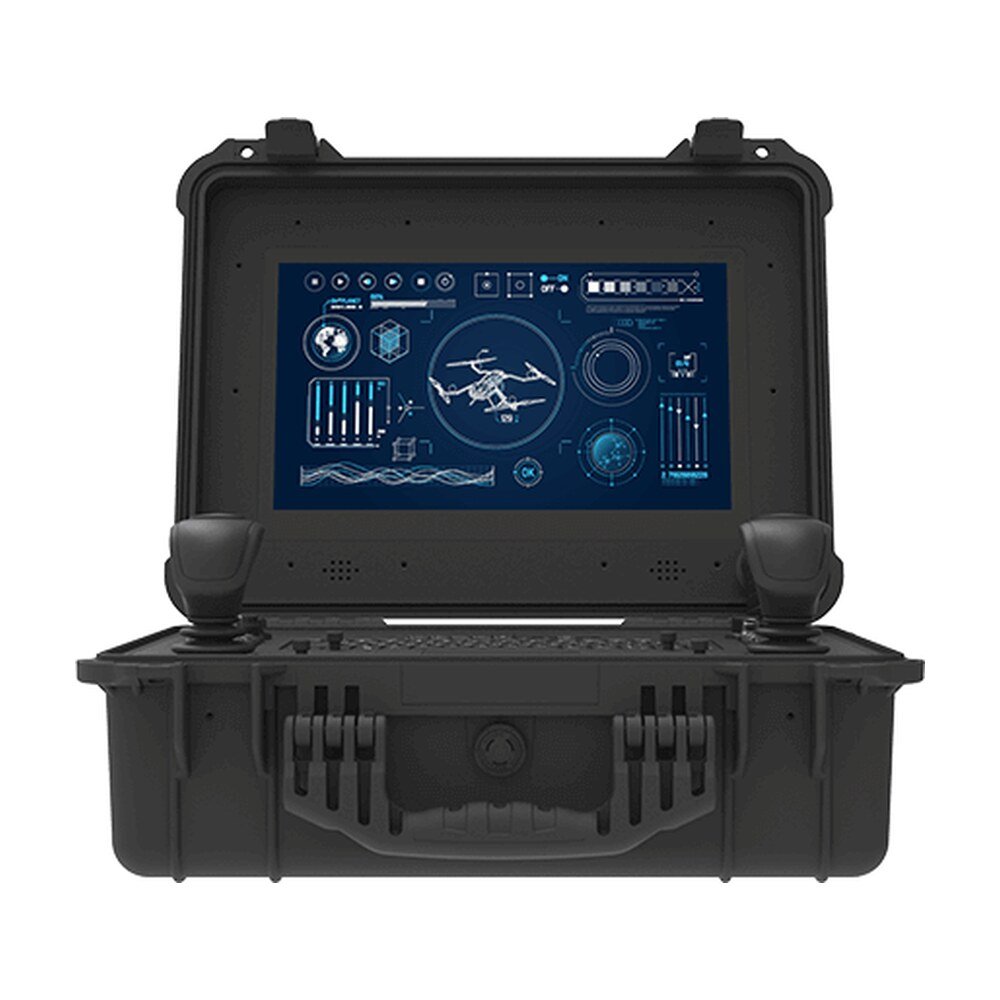

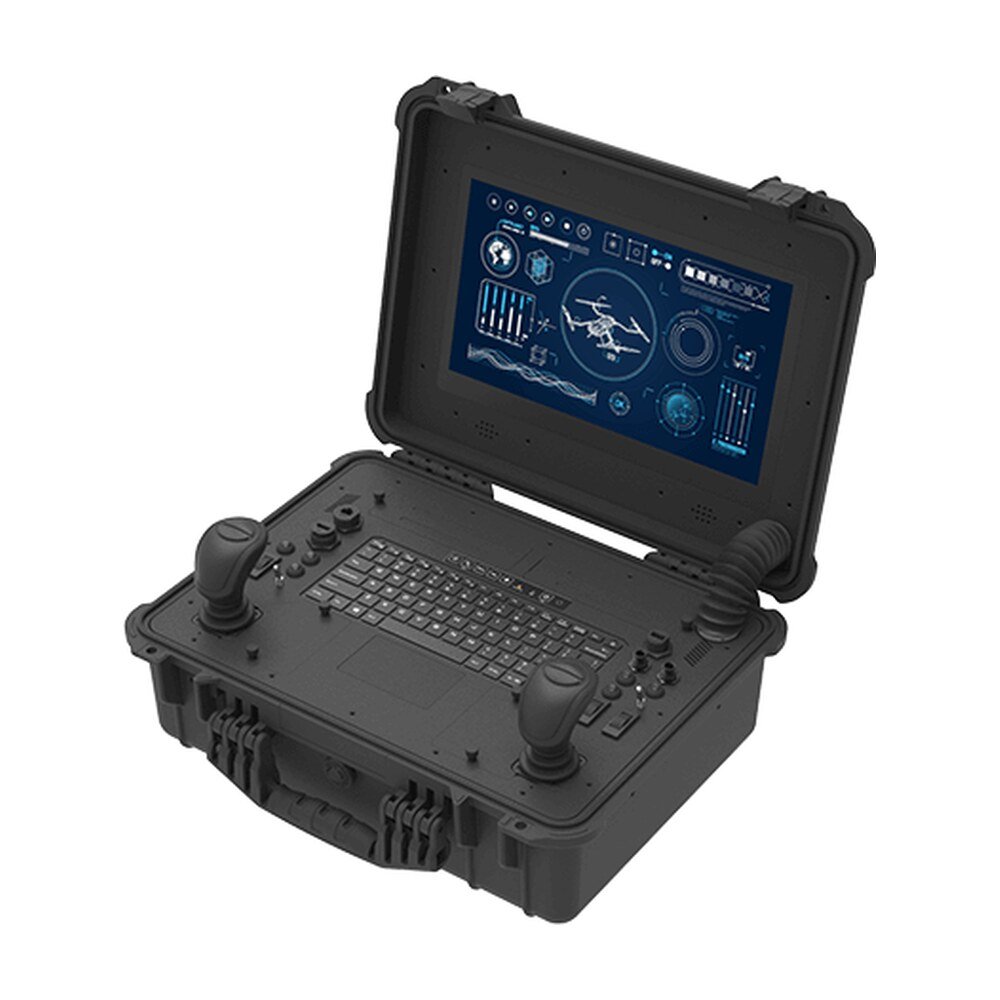

Winmate's G156AD-SUIT rugged portable controller meets MIL-STD-810H standards, ensuring durability under extreme conditions like temperature changes, humidity, vibration, and shock. MIL-STD-461F addresses electromagnetic compatibility, preventing interference with other systems and shielding devices from external electromagnetic fields. Together, these standards enhance reliability for military applications.

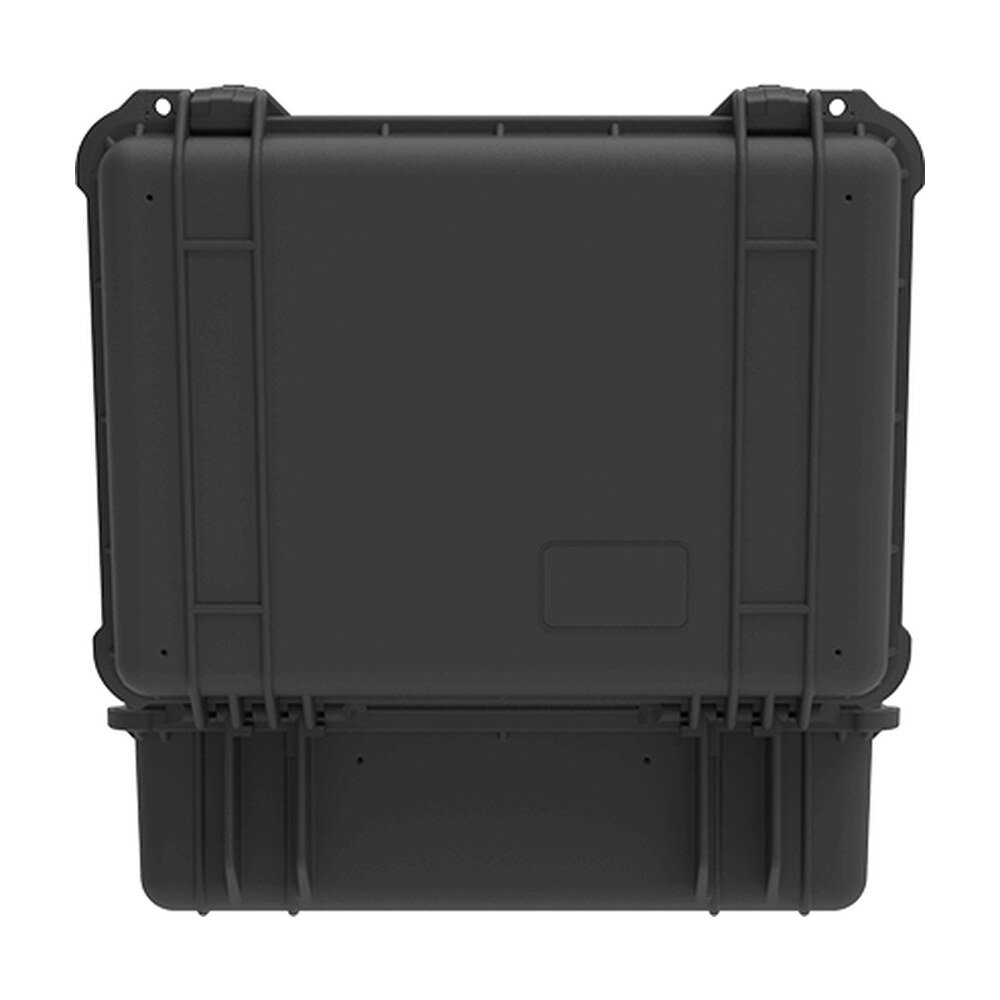

The G156AD-SUIT with the protector cases is built to endure extreme environments. These cases are watertight, crushproof, and dustproof, providing durable protection. With reinforced double-throw latches and easy carrying options, they ensure equipment is secure and accessible for professionals in demanding situations.
The Winmate G156AD-SUIT rugged portable controller features a dual battery that supports for whole day work. This provides exceptional reliability and convenience, enabling an outstanding flying experience. Pilots can focus on capturing stunning aerial footage without the concern of power limitations.
The G156AD-SUIT offers IP65 protection against dust and water, making it suitable for tough and potentially hazardous environments. Its durable design ensures consistent performance in harsh conditions, allowing professionals to focus on their tasks without worrying about equipment reliability.
| Display | |
|---|---|
| Size | 15.6 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 2000.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB RAM, up to 32GB |
| Storage | 128GB, up to 2TB SSD |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch, optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 502 x 401 x 188 mm |
| Weight | 14.6kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 1 x waterproof connector for USB 3.0 (typeA) |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Video | 1 x waterproof connector for HDMI output(Optional) |
| Audio | 2x Speakers |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 2x joystick, 3x roller switch, 2x 2 band toggle switch, 6x button , 1x OSD control, 1x keyboard and touch pad |
| Power | |
| Battery | 2 x 10.8 V, typ. 10050 mAh LiIon Battery (3S1P) |
| Power Rating | 19V DC |
| Adapter | 19V 150W |
| Accessory | |
| Accessory | 1 x 19V Adapter and Power Cord, 1 x M12 to RS232 Cable (1.8M), 1 x Waterproof HDMI Cable (2M), 1 x Waterproof USB Type-A Cable (1.8M), 1 x Waterproof LAN Cable (2M) |
| Optional Accessory | M10 Push-pull LAN Cable |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | G156AD-SUIT |
| Series | Rugged Portable Controller |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | G156AD-SUIT |
|---|---|
| Category | Defence Grade, Ground Control Station, Winmate |
| Size | 15.6 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 2000.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB RAM, up to 32GB |
| Storage | 128GB, up to 2TB SSD |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch, optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 502 x 401 x 188 mm |
| Weight | 14.6kg |
| Cooling System | Fan Design |
| USB Port | 1 x waterproof connector for USB 3.0 (typeA) |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Video | 1 x waterproof connector for HDMI output(Optional) |
| Audio | 2x Speakers |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 2x joystick, 3x roller switch, 2x 2 band toggle switch, 6x button , 1x OSD control, 1x keyboard and touch pad |
| Battery | 2 x 10.8 V, typ. 10050 mAh LiIon Battery (3S1P) |
| Power Rating | 19V DC |
| Adapter | 19V 150W |
| Optional Accessory | M10 Push-pull LAN Cable |
| Brand | Winmate |
| Manufacturer part number | G156AD-SUIT |
| Series | Rugged Portable Controller |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
