Explore Winmate G500G7, an industrial computer solution featuring 5.5-inch display with 1920x1080 resolution, IP65 for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate G500G7, an industrial computer solution featuring 5.5-inch display with 1920x1080 resolution, IP65 for defense operations and field command.
Powered by an ARM-based processor, the Winmate G500G7 Handheld Robotic Controller offers efficient and reliable performance for industrial and robotic tasks. Running on Linux and Android operating systems, it ensures smooth multitasking and compatibility with diverse applications, providing flexibility for various operational needs.

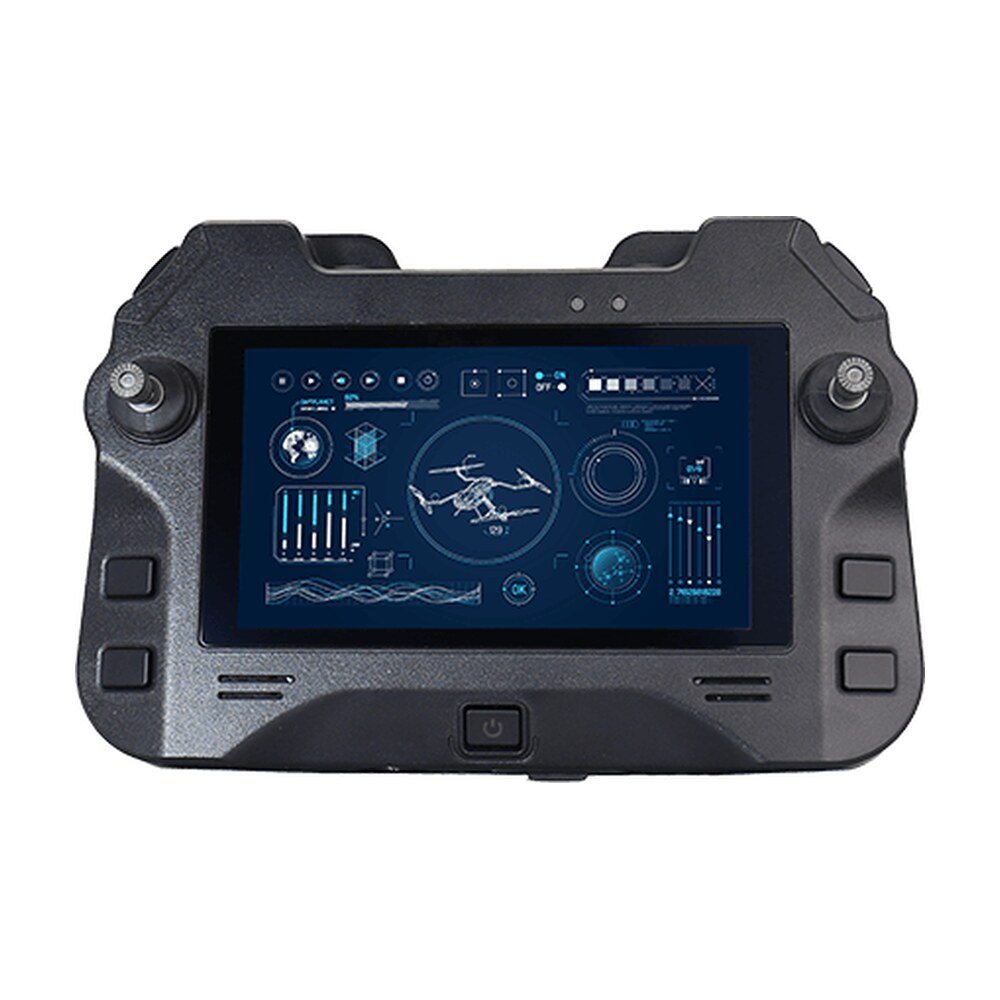

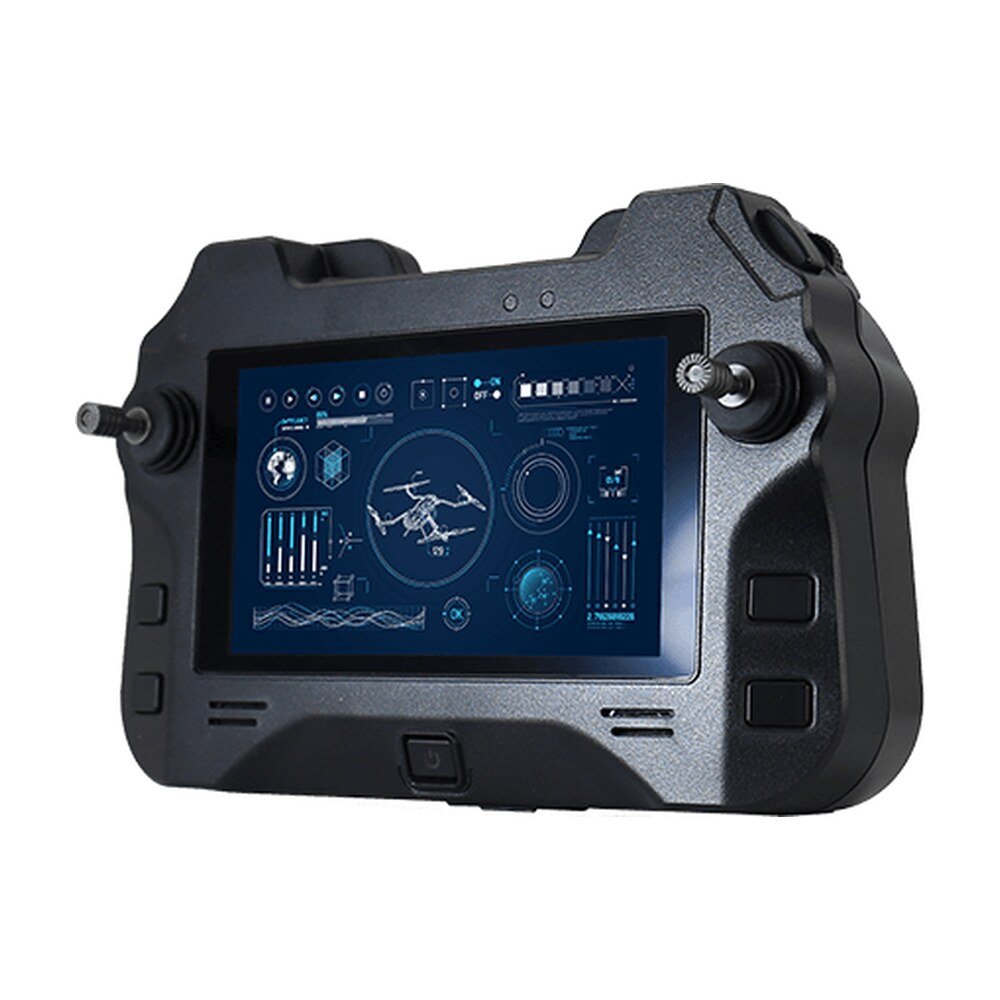

The Winmate G500G7 Handheld Robotic Controller combines portability and durability in a compact 5.5” form factor. Featuring a 1080(RGB) x 1920 TFT LCD panel with direct bonding, it ensures sharp visuals and high responsiveness in a lightweight, ergonomic design. Built to withstand harsh environments, the G500G7 meets IP65 standards for dust and water resistance and adheres to military-grade certifications for drop, shock, and vibration, delivering reliable performance in demanding industrial applications.
The Winmate G500G7 Handheld Robotic Controller supports WiFi and BT connectivity, enabling reliable communication and data transfer across industrial networks. These wireless options ensure smooth integration with robotic systems and real-time access to critical information, making it an essential tool for dynamic environments requiring uninterrupted connectivity.
Winmate offers a fully customizable robotic controller solution tailored to user-specific needs. The Winmate G500G7 Handheld Robotic Controller supports various wireless modules and features a modular design with configurable joysticks, switches, and buttons. This flexibility allows users to adapt the device to different robotic systems and operational requirements, making it a versatile tool for modern industrial automation.
| Display | |
|---|---|
| Size | 5.5 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Reflection&Anti-Fingerprint |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| Sensors | Light Sensor |
| Mechanical | |
| Dimension | 204.2 x 135.1 x 46 mm |
| Weight | 612g (One Battery Pack), 682g (Two Battery Pack) |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type C,with PD) , 1 x USB 3.0 (Type C with ALT Mode) |
| LAN | 1 x M10 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
| Video | 1 x micro HDMI output(Optional) |
| Audio | 2x Speaker |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 2 × Hall-effect Joysticks (Full self-centering; optional non-centering throttle axis), 7 × Momentary Push Buttons, 2 × Hall-effect Roller Switches |
| Power | |
| Battery | Standard:One Battery Pack 7.4V, typ. 3200mAh Rechargeable Lilon Battery (2S1P) , Optional:Two Battery Pack 7.4V , typ. 6400mAh Rechargeable Lilon Battery (2S2P) |
| Battery Operating Time | One Battery Pack: 8hrs, Two Battery Pack: 16hrs (optional) |
| Power Rating | 20V DC |
| Adapter | 100-240V, 50-60Hz / 20V DC |
| Accessory | |
| Accessory | 1 x 65W Adapter and Power Cord, 1 x M10 LAN external cable(2M), 2 x Antenna (optional for RF module) |
| Optional Accessory | Shoulder Strap(Optional), Microhard 2450 (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | G500G7 |
| Series | Android Rugged Handheld Controller |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | G500G7 |
|---|---|
| Category | Defence Grade, Ground Control Station, Winmate |
| Size | 5.5 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Reflection&Anti-Fingerprint |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Processor | Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| Sensors | Light Sensor |
| Dimension | 204.2 x 135.1 x 46 mm |
| Weight | 612g (One Battery Pack), 682g (Two Battery Pack) |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 (Type C,with PD) , 1 x USB 3.0 (Type C with ALT Mode) |
| LAN | 1 x M10 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
| Video | 1 x micro HDMI output(Optional) |
| Audio | 2x Speaker |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 2 × Hall-effect Joysticks (Full self-centering; optional non-centering throttle axis), 7 × Momentary Push Buttons, 2 × Hall-effect Roller Switches |
| Battery Operating Time | One Battery Pack: 8hrs, Two Battery Pack: 16hrs (optional) |
| Power Rating | 20V DC |
| Adapter | 100-240V, 50-60Hz / 20V DC |
| Accessory | 1 x 65W Adapter and Power Cord, 1 x M10 LAN external cable(2M), 2 x Antenna (optional for RF module) |
| Optional Accessory | Shoulder Strap(Optional), Microhard 2450 (Optional) |
| Brand | Winmate |
| Manufacturer part number | G500G7 |
| Series | Android Rugged Handheld Controller |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
