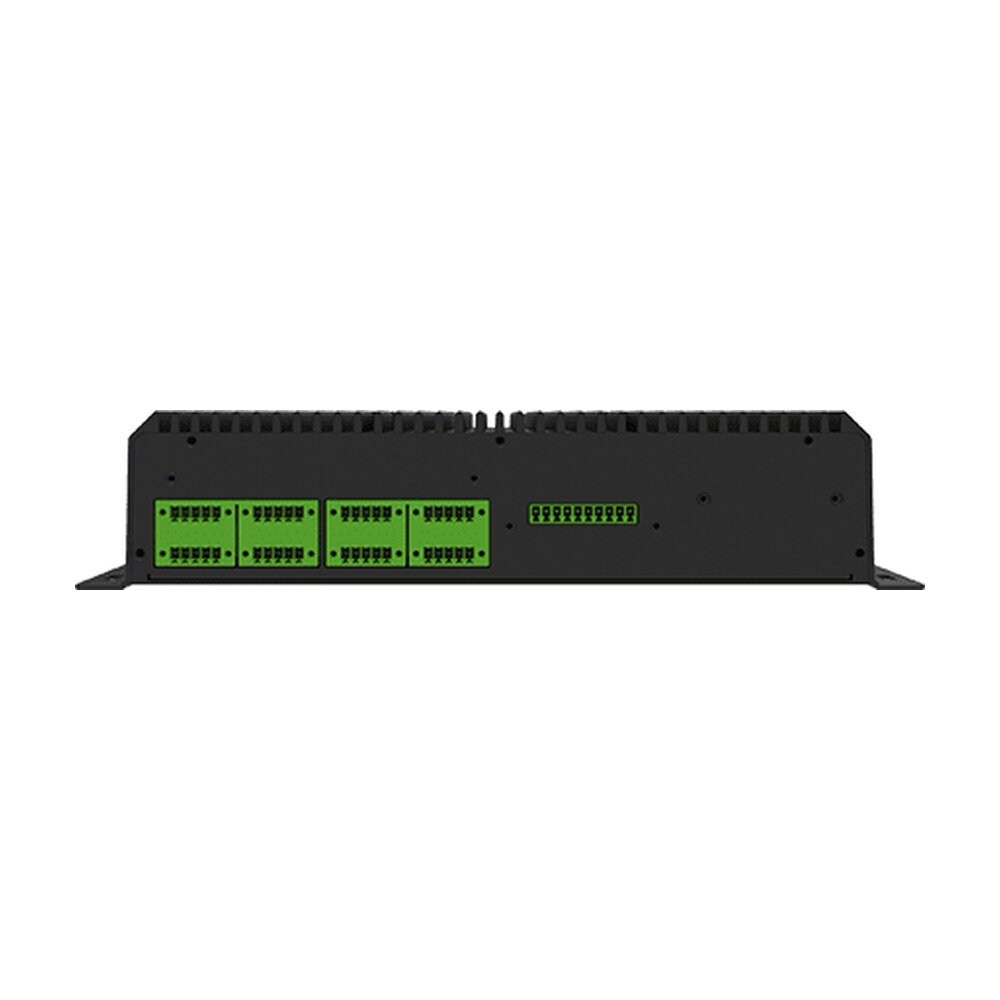

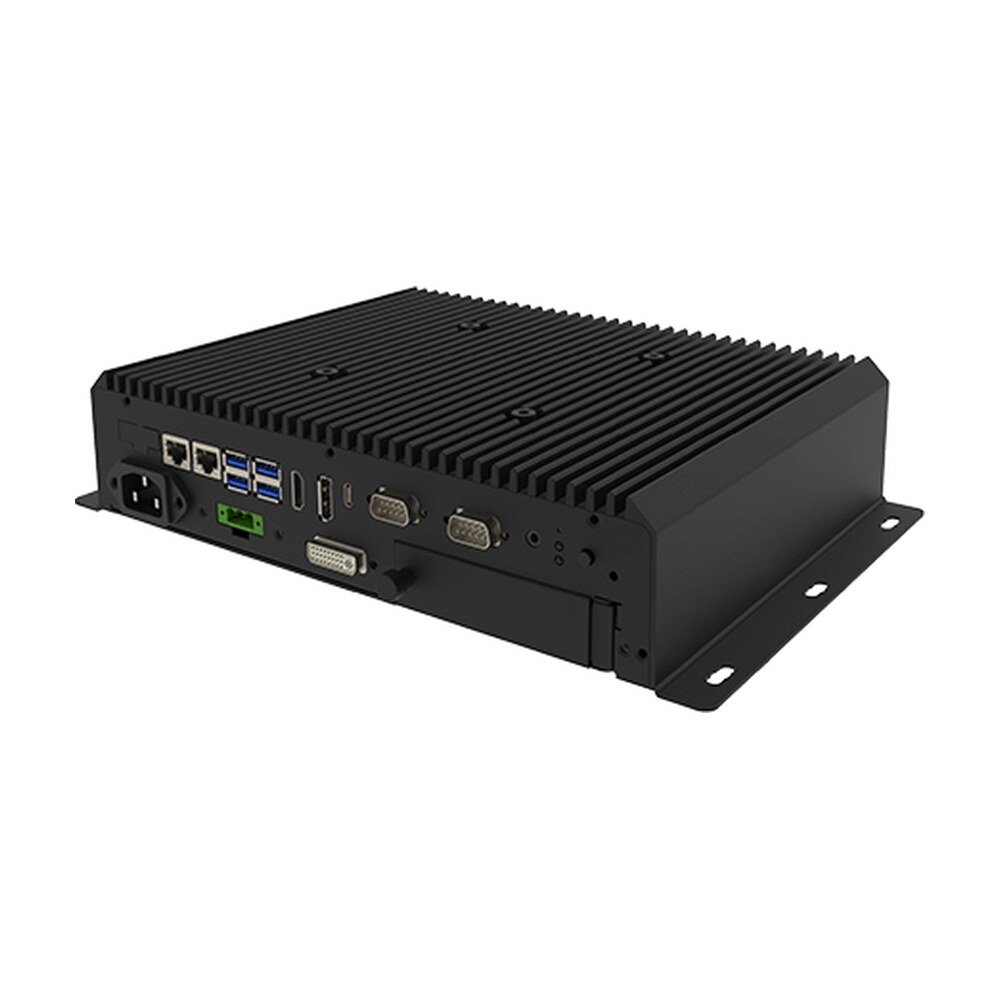

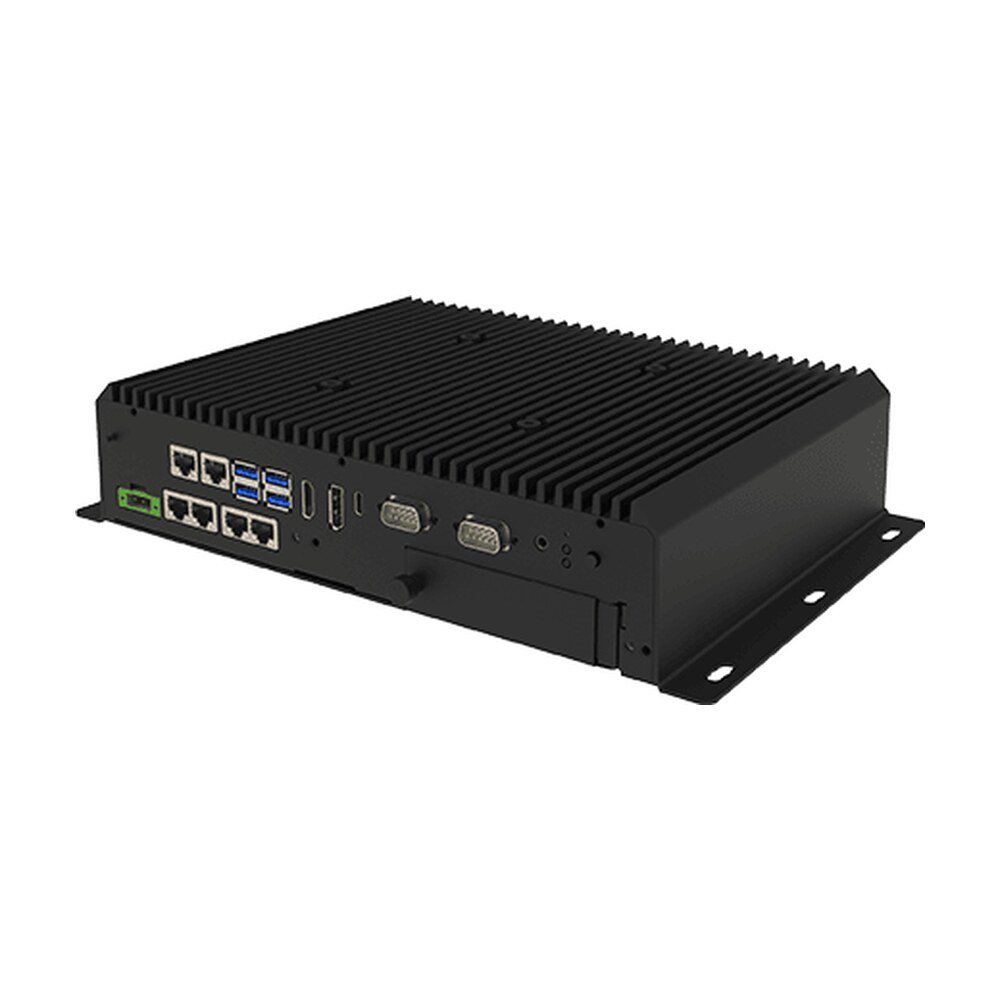

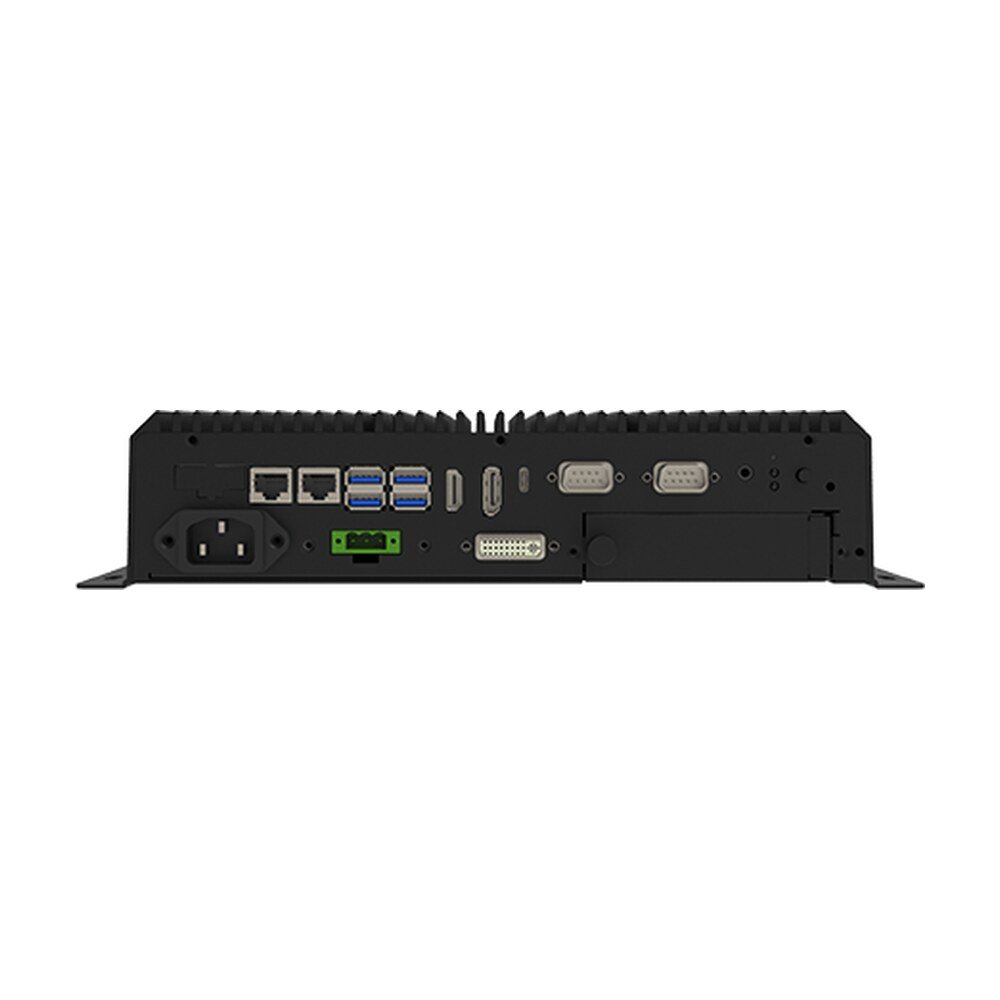

Discover the I330EAC-IMT Marine Embedded Computer. Powered by Intel® Core Ultra 5, it features 8x NMEA 0183 ports, 1.5KV power isolation, and multi-video output for reliable maritime navigation and offshore applications.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Discover the I330EAC-IMT Marine Embedded Computer. Powered by Intel® Core Ultra 5, it features 8x NMEA 0183 ports, 1.5KV power isolation, and multi-video output for reliable maritime navigation and offshore applications.
Winmate marine embedded PC is a rugged and durable embedded computer designed for harsh marine-grade computing. Compliance with international marine standards and needs, the I330EAC-IMT comes with is suitable for offshore and ship applications.
The I330EAC-IMT marine embedded PC is designed with a wide operating temperature range, supports 24V DC power input or 9 to 36 V DC in, and comes with a fanless minimalistic enclosure. It features a rugged chassis, providing wide versatility for use in maritime and offshore environments.
Winmate marine embedded PC I330EAC-IMT is powered by Intel® core Ultra 5 125U processor, delivering a full range of I/O connectivity, including NMEA 0183 ports, serial ports, Gigabit Ethernet ports, USB ports, and many more. The I330EAC-IMT is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.
| System Specification | |
|---|---|
| Processor | Intel Core Ultra 125U 2.1GHz (up to 4.3GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Connection I226-X2 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| IO Ports | |
| USB Port | 4 x USB 3.0 (Type-A), 1 x USB 3.0 (Type-C) |
| Serial Port | 2 x RS232/422/485 |
| LAN | 2 x Giga LAN |
| Video | 1 x DVI, 1 x Display Port (Default), 1 x HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack |
| Expansion Port | 2 x 2.5" Removable SSD/HDD (Optional) |
| DIDO | 8 x Isolated DIDO, 4 In/ 4out |
| NMEA | 8 x NMEA 0183 Port |
| Mechanical | |
| Dimension | 316.44 x 206.8 x 66.1 mm, (With Mounting) |
| Weight | 3.9 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable, (Optional) 115/230 VAC Input Acceptable |
| Consumption | 50W |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 1 x Quick Start Guide , 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | I330EAC-IMT |
| Series | Marine Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | I330EAC-IMT |
|---|---|
| Category | Marine Embedded Computers, Marine Grade, Winmate |
| Processor | Intel Core Ultra 125U 2.1GHz (up to 4.3GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Connection I226-X2 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| USB Port | 4 x USB 3.0 (Type-A), 1 x USB 3.0 (Type-C) |
| Serial Port | 2 x RS232/422/485 |
| LAN | 2 x Giga LAN |
| Video | 1 x DVI, 1 x Display Port (Default), 1 x HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack |
| Expansion Port | 2 x 2.5" Removable SSD/HDD (Optional) |
| DIDO | 8 x Isolated DIDO, 4 In/ 4out |
| NMEA | 8 x NMEA 0183 Port |
| Dimension | 316.44 x 206.8 x 66.1 mm, (With Mounting) |
| Weight | 3.9 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable, (Optional) 115/230 VAC Input Acceptable |
| Consumption | 50W |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 1 x Quick Start Guide , 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 84W |
| Brand | Winmate |
| Manufacturer part number | I330EAC-IMT |
| Series | Marine Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
