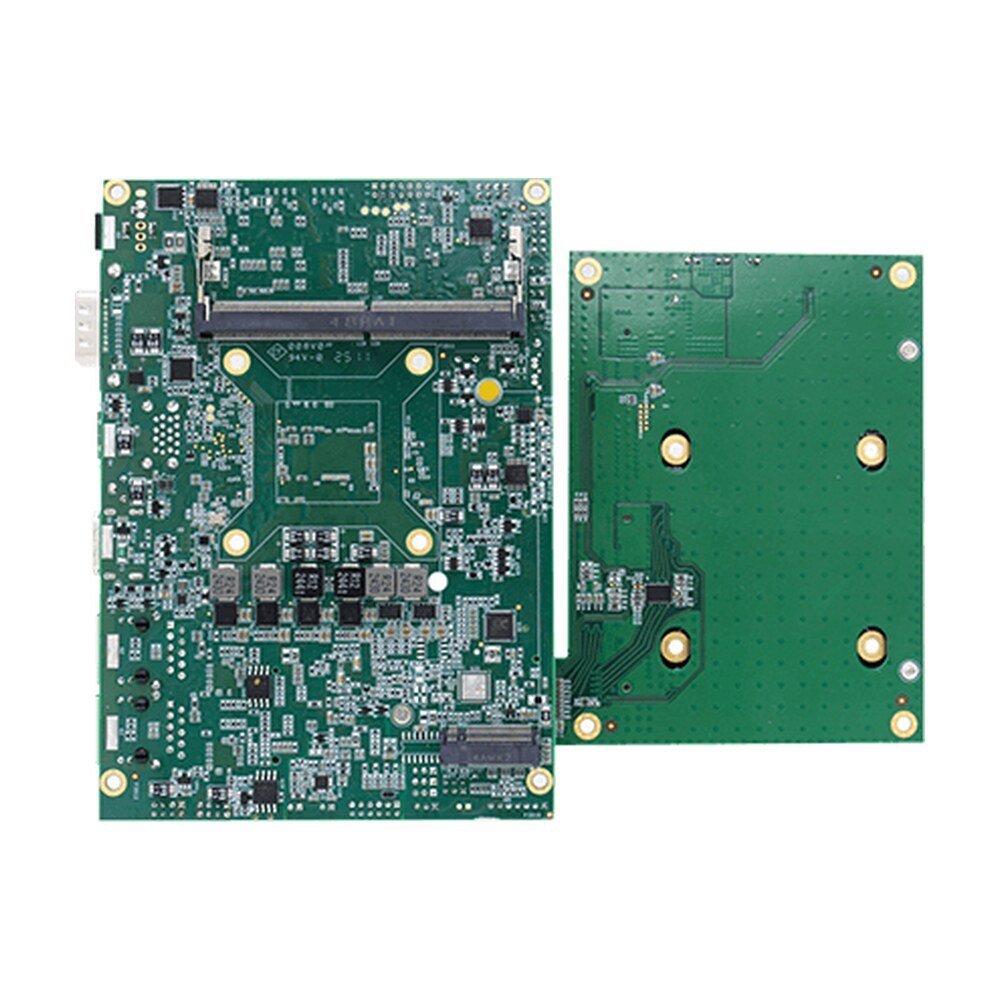

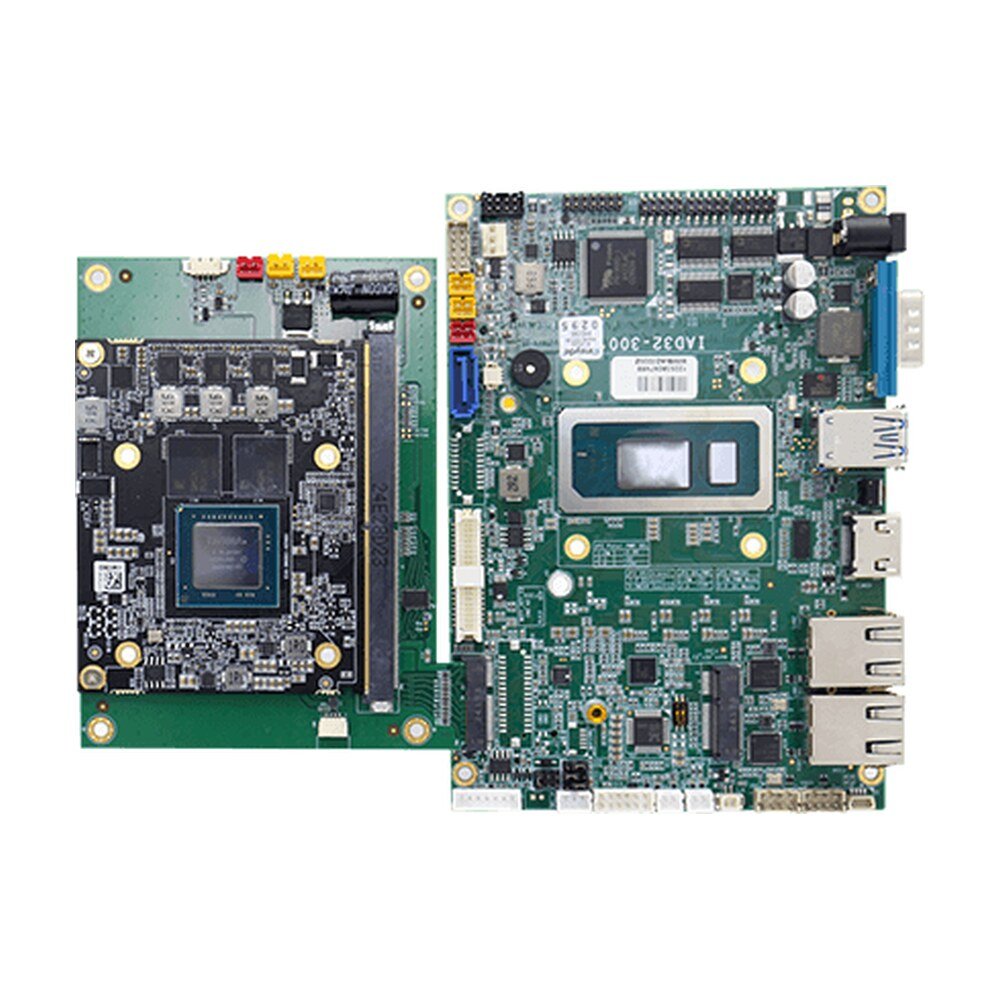

The IAD32-MXM is powered by the Intel® 12th Gen Core™ i5 processor, bringing the efficiency of performance hybrid architecture to the edge. By intelligently balancing performance and efficiency cores, it optimizes multitasking capabilities for complex industrial workloads. This ensures the board delivers high-performance computing without compromising on thermal efficiency in a compact footprint.

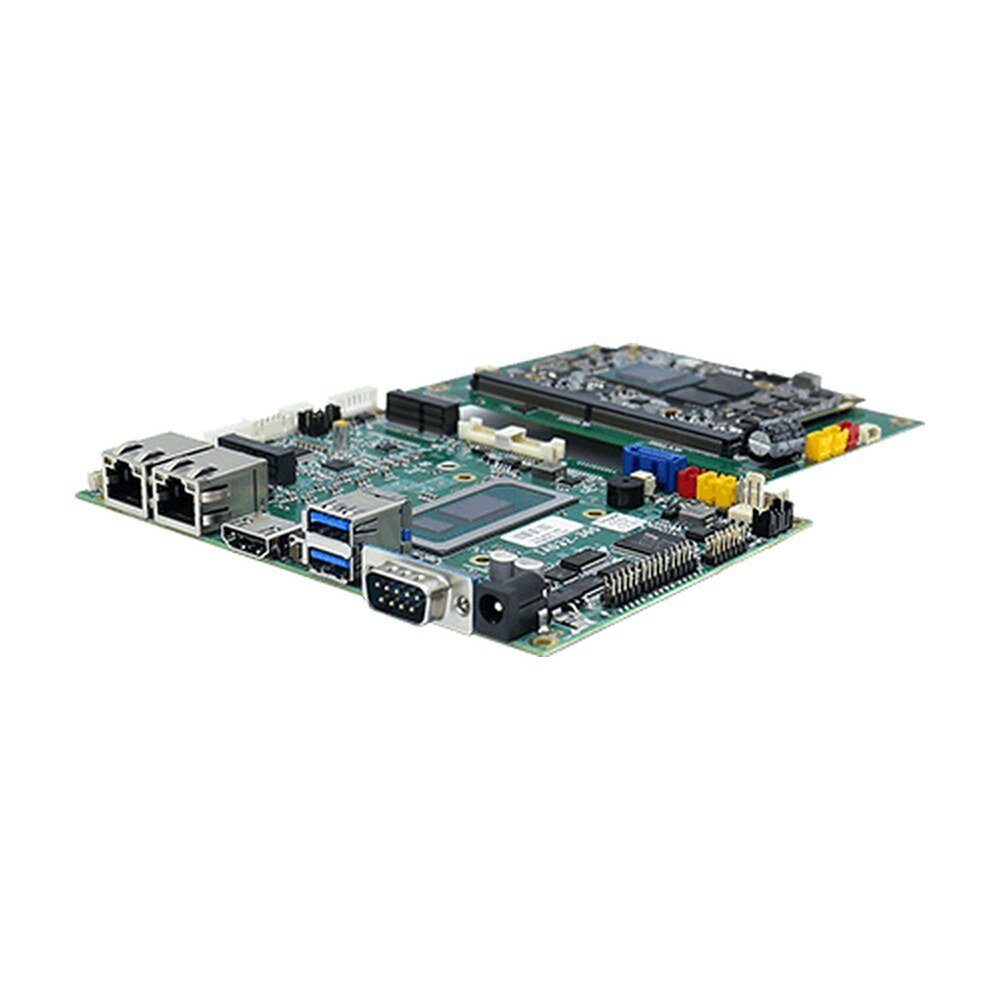

Differentiating itself from standard boards, the IAD32-MXM features a unique support for an add-on M.2 Key-E to MXM daughterboard. This innovative design allows developers to integrate high-end discrete graphics or AI acceleration modules seamlessly. It transforms the system into a visual powerhouse, making it capable of handling demanding image processing and AI inference tasks.
Designed for data-intensive applications, the IAD32-MXM leads the way with DDR5 4800MHz memory support, delivering significantly higher bandwidth than previous generations. Paired with a high-speed M.2 Key M slot for NVMe SSDs, it ensures lightning-fast system boot times and data transmission. This combination eliminates bottlenecks, providing instant responsiveness for real-time edge computing.
The IAD32-MXM adopts the industry-standard 3.5" form factor, offering a perfect balance between performance and space efficiency. It simplifies system design with a 12V single voltage power input and robust Dual Gigabit Ethernet connectivity. This makes it an ideal, easy-to-deploy solution for space-constrained applications like smart retail kiosks and factory automation controllers.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB (Default), 512GB (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Graphic Card | MXM Ampere RTX A500 (Optional), MXM Ampere RTX A1000 (Optional), MXM Ampere RTX A2000 (Optional), MXM Ada RTX 2000A (Optional) |
| IO Ports | |

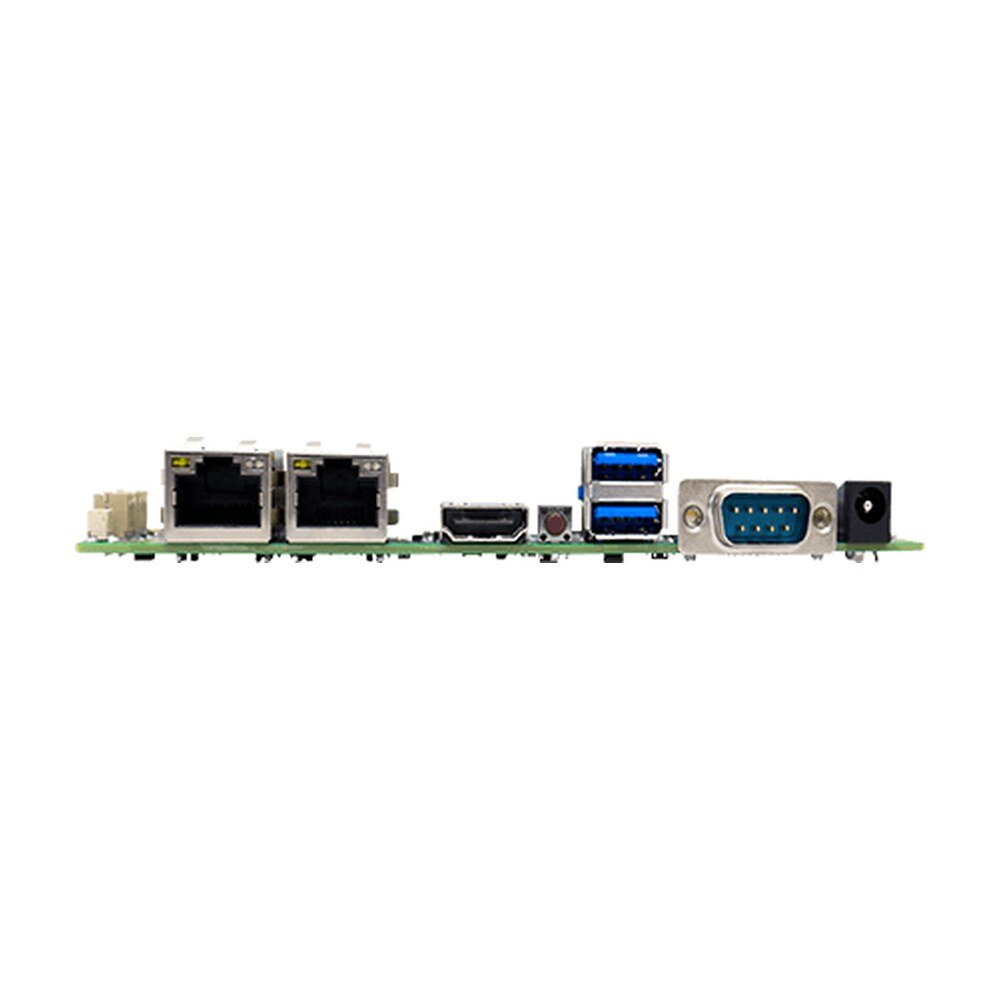

| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 2230 E-Key Slot (for MXM GPU card) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Internal IO Ports | |
| Power input | 1 x 6pin(1x6) for 12V DC in |
| Power output | 1 x 2pin(1x2) blue wafer for 3.3V DC out, 1 x 2pin(1x2) red wafer for 5V DC out , 1 x 2pin(1x2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0 |
| Serial port | 3 x 10pin(2x5) for RS232 |
| Display | 1 x 40pin DF13 connector for LVDS (Default), 1 x 30pin DF13 connector for eDP 1.4a , Max resolution up to 4096x2304@60Hz (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| SATA | 1 x SATA III, 1 x 8pin(2x4) for SATA power |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| VR | 1 x 3pin(1x3) for Digital panel backlight brightness control, 1 x 3pin(1x3) VR/Software brightness switch jumper, 1 x 3pin(1x3) PWM/DC brightness switch jumper, 1 x 3pin(1x3) 3.3V/5V PWM Level switch jumper |
| Fan | 1 x 3pin(1x3) for CPU Fan |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Audio | 1 x 12pin(2x6) for Line in/Line out/ Mic in |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 146 x 188 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | |
| Accessory | 1 x Installation Guide (Default), 3 x Power cable for daughter board(94EE02E020E1) (Optional) |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional), 1 x SATA Power cable (94HE08Z150E0) (Optional), 1 x COM cable (94G309E100E1) (Optional), 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional), 1 x 12V 120W Adapter (922D120W12V5) (Optional), 1 x Power cord (Varies by country) (Optional), 1 x CPU Heatspreader (98K000A000N3) (Optional), 1 x Membrane (98K000A000N1) (Optional), 2 x Speaker (612620000007) (Optional) |
| Power | |
| Power Rating | 12V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IAD32-MXM |
| Series | x86 Embedded Board |
| Availability | Please call for pricing and availability |
