Explore Winmate IAD7T-RK2U, an industrial computer solution featuring Intel® Core™ i5 for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IAD7T-RK2U, an industrial computer solution featuring Intel® Core™ i5 for industrial automation and embedded systems.
The Winmate rack server leverages NVIDIA graphics cards to process extensive complex data, enabling sophisticated AI functions at the edge. This system supports real-time analytics and decision-making, making it suitable for industrial automation, smart cities, and autonomous vehicles.
TPM 2.0 in Winmate rack servers enhances security by encrypting data and ensuring secure authentication and remote access. It also provides data protection through secure boot and measured boot. Additionally, TPM 2.0 is essential in industrial settings for compliance with regulatory standards and secures the handling of sensitive information.
Winmate 2U rack servers, using two front 2.5-inch SATAIII drives for RAID 0/1. RAID 0 boosts performance by splitting data across two drives for faster speeds. RAID 1 keeps your data safe by copying it to both drives. This setup offers both high performance and data protection, making it perfect for demanding tasks.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i5 processor 14500T 24M Cache, up to 4.80 GHz (Default), Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz (Optional), Intel® Core™ i9 processor 14900T 36M Cache, up to 5.50 GHz (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional), 2 x SATA III for 2.5" SSD/HDD up to 2TB (RAID support) (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Graphic Card | NVIDIA RTX A1000 Graphic Card (Optional), NVIDIA RTX A2000E 12 GB Graphic Card (Optional), NVIDIA RTX 2000E Ada Graphic Card (Optional), NVIDIA RTX PRO 2000 BlackwellGraphic Card (Optional), NVIDIA RTX PRO 4000 Blackwell SFF Graphic Card (Optional), NVIDIA RTX 4000E Ada Graphic Card (Optional), NVIDIA RTX A4000E Graphic Card (Optional), NVIDIA RTX PRO 4000 Blackwell Graphic Card (Optional) |
| Mechanical | |
| Dimension | 482.6 x 300 x 88 mm |
| Weight | 7.8 kg |
| Mounting | 2U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |

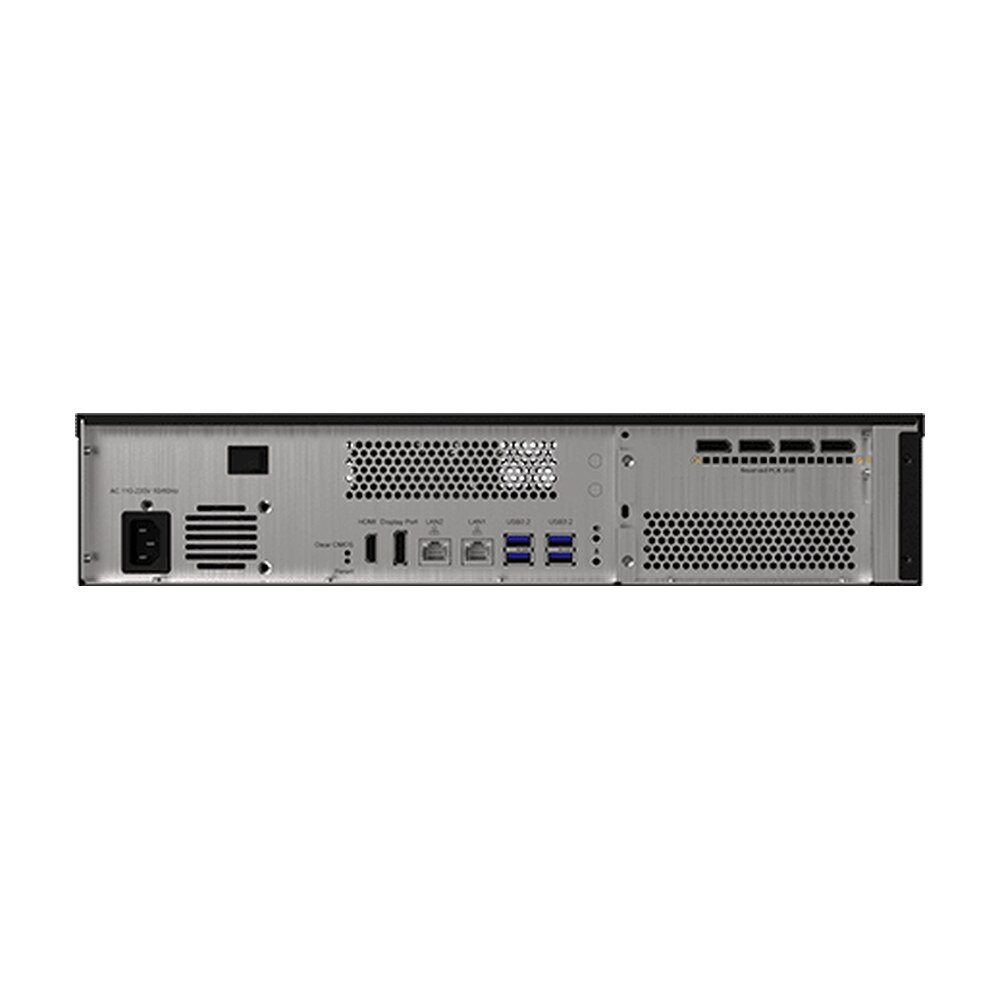

| USB Port | Front side 2 x USB2.0 (Type-A), Rear side 4 x USB 3.2 Gen2x1 (10Gbps) (Type-A) |
| LAN | 2 x 2.5GbE RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) (Default), 1 x PCIe 4.0 (x16) slot (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| Power Input | 1 x 3 Pin AC Plug for Flex 2U Power Supply. |
| Control | |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control), 1 x Clear CMOS Button |
| Accessory | |
| Accessory | Power Cord, Quick Start Guide |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IAD7T-RK2U |
| Series | 2U Rack Server |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IAD7T-RK2U |
|---|---|
| Category | Embedded Computing, Rack Server, Winmate |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 482.6 x 300 x 88 mm |
| Weight | 7.8 kg |
| Mounting | 2U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | Front side 2 x USB2.0 (Type-A), Rear side 4 x USB 3.2 Gen2x1 (10Gbps) (Type-A) |
| LAN | 2 x 2.5GbE RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) (Default), 1 x PCIe 4.0 (x16) slot (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| Power Input | 1 x 3 Pin AC Plug for Flex 2U Power Supply. |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control), 1 x Clear CMOS Button |
| Accessory | Power Cord, Quick Start Guide |
| Brand | Winmate |
| Manufacturer part number | IAD7T-RK2U |
| Series | 2U Rack Server |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
