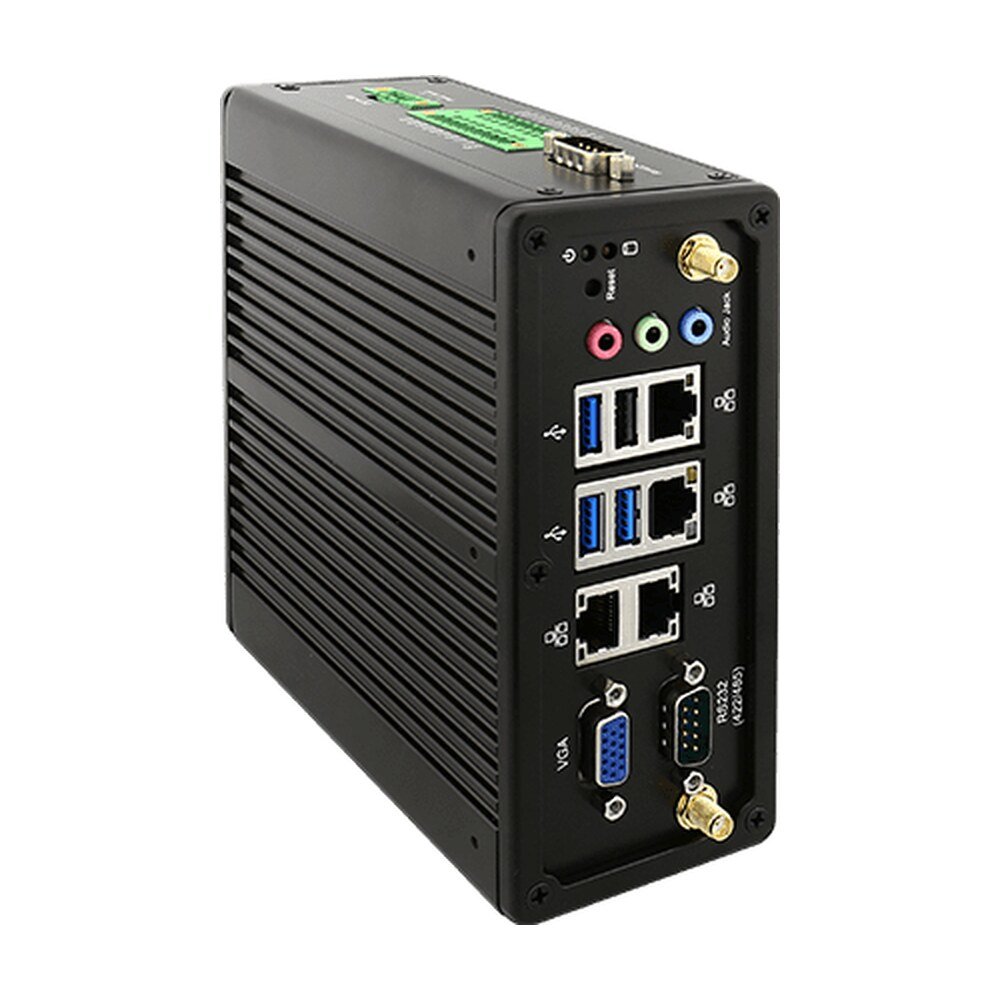

Explore Winmate IBDRW100-EL, a DIN-rail industrial computer featuring Intel® Celeron® N6211 for machine vision and edge AI inference.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IBDRW100-EL, a DIN-rail industrial computer featuring Intel® Celeron® N6211 for machine vision and edge AI inference.
IBDRW100-EL, a recent addition to the Winmate embedded PCs series, is powered by Intel® Celeron® Processor to deliver the optimal performance for critical industrial applications.
Built rugged, the IBDRW100-EL features wide temperature and voltage operating ranges, making it tough enough to take on different industrial environments.
Din Rail embedded PCs are purpose built for factory automation and machine vision applications, easy to install, access, and maintain. The IBDRW100-EL embedded PC has a wide array of I/O support. It can be connected to various cameras and sensors, control systems, display output, etc.
| System Specification | |
|---|---|
| Processor | Intel® Celeron® N6211 (up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB, 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 4 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key (for Wi-Fi), 1 x M.2 2242 B-key Slot (for SSD) |
| Mechanical | |
| Dimension | 139 x 65.4 x 152 mm |
| Weight | 1.5 kg |
| Mounting | Din-Rail mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I (Optional) |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Certification | |
| Certification | CE, FCC, IC, UL/CSA 62368-1, AWS loT Greengrass Certified |
| IO Ports | |
| USB Port | 3 x USB3.2 Gen2x1 (Type-A), 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 DB9 connector (Default RS232), 1 x Isolated RS422/485 DB9 connector (Default RS422) |
| LAN | 4 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x VGA DB15 connector |
| Audio | Mic in, Line in, Line out |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-key (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| DIDO | 1 x Isolated 5V 9-in/9-out DIO with 20-Pin Terminal block (Default), 1 x Isolated 30V 9-in/8-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 10-in/7-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 11-in/6-out DIO with 20-Pin Terminal block (Optional), 1 x Isolated 30V 12-in/5-out DIO with 20-Pin Terminal block (Optional) |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| Control | |
| Button | 1 x Reset Button |
| Accessory | |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 2 x Terminal Block 10 pin connector for DIDO, 1 x Open Wire Cable, 1 x Terminal Block 3 pin to 2.5Ø Female Adapter Cable, 1 x Din Rail Mounting kits |
| Power | |
| Power Rating | 9V to 36V DC |
| Adapter | 12V 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IBDRW100-EL |
| Series | DIN Rail Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
