Explore Winmate IBMH100, an industrial embedded board featuring Intel® Atom® E3845 for OEM equipment design and embedded control.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IBMH100, an industrial embedded board featuring Intel® Atom® E3845 for OEM equipment design and embedded control.
Winmate M series embedded computers support a wide range of power input in a rugged housing design, which can be widely used in various automation applications.
Winmate uses well-defined thermal analysis procedures to verify IPC systems and meet industrial standards. With the fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution.
With sensing devices connected to the cloud, the equipment status can be automatically returned to the cloud platform and/or control site for the real-time monitoring of the operating status.
| System Specification | |
|---|---|
| Processor | Intel Atom E3845 1.91GHz |
| Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x mSATA 128GB (Default), 1 x 2.5" 128GB SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 1.2 |
| Operating System | Windows 7 Embedded Systems (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Mechanical | |
| Dimension | 276 x 207 x 45.2 mm |
| Weight | 2.4 kg |
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |

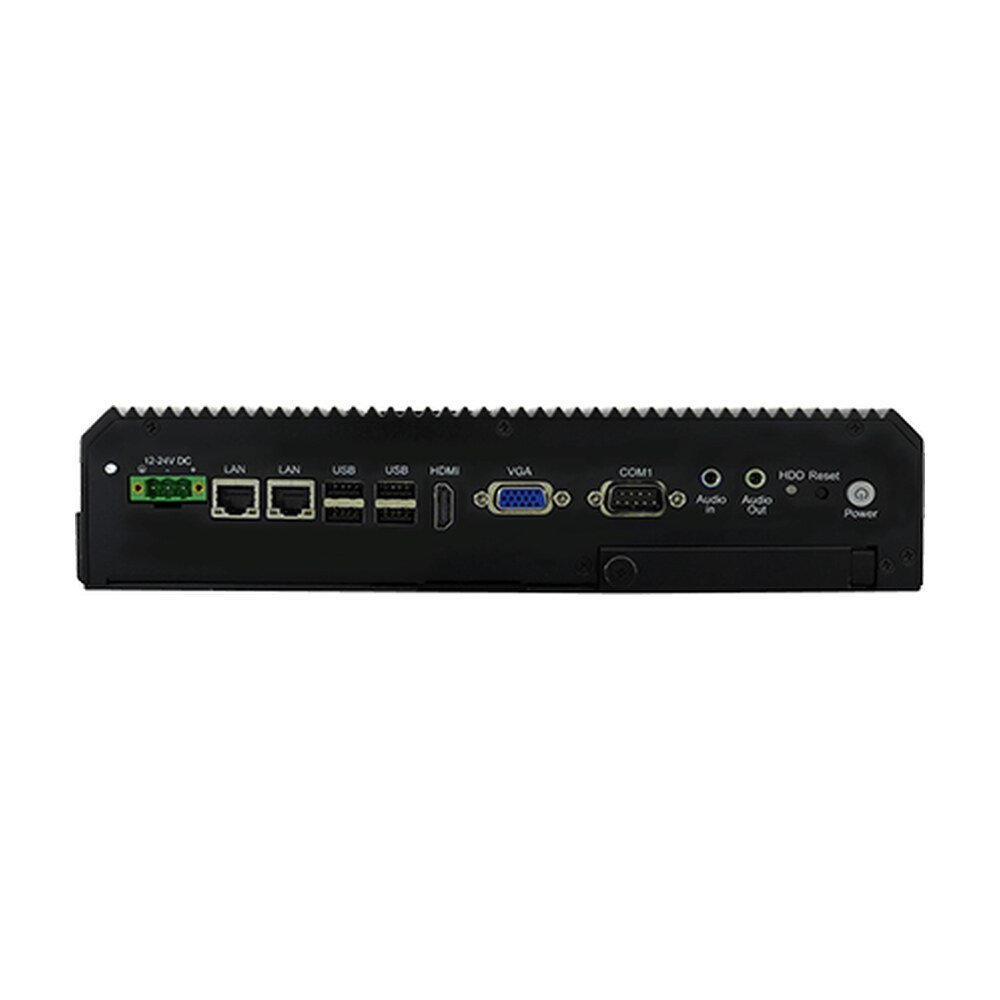

| IO Ports | |
| USB Port | 4 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | Line in, Line out |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module), Swappable 2.5” HDD/SSD Bay Slot |
| Indicator | 1 x LED Indicator for storage |
| mini PCIe | 1 x Mini PCIE(For WLAN) |
| Power Input | 1 x 12~24V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 12V~24V DC with protection fuse |
| Adapter | 12V 80W |
| Consumption | 30W~40W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IBMH100 |
| Series | M Series Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IBMH100 |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel Atom E3845 1.91GHz |
| Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x mSATA 128GB (Default), 1 x 2.5" 128GB SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 1.2 |
| Operating System | Windows 7 Embedded Systems (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Dimension | 276 x 207 x 45.2 mm |
| Weight | 2.4 kg |
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | Line in, Line out |
| Indicator | 1 x LED Indicator for storage |
| mini PCIe | 1 x Mini PCIE(For WLAN) |
| Power Input | 1 x 12~24V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 12V~24V DC with protection fuse |
| Adapter | 12V 80W |
| Consumption | 30W~40W |
| Brand | Winmate |
| Manufacturer part number | IBMH100 |
| Series | M Series Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
