Explore Winmate IE32S, an industrial embedded board featuring Intel® Celeron® N6211, 3.5-inch form factor for OEM equipment design and embedded control.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IE32S, an industrial embedded board featuring Intel® Celeron® N6211, 3.5-inch form factor for OEM equipment design and embedded control.

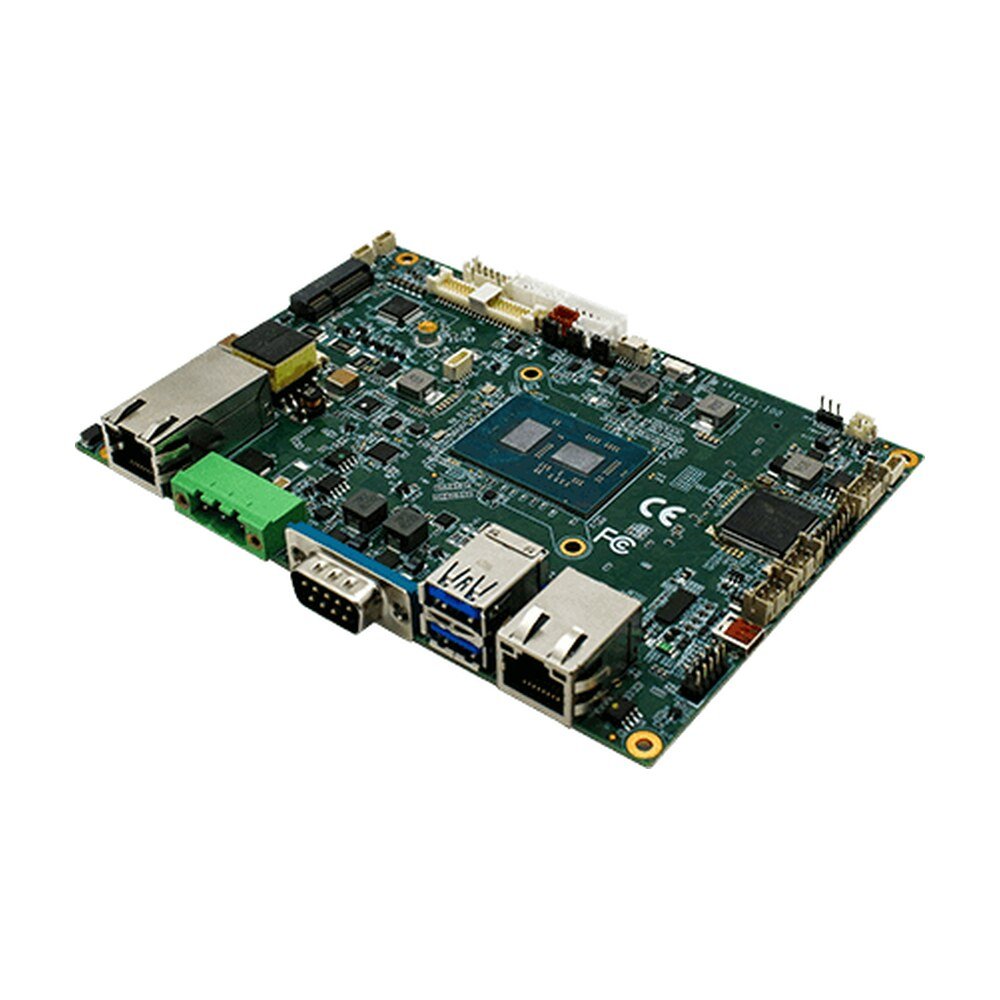

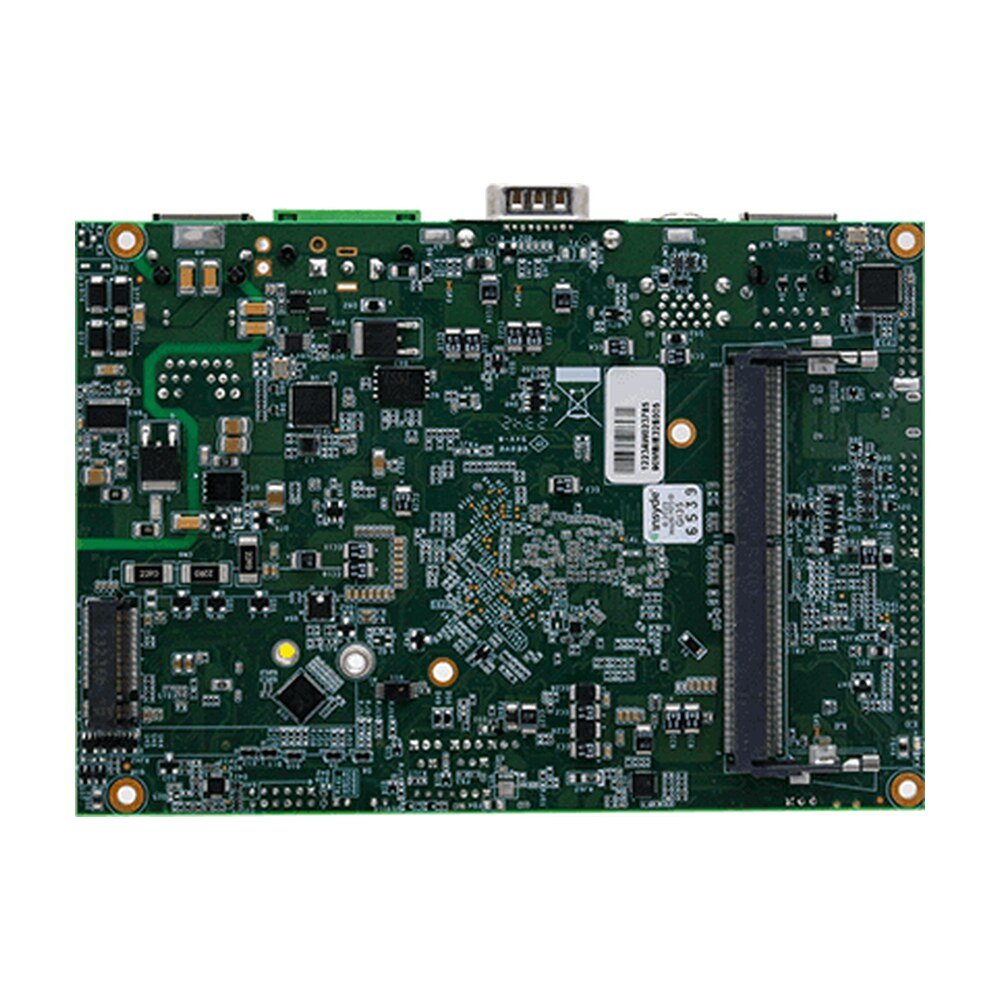

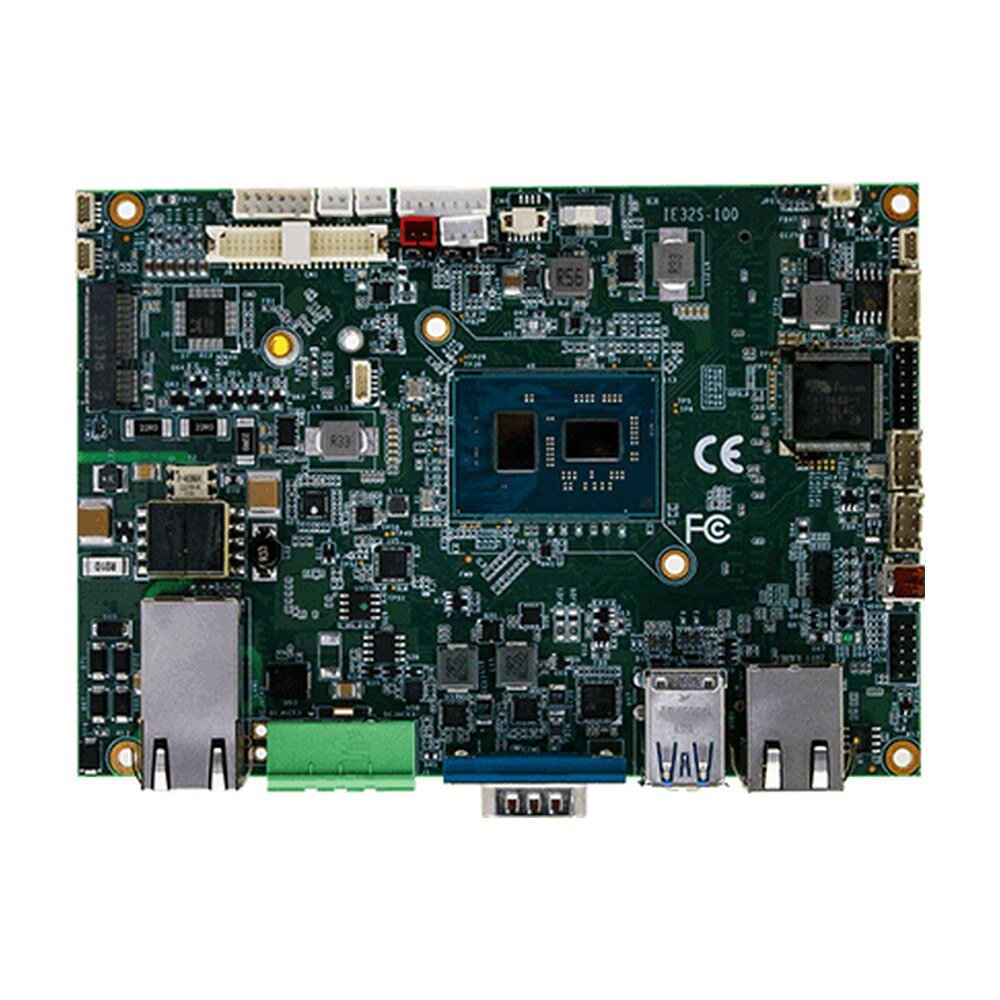

Winmate IE32S industrial single board computer, featuring the Intel® Celeron® Elkhart Lake N6210 Processor. Unlock the potential for next-generation IoT solutions across diverse sectors, including retail, transportation, and industrial automation
Designed with an array of robust I/O capabilities, advanced connectivity and versatile customization options, Winmate IE32S industrial single board computer not only optimizes space with its smaller footprint but also facilitates easy integration into installations with space constraints.
Winmate’s IE32S industrial single board computer facilitates seamless connections, boasting 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, and 4 x USB 2.0 interfaces. With dimensions measuring 102x146mm, the board is not only compact but also operates efficiently within a wide power input range of 9V - 36V. Its extended temperature range, spanning from -40 to +85°C, ensures reliable performance in diverse environments.
| System Specification | |
|---|---|
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |

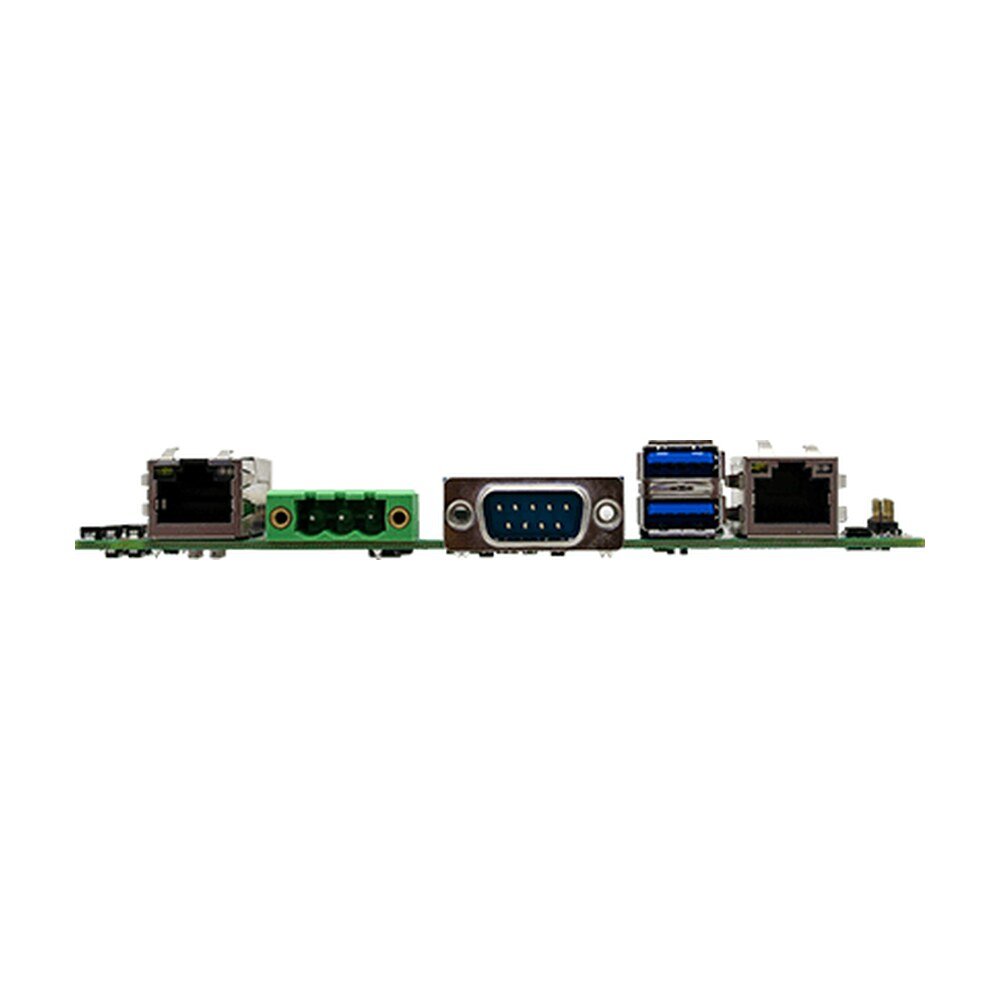

| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector,one with PoE(PD, 802.3 at)(Optional) |
| Video | 1 x Micro HDMI (Optional) |
| Expansion Port | 1 x M.2 2242 B-Key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| Internal IO Ports | |
| Power input | 1 x 3pin Terminal Block |
| Power output | 1 x 2pin(1x2) red wafer for 5V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0, 1 x FPC connector(CN8) for touch screen |
| UART | 1 x 6pin(1x6) for UART |
| Display | 1 x 40pin DF13 connector for LVDS.Co-lay for eDP (Default), 1 x 40pin FPC connector Co-lay for LVDS(CON3) (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| VR | 1 x 5pin(1x5) MCU debug port |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Audio | 1 x 12pin(2x6) for Line in/Line out/ Mic in |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 146 x 102 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | |
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional), 1 x SATA Power cable (94HE08Z150E0) (Optional), 1 x COM cable (94G309E100E1) (Optional), 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional), 1 x 12V 84W Adapter (922D084W12V1) (Optional), 1 x Power cord (Varies by country) (Optional), 1 x CPU Heatspreader (98K000A000N2) (Optional), 1 x Membrane (98K000A000N1) (Optional), 2 x Speaker (612620000007) (Optional) |
| Power | |
| Power Rating | 12V DC |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IE32S |
| Series | x86 Embedded Board |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IE32S |
|---|---|
| Category | Embedded Board, Embedded Computing, Winmate |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector,one with PoE(PD, 802.3 at)(Optional) |
| Video | 1 x Micro HDMI (Optional) |
| Expansion Port | 1 x M.2 2242 B-Key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| Power output | 1 x 2pin(1x2) red wafer for 5V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0, 1 x FPC connector(CN8) for touch screen |
| UART | 1 x 6pin(1x6) for UART |
| Display | 1 x 40pin DF13 connector for LVDS.Co-lay for eDP (Default), 1 x 40pin FPC connector Co-lay for LVDS(CON3) (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| VR | 1 x 5pin(1x5) MCU debug port |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Audio | 1 x 12pin(2x6) for Line in/Line out/ Mic in |
| Certification | CE, FCC |
| Dimension | 146 x 102 mm |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | 1 x Installation Guide |
| Power Rating | 12V DC |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Brand | Winmate |
| Manufacturer part number | IE32S |
| Series | x86 Embedded Board |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
