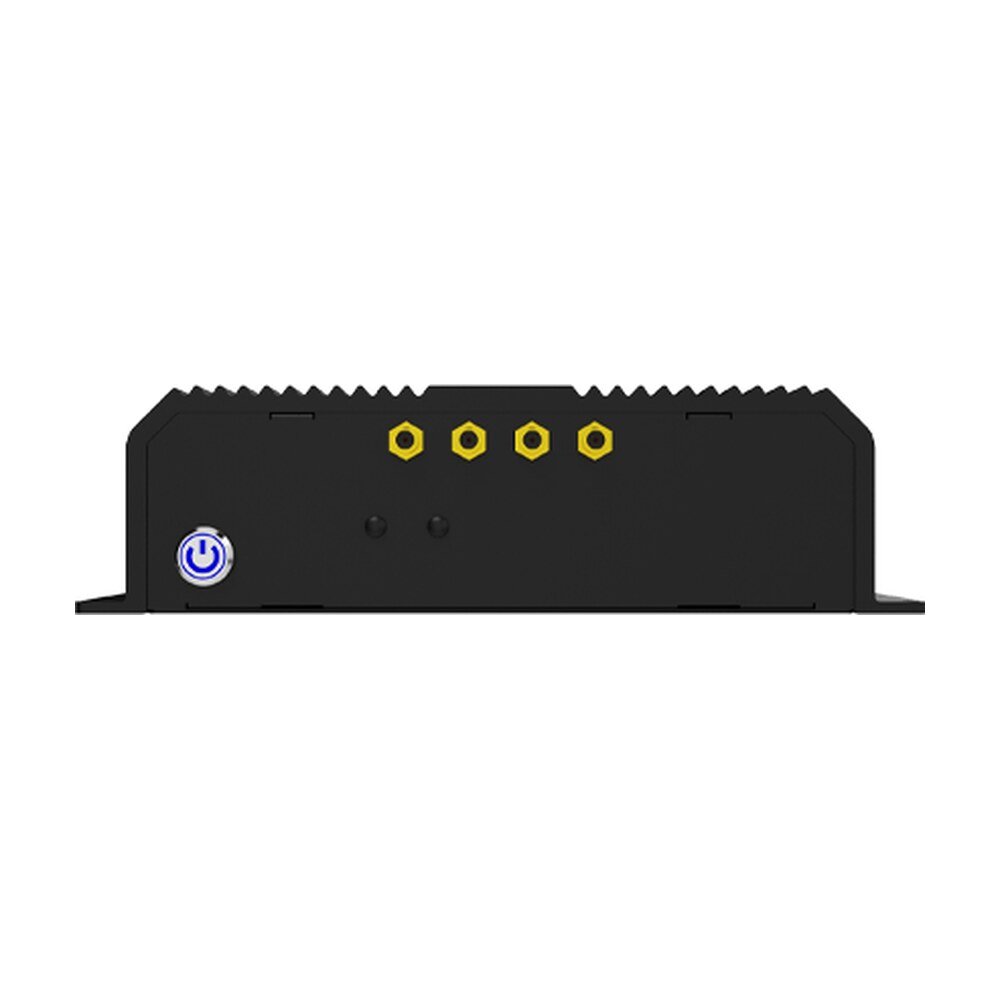

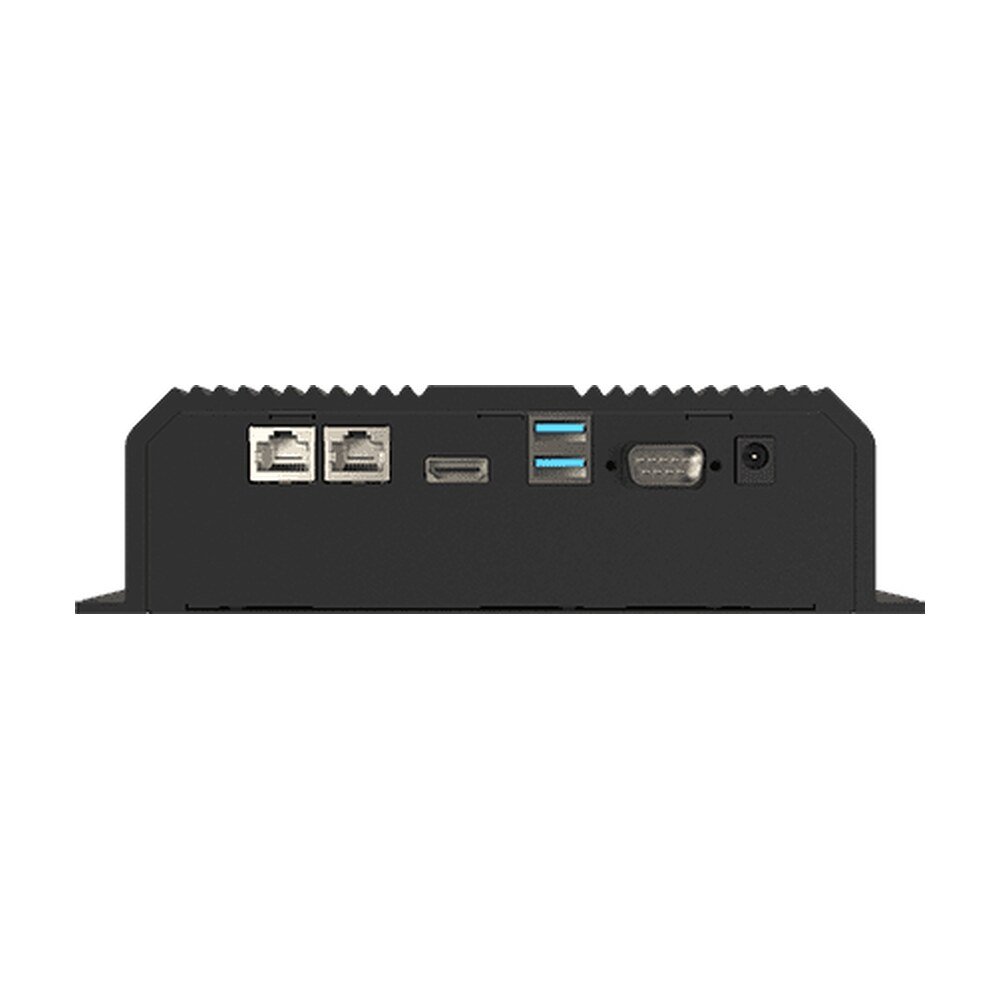

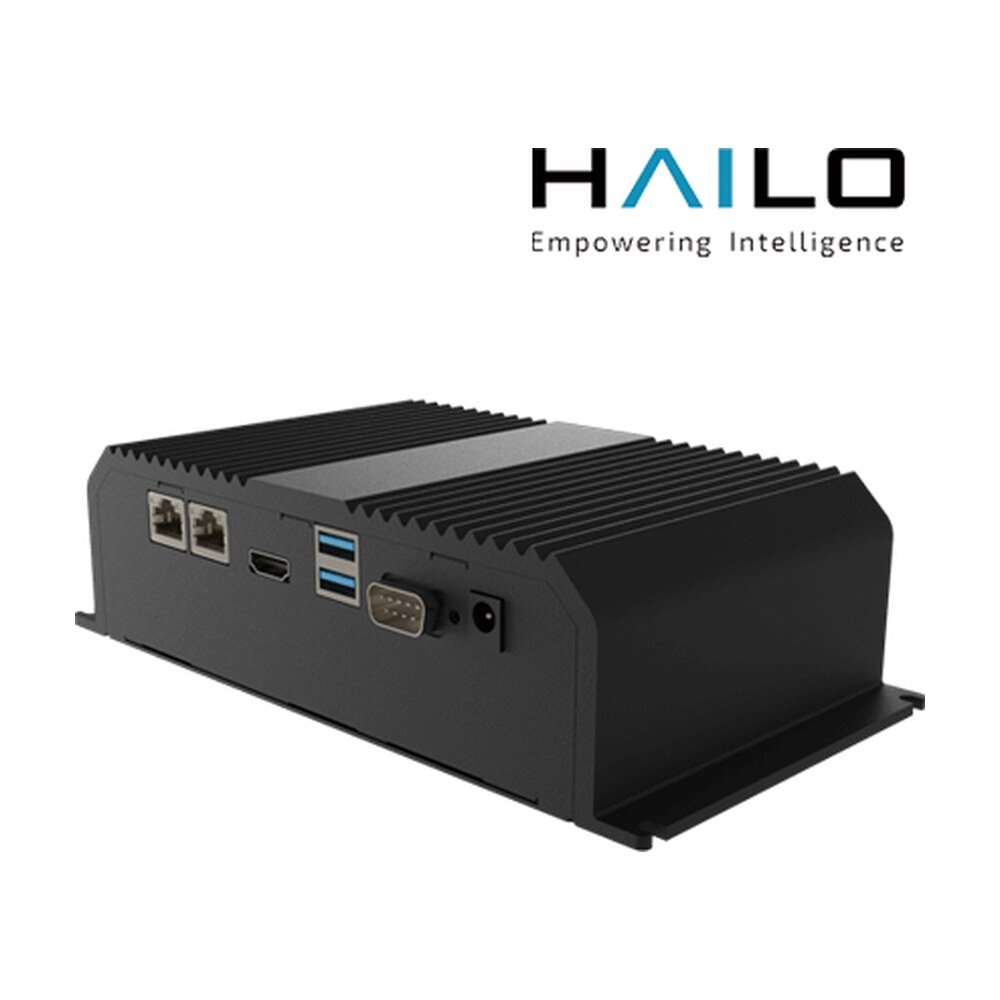

Explore Winmate IE32SB3-101AI, an edge AI computer featuring Intel Atom® x6413E Processor 1.5M Cache, up to 3.00 GHz, Integrated 26 TOPS Hailo-8™ AI Processor…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IE32SB3-101AI, an edge AI computer featuring Intel Atom® x6413E Processor 1.5M Cache, up to 3.00 GHz, Integrated 26 TOPS Hailo-8™ AI Processor…
Equipped by an Intel® processor, Winmate Edge AI Box PC ensures stable performance in demanding environments. Compatible with Windows® IoT Enterprise OS, it serves various industrial needs such as factory automation, robotics, smart retail, and IoT/ Industry 4.0 applications.
Winmate Edge AI Box PC integrated with the Hailo-8™ AI Processor, highlight an impressive performance of 26 TOPS. With this advanced system, Winmate Edge AI Box PC ensure streamlined operations, with scalability and customization options tailored to meet the diverse requirements of AI and IIoT applications.
Winmate not only offers GPUs but also provides AI Processor. Winmate's Edge AI Computing Solutions, equipped with the Hailo-8 AI Processor, deliver exceptional performance and efficiency. These solutions enable real-time data processing and analysis at the edge of the network, facilitating swift decision-making and enhancing overall operational efficiency.
The Winmate Edge AI Box PC, featuring the Hailo AI Processor, is not only equipped with advanced processing capabilities but is also engineered with a fanless design. This innovative design efficiently dissipates heat without the reliance on noisy cooling fans, offering significant benefits such as noise reduction, enhanced reliability, and increased durability.
In response to the demands of the IIoT landscape, the Winmate Edge AI Box PC is engineered with a variety of I/O interfaces. These interfaces cater to the diverse requirements of AI-driven industrial solutions, facilitating seamless communication and efficient data transfer.
| System Specification | |
|---|---|
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 8GB (Default), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 256GB (Default), 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Graphic Card | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Mechanical | |
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.1 kg |
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1~2 x RS232 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button |
| Accessory | |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 1 x Quick Start Guide, 6 x M4*8 desk mount screws |
| Power | |
| Power Rating | 12V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IE32SB3-101AI |
| Series | Edge AI Computing |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IE32SB3-101AI |
|---|---|
| Category | Edge AI Computing, Embedded Computing, Winmate |
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 8GB (Default), 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 256GB (Default), 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Graphic Card | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.1 kg |
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1~2 x RS232 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 1 x Quick Start Guide, 6 x M4*8 desk mount screws |
| Power Rating | 12V DC |
| Brand | Winmate |
| Manufacturer part number | IE32SB3-101AI |
| Series | Edge AI Computing |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
