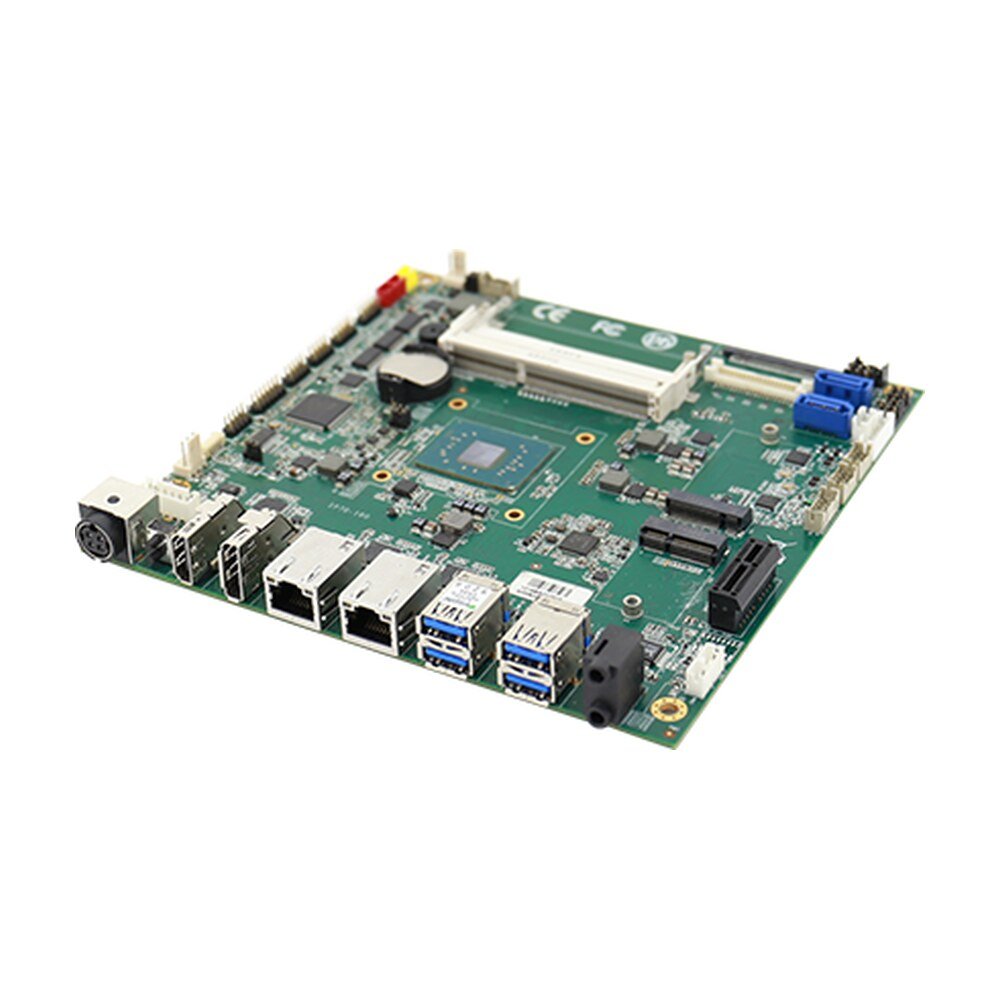

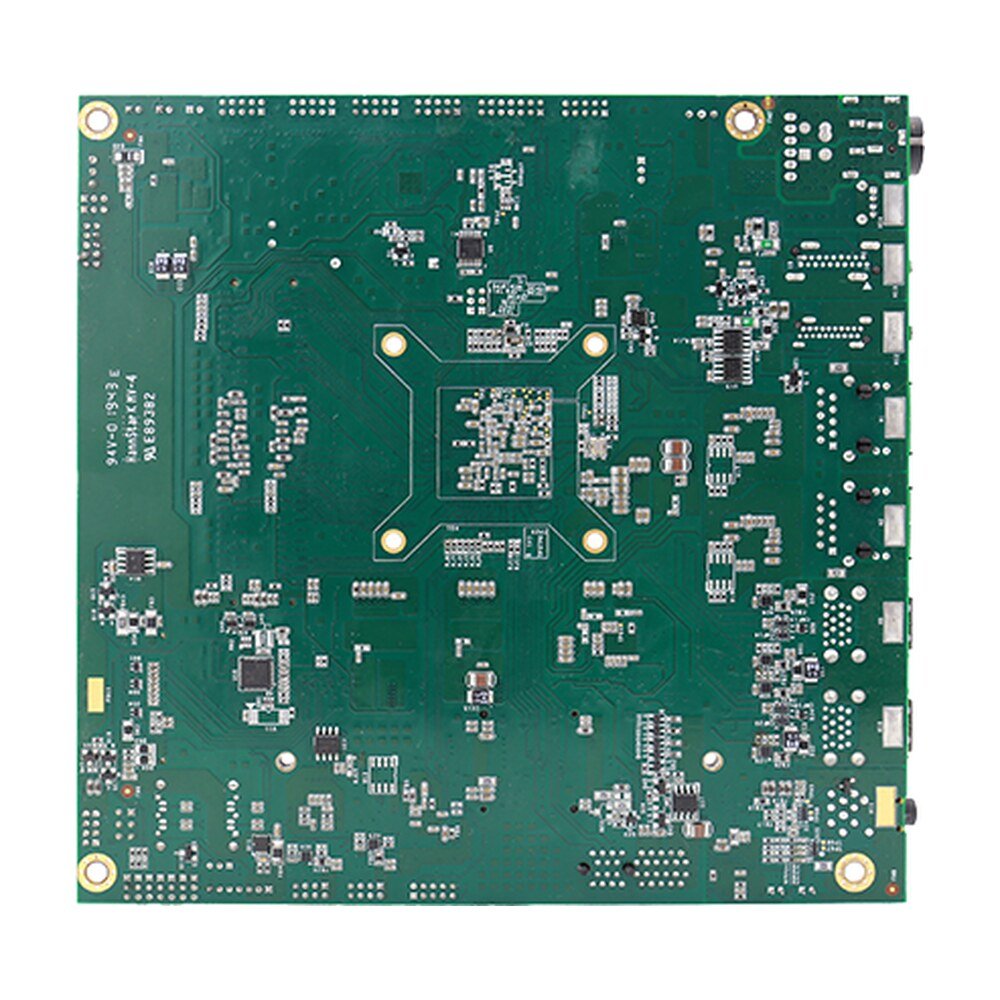

Explore Winmate IP70, an industrial embedded board featuring Intel® Pentium® N4200, 170x170 resolution, IP70 for OEM equipment design and embedded control.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IP70, an industrial embedded board featuring Intel® Pentium® N4200, 170x170 resolution, IP70 for OEM equipment design and embedded control.
Winmate mini-iTX SBC offered with Intel® Processors to provide high performance and low power consumption.
Winmate mini-iTX SBCs are built to be easy to install, access, and maintain. The mini-iTX SBCs have a wide array of I/O support, all of which are located on the PC's front or top sides.
With the compact configuration of ITX motherboards, they are often used in low-cost small setups found in cars, network devices, set-top boxes, and other small computers. Suitable for various industrial and embedded applications.
With sensing devices connected to the cloud, the equipment's status can be automatically returned to the cloud platform and control site for the real-time monitoring of the operating status.
| System Specification | |
|---|---|
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Internal IO Ports | |
| Power input | 1 x 4pin(2x2) for 12V DC in, 1 x 6pin(1x6) for 12V DC in |
| Power output | 2 x 2pin(1x2) red wafer for 5V DC out , 1 x 2pin(1x2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0 |
| Serial port | 1 x 10pin(2x5) for RS232/422/485 (Default), 3 x RS232 (Optional) |
| Display | 1 x 40pin DF13 connector for LVDS (Default), 1 x 30pin DF13 connector for eDP (Optional), 1 x 10pin P=2.0mm wafer for VGA (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| SATA | 2 x SATA III, 1 x 8pin(2x4) for SATA power, (SATA2 is only available when M.2 SATA is not in use;, SATA2 and M.2 SATA cannot be used concurrently.) |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| VR | 1 x 3pin(1x3) for Digital panel backlight brightness control, 1 x 3pin(1x3) VR/Software brightness switch jumper, 1 x 3pin(1x3) PWM/DC brightness switch jumper, 1 x 3pin(1x3) 3.3V/5V PWM Level switch jumper |
| Fan | 2 x 3pin(1x3) for Fan |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 170 x 170 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | |
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional), 1 x SATA Power cable (94HE08Z150E0) (Optional), 2 x COM cable (94G309E100E1) (Optional), 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional), 1 x 12V 84W Adapter (922D084W12V0) (Optional), 1 x Power cord (Varies by country) (Optional), 1 x CPU Heatspreader with Fan (98K000A000N5) (Optional), 1 x Membrane (98K000A000N1) (Optional), 2 x Speaker (612620000007) (Optional) |
| Power | |
| Power Rating | 12V DC in |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IP70 |
| Series | Mini-ITX Embedded Board |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
