Explore Winmate IRT41, a DC-DC converter module featuring High efficiency DC-DC Converter, Low inrush current for industrial power integration and mobile…
The common drawbacks of using one part to span an ultra-wide input voltage range include: Lower efficiency, Lower power density, and Higher cost By contrast, deploying two or more converters can deliver higher power densities and reduce size.

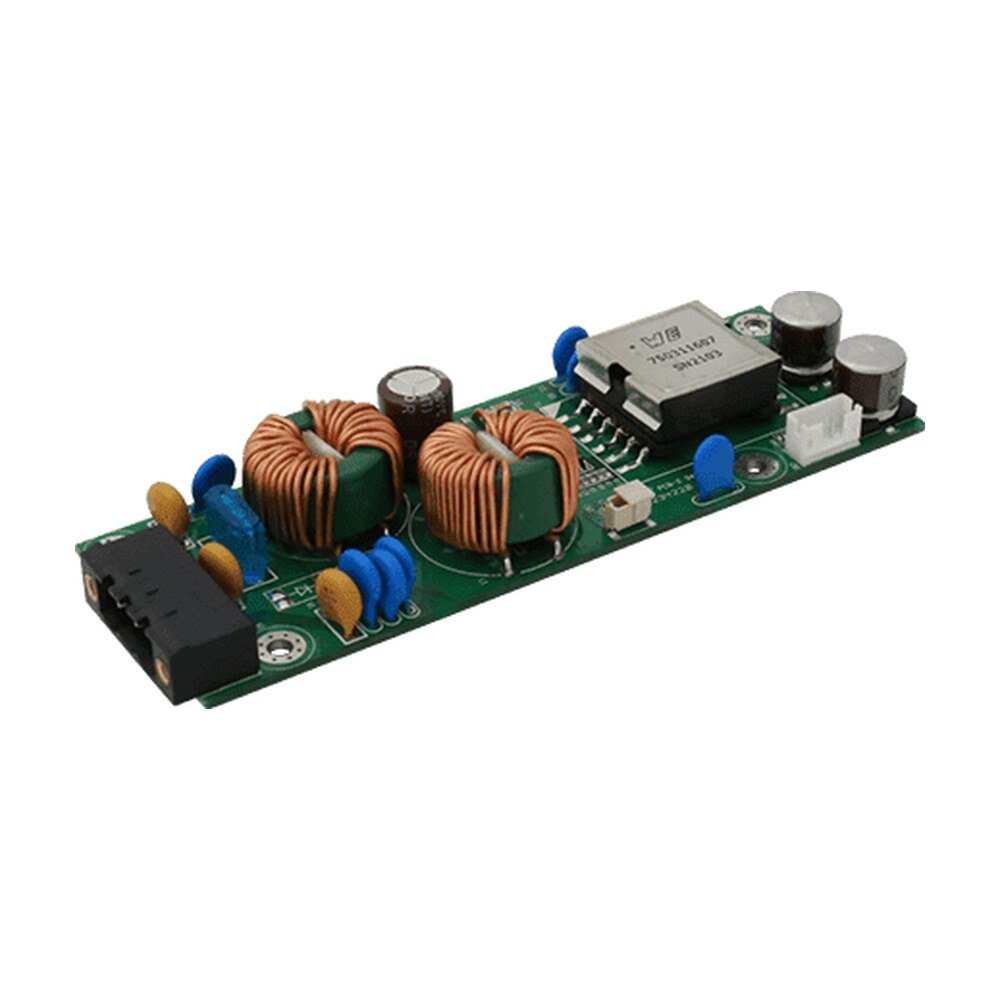

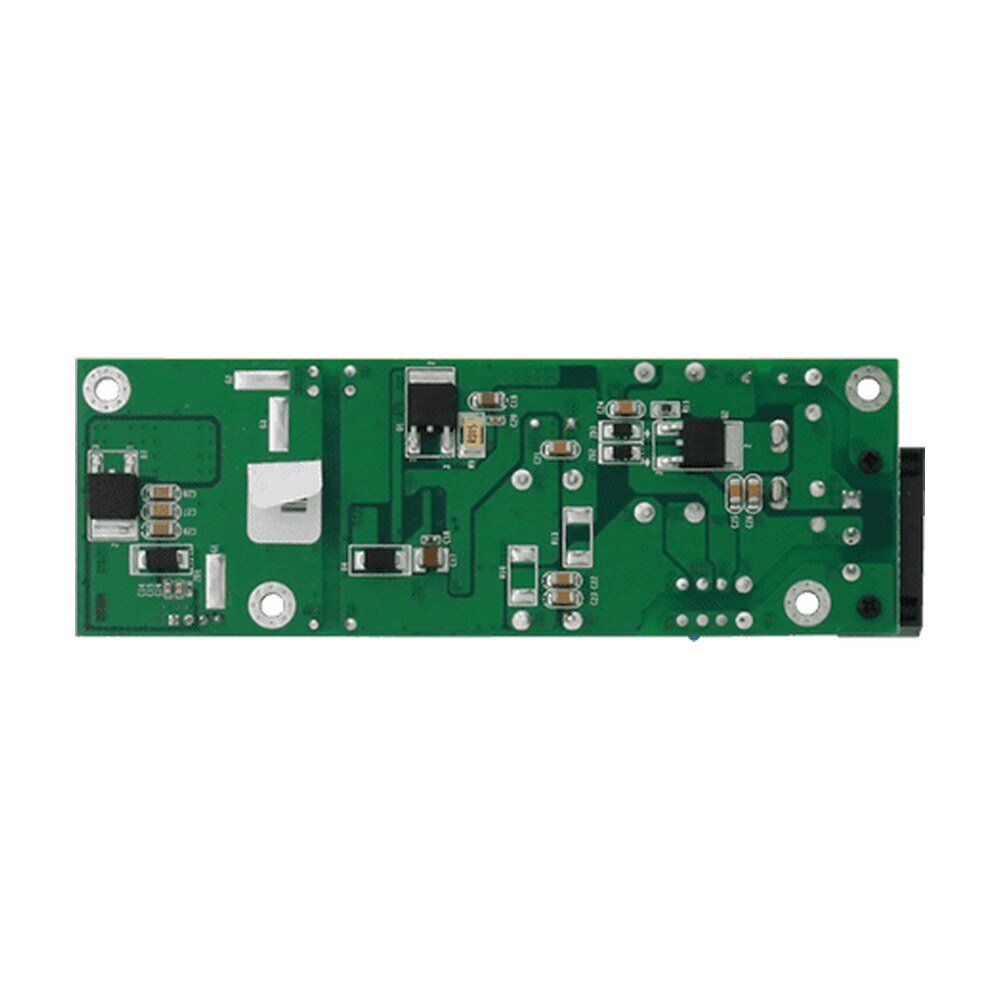

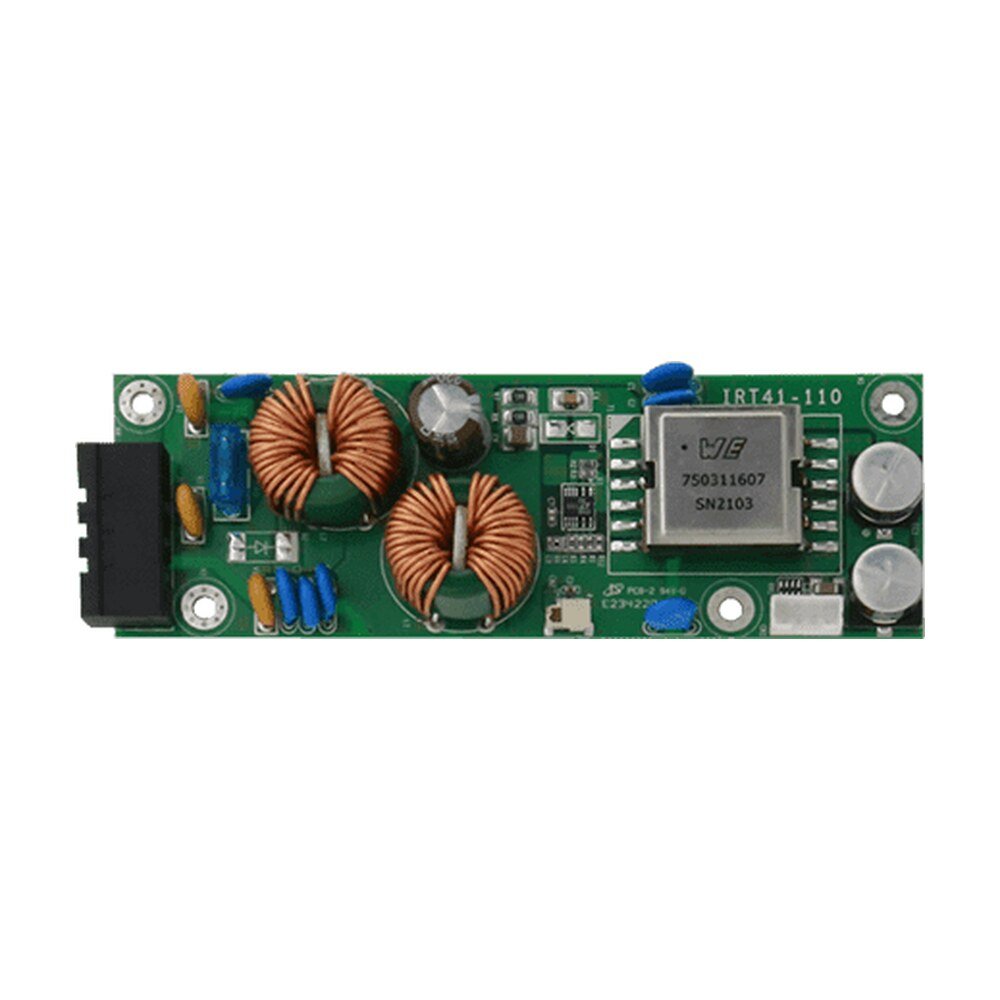

The IRT41, 18~32V to 12V 36W DC/DC, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide-range input to generate an isolated 12V 3A output.
With its high-frequency zero-voltage switching (ZVS) topology, the IRT41 converter consistently delivers high efficiency across the input line range. Modular IRT41 converters and downstream DC-DC products support efficient power distribution, providing superior power system performance and connectivity from a variety of unregulated power sources to the point-of-load.
| System Specification | |
|---|---|
| Input Voltage | 18V to 32V DC |
| Load Range | 12V 3A |
| Power Consumption | 36W |
| Isolation | Yes |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 18~32V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | |
| Certification | CE, FCC |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Mechanical | |
| Dimension | 114.1 x 38.6 x 19.6 mm |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IRT41 |
| Series | Isolation DC Converter |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IRT41 |
|---|---|
| Category | Embedded Computing, Power Converter Board, Winmate |
| Input Voltage | 18V to 32V DC |
| Load Range | 12V 3A |
| Power Consumption | 36W |
| Isolation | Yes |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 18~32V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | CE, FCC |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Dimension | 114.1 x 38.6 x 19.6 mm |
| Brand | Winmate |
| Manufacturer part number | IRT41 |
| Series | Isolation DC Converter |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
