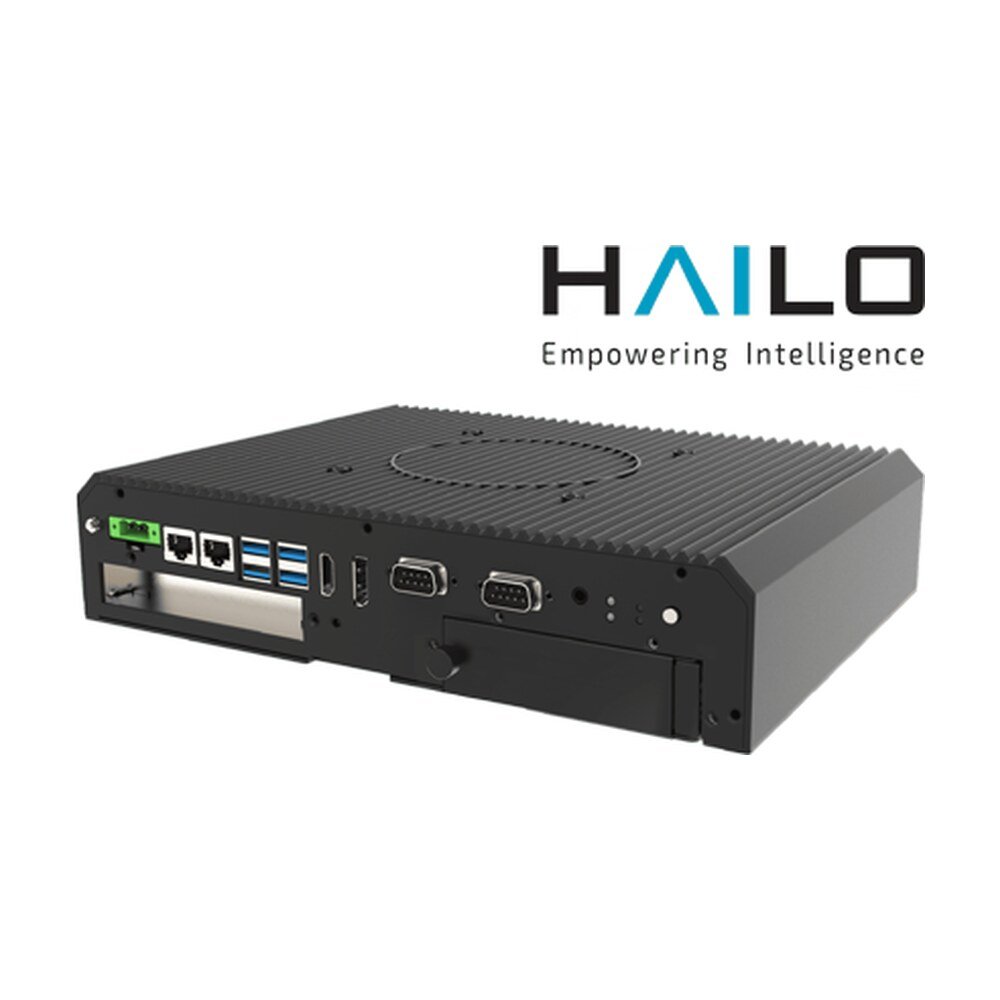

Explore Winmate ITMH100-AI, an edge AI computer featuring Intel® Core™ i5-1135G7 for machine vision and edge AI inference.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate ITMH100-AI, an edge AI computer featuring Intel® Core™ i5-1135G7 for machine vision and edge AI inference.
Enhance performance through integration with the Hailo8™ AI Processor, Winmate Edge AI Box PC showcases remarkable capabilities, delivering 26 TOPS for streamlined operations, scalability, and customizable features to suit varied needs in AI and IIoT applications.
Winmate not only offers GPUs but also provides AI Processor. Winmate's Edge AI Computing Solutions, equipped with the Hailo-8 AI Processor, deliver exceptional performance and efficiency. These solutions enable real-time data processing and analysis at the edge of the network, facilitating swift decision-making and enhancing overall operational efficiency.
The ITMH100-AI is designed to operate effectively across a wide input voltage range, spanning from 9 to 29 volts. It offers high-efficiency conversion from positive to negative voltage, making it suitable for powering loads of up to 4A with optimal performance and reliability.

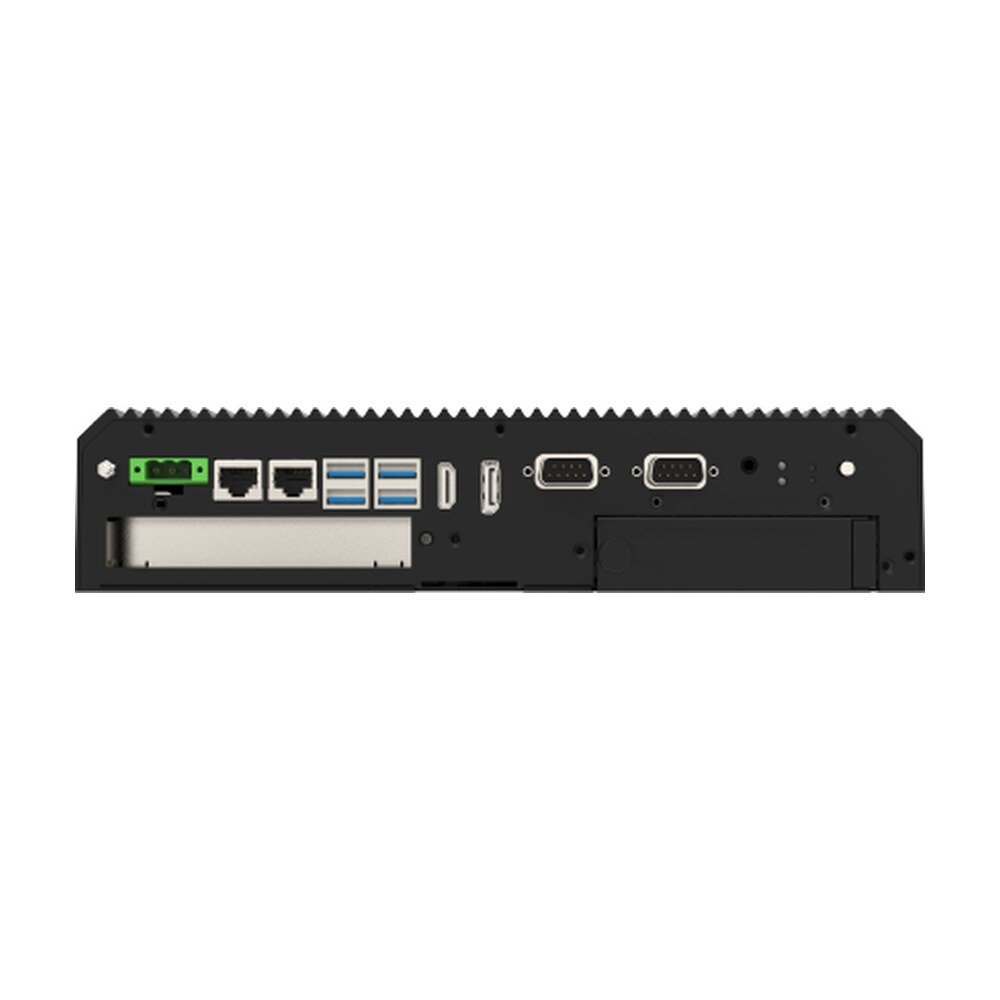

The ITMH100-AI box PC Offering formidable multi-video output functionality, it supports diverse combinations of portrait and landscape displays, tailored precisely to meet the demands of your digital signage projects. Take your pick from three signal output modes: HDMI, DP, and 4xUSB3.2Gen1 (Type A).
The Winmate AI box PC integrates Tiger Lake UP3 embedded box PC, offering a diverse range of Core processor options, Iris Xe graphics. Ideal for factory automation, robotics, smart retail, and IoT/Industry 4.0 deployments, it delivers advanced total compute performance, graphics, media, and display capabilities, enhanced by Intel® Deep Learning Boost (Intel® DL Boost) and Intel® Time Coordinated Computing (Intel® TCC).
The Winmate industrial embedded PC incorporates an AI chip to facilitate effective heat dispersion, essential for sustaining peak performance. With its fanless configuration, it ensures efficient cooling while minimizing noise and dust accumulation, thereby improving reliability and longevity in industrial environments.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 2 x 2.5" Removable 256GB SSD up to 512GB |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Mechanical | |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.0 kg |
| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Expansion Port | 1 x mPCIe slot, 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm), 1 x M.2 2230 Key E slot for WiFi , Swappable 2.5” HDD/SSD Bay Slot |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | ITMH100-AI |
| Series | Edge AI Computing |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | ITMH100-AI |
|---|---|
| Category | Edge AI Computing, Embedded Computing, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 2 x 2.5" Removable 256GB SSD up to 512GB |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.0 kg |
| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Brand | Winmate |
| Manufacturer part number | ITMH100-AI |
| Series | Edge AI Computing |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
