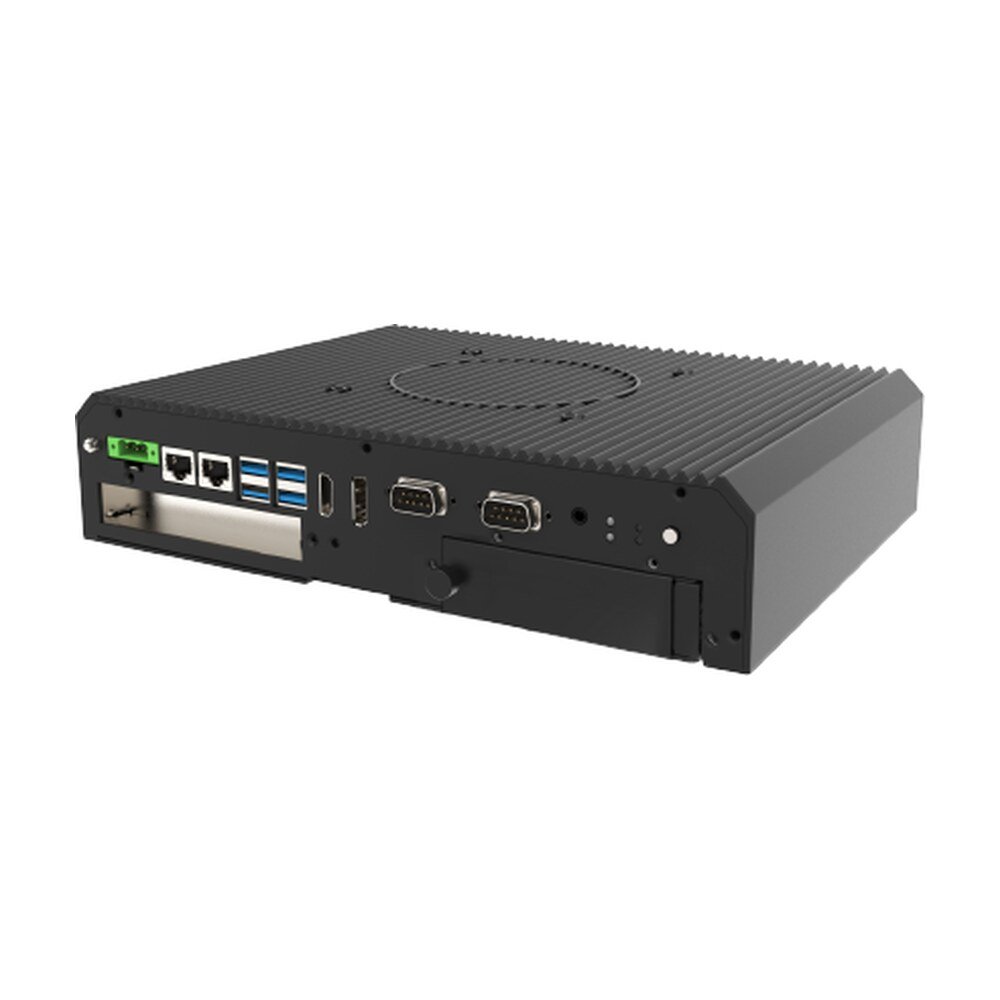

Explore Winmate ITMH100, an industrial embedded computer featuring Intel® Core™ i5-1135G7 for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate ITMH100, an industrial embedded computer featuring Intel® Core™ i5-1135G7 for industrial automation and embedded systems.
The ITMH100 operates over an input voltage range of 9 to 29V and provides high-efficiency, positive-to-negative voltage conversion for loads of up to 4A.
Features a powerful multi-video output function and supports various combinations of portrait and landscape screens to perfectly fit your digital signage applications. You can select three signal output modes: HDMI, DP, and 4xUSB3.2Gen1 (Type A).
Tiger Lake UP3 embedded box PC is equipped with a choice of Core processors with support for Iris Xe graphics, 2.5GbE, TSN networking that makes it suitable for factory automation, robotics, smart retail, and any IoT/Industry 4.0 applications.
We use well-defined thermal analysis procedures to verify IPC systems to meet the harsh environment applications. Especially in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system thermal profiles before we design it to make sure the most efficient heat convection.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Mechanical | |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.0 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |

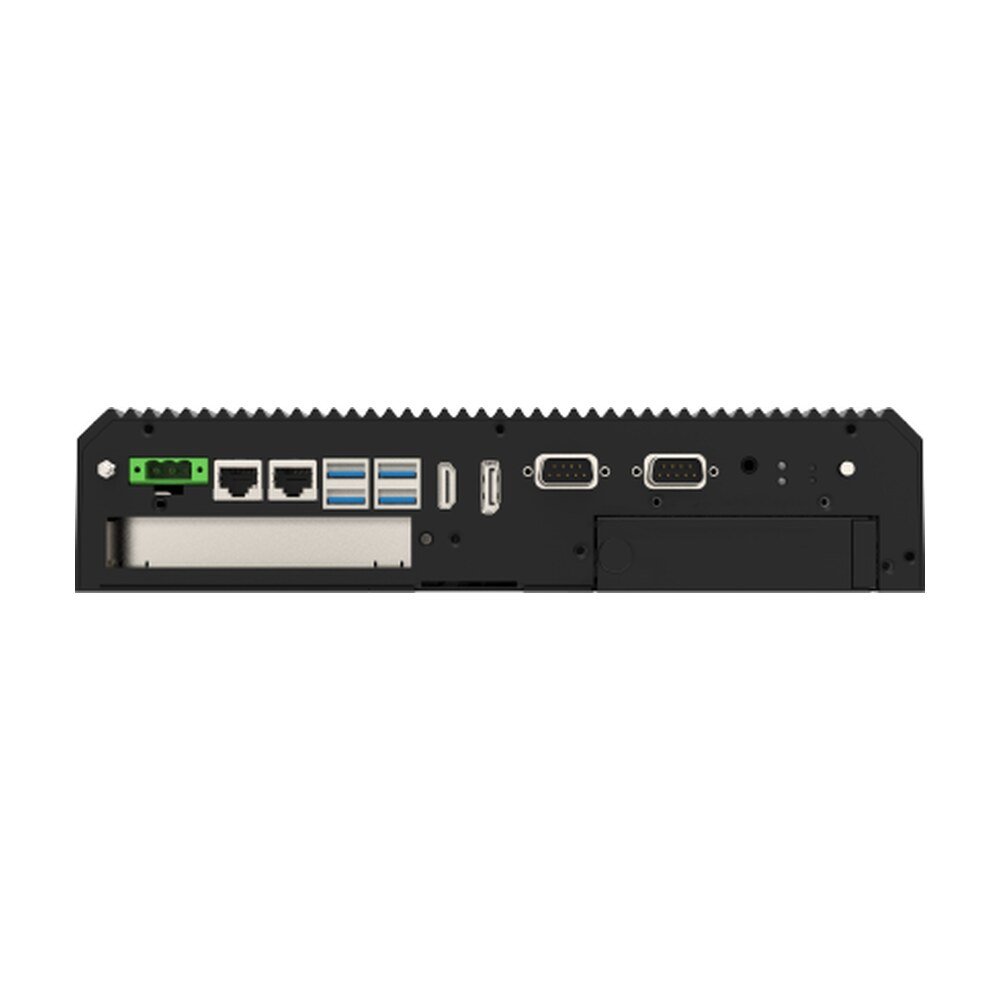

| IO Ports | |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Expansion Port | 1 x mPCIe slot, 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm), 1 x M.2 2230 Key E slot for WiFi , 1 x M.2 2280 Key M slot for NVMe SSD, Swappable 2.5” HDD/SSD Bay Slot |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | ITMH100 |
| Series | M Series Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | ITMH100 |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.0 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Brand | Winmate |
| Manufacturer part number | ITMH100 |
| Series | M Series Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
