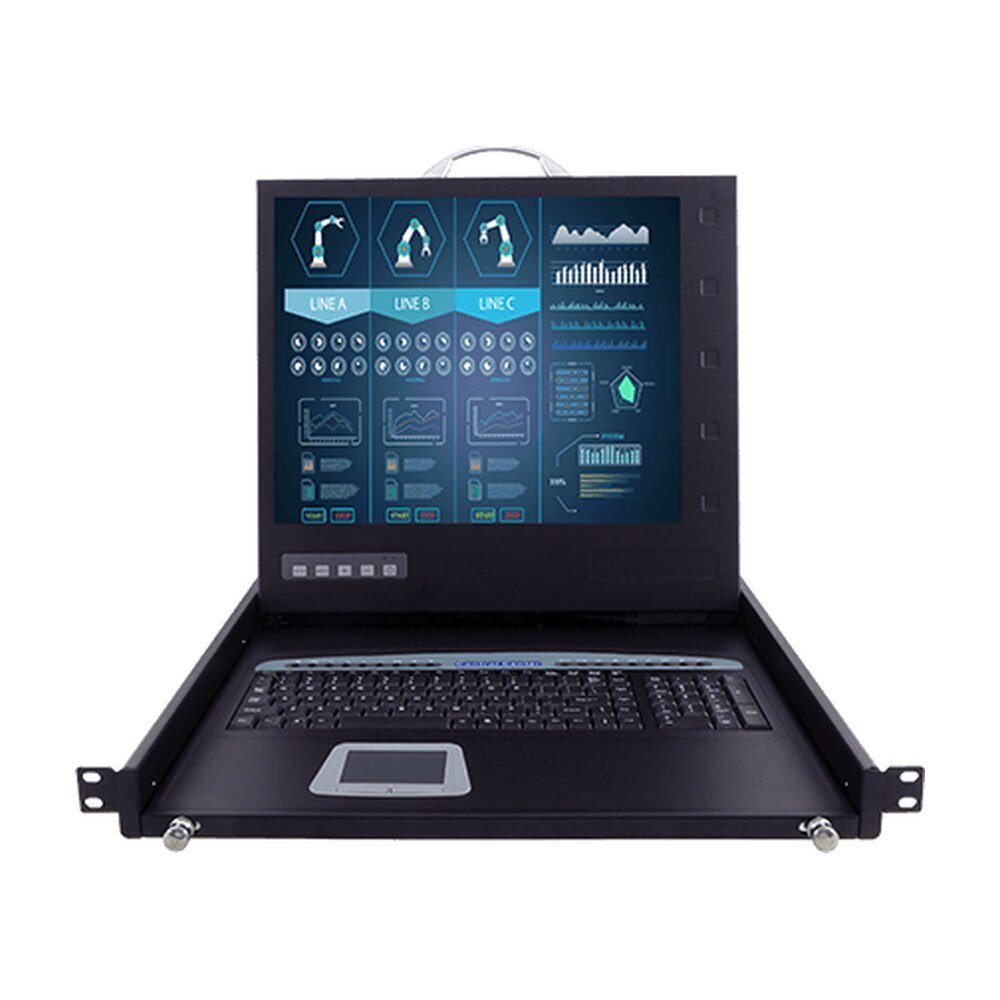

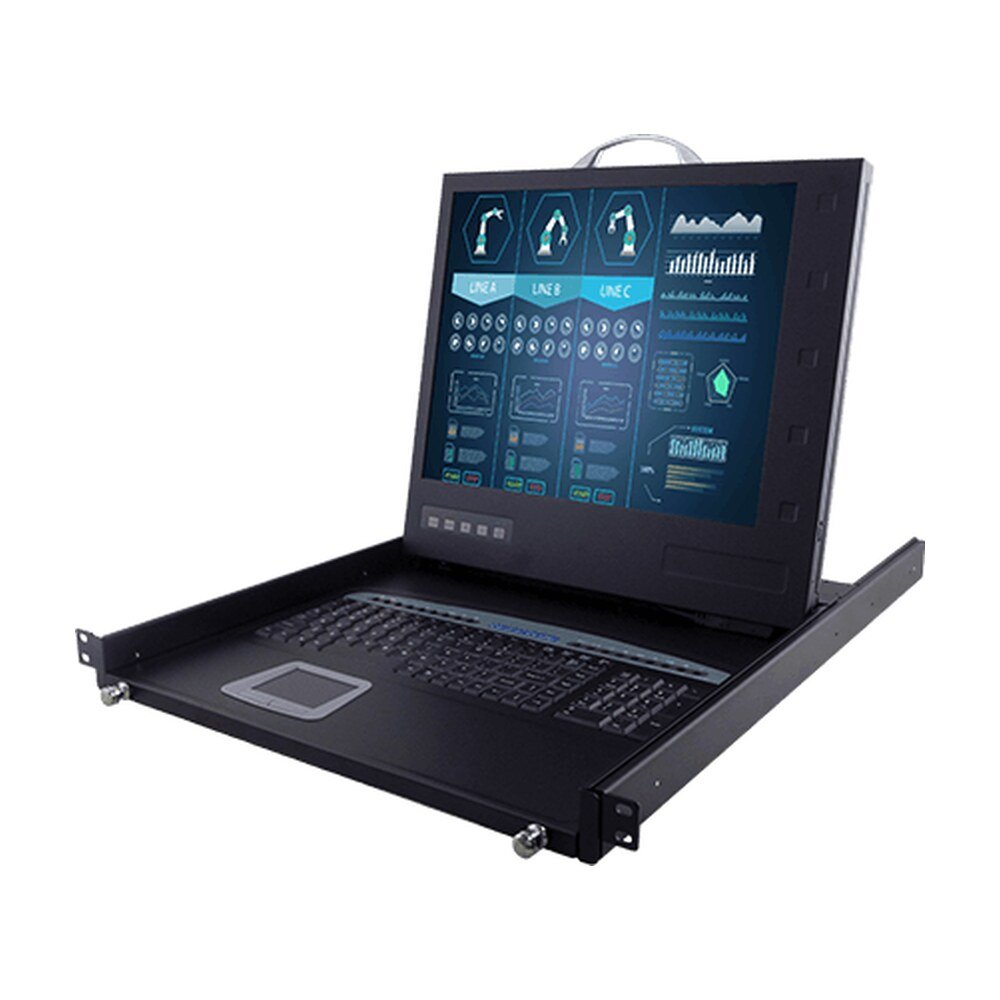

Explore Winmate LDS310D-1P, an industrial computer solution featuring 17-inch display with 1280x1024 resolution for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate LDS310D-1P, an industrial computer solution featuring 17-inch display with 1280x1024 resolution for industrial automation and embedded systems.
The space-saving design of the 1U Console Drawer allows you to quickly rack mount flat-screen monitors directly at 19-inch server racks, cabinets, room controls, security monitoring, and other industrial solutions. Provides ease of access to servers, making software upgrades, troubleshooting, and system monitoring convenient and less time-consuming.
With a full range of KVM integration and keyboard options, our modular LCD console drawers are the perfect solution for any industrial and commercial application. The KVM incorporates only a single set of keyboard, monitor, and mouse; it saves space, cuts cost, and increases the efficiency of work done. Along with the ease of control, the 1U Console Drawers save time and adds valuable flexibility to the whole system.
Easy to connect to your equipment, this option is ideal for racks and consoles requiring touch screen capability. Convenient on-screen user control for the efficiency of the operator.

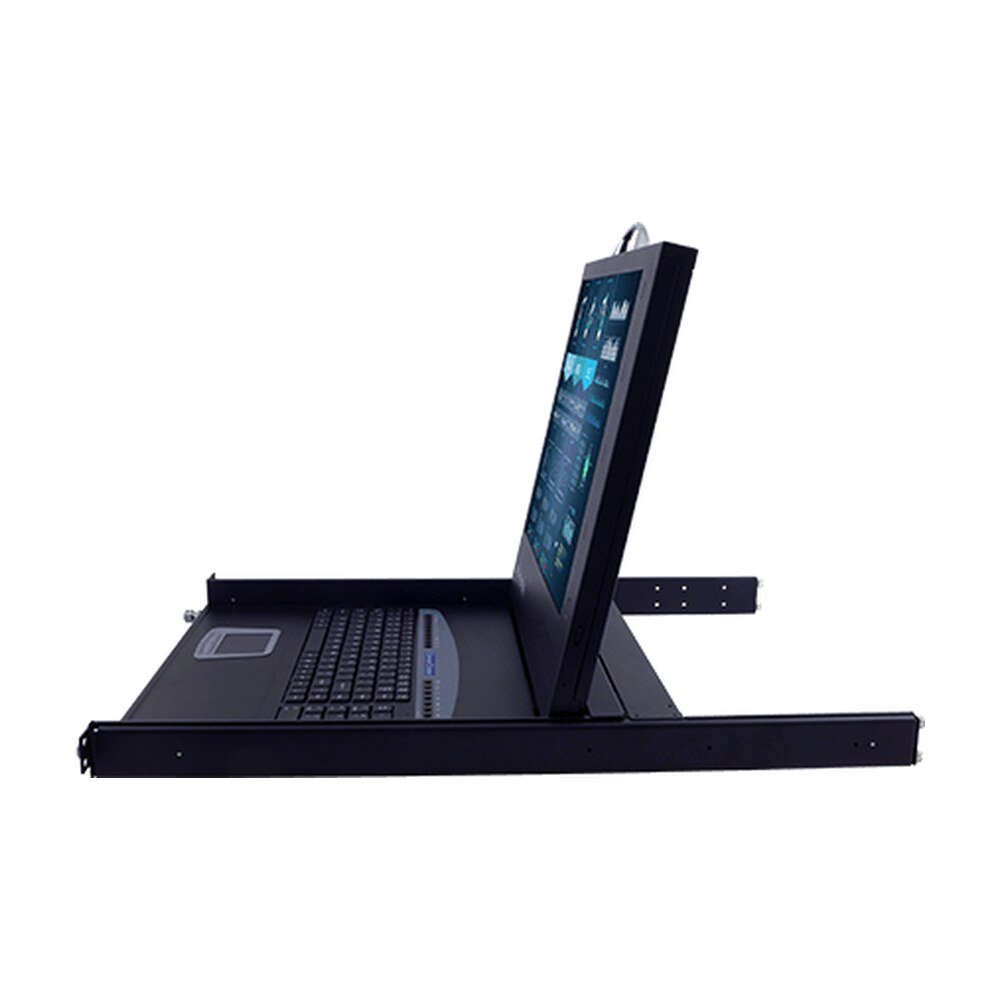

With a pull-out drawer design, metal housing provides perfect protection from shock and drop. Convenient for portable outdoor, or applied in rack mount because of space-saving and durable design.
| Display | |
|---|---|
| Size | 17 inches |
| Resolution | 1280x1024 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.2M Colors |
| Active Area | 337.920x270.336 mm |
| Mechanical | |
| Dimension | 609 x482 x44 mm |
| Cooling System | Fanless design |
| Power | |
| Power Rating | 100~240V AC-in |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x Keyboard, 1 x Mouse |
| Video | 1 x VGA |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Accessory | |
| Accessory | 88-Key keyboard and integrated Touch Pad, 17-Key numerical key pad, Power Cord |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | LDS310D-1P |
| Series | 1U Console Drawer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | LDS310D-1P |
|---|---|
| Category | Industrial Display, Rack Mount, Winmate |
| Size | 17 inches |
| Resolution | 1280x1024 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.2M Colors |
| Active Area | 337.920x270.336 mm |
| Dimension | 609 x482 x44 mm |
| Cooling System | Fanless design |
| Power Rating | 100~240V AC-in |
| Certification | CE, FCC |
| USB Port | 1 x Keyboard, 1 x Mouse |
| Video | 1 x VGA |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Accessory | 88-Key keyboard and integrated Touch Pad, 17-Key numerical key pad, Power Cord |
| Brand | Winmate |
| Manufacturer part number | LDS310D-1P |
| Series | 1U Console Drawer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
