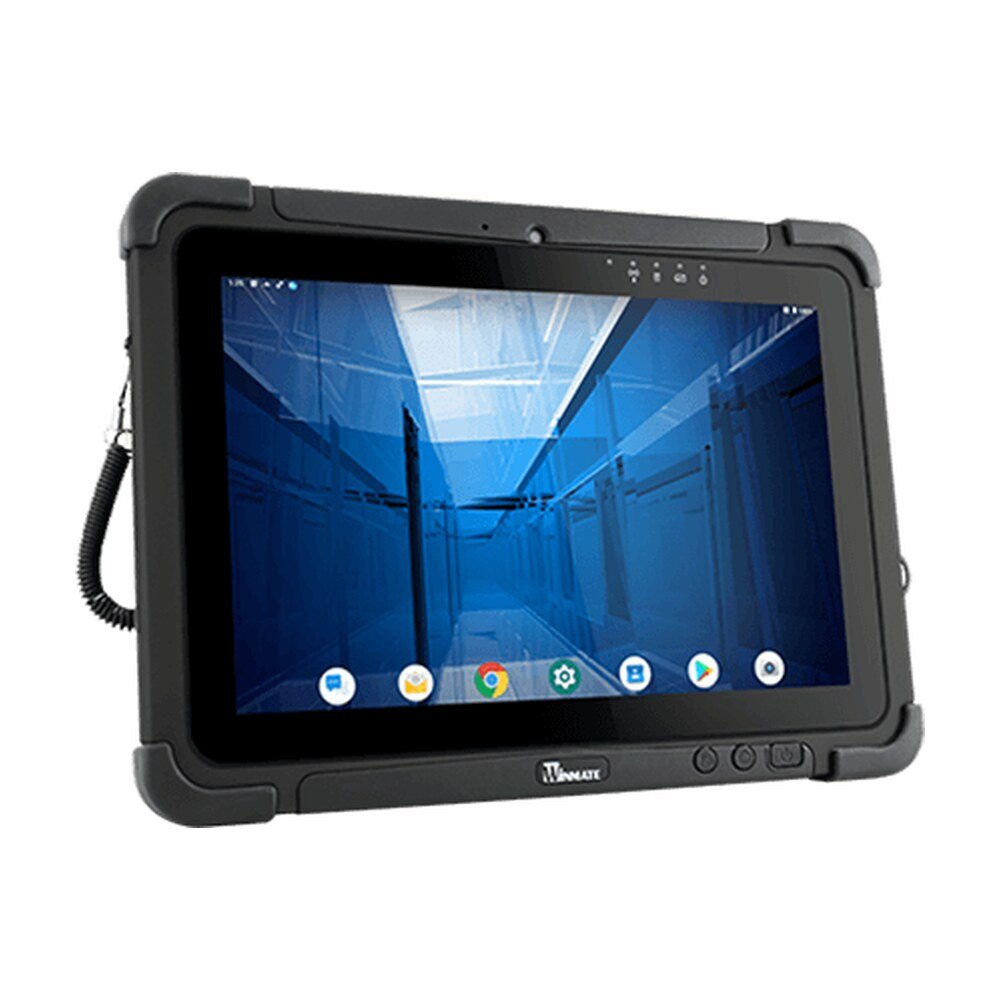

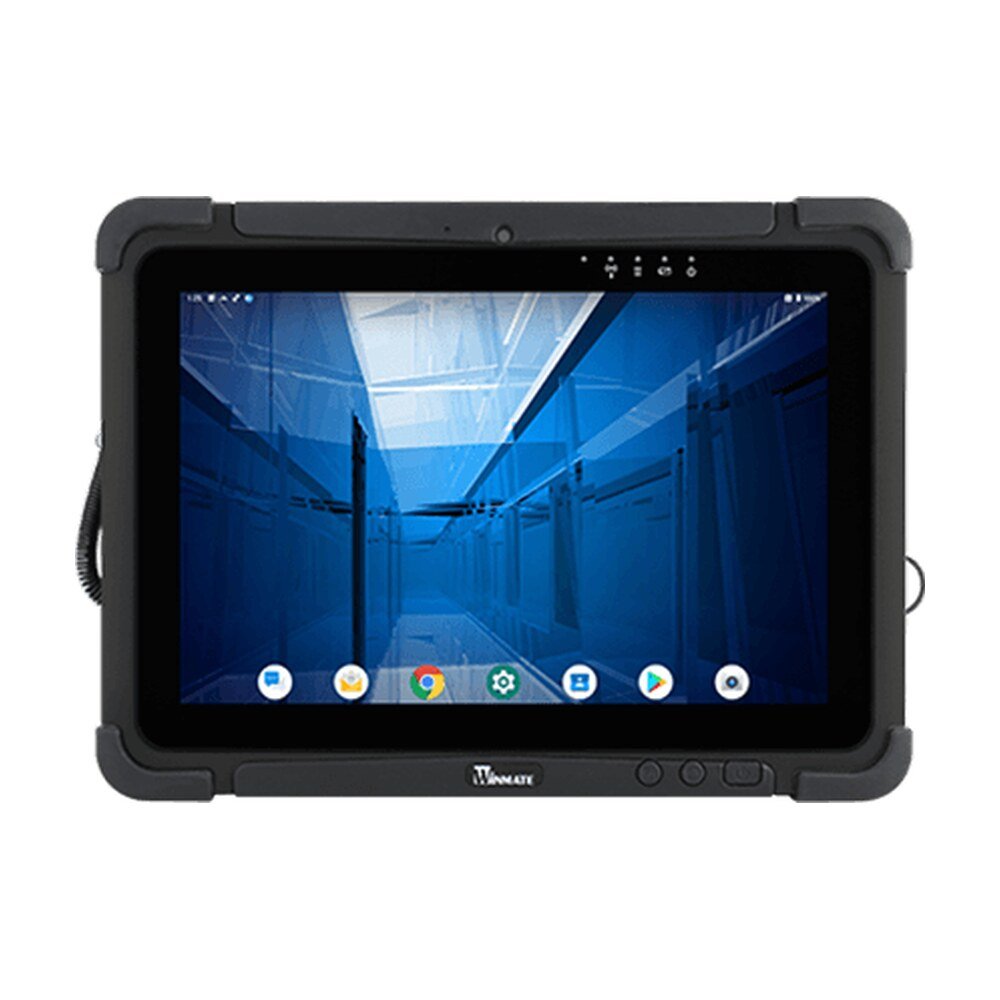

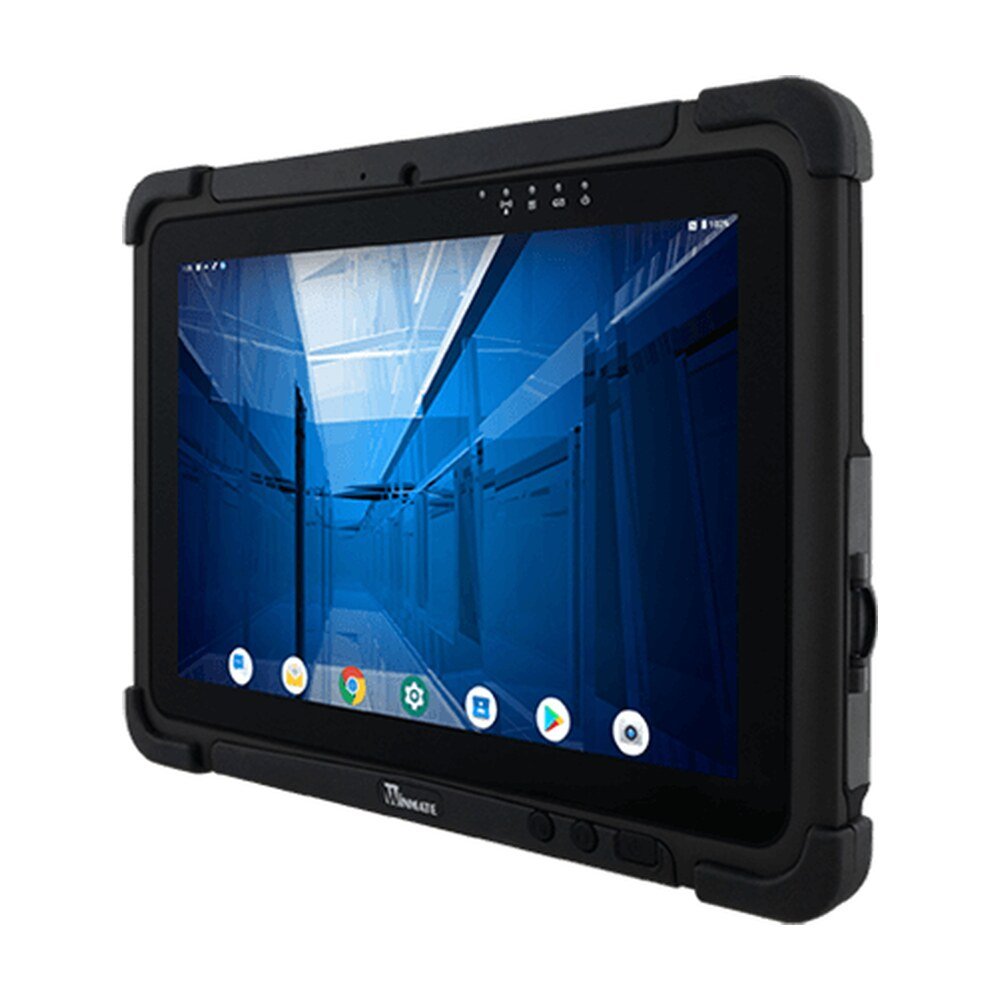

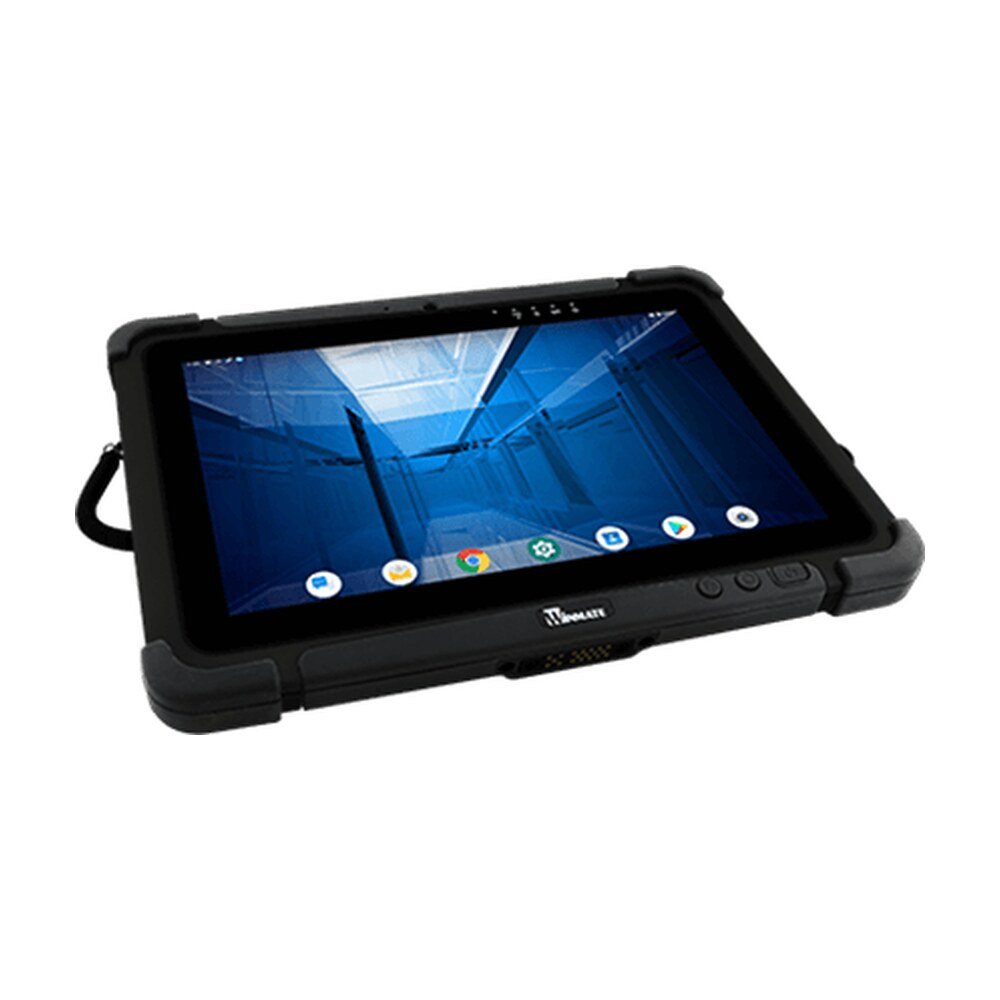

Explore Winmate M101Q9, a rugged tablet PC featuring Qualcomm® 6490, 10.1-inch display with 1920x1200 resolution, IP65, MIL-STD-810H for field service and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M101Q9, a rugged tablet PC featuring Qualcomm® 6490, 10.1-inch display with 1920x1200 resolution, IP65, MIL-STD-810H for field service and…
The Winmate M101Q9 series uses a Qualcomm processor. It provides great performance for professional applications.
Real-time access is essential for mobile users. Winmate’s M101Q9 series has GPS, WLAN, BT, and optional 4G and 5G. This allows for easy connections and better efficiency.
The M101Q9 series from Winmate offers a great viewing experience both indoors and outdoors. It has a bright 10.1" display with a 1920 x 1200 resolution. The screen uses optical bonding technology and has an anti-glare touch treatment.
The Winmate M101Q9 series uses Projected Capacitive (P-CAP) Multi-Touch technology. This provides a great touch experience. It supports Rain, Glove, and Stylus modes for different uses.
The Winmate M101Q9 series is built to withstand extreme temperatures, drops, shocks, and vibrations. This tough tablet is made for industrial use. It meets MIL-STD-810H standards and has an IP65 rating. This means it is durable in harsh environments.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | Qualcomm® 6490, Octa-Core, up to 2.7GHz |
| Memory | 8GB |
| Storage | 128GB |
| Operating System | Android 15.0 (Default), Android 13.0 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS/GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 16MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery,, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 Type C OTG , (Type C support Power Delivery), 1 x USB 2.0 Type A |
| Audio | 1 x Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 2 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Volume +/-, 1 x Home Button, 1 x ,Return Button, 1 x Power Button, 1 x Function Button |
| Power | |
| Battery | 7.7V, typ. 5900 mAh LiPolymer Battery (2S1P) (Default), 7.4V, typ. 10280 mAh LiPolymer Battery (2S2P) (Optional), Warm swappable function (Optional) |
| Battery Operating Time | 8Hr |
| Power Rating | 19V |
| Adapter | 19V 3.42A Adapter |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery, Capacitive Stylus |
| Optional Accessory | High Capacity Battery, Desk Dock, Vehicle Dock, Vehicle Cradle, Battery Charger, Vehicle Charger, Metal Vehicle Dock, Hand Strap, VESA Mount Kit, Shoulder Strap, Carry Bag, Micro SD Card, USB-C to HDMI Adapter, Stand with Integrated Handle |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M101Q9 |
| Series | M101 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M101Q9 |
|---|---|
| Category | Android Rugged Tablets, Enterprise Mobility, Winmate |
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Processor | Qualcomm® 6490, Octa-Core, up to 2.7GHz |
| Memory | 8GB |
| Storage | 128GB |
| Operating System | Android 15.0 (Default), Android 13.0 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS/GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Front Camera | 8MP Camera |
| Rear Camera | 16MP Camera with LED Auxiliary Light (Auto Focus) |
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery,, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 Type C OTG , (Type C support Power Delivery), 1 x USB 2.0 Type A |
| Audio | 1 x Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 2 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Volume +/-, 1 x Home Button, 1 x ,Return Button, 1 x Power Button, 1 x Function Button |
| Battery | 7.7V, typ. 5900 mAh LiPolymer Battery (2S1P) (Default), 7.4V, typ. 10280 mAh LiPolymer Battery (2S2P) (Optional), Warm swappable function (Optional) |
| Battery Operating Time | 8Hr |
| Power Rating | 19V |
| Adapter | 19V 3.42A Adapter |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock |
| Accessory | Adapter and Power Cord, Standard Battery, Capacitive Stylus |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M101Q9 |
| Series | M101 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
