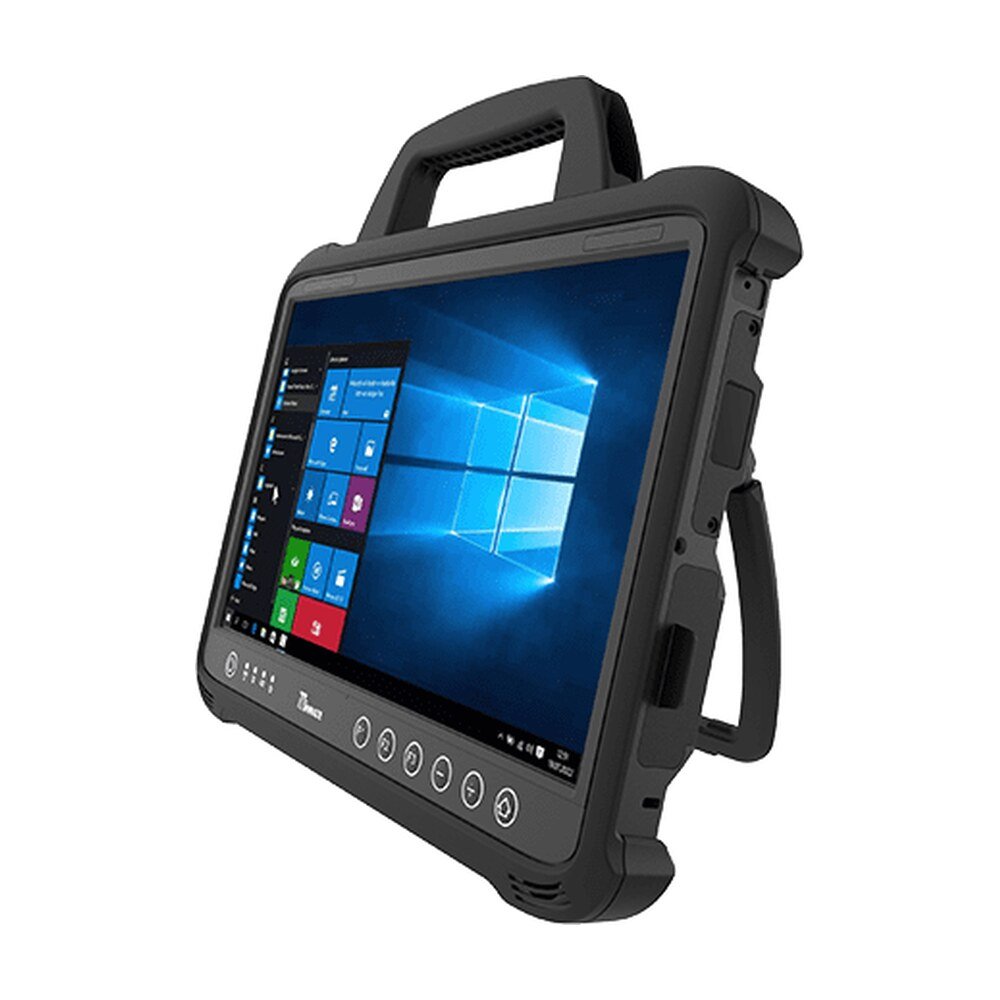

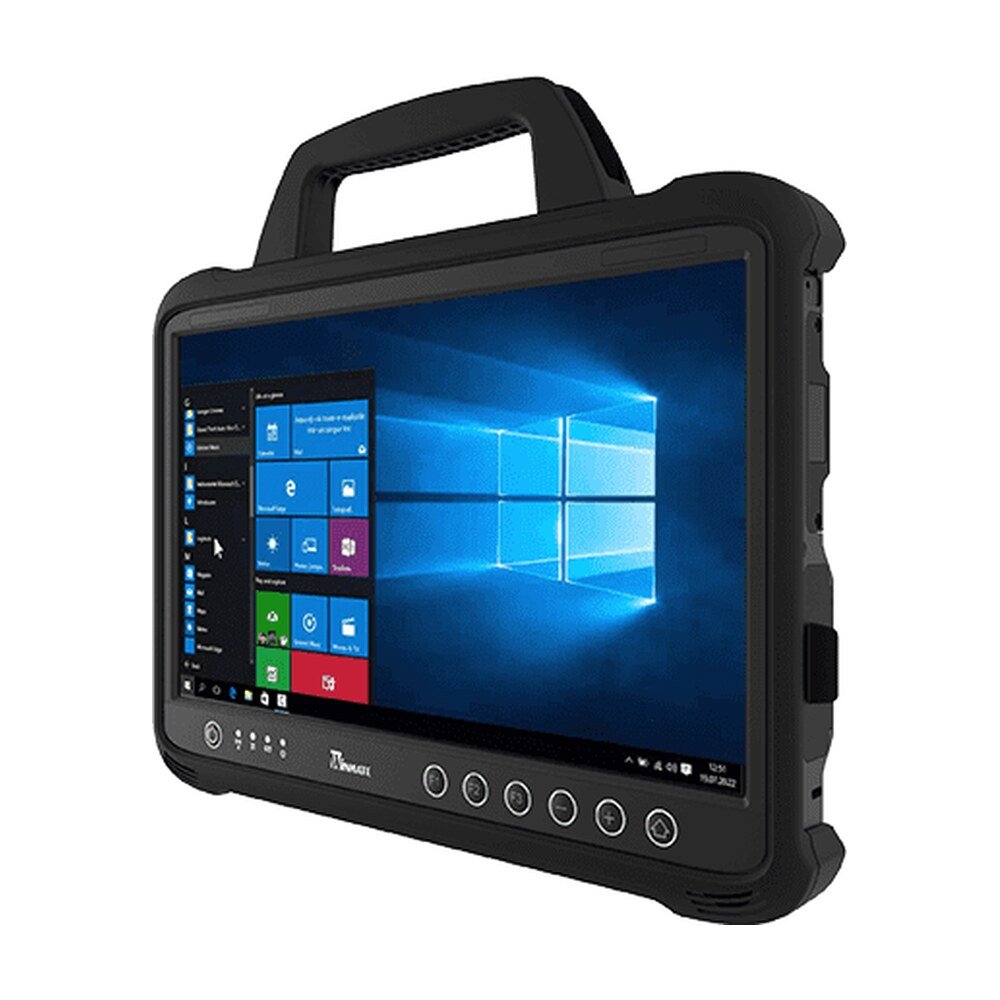

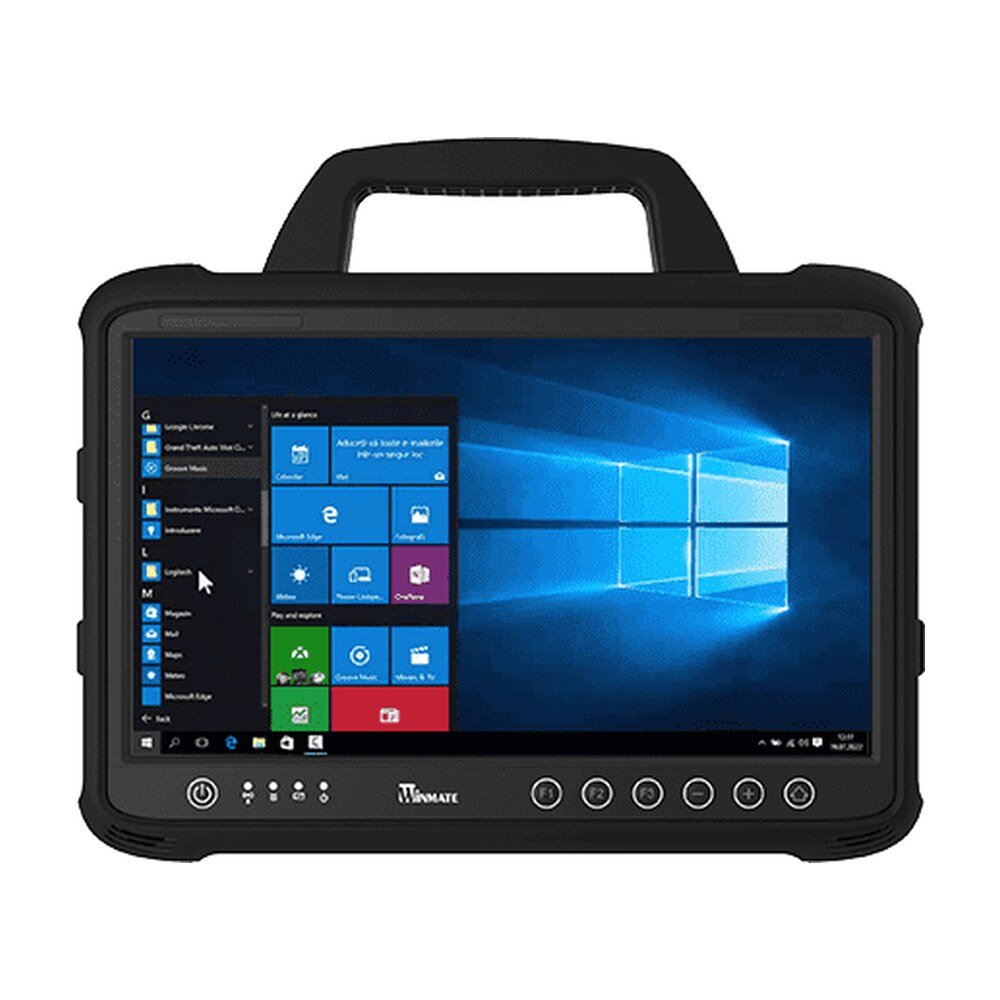

Explore Winmate M133TG, a rugged tablet PC featuring Intel® Core™ i5-, 13.3-inch display with 1920x1080 resolution, IP65 for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M133TG, a rugged tablet PC featuring Intel® Core™ i5-, 13.3-inch display with 1920x1080 resolution, IP65 for field service and inspection.
The Windows rugged tablets are designed with the Intel Tiger Lake processors to provide high performance and low power consumption, providing extended battery life. It supports the Windows IoT Enterprise operating system to fulfill the increasing requirement in industrial and rugged applications.
Winmate field service tablet is designed with a dust-tight and splashproof IP65 rating. It can also withstand shock, drop, vibration, and a wide range of operating temperatures, allowing the tablet to be used in harsh environments for industrial and Defence use.
The M133 series rugged tablet has projected capacitive multi-touch, effortless touch technology that offers accurate intuitive controls and user-friendly experiences. Its screen panel supports precise touch with fingers, gloves, and a stylus.
Winmate M133 series ultra-rugged tablet offers a premium viewing experience indoors and outdoors. The 13.3" TFT-LCD panel comes with a sunlight-readable transflective solution.

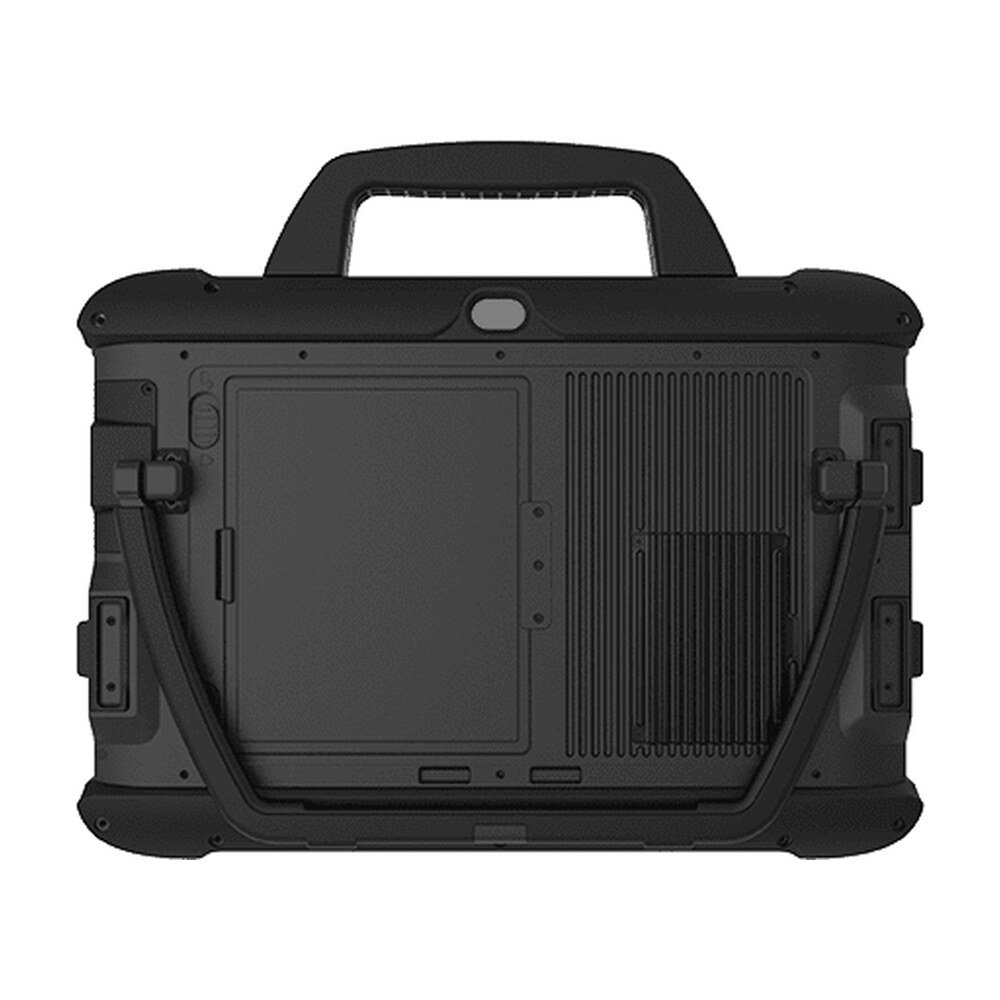

Despite the ruggedness, the Winmate M133 ultra-rugged tablet is handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.
| Display | |
|---|---|
| Size | 13.3 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS/GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Mechanical | |
| Dimension | 338.2 x 239.8 x 33.8 mm |
| Weight | 2.4 Kg (Without Kickstand),, 2.5 Kg (With Kickstand) |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 3 x USB 3.0 Type A, 2 x USB 2.0 Type A, 1 x USB 3.0 Type C |
| Serial Port | 1 x RS232 (DB9) |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
| Environment | |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV, 4 ft |
| IP rating | IP65 |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default), MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power,1 x menu,2 x volume key, 3 x Programmable Function Keys |
| Camera | |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Power | |
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) (Default), Hot-Swap Battery (Optional) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord , Standard Battery , Stand with Integrated Handle |
| Optional Accessory | Vehicle Charger (Optional), Battery Charger (Optional), Desk Docking (Optional), Vehicle Dock (Optional), Stylus (Optional), Shoulder Strap (Optional), Handle (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M133TG |
| Series | M133 Series Ultra Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M133TG |
|---|---|
| Category | Enterprise Mobility, Ultra Rugged Tablets, Winmate |
| Size | 13.3 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS/GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Dimension | 338.2 x 239.8 x 33.8 mm |
| Weight | 2.4 Kg (Without Kickstand),, 2.5 Kg (With Kickstand) |
| Cooling System | Fanless Design |
| USB Port | 3 x USB 3.0 Type A, 2 x USB 2.0 Type A, 1 x USB 3.0 Type C |
| Serial Port | 1 x RS232 (DB9) |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV, 4 ft |
| IP rating | IP65 |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default), MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
| Certification | CE, FCC |
| Kensington Lock | Kensington Lock Support |
| Button | 1 x Power,1 x menu,2 x volume key, 3 x Programmable Function Keys |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) (Default), Hot-Swap Battery (Optional) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | Adapter and Power Cord , Standard Battery , Stand with Integrated Handle |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M133TG |
| Series | M133 Series Ultra Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
