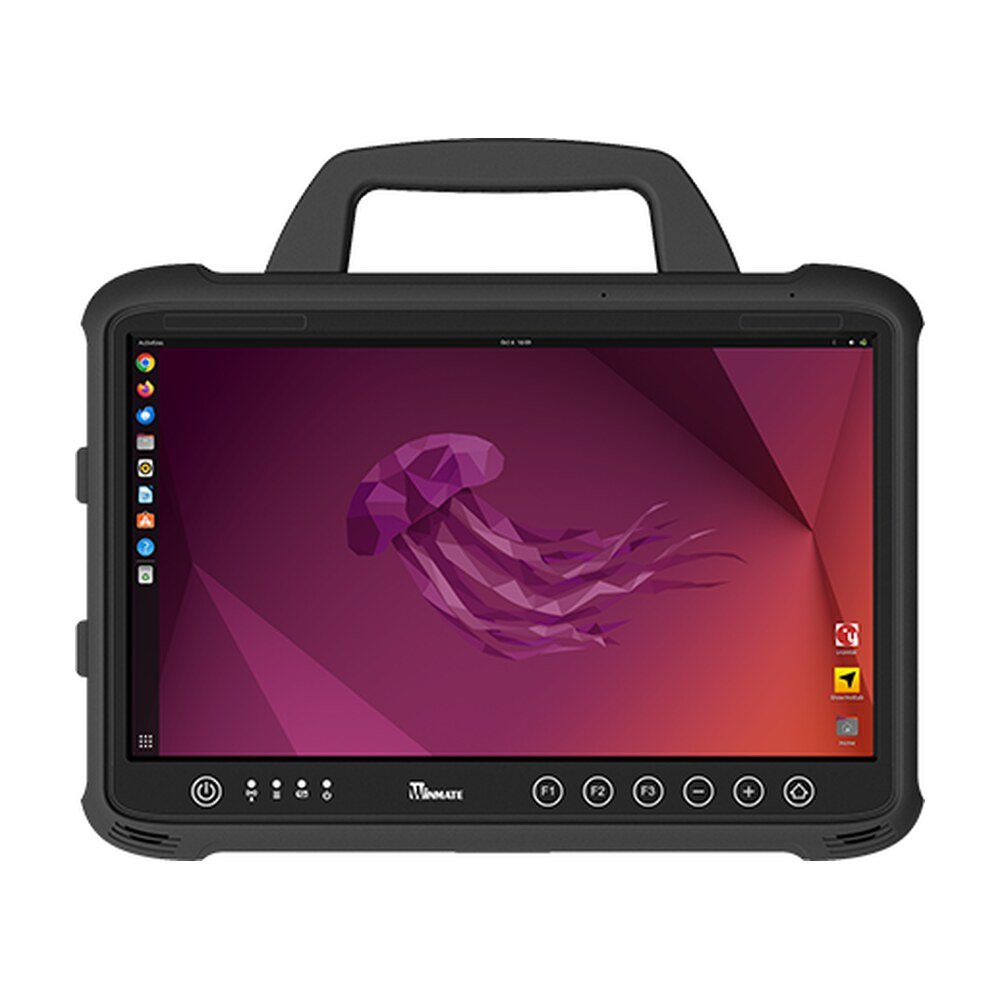

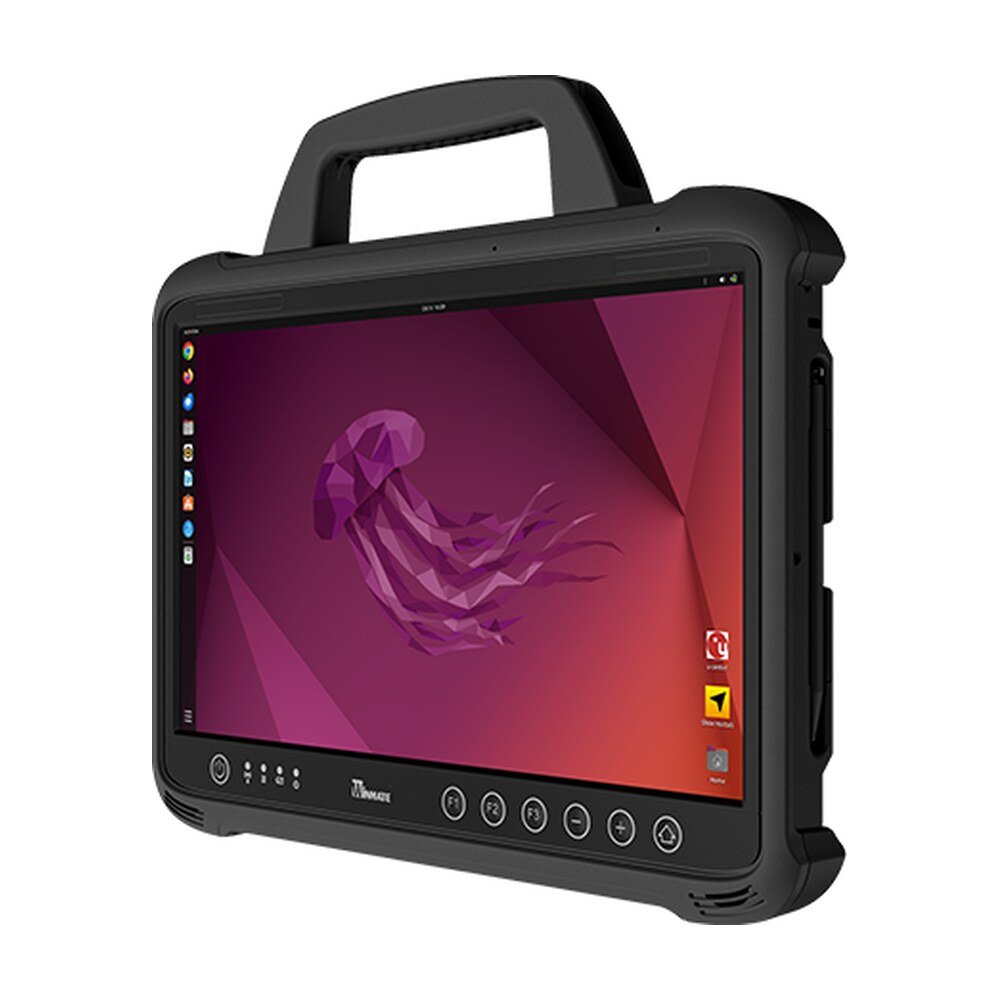

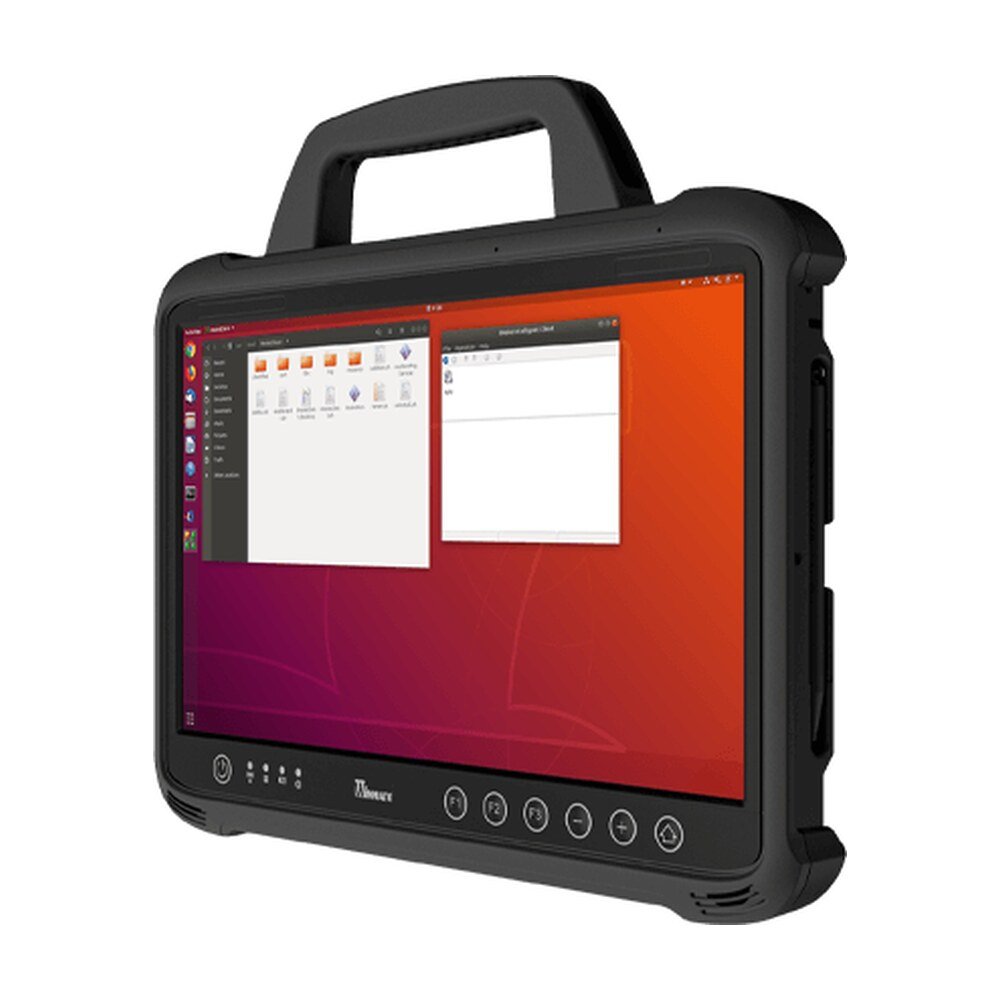

Explore Winmate M133WKU, a rugged tablet PC featuring Intel® Core™ i5-8265U, 13.3-inch display with 1920x1080 resolution, IP65 for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M133WKU, a rugged tablet PC featuring Intel® Core™ i5-8265U, 13.3-inch display with 1920x1080 resolution, IP65 for field service and inspection.
Powered by Intel's processor, the M133 series ultra-rugged tablet offers high performance and low power consumption for some of the most demanding professional-grade applications.
The 13.3" TFT-LCD panel with the 1920 x 1080 resolution with its sunlight-readable transflective solution, the M133 series ultra-rugged tablet, offers a premium viewing experience both indoors and outdoors.
The M133 series ultra-rugged tablet uses projected capacitive multi-touch, the effortless touch technology the world has come to love and demand due to the effortless tapping, panning, zooming, and pinching the technology allows. Support use with gloves and in the rain, as well as more precise stylus operation.
The M133 series ultra-rugged tablet is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G and MIL-STD-461G test withstand the rigors of outdoor environments - water, dust, weather changes, strong.

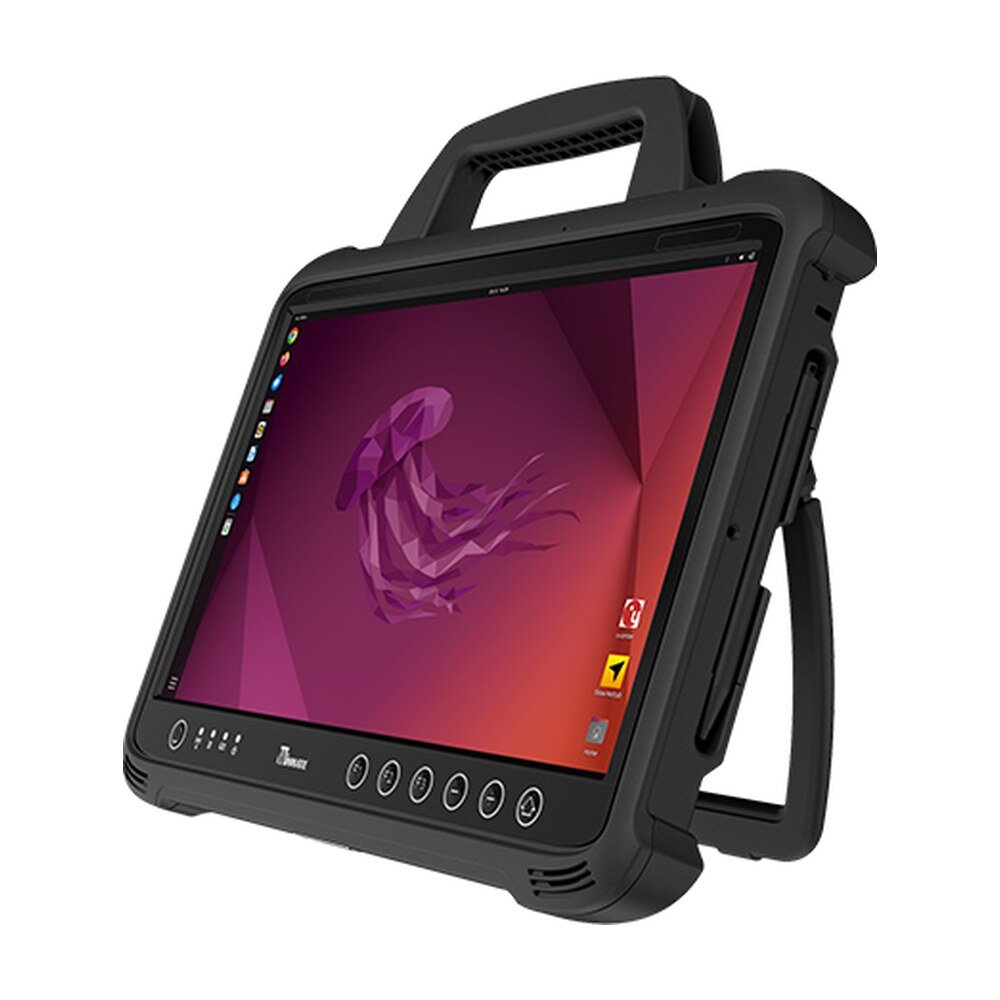

Despite the ruggedness, the M133 Series ultra-rugged tablet is handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.
| Display | |
|---|---|
| Size | 13.3 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | Storage 1:, 1 x 128GB SSD, Additional storage available with SDXC card slot (Default), Storage 1 up to 1x 1TB SSD (Optional), Storage 2 up to 1x 1TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Ubuntu 22.04 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS/GLONASS (Optional) |
| Mechanical | |
| Dimension | 338.20 x 239.82 x 33.80 mm |
| Weight | 2.2kg (w/ kickstand) |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 4 x USB 3.0 Type A, 1 x USB 3.0 Type C |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
| Environment | |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power,1 x menu,2 x volume key, 3 x Programmable Function Keys |
| Power | |
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord , Standard Battery , Stylus , Stand with Integrated Kickstand |
| Optional Accessory | Vehicle Charger (Optional), Battery Charger (Optional), Desk Docking (Optional), Handle (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M133WKU |
| Series | M133 Series Ultra Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M133WKU |
|---|---|
| Category | Enterprise Mobility, Ultra Rugged Tablets, Winmate |
| Size | 13.3 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Ubuntu 22.04 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS/GLONASS (Optional) |
| Dimension | 338.20 x 239.82 x 33.80 mm |
| Weight | 2.2kg (w/ kickstand) |
| Cooling System | Fanless Design |
| USB Port | 4 x USB 3.0 Type A, 1 x USB 3.0 Type C |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Kensington Lock | Kensington Lock Support |
| Button | 1 x Power,1 x menu,2 x volume key, 3 x Programmable Function Keys |
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | Adapter and Power Cord , Standard Battery , Stylus , Stand with Integrated Kickstand |
| Optional Accessory | Vehicle Charger (Optional), Battery Charger (Optional), Desk Docking (Optional), Handle (Optional) |
| Brand | Winmate |
| Manufacturer part number | M133WKU |
| Series | M133 Series Ultra Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
