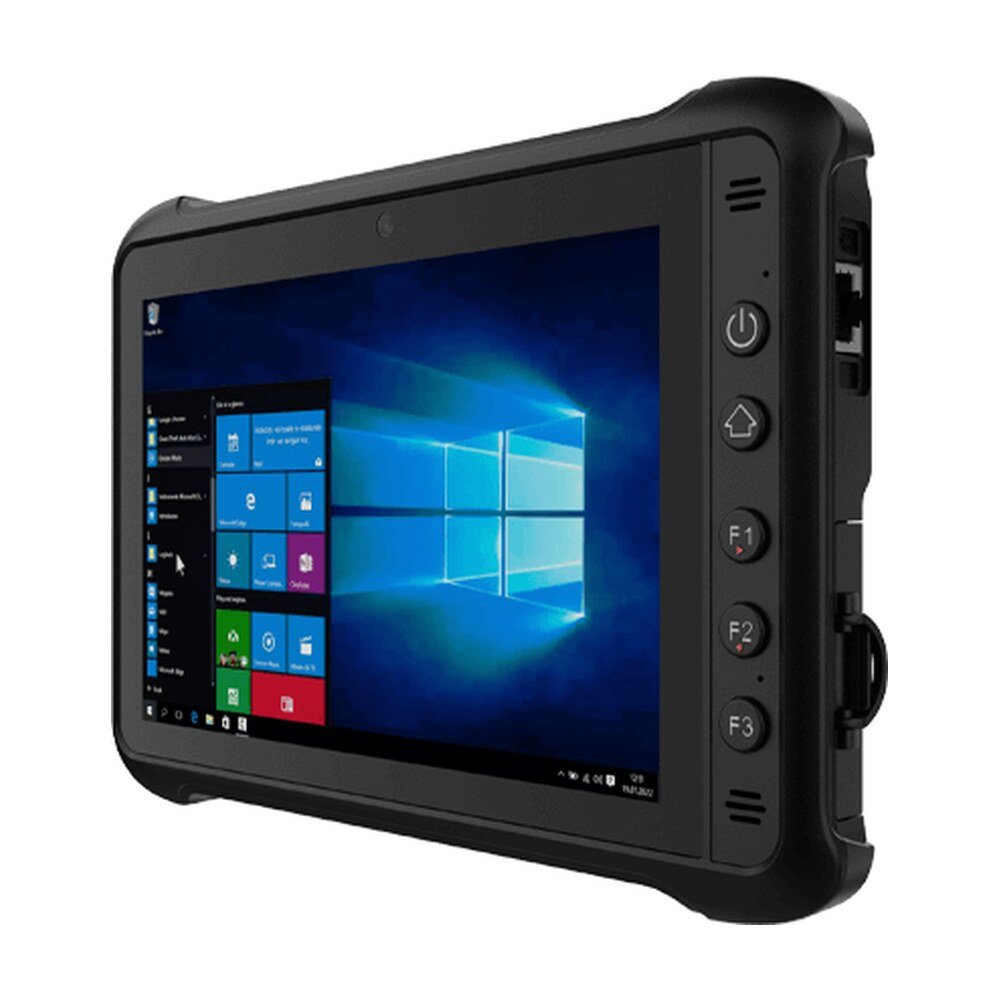

Explore Winmate M900EKN, a rugged tablet PC featuring Intel® Celeron® N6211, 8-inch display with 1280x800 resolution, IP65 for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M900EKN, a rugged tablet PC featuring Intel® Celeron® N6211, 8-inch display with 1280x800 resolution, IP65 for field service and inspection.

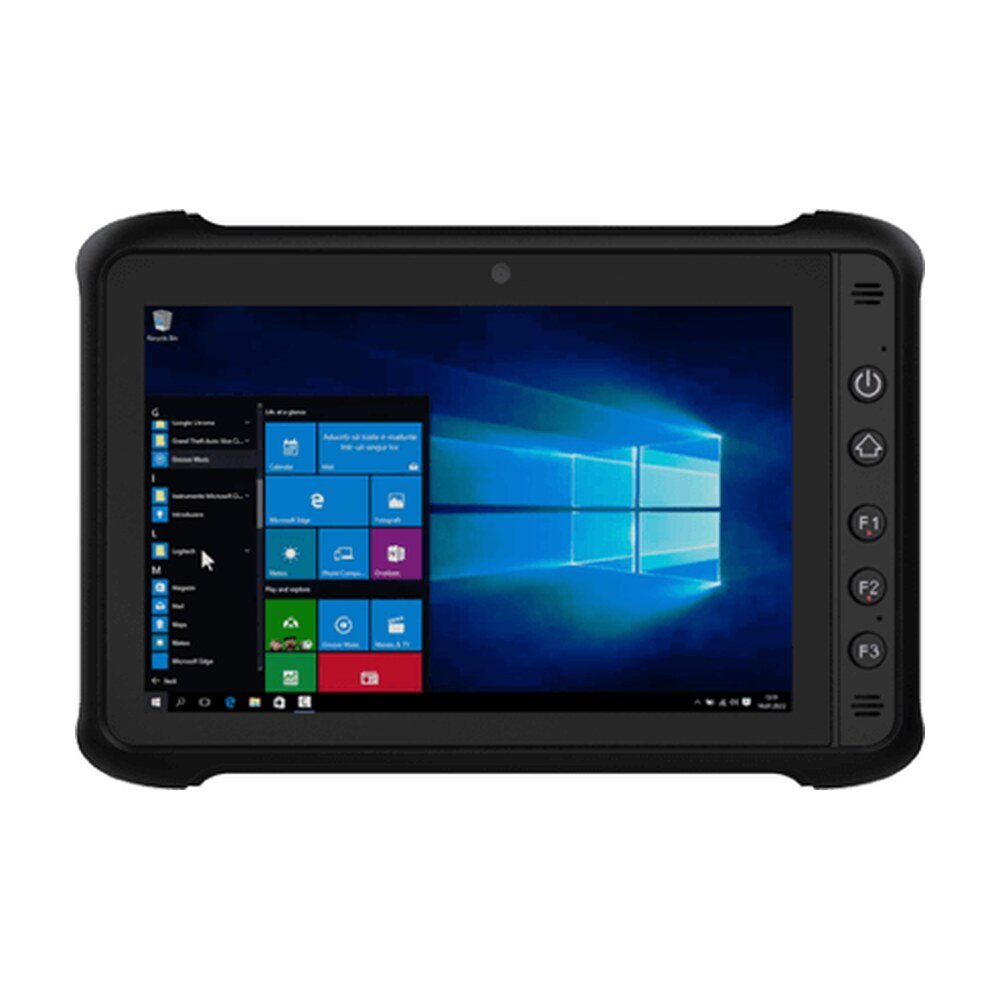

The Winmate M900EKN Rugged Tablet with an 8-inch WXGA (1280 x 800) screen and optical bonding, delivering exceptional image quality and enhanced outdoor visibility, even in bright sunlight with its 800 nits brightness level. Additionally, it offers increased durability and vivid visuals in various conditions.
With its RJ45 GigaLAN port, the M900EKN Rugged Tablet offers lightning-fast data and image transfers with speeds ranging from 10 to 1000 Mbps, making it perfect for factory automation and AIoT applications. This enhances productivity by reducing latency and improving response times, ensuring swift and efficient connectivity for seamless task support.
The Winmate M900EKN Rugged Tablet offers both USB 3.0 Type A and Type C connectors for flexible connectivity, enhancing productivity across diverse industries and applications.
The IP65 rating of the Winmate M900EKN Rugged Tablet ensures dependable performance in challenging conditions, offering waterproof and dustproof features for adaptable application in diverse industries.
| Display | |
|---|---|
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) (Default), Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | Mutually Exclusive with Barcode Reader (Default), HF RFID Reader 13.56 MHz (Optional), LF RFID Reader 125 KHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Mechanical | |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 5 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Control | |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Power | |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Optional Accessory | Desk Dock (Optional), Vehicle Dock (Optional), USB-A Cable (Optional), Battery Charger (Optional), Vehicle Charger (Optional), Hand Strap (Optional), Vehicle Cradle (Optional), LAN Cable (Optional), Capacitive Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M900EKN |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M900EKN |
|---|---|
| Category | Enterprise Mobility, Windows Rugged Tablets, Winmate |
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) (Default), Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | Mutually Exclusive with Barcode Reader (Default), HF RFID Reader 13.56 MHz (Optional), LF RFID Reader 125 KHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 5 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M900EKN |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
