Explore Winmate M900PT, a vehicle-mounted computer featuring Intel® Pentium® N4200, 8-inch display, IP65 for warehouse logistics and fleet management.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M900PT, a vehicle-mounted computer featuring Intel® Pentium® N4200, 8-inch display, IP65 for warehouse logistics and fleet management.
Weighing at just 2.2 lbs (approx. 900g), the M900PT Windows tablets is engineered to deliver lightweight mobility in a compact tablet form factor. The 8” sunlight-readable display features a user-friendly projected capacitive touch screen.
The M900PT Windows tablet runs on Windows 10. It has an Intel® Pentium® N4200 Apollo Lake processor. This tablet offers good performance and low power use. It also has long battery life.
The M900PT rugged Windows tablets can handle tough environments. They have a strong case with MIL-STD-810G certification and an IP65 rating. Its wide operating temperature range ensures reliable operation under extreme conditions.

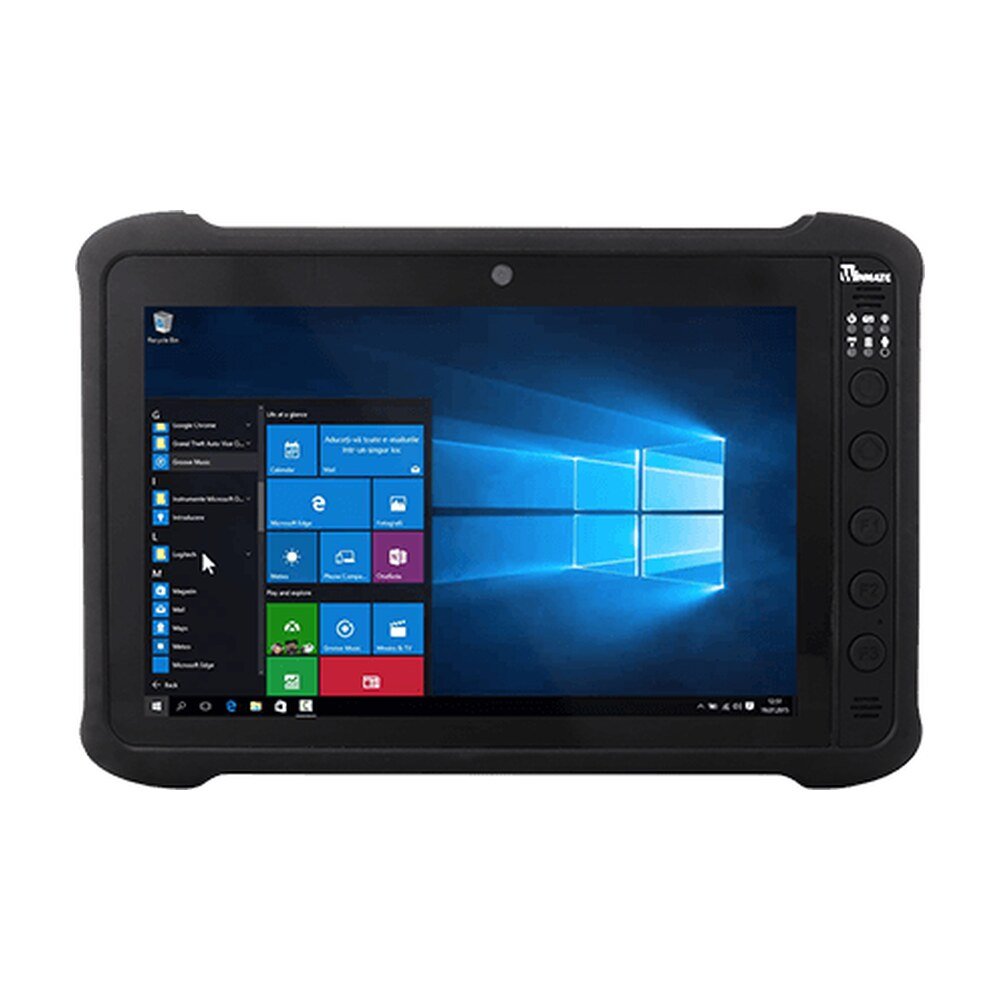

The M900PT Windows rugged tablet is made for mobile workers. It has a bright 8” display with optical bonding. The resolution is 1280 x 800. It features PCAP multi-touch for an easy user experience and good visibility outdoors. Meanwhile, it supports rain/stylus/glove modes, meaning the touchscreen remains responsive in all conditions.
The M900PT comes with optional peripherals such as a vehicle cradle and Vehicle Gateway VG100. The device connects to the Vehicle Gateway VG100 using the built-in D-Sub interface. This allows it to send and receive vehicle data for better information integration. The solution is E-mark certified.
| Display | |
|---|---|
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128 GB SSD, Additional storage available with micro SDXC card slot (Default), 256 GB SSD (Optional), 512 GB SSD (Optional) |

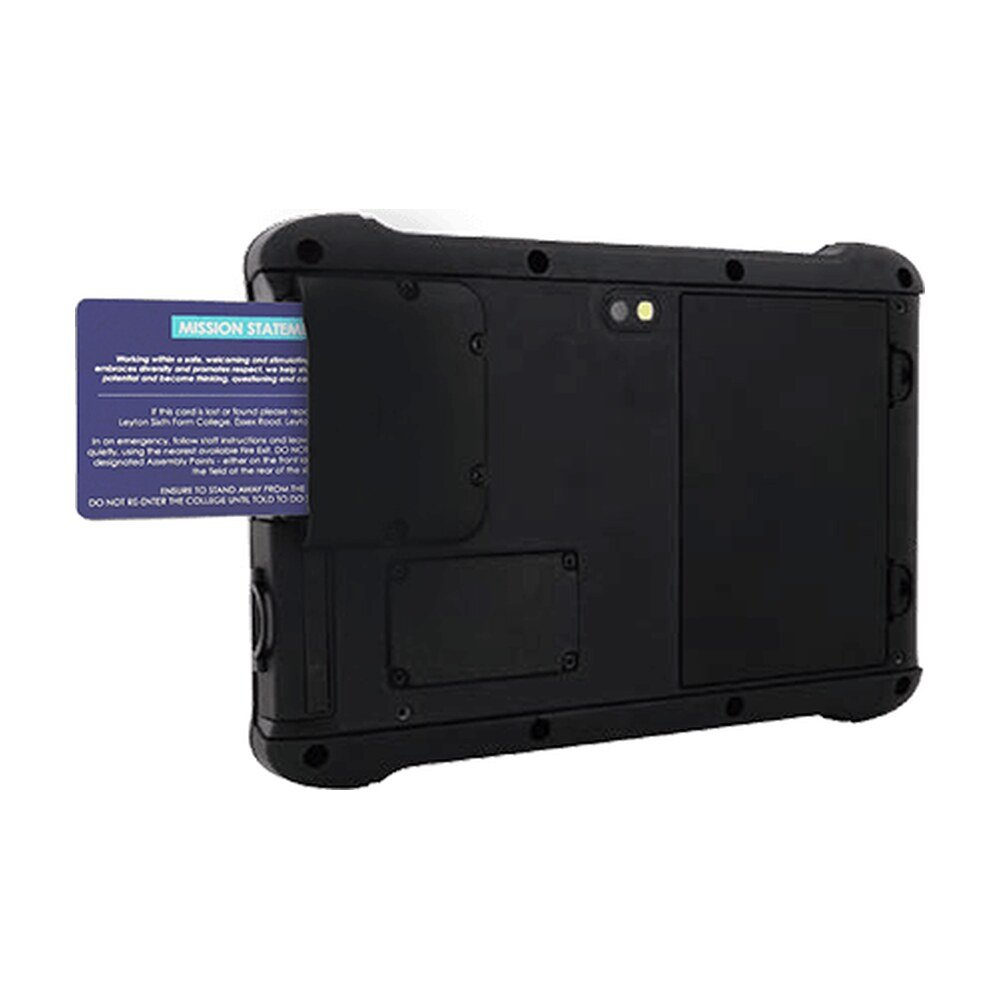

| Smart Card Reader | Built-in Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Mechanical | |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Expansion Port | 1 x 15-pin D-sub connector for Power Input, USB 2.0,Audio Out, and Tx/ Rx |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 5 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, E-Mark |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Control | |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Power | |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | 8 Hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Optional Accessory | Desk Dock (Optional), Vehicle Dock (Optional), Vehicle Gateway (Optional), Vehicle Cradle (Optional), Battery Charger (Optional), Vehicle Charger (Optional), Hand Strap (Optional), Capacitive Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M900PT |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M900PT |
|---|---|
| Category | Enterprise Mobility, Windows Rugged Tablets, Winmate |
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128 GB SSD, Additional storage available with micro SDXC card slot (Default), 256 GB SSD (Optional), 512 GB SSD (Optional) |
| Smart Card Reader | Built-in Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Expansion Port | 1 x 15-pin D-sub connector for Power Input, USB 2.0,Audio Out, and Tx/ Rx |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 5 ft |
| IP rating | IP65 |
| Certification | CE, FCC, E-Mark |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | 8 Hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M900PT |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
