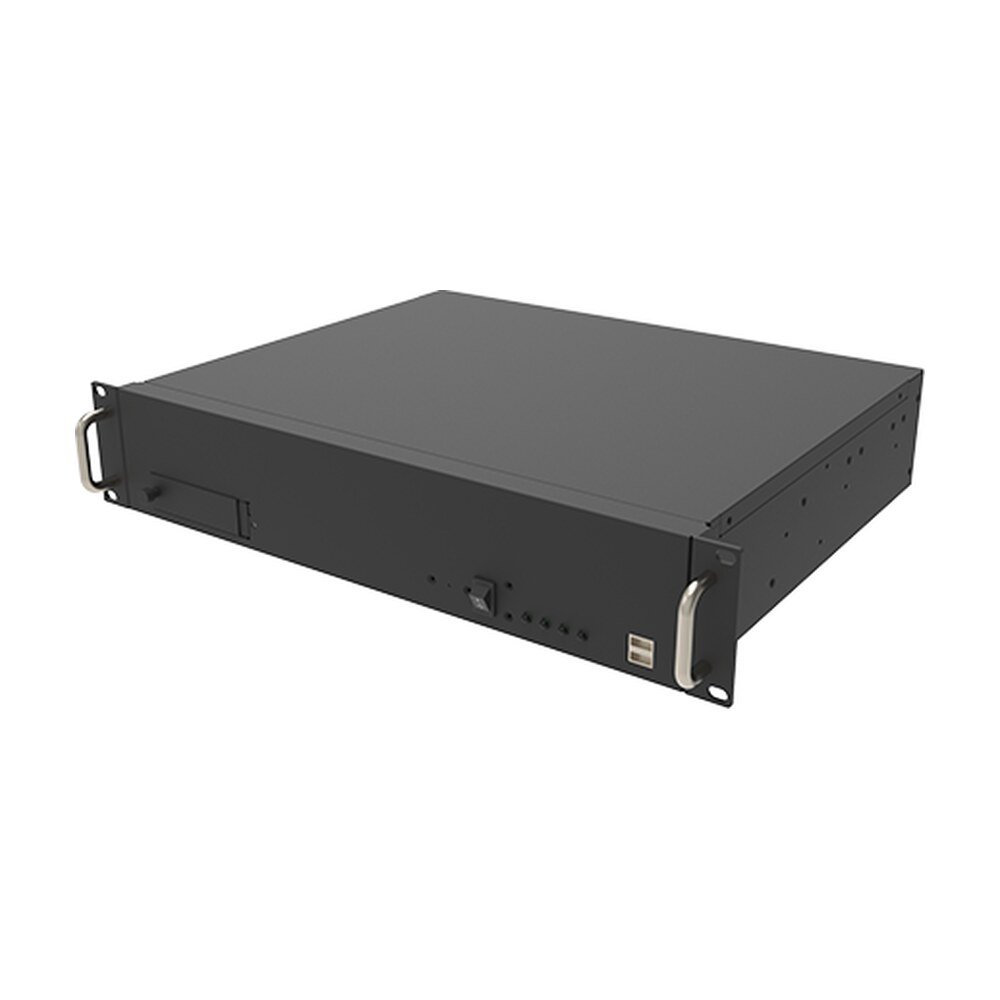

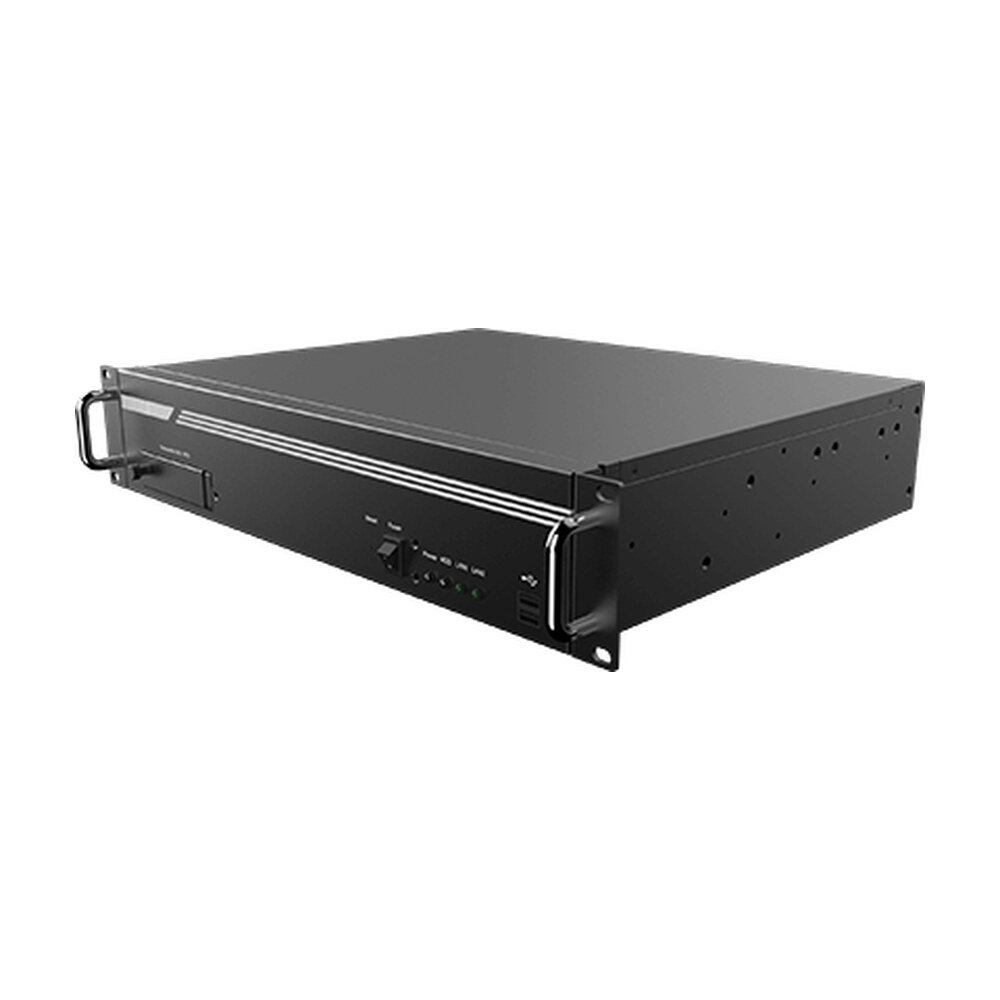

Explore Winmate OMIVEAC-IAD7T, an industrial computer solution featuring Intel® Core™ i7-14700T for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate OMIVEAC-IAD7T, an industrial computer solution featuring Intel® Core™ i7-14700T for industrial automation and embedded systems.
Powered by the Intel® Core™ i7-14700T processor, this solution features a massive 33MB cache and a turbo boost of up to 5.20 GHz for exceptional multitasking capabilities. It delivers fast, responsive performance even under demanding workloads. Ideal for mission-critical and compute-intensive applications where speed and reliability are paramount.
With TPM 2.0 onboard, Winmate rack servers offer advanced data encryption, secure identity verification, and protected remote access. Features like secure boot and measured boot reinforce system integrity from the ground up. Designed to meet strict industry compliance, TPM 2.0 ensures your data stays secure even in the most demanding sectors.
Winmate’s 2U rack servers integrate dual front-facing 2.5-inch SATAIII drives with RAID 0/1 support. RAID 0 boosts performance by striping data across two drives. RAID 1 protects critical data by mirroring it in real time. This setup provides fast data access with built-in backup. It is ideal for demanding industrial and enterprise applications.
Supports a dual-port 10GbE fiber PCIe riser card. Also supports a dual-port 2.5GbE RJ45 card for flexible, reliable connectivity. This configuration enables seamless high-speed data transfers across multiple networks. A future-ready solution designed for bandwidth-hungry industrial and enterprise applications.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz |
| Chipset | Intel® R680E |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz,32GB |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 512GB (Default), 2 x SATA III for 2.5" SSD/HDD(RAID support) (Optional) |
| Ethernet controller | 5 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Mechanical | |
| Dimension | 482.6 x 384 x 88 mm |
| Weight | 8.2 kg |
| Mounting | 2U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Certification | |
| Certification | CE, FCC, IEC 61850-3, IEC 60068-2-64, IEC 60068-2-2 |

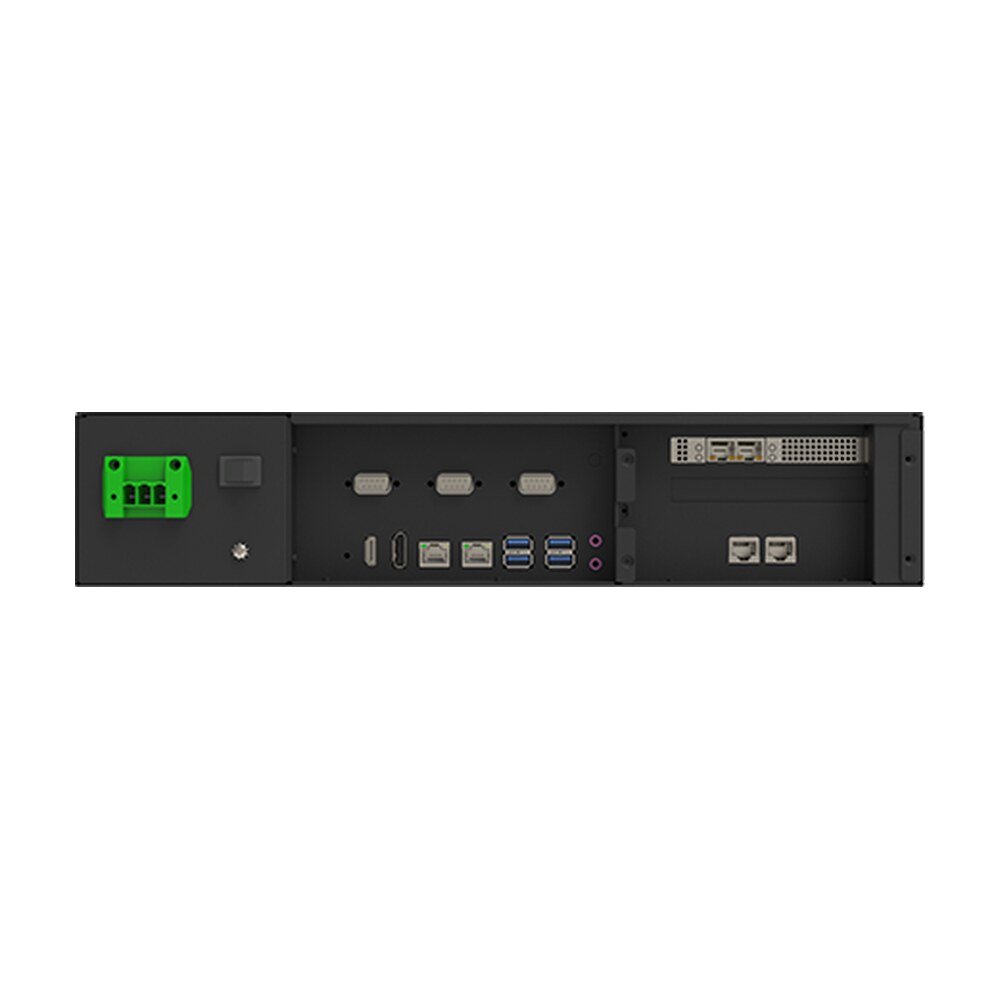

| IO Ports | |
| USB Port | Front side 2 x USB2.0 (Type-A), Rear side 4 x USB3.2 Gen2 x 1 (Type-A) |
| Serial Port | 1 x RS232/422/485 setting fromBIOS, 2 x RS232 setting by jumper. |
| LAN | 4 x 2.5GbE RJ45 Connector , 2x 10GbE SFP+ |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | 1 x Mic in, 1 x Line out |
| Expansion Port | 1 x M.2 Key E 2230 slot for WiFi , 1 x PCIe x 16,support Dual-Port Fiber 10GbE Ethernet PCI Express Riser Card, 2 x 2.5Gb Ethetnet (Default), Swappable 2.5” HDD/SSD Bay Slot (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| Power Input | 1 x 3 Pin PHOENIX CONTACT DFK PC 4/ 3GF 7,621840560 connector for 110 to 240 VDC/VAC ± 20% Input |
| Control | |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control), 1 x Clear CMOS Button |
| Accessory | |
| Accessory | Open Wire Cable for connecting terminal block, QSG |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | OMIVEAC-IAD7T |
| Series | 2U Rack Server |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | OMIVEAC-IAD7T |
|---|---|
| Category | Embedded Computing, Rack Server, Winmate |
| Processor | Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz |
| Chipset | Intel® R680E |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz,32GB |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 512GB (Default), 2 x SATA III for 2.5" SSD/HDD(RAID support) (Optional) |
| Ethernet controller | 5 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Dimension | 482.6 x 384 x 88 mm |
| Weight | 8.2 kg |
| Mounting | 2U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Certification | CE, FCC, IEC 61850-3, IEC 60068-2-64, IEC 60068-2-2 |
| USB Port | Front side 2 x USB2.0 (Type-A), Rear side 4 x USB3.2 Gen2 x 1 (Type-A) |
| Serial Port | 1 x RS232/422/485 setting fromBIOS, 2 x RS232 setting by jumper. |
| LAN | 4 x 2.5GbE RJ45 Connector , 2x 10GbE SFP+ |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | 1 x Mic in, 1 x Line out |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| Power Input | 1 x 3 Pin PHOENIX CONTACT DFK PC 4/ 3GF 7,621840560 connector for 110 to 240 VDC/VAC ± 20% Input |
| Button | 1 x Front side Power Switch, 1 x Rear side Power Switch(power input control), 1 x Clear CMOS Button |
| Accessory | Open Wire Cable for connecting terminal block, QSG |
| Brand | Winmate |
| Manufacturer part number | OMIVEAC-IAD7T |
| Series | 2U Rack Server |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
